Model # ZET1058PF4SS Official GE wall oven

Here are the diagrams and repair parts for Official GE ZET1058PF4SS wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

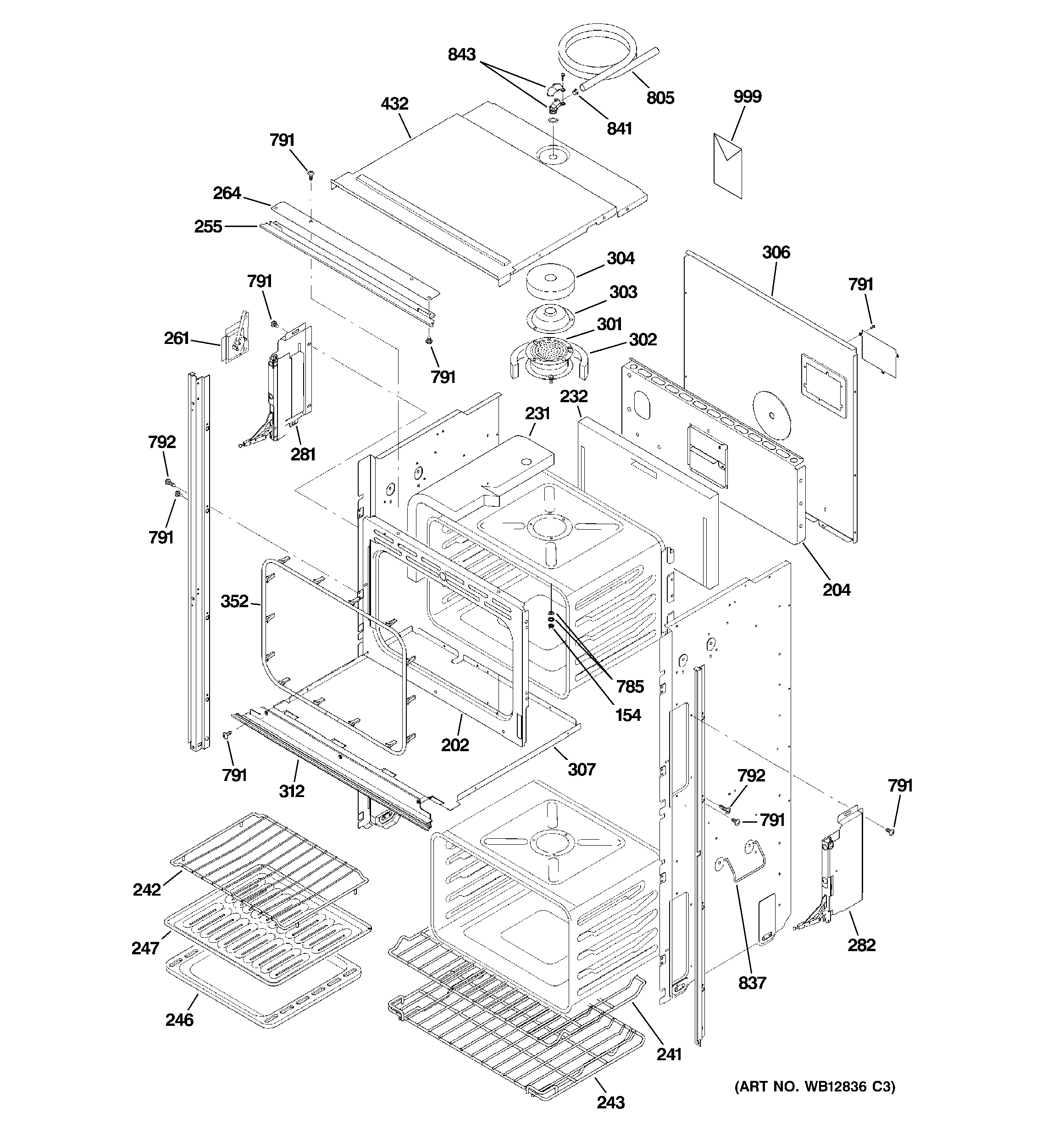

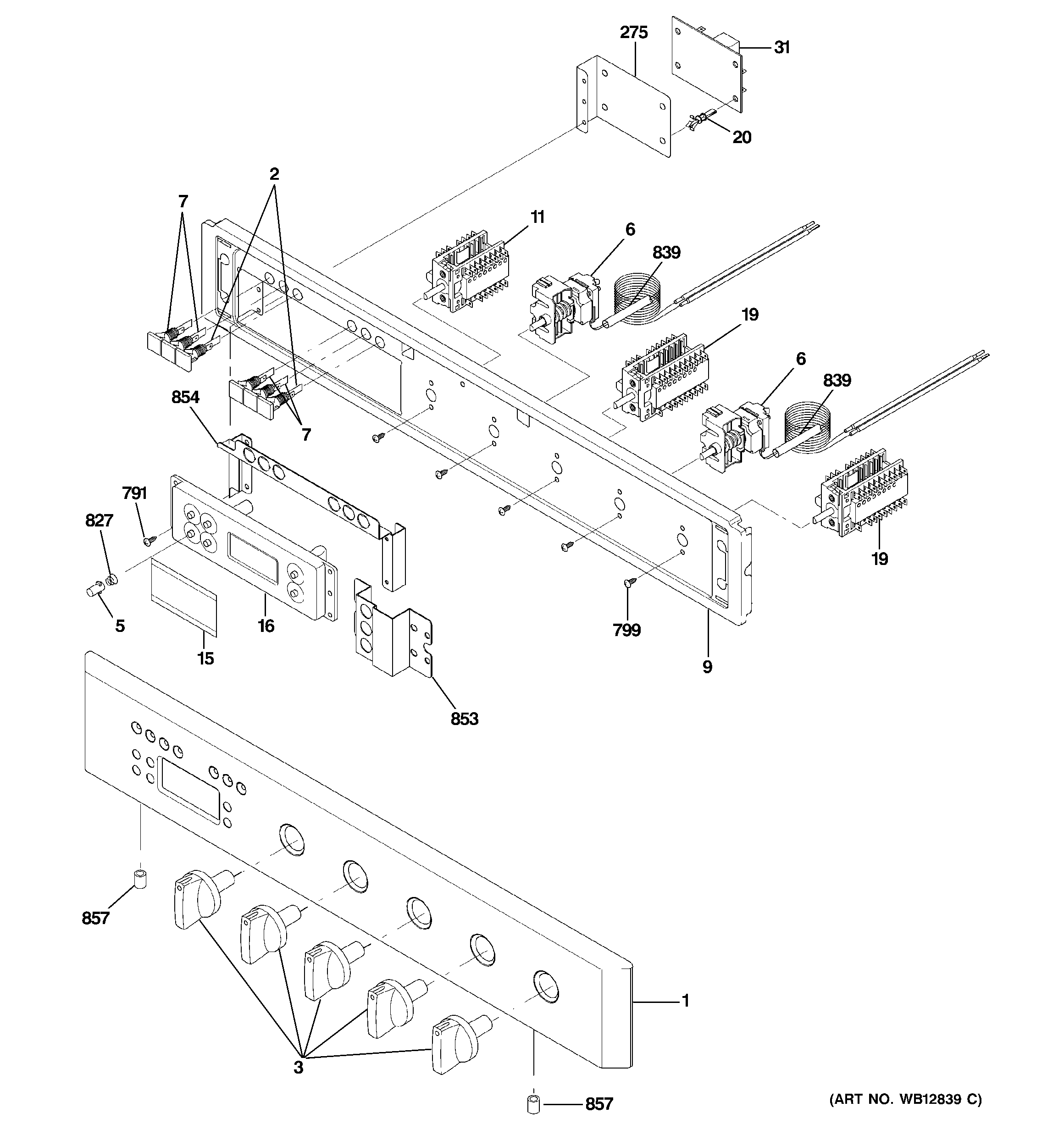

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Oven Broiler Grid WB49X10169
Oven broiler grid

Part #WB49X10169

Replaced by #WB48X5108

?
Manufacturer substitution
This part replaces WB49X10169. Substitute parts can look different from the original.
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Decal WB02X10833
#852

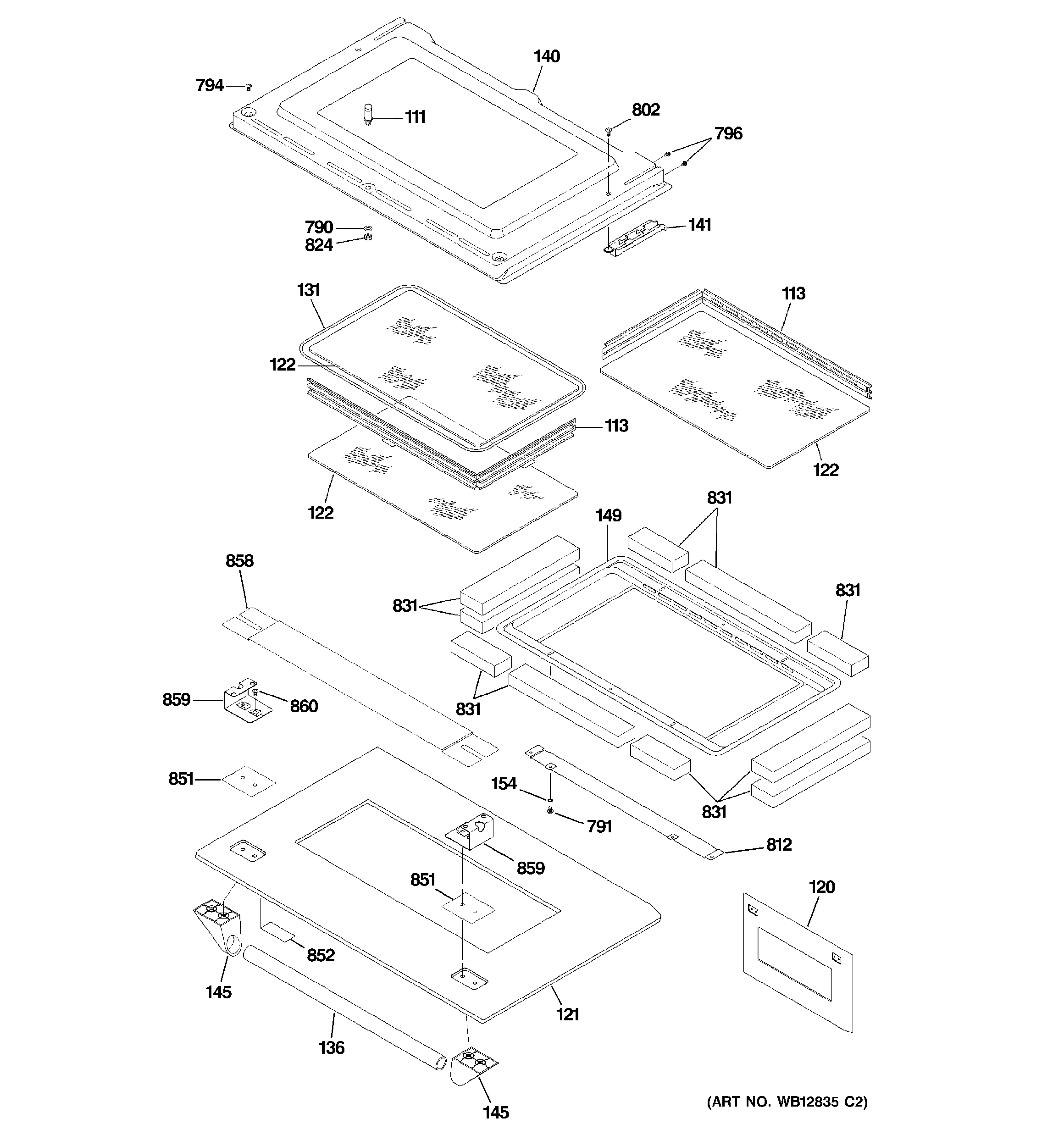

Door diagram

Decal

Part #WB02X10833

$42.96
In Stock
Cover WB56X10455
#145

Door diagram

Cover

Part #WB56X10455

$454.80
In Stock
Oven Support WB07X10151
#308

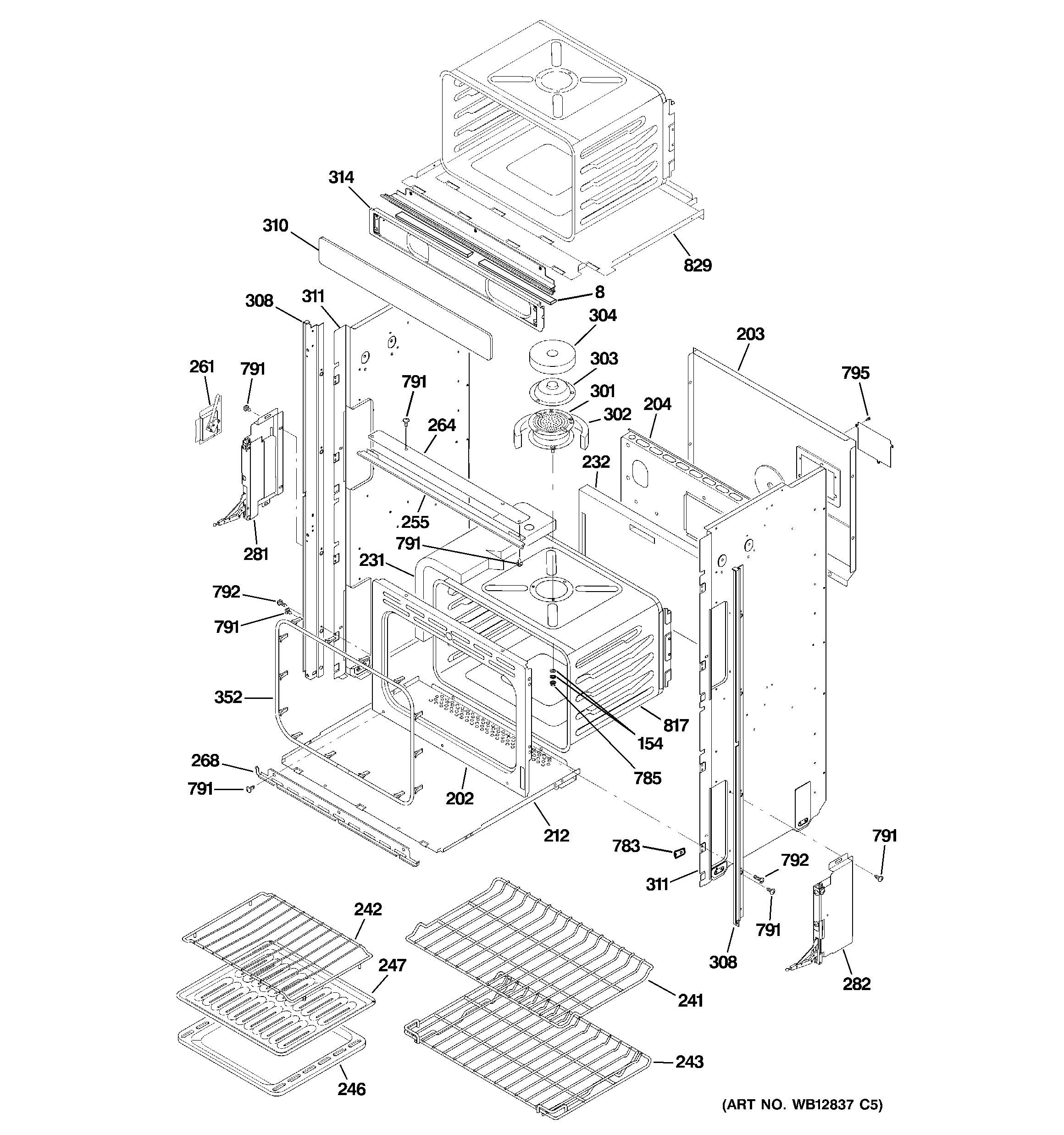

Body parts (2) diagram

Oven support

Part #WB07X10151

$110.43
In Stock
Cooking Appliance Halogen Light Bulb (replaces Wb08x10045, Wb36x10176, Wr02x11184) WB01X10239
#838

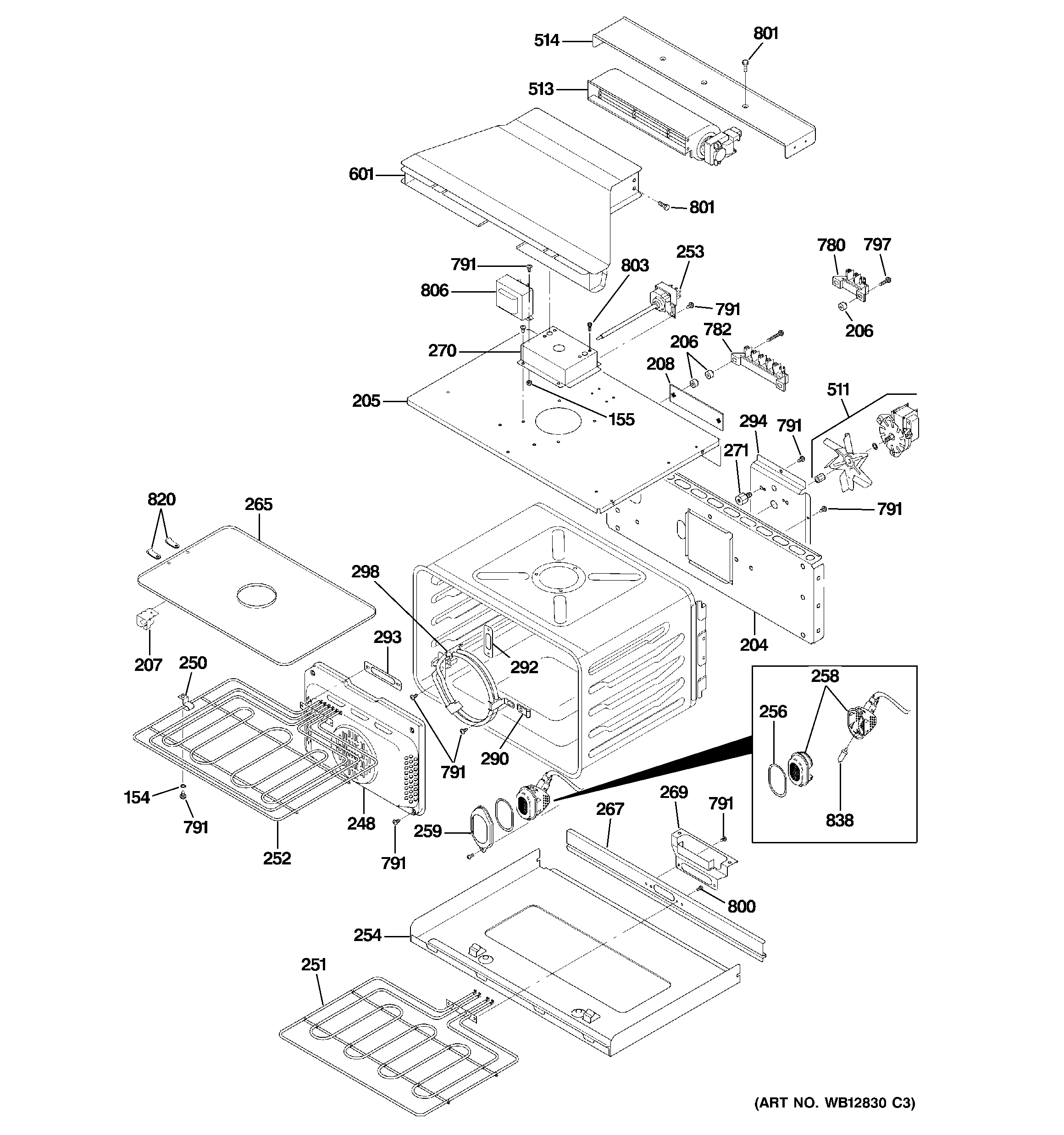

Upper oven diagram

Cooking appliance halogen light bulb (replaces wb08x10045, wb36x10176, wr02x11184)

Part #WB01X10239

$27.25 |
18% OFF Phone Price : $33.25
Back Order
Wall Oven Door Hinge WB10X10028
#141

Door diagram

Wall oven door hinge

Part #WB10X10028

$33.02 |
15% OFF Phone Price : $39.02
In Stock
Wall Oven Door Lock Motor WB14X10005
#151

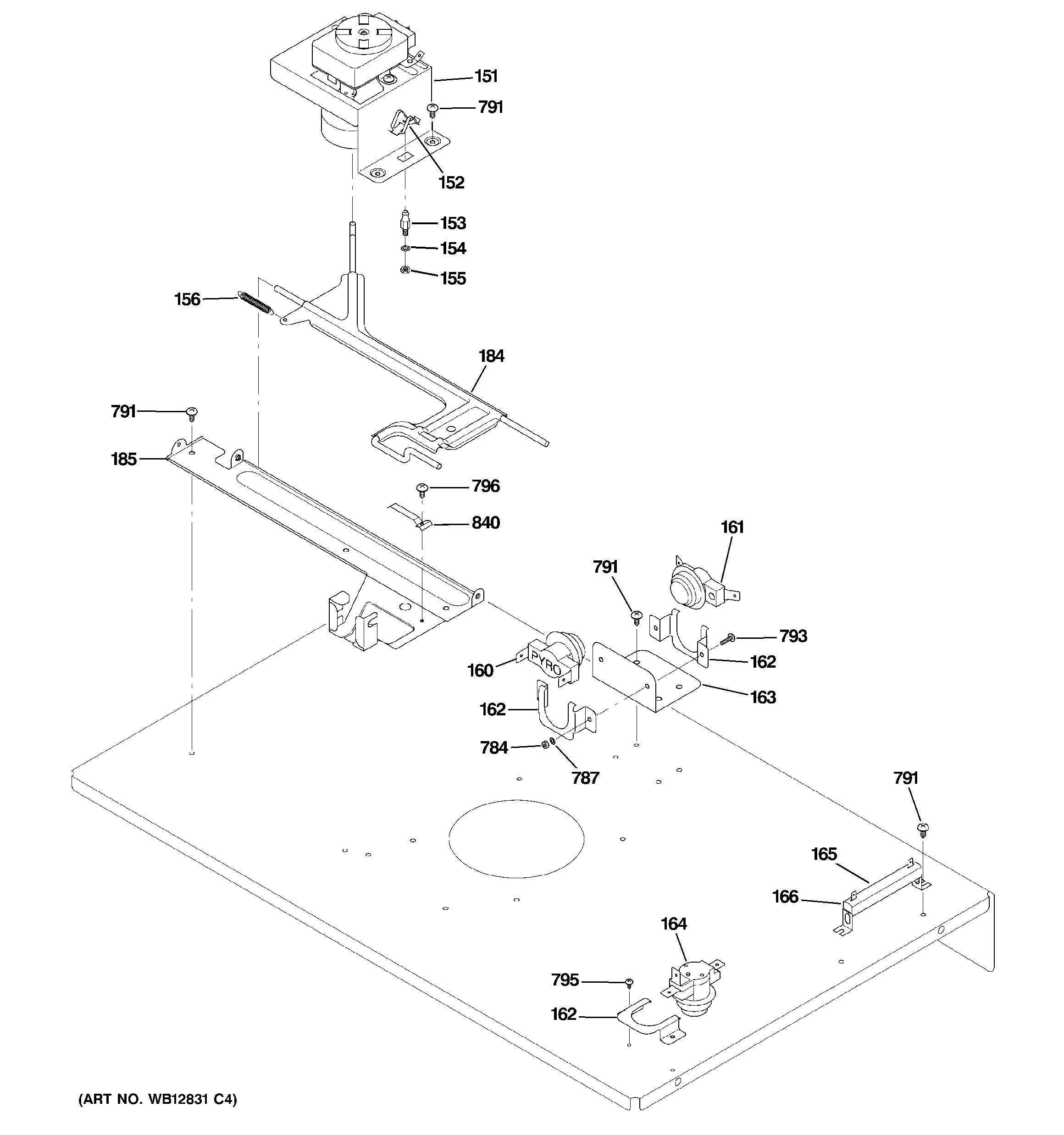

Door lock diagram

Wall oven door lock motor

Part #WB14X10005

Replaced by #WB00X7310

?
Manufacturer substitution
This part replaces WB14X10005. Substitute parts can look different from the original.
$111.86
In Stock
Element Ring WB44X10032
#298

Upper oven diagram

Element ring

Part #WB44X10032

Replaced by #WB44X10012

?
Manufacturer substitution
This part replaces WB44X10032. Substitute parts can look different from the original.
$282.17 |
$12.00 OFF Phone Price : $294.17
In Stock
Lh Hinge Box WB10X10059
Lh hinge box

Part #WB10X10059

Replaced by #WB10X10078

?
Manufacturer substitution
This part replaces WB10X10059. Substitute parts can look different from the original.
$135.45 |
8% OFF Phone Price : $147.45
In Stock
Convection R WB48X10012
Convection r

Part #WB48X10012

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48X10012. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
