GE
Electric Range

Model # JS968BF3BB Official GE electric range

Here are the diagrams and repair parts for Official GE JS968BF3BB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Wall Oven Temperature Sensor WB23T10015
#253

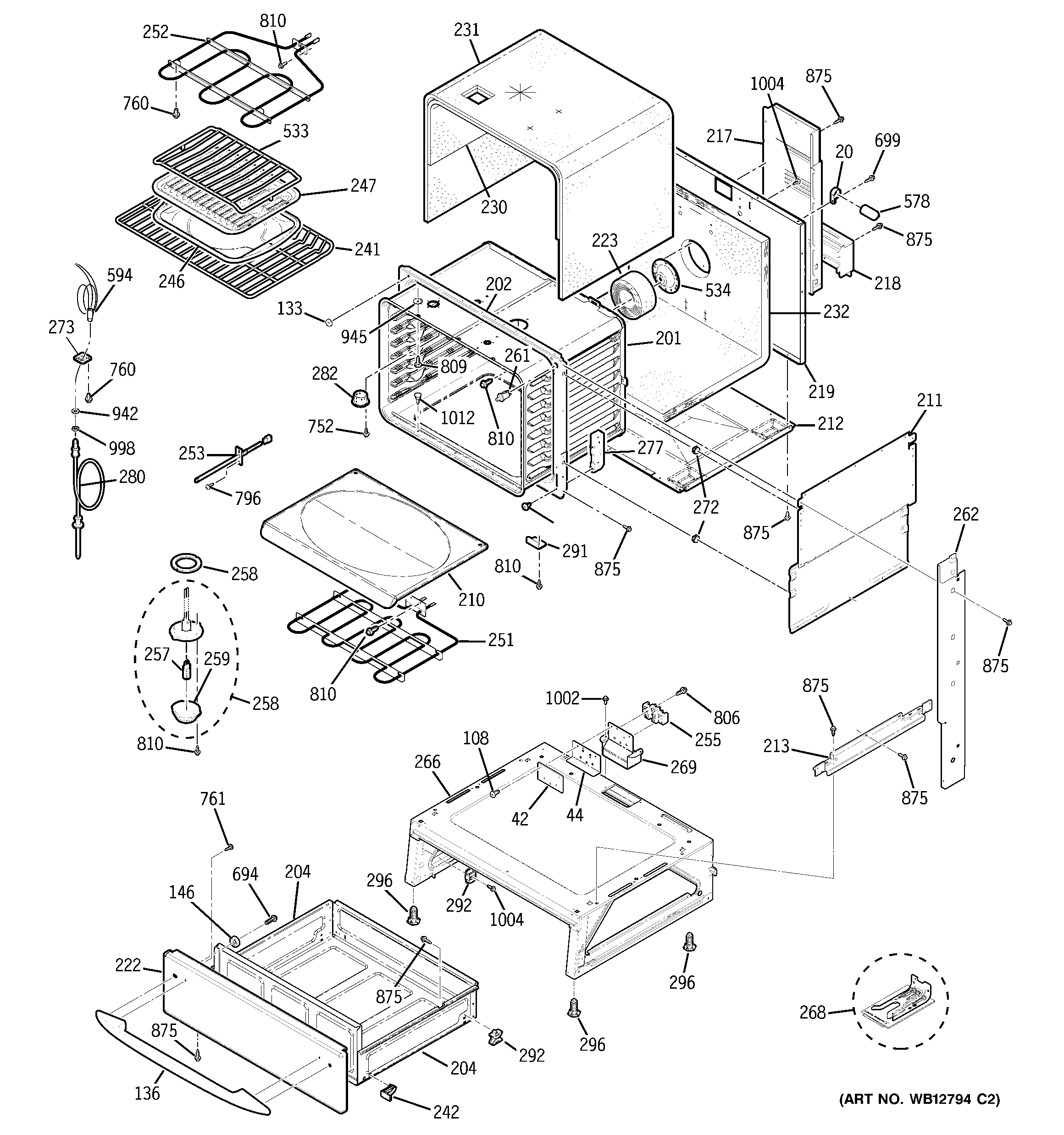

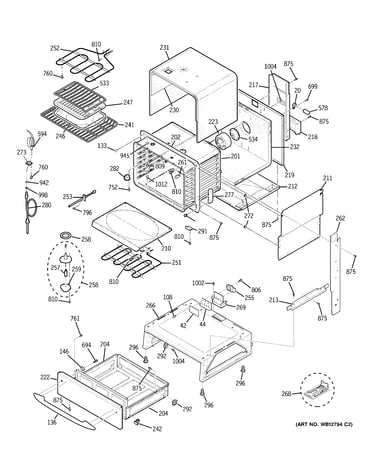

Body parts diagram

Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Switch WB24T10057
#19

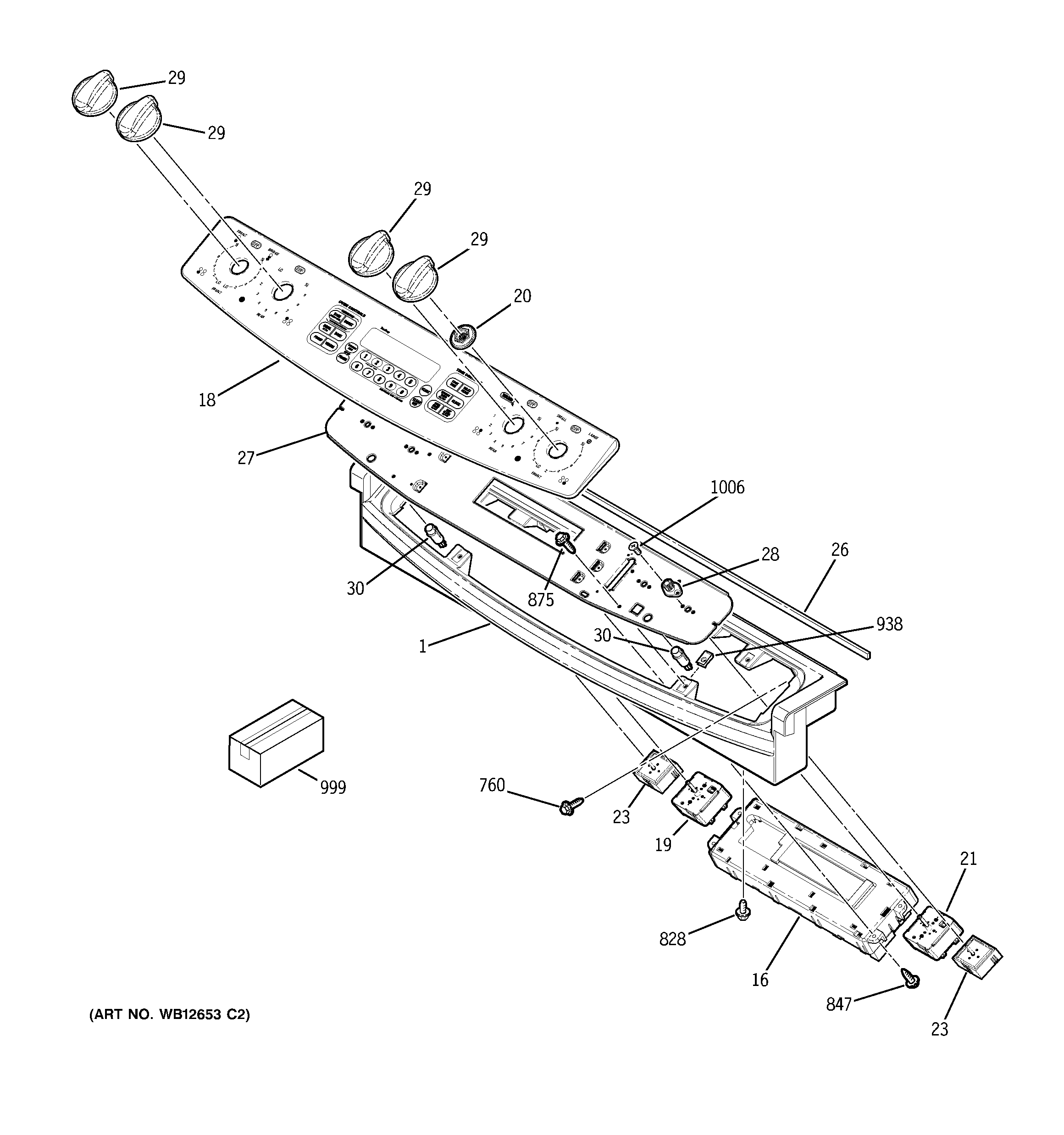

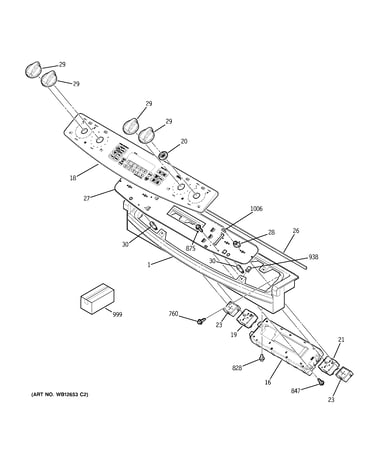

Control panel diagram

Switch

Part #WB24T10057

Replaced by #WB24T10119

?
Manufacturer substitution
This part replaces WB24T10057. Substitute parts can look different from the original.
BEST SELLER
$68.42 |
8% OFF Phone Price : $74.42
In Stock
Range Halogen Surface Element WB30T10044
#58

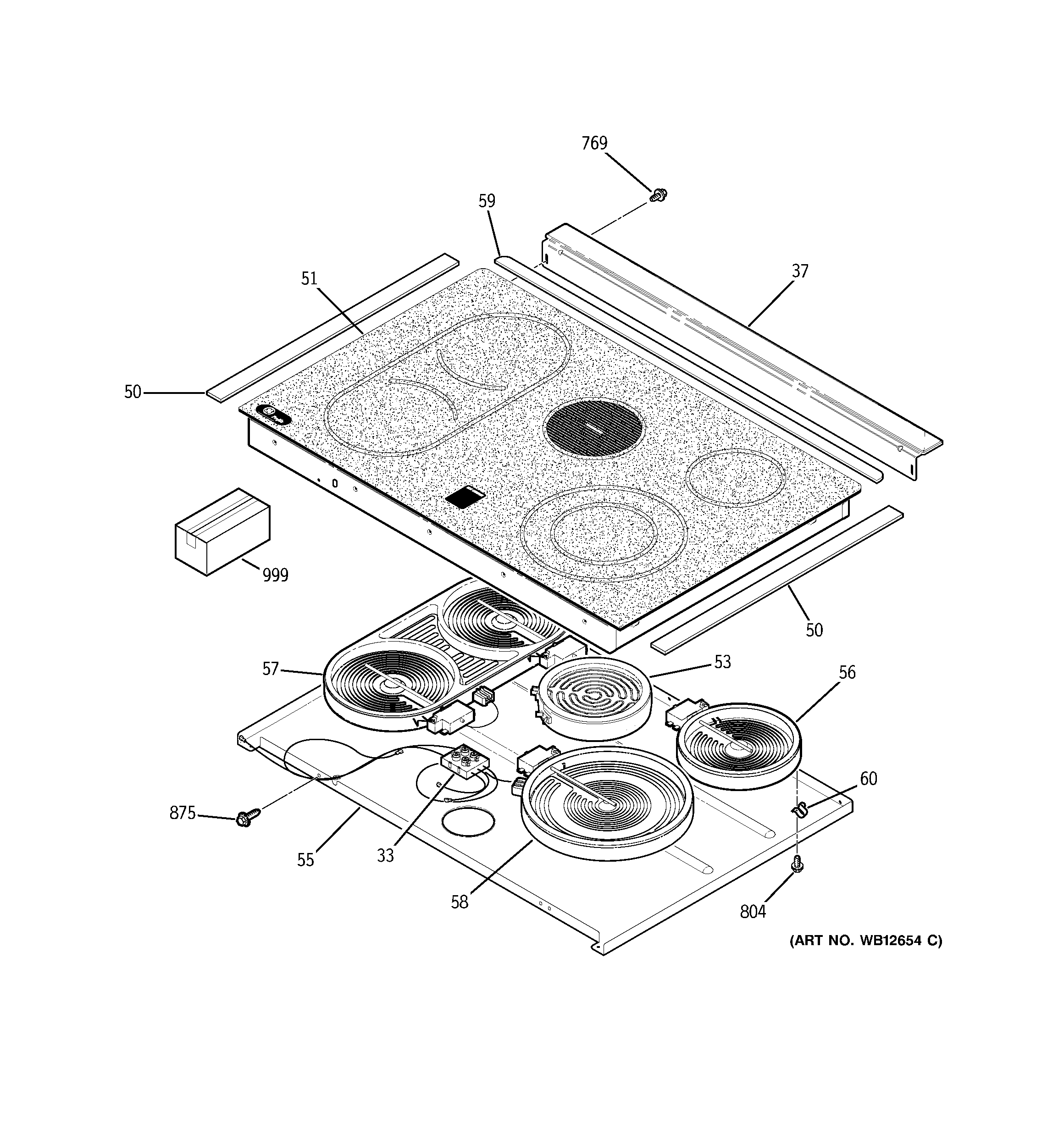

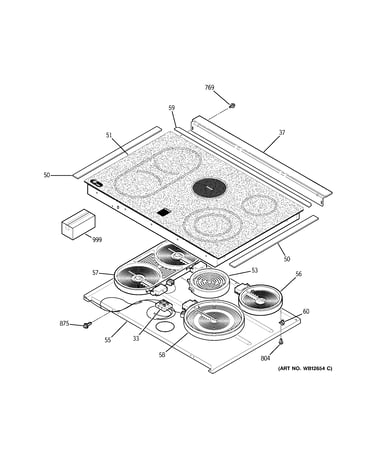

Cooktop diagram

Range halogen surface element

Part #WB30T10044

Replaced by #WB30T10099

?
Manufacturer substitution
This part replaces WB30T10044. Substitute parts can look different from the original.
BEST SELLER
$102.43 |
10% OFF Phone Price : $114.43
In Stock
Pack Window WB56T10152
#338

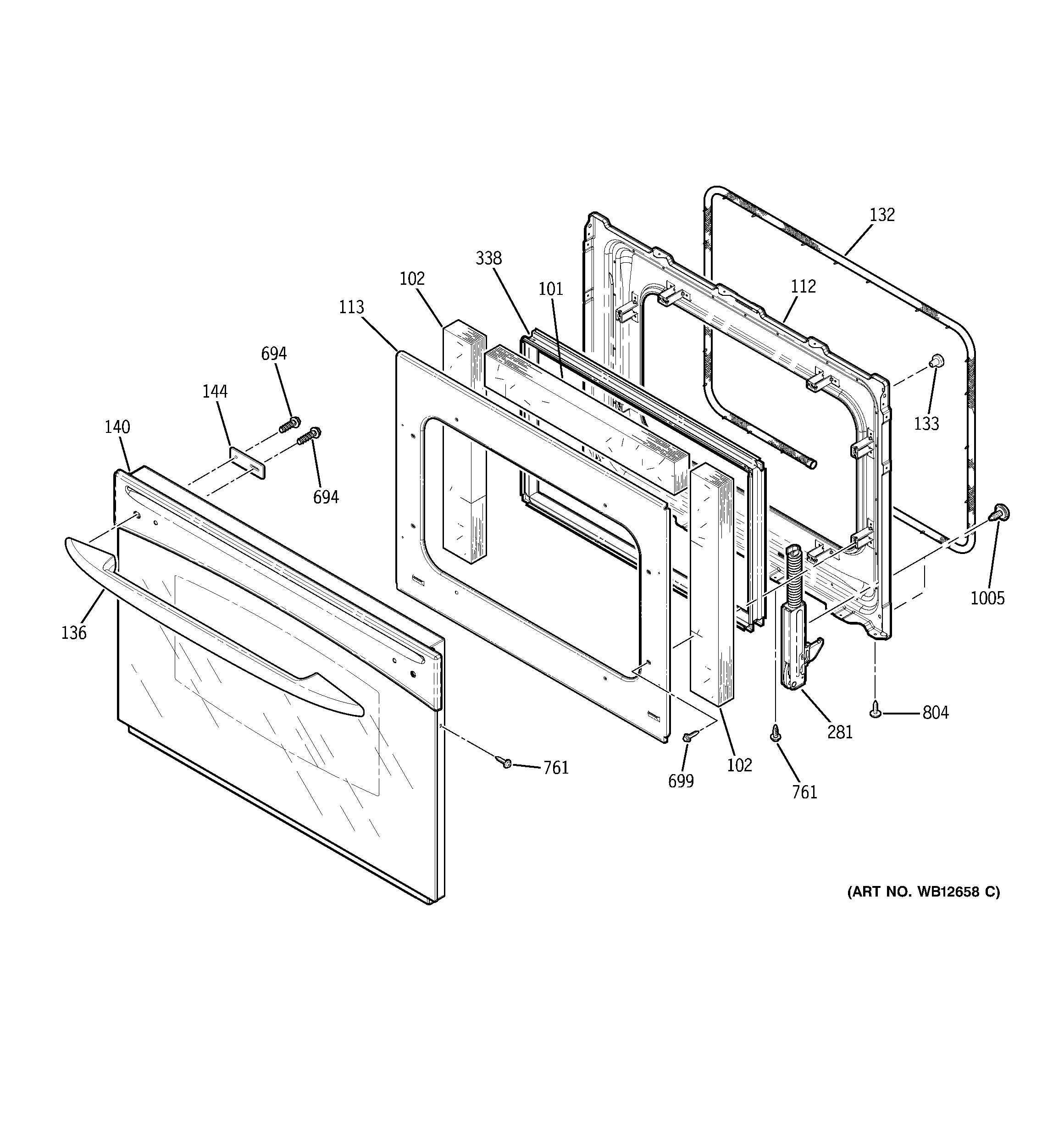

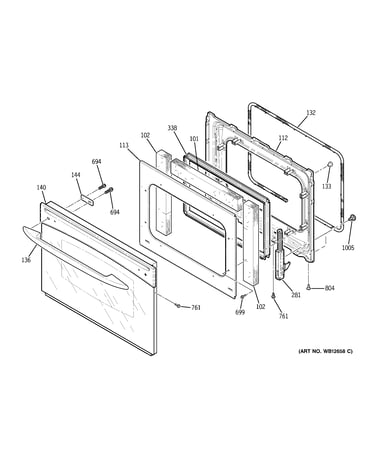

Door diagram

Pack window

Part #WB56T10152

Replaced by #WB56X22160

?
Manufacturer substitution
This part replaces WB56T10152. Substitute parts can look different from the original.
BEST SELLER
$359.05 |
$12.00 OFF Phone Price : $371.05
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

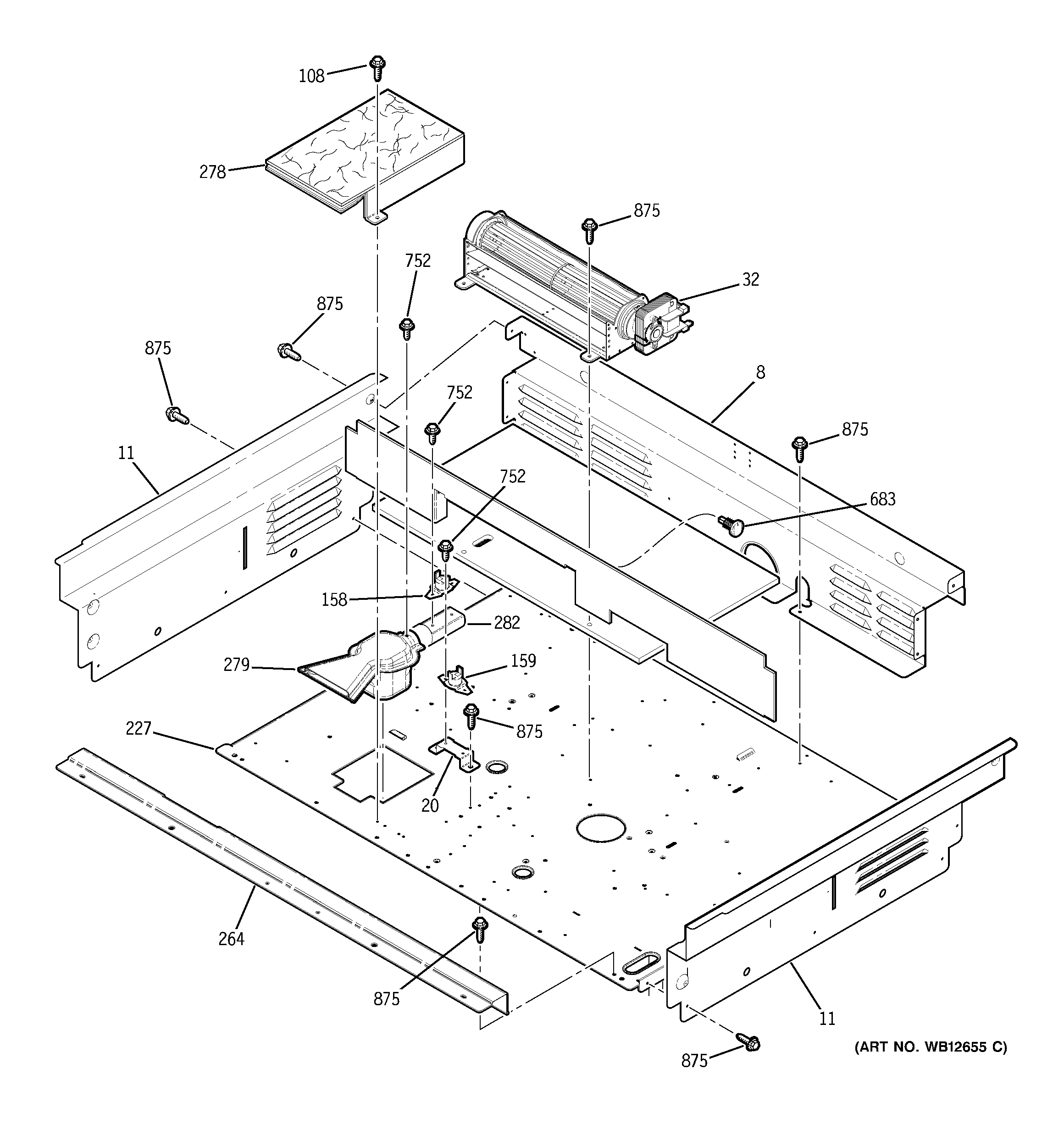

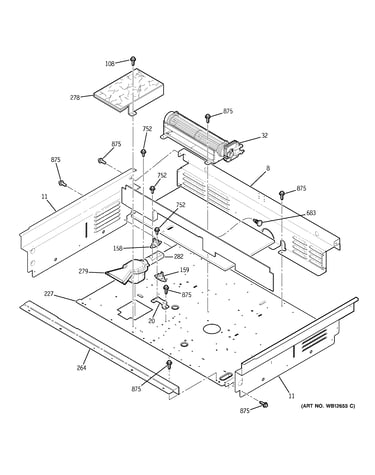

Cooling fan diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Element Control Switch (replaces Wb24t10015, Wb24t10056) WB24T10063
#23

Control panel diagram

Range surface element control switch (replaces wb24t10015, wb24t10056)

Part #WB24T10063

BEST SELLER
$70.83 |
8% OFF Phone Price : $76.83
In Stock
Conversion Element WB44T10020
#298

Convection fan diagram

Conversion element

Part #WB44T10020

Replaced by #WB44T10053

?
Manufacturer substitution
This part replaces WB44T10020. Substitute parts can look different from the original.
$57.06 |
10% OFF Phone Price : $63.06
In Stock
Nut WB02T10017
#977

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Complete Fan Blade WB02T10142
#43

Convection fan diagram

Complete fan blade

Part #WB02T10142

Replaced by #WB02T10289

?
Manufacturer substitution
This part replaces WB02T10142. Substitute parts can look different from the original.
This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Range Storage Drawer Support, Rear WB48T10030
#292

Body parts diagram

Range storage drawer support, rear

Part #WB48T10030

Replaced by #WB02X33180

?
Manufacturer substitution
This part replaces WB48T10030. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

  • Foam Tape WB01T10052
    Foam tape
    $7.88 |
    11% OFF Phone Price : $8.88
