Model # 11081446220 Official Kenmore electric washer

Here are the diagrams and repair parts for Official Kenmore 11081446220 electric washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

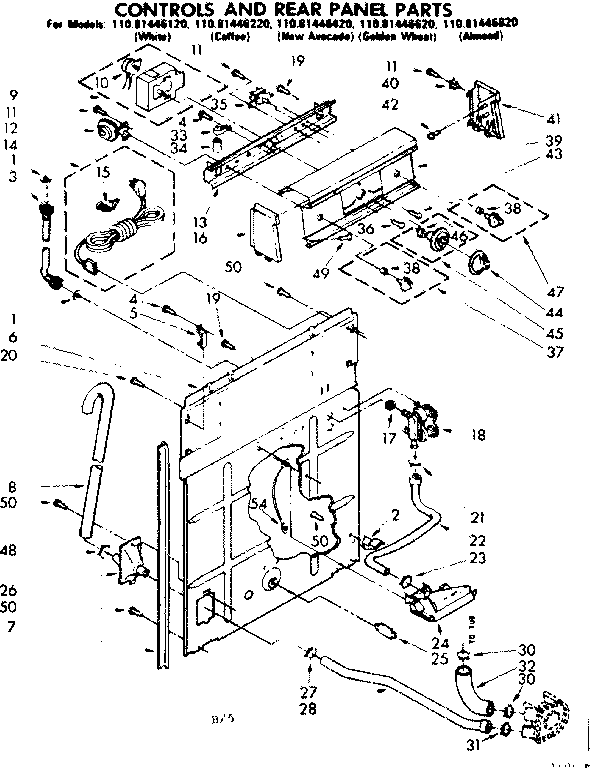

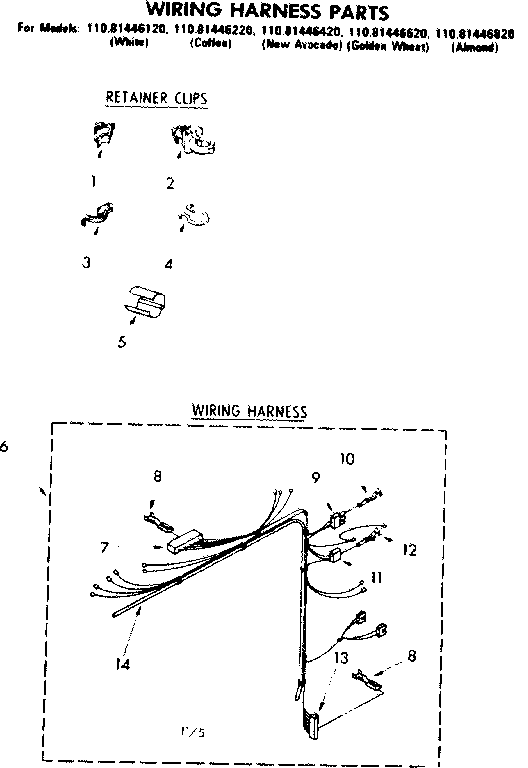

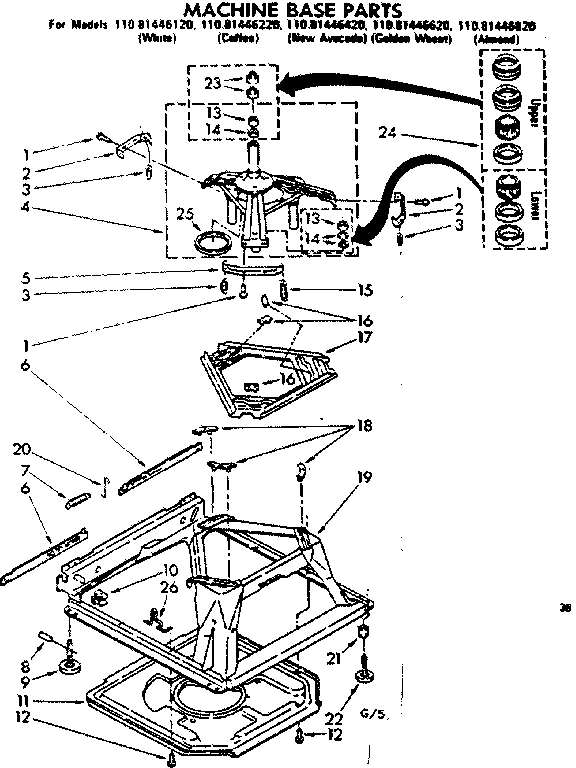

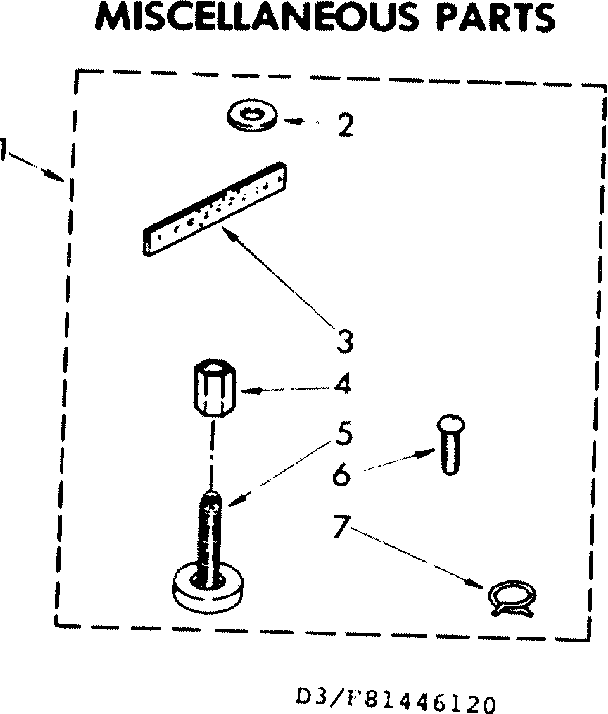

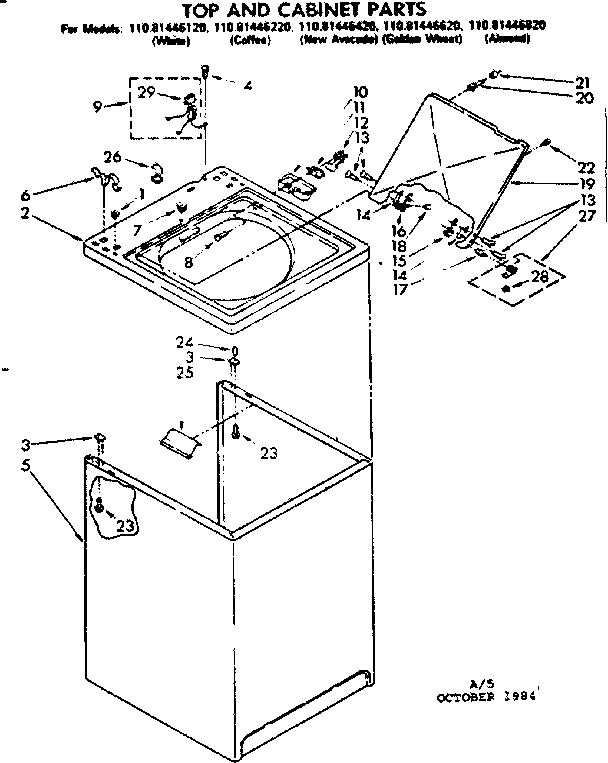

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for11081446220 Electric Washer

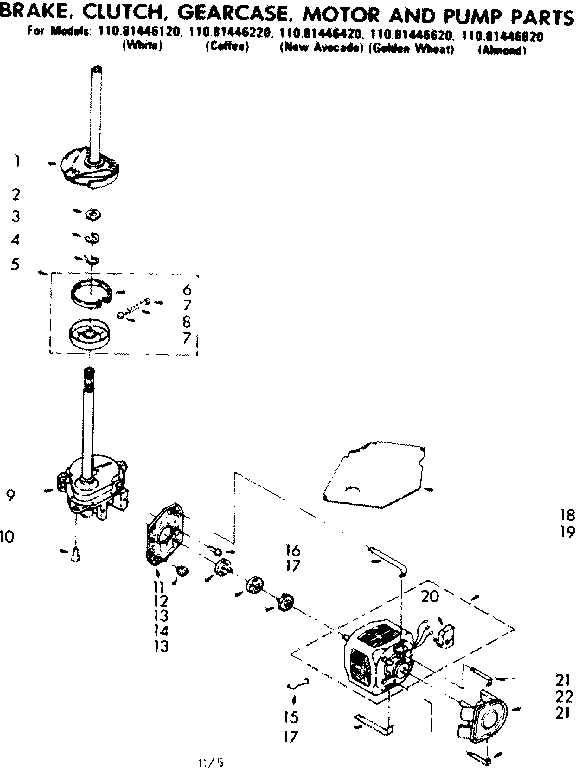

  • Coupling 62693
    #14

    Brake clutch gearcase motor & pump parts diagram

    Coupling

    Part #62693

    Replaced by #285753A

    ?
    Manufacturer substitution
    This part replaces 62693. Substitute parts can look different from the original.
    BEST SELLER
    $19.80
    9% OFF Phone Price : $21.80
    In Stock
  • Coupling 62672
    #13

    Brake clutch gearcase motor & pump parts diagram

    Coupling

    Part #62672

    Replaced by #285753A

    ?
    Manufacturer substitution
    This part replaces 62672. Substitute parts can look different from the original.
    BEST SELLER
    $19.80
    9% OFF Phone Price : $21.80
    In Stock
  • Pinion 63320
    #6

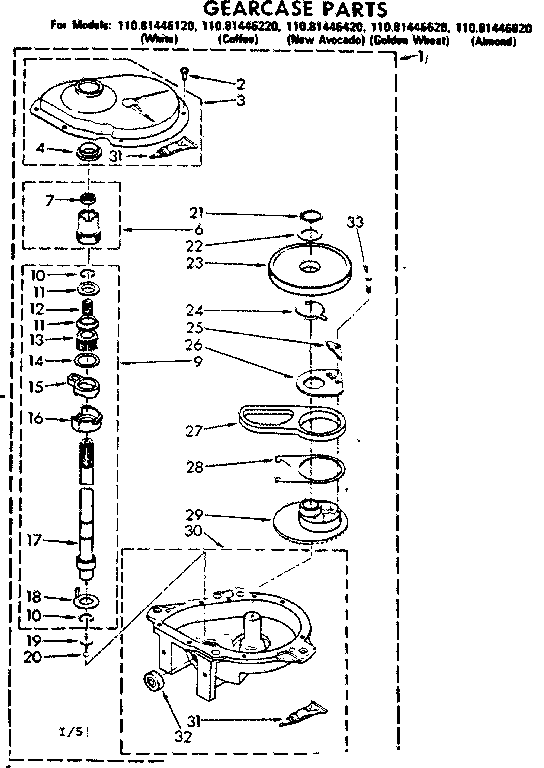

    Gearcase parts diagram

    Pinion

    Part #63320

    Replaced by #3360629

    ?
    Manufacturer substitution
    This part replaces 63320. Substitute parts can look different from the original.
    BEST SELLER
    $205.42
    6% OFF Phone Price : $217.42
    In Stock
  • Gear 62570
    #23

    Gearcase parts diagram

    Gear

    Part #62570

    Replaced by #3360629

    ?
    Manufacturer substitution
    This part replaces 62570. Substitute parts can look different from the original.
    BEST SELLER
    $205.42
    6% OFF Phone Price : $217.42
    In Stock
  • Rack 62534
    #27

    Gearcase parts diagram

    Rack

    Part #62534

    Replaced by #3360629

    ?
    Manufacturer substitution
    This part replaces 62534. Substitute parts can look different from the original.
    BEST SELLER
    $205.42
    6% OFF Phone Price : $217.42
    In Stock
  • Actuator 62621
    #28

    Gearcase parts diagram

    Actuator

    Part #62621

    Replaced by #3360629

    ?
    Manufacturer substitution
    This part replaces 62621. Substitute parts can look different from the original.
    BEST SELLER
    $205.42
    6% OFF Phone Price : $217.42
    In Stock
  • Clutch 63765
    #5

    Brake clutch gearcase motor & pump parts diagram

    Clutch

    Part #63765

    Replaced by #285785

    ?
    Manufacturer substitution
    This part replaces 63765. Substitute parts can look different from the original.
    BEST SELLER
    $30.15
    17% OFF Phone Price : $36.15
    In Stock

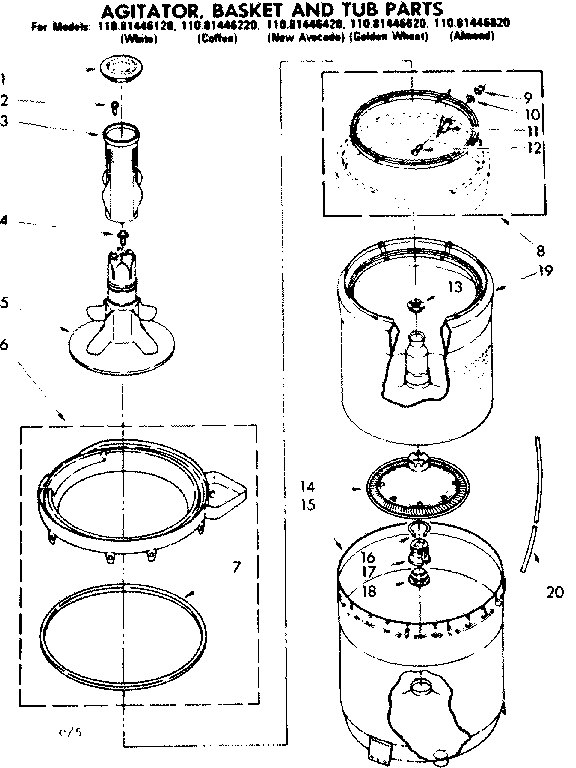

  • Block 357782
    #17

    Agitator basket and tub parts diagram

    Block

    Part #357782

    Replaced by #WP389140

    ?
    Manufacturer substitution
    This part replaces 357782. Substitute parts can look different from the original.
    BEST SELLER
    $18.87
    10% OFF Phone Price : $20.87
    In Stock
  • Brake Shoe 62656
    Brake shoe

    Part #62656

    Replaced by #W10820043

    ?
    Manufacturer substitution
    This part replaces 62656. Substitute parts can look different from the original.
    BEST SELLER
    $116.98
    9% OFF Phone Price : $128.98
    In Stock

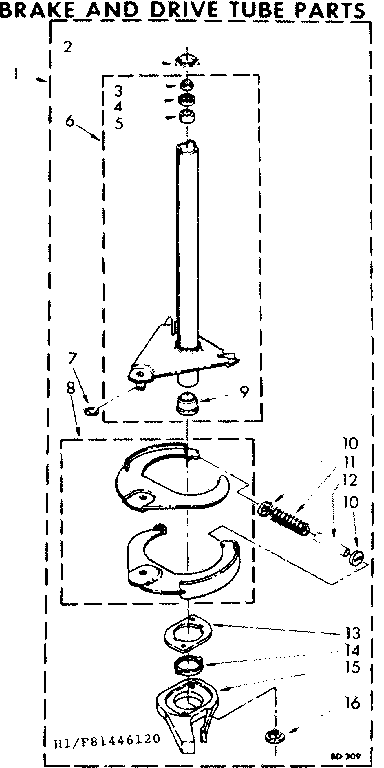

  • Drive Tube 62659
    Drive tube

    Part #62659

    Replaced by #W10820043

    ?
    Manufacturer substitution
    This part replaces 62659. Substitute parts can look different from the original.
    BEST SELLER
    $116.98
    9% OFF Phone Price : $128.98
    In Stock
