Model # 580328171 Official Craftsman portable compact ac generator

Here are the diagrams and repair parts for Official Craftsman 580328171 portable compact ac generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

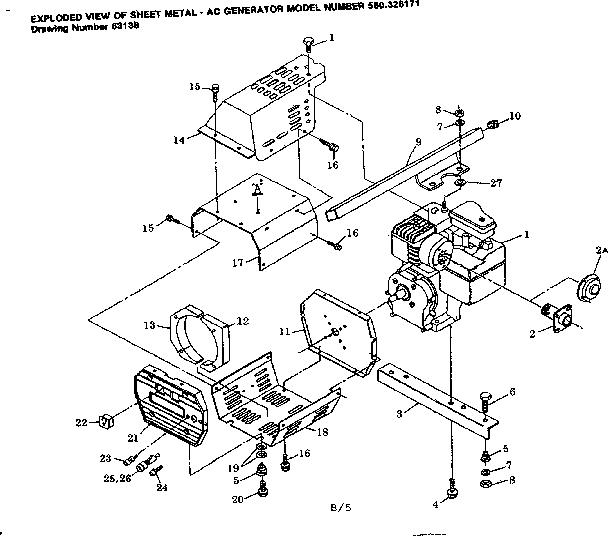

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 188 parts  |
Washer 58886
#8

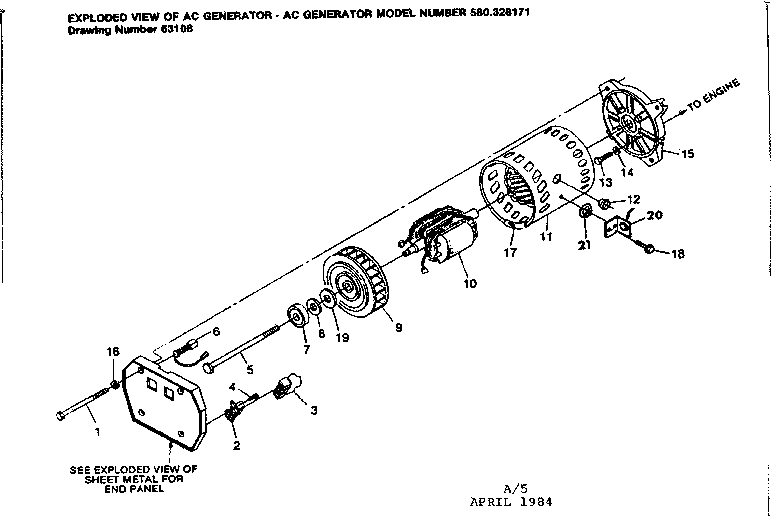

Stator assembly diagram

Washer

Part #58886

Replaced by #58886GS

?
Manufacturer substitution
This part replaces 58886. Substitute parts can look different from the original.
$10.86
In Stock
Housing 22694
#2

Stator assembly diagram

Housing

Part #22694

Replaced by #22694GS

?
Manufacturer substitution
This part replaces 22694. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Diaphragm 213-62473
#3

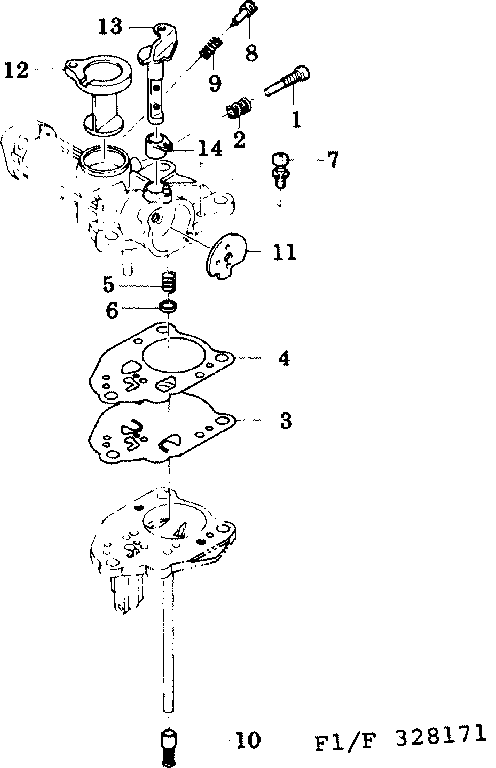

Choke shaft diagram

Diaphragm

Part #213-62473

The manufacturer no longer makes this part, and there's no substitute part

Spring 233-62473
#4

Recoil starter diagram

Spring

Part #233-62473

The manufacturer no longer makes this part, and there's no substitute part

Plug 131-62473
#31

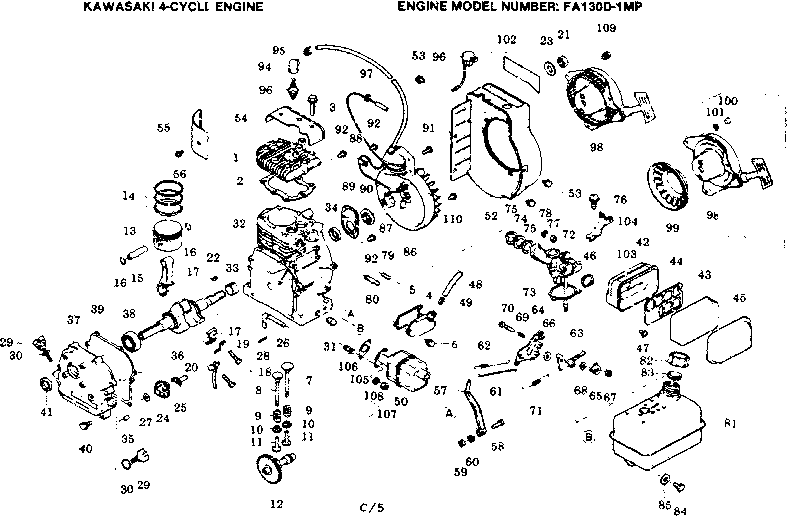

Kawasaki engine breakdown diagram

Plug

Part #131-62473

The manufacturer no longer makes this part, and there's no substitute part

Stay 204-62473
#104

Kawasaki engine breakdown diagram

Stay

Part #204-62473

The manufacturer no longer makes this part, and there's no substitute part

Bolt 44395-E
#1

Stator assembly diagram

Bolt

Part #44395-E

The manufacturer no longer makes this part, and there's no substitute part

Gasket 105-62573
#5

Kawasaki engine breakdown diagram

Gasket

Part #105-62573

The manufacturer no longer makes this part, and there's no substitute part

Brush 59606
#6

Stator assembly diagram

Brush

Part #59606

The manufacturer no longer makes this part, and there's no substitute part

Collar 224-62473
#14

Choke shaft diagram

Collar

Part #224-62473

The manufacturer no longer makes this part, and there's no substitute part
