Model # GST20IEMDCC Official GE refrigerator - m series
Here are the diagrams and repair parts for Official GE GST20IEMDCC refrigerator - m series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

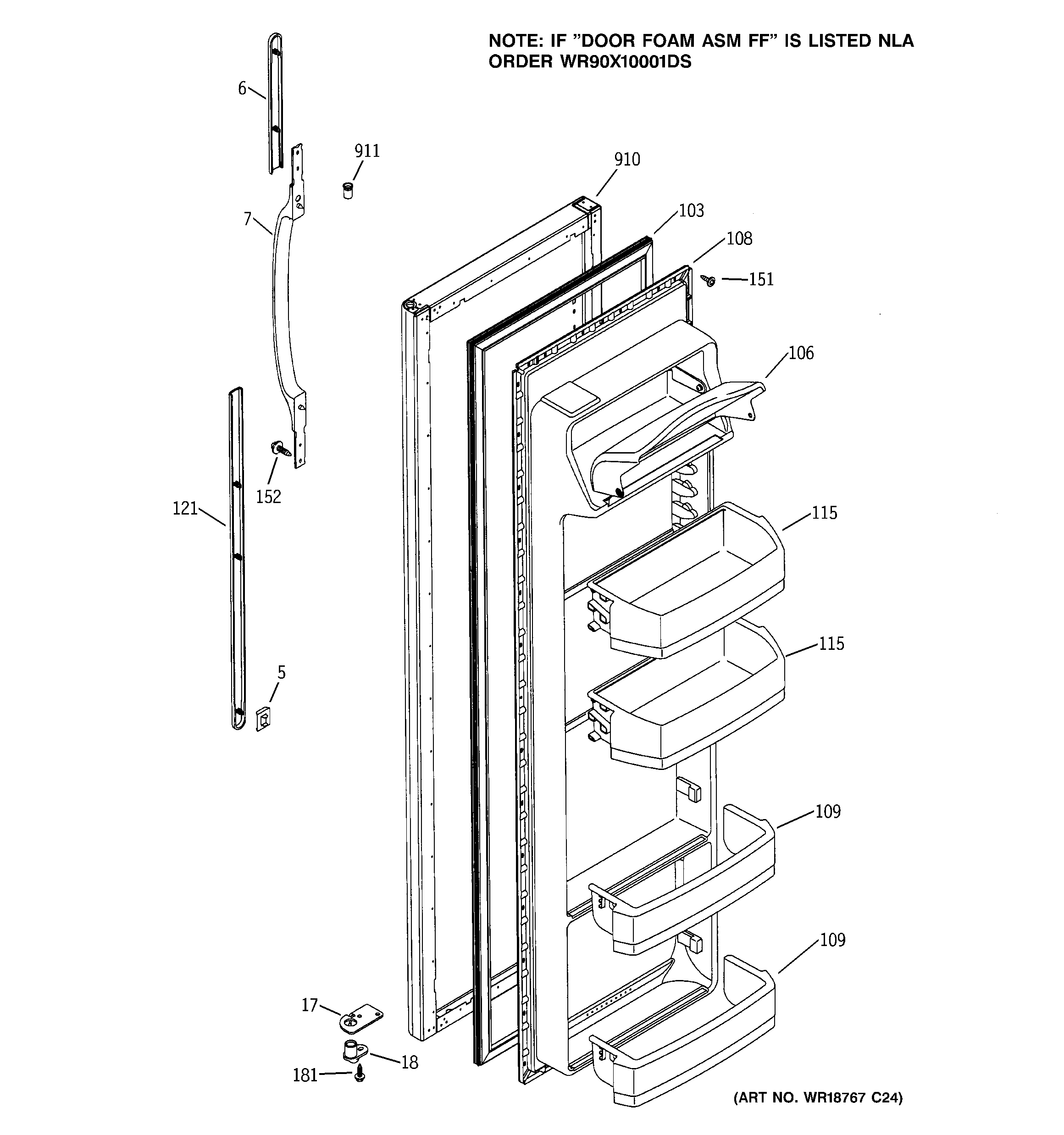

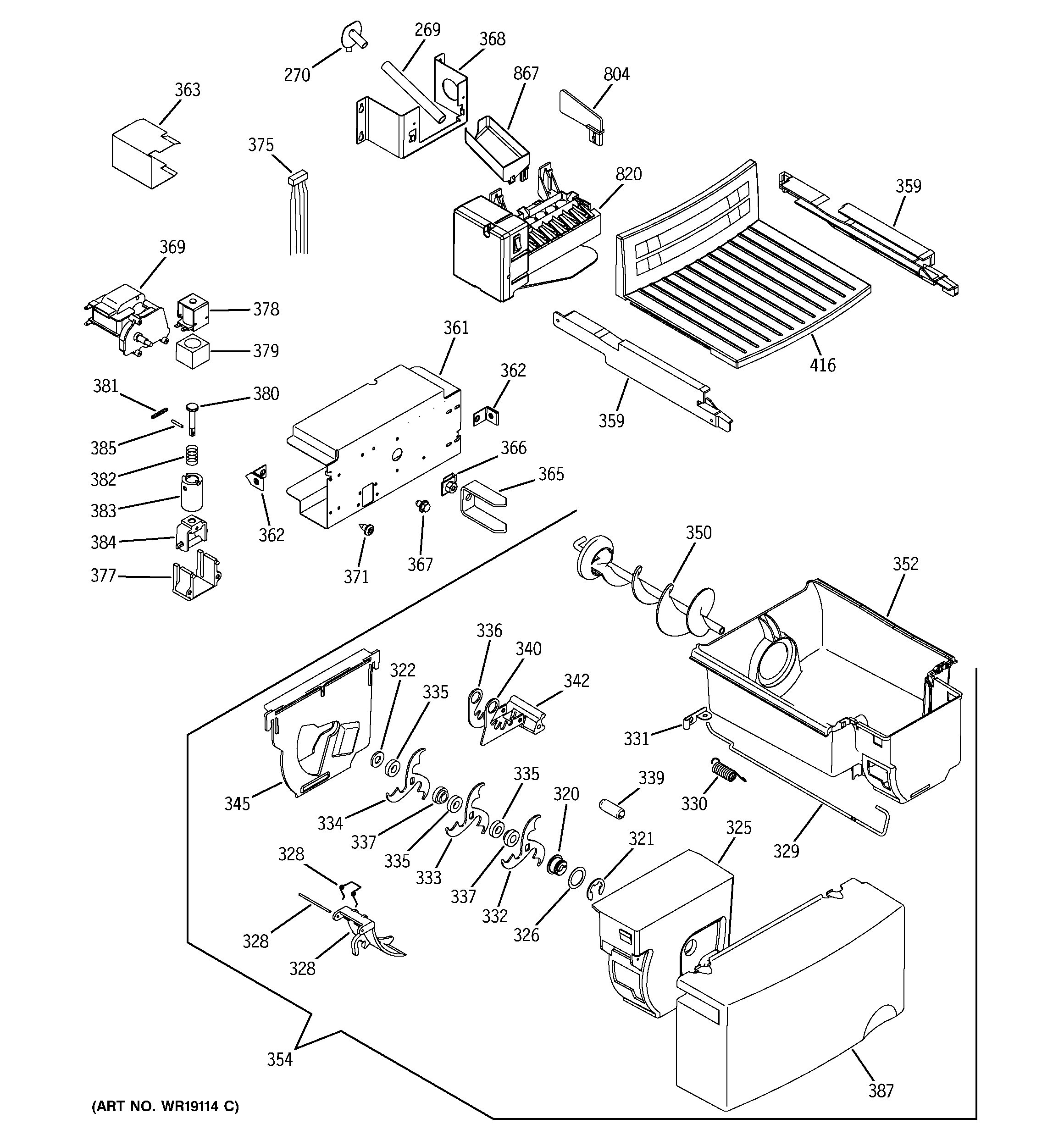

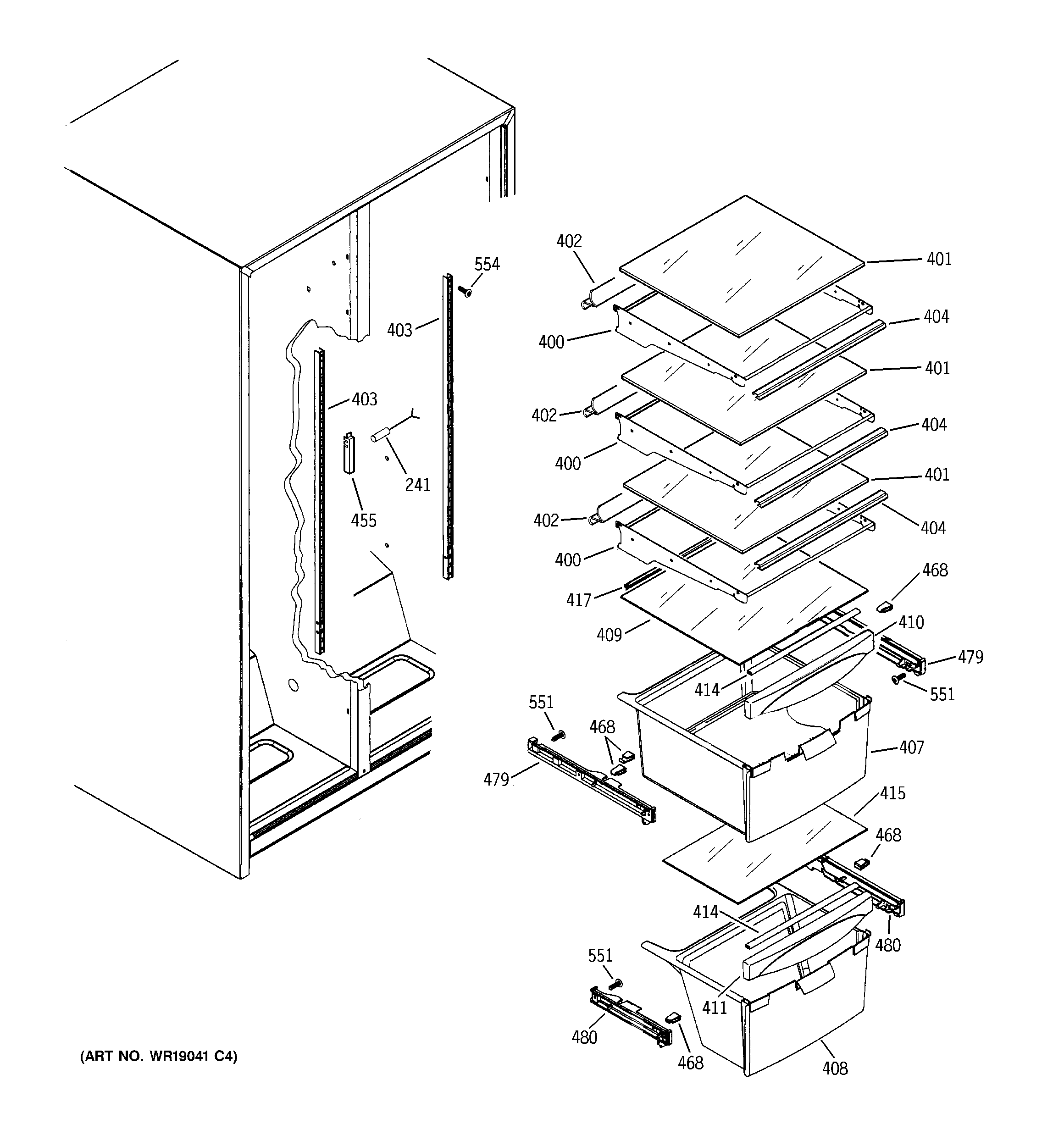

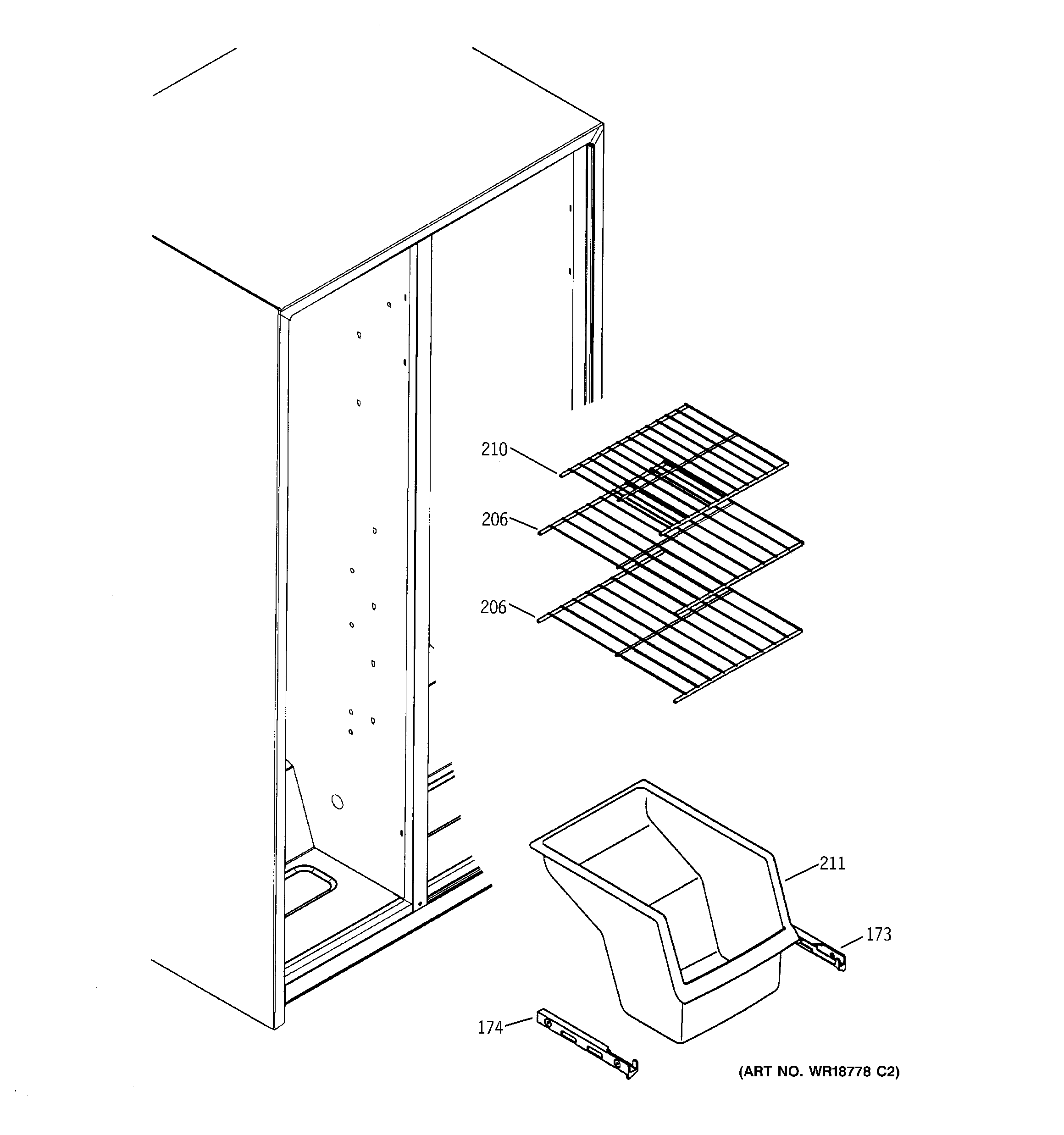

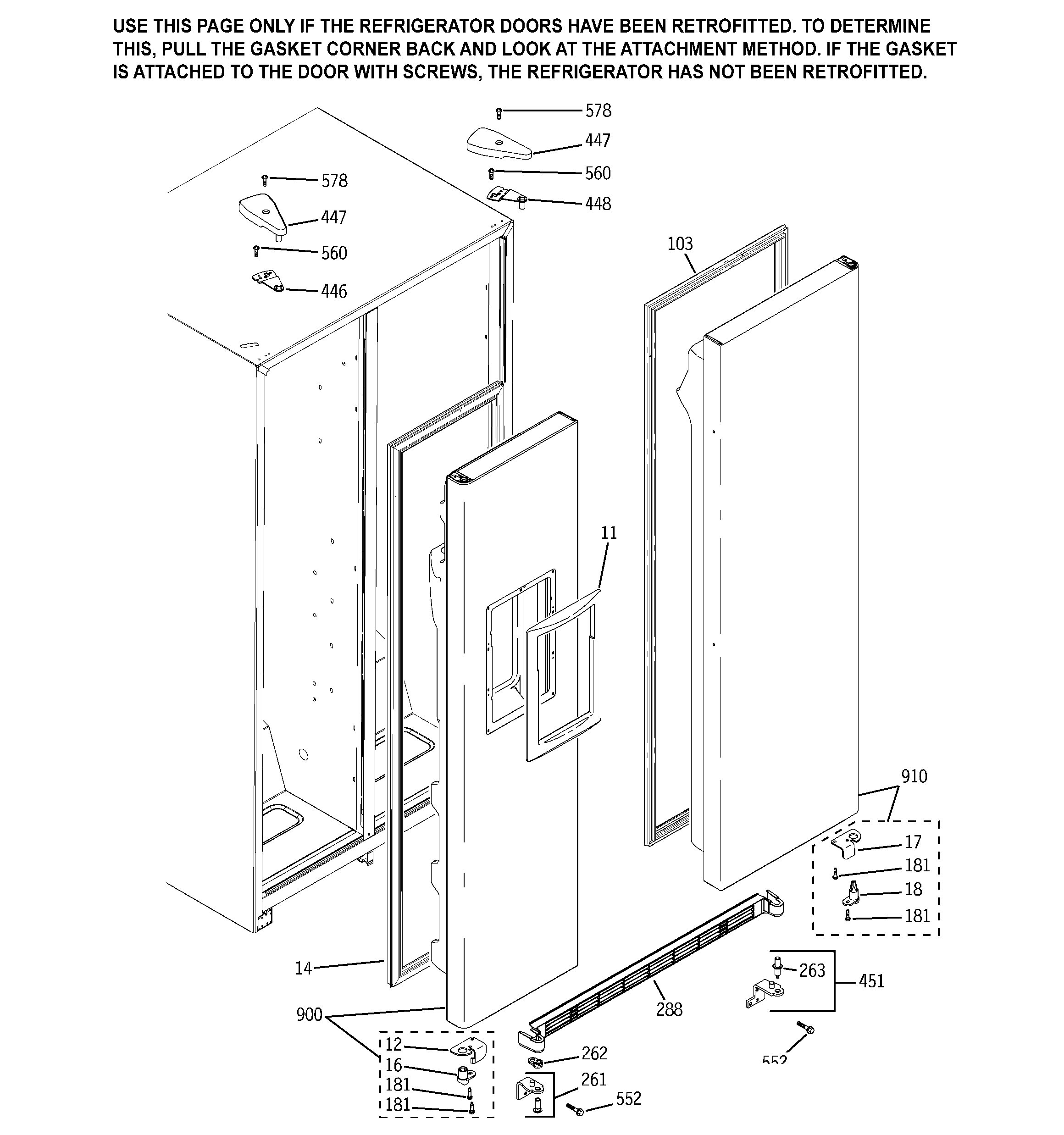

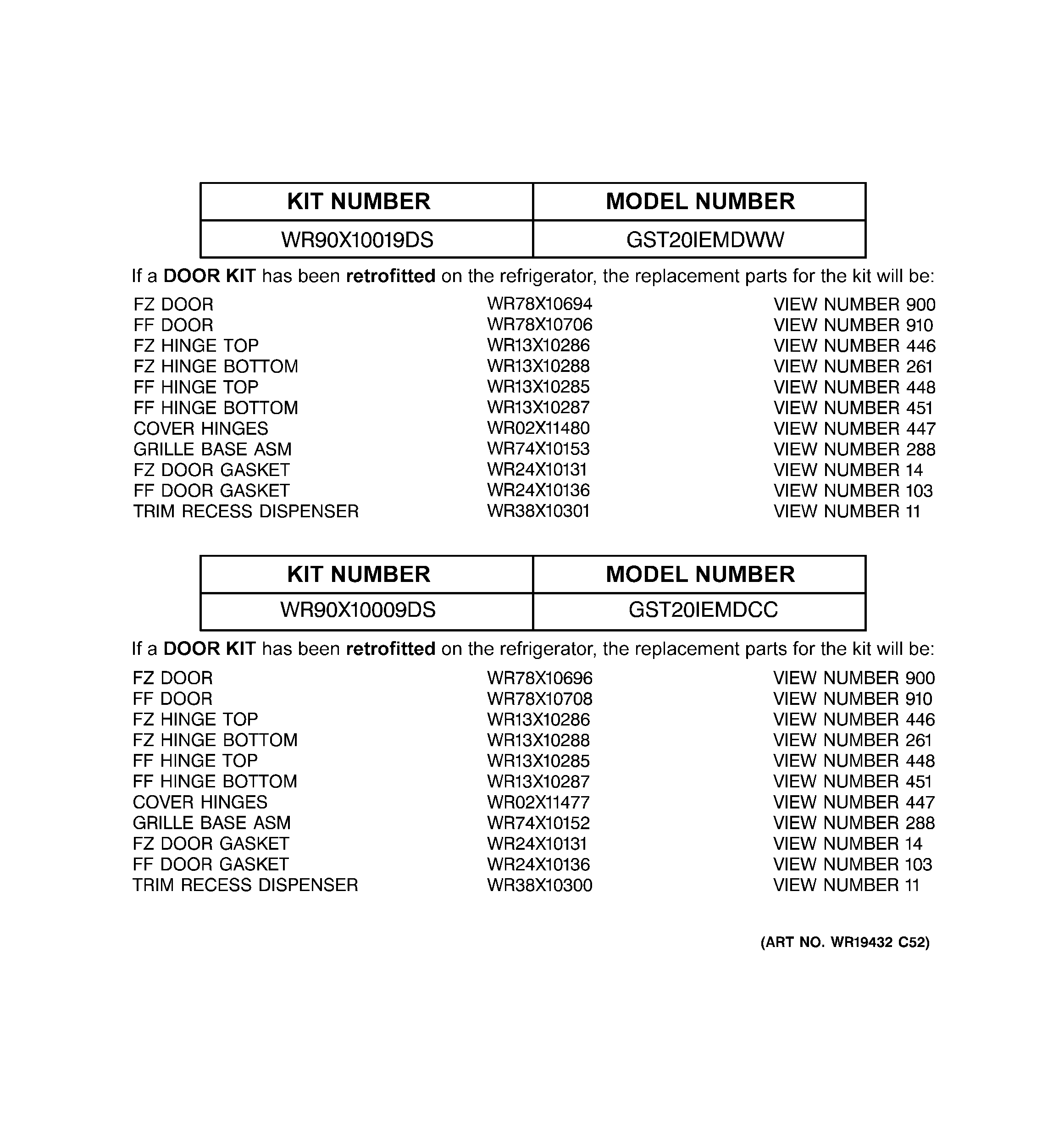

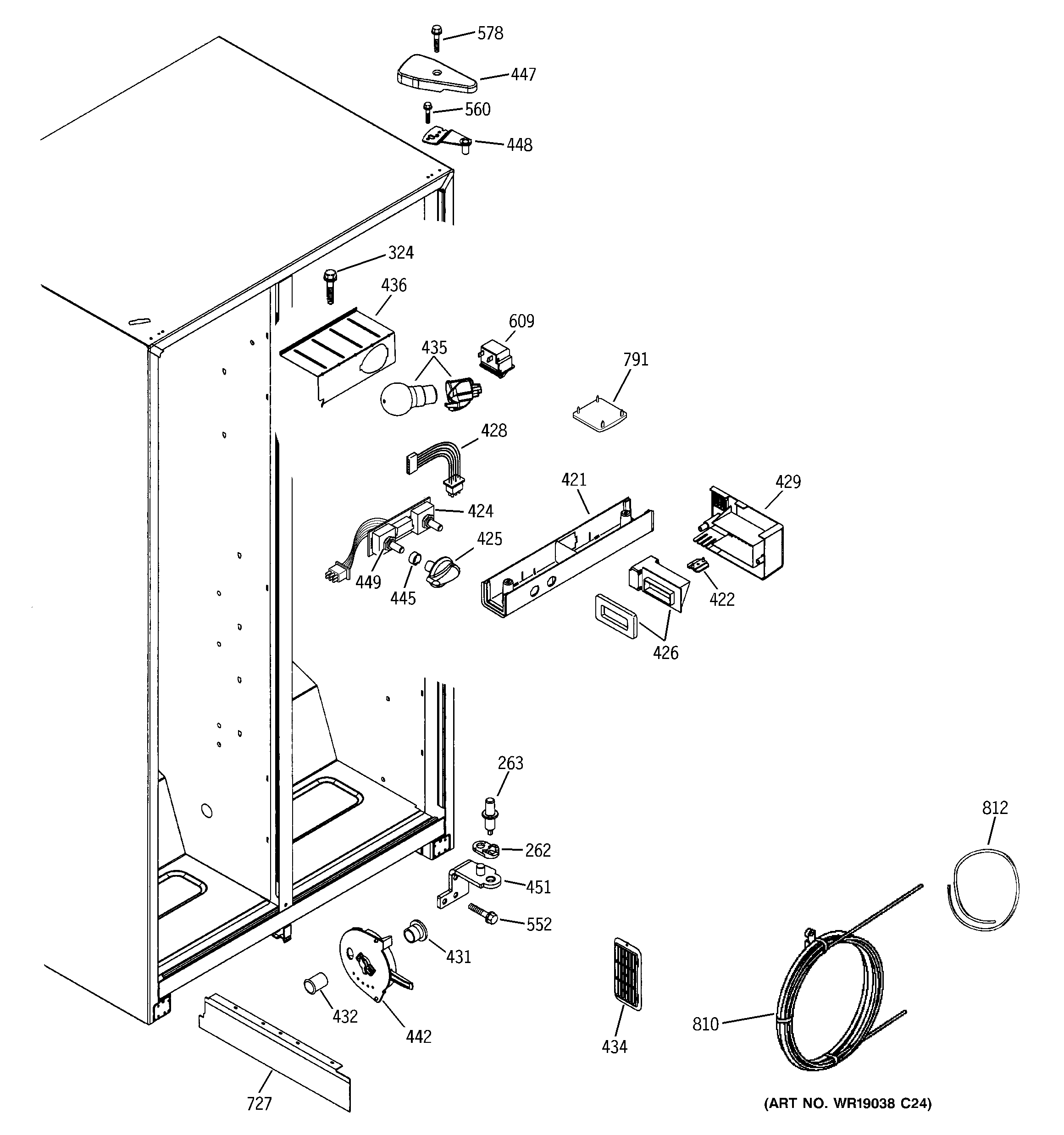

SELECT DIAGRAM
Browse Parts forGST20IEMDCC Refrigerators
- Refrigerator temperature sensor
Part #WR50X10027
Replaced by #WR55X10025
?Manufacturer substitutionThis part replaces WR50X10027. Substitute parts can look different from the original.$18.93 |10% OFF Phone Price : $20.93In Stock - #740

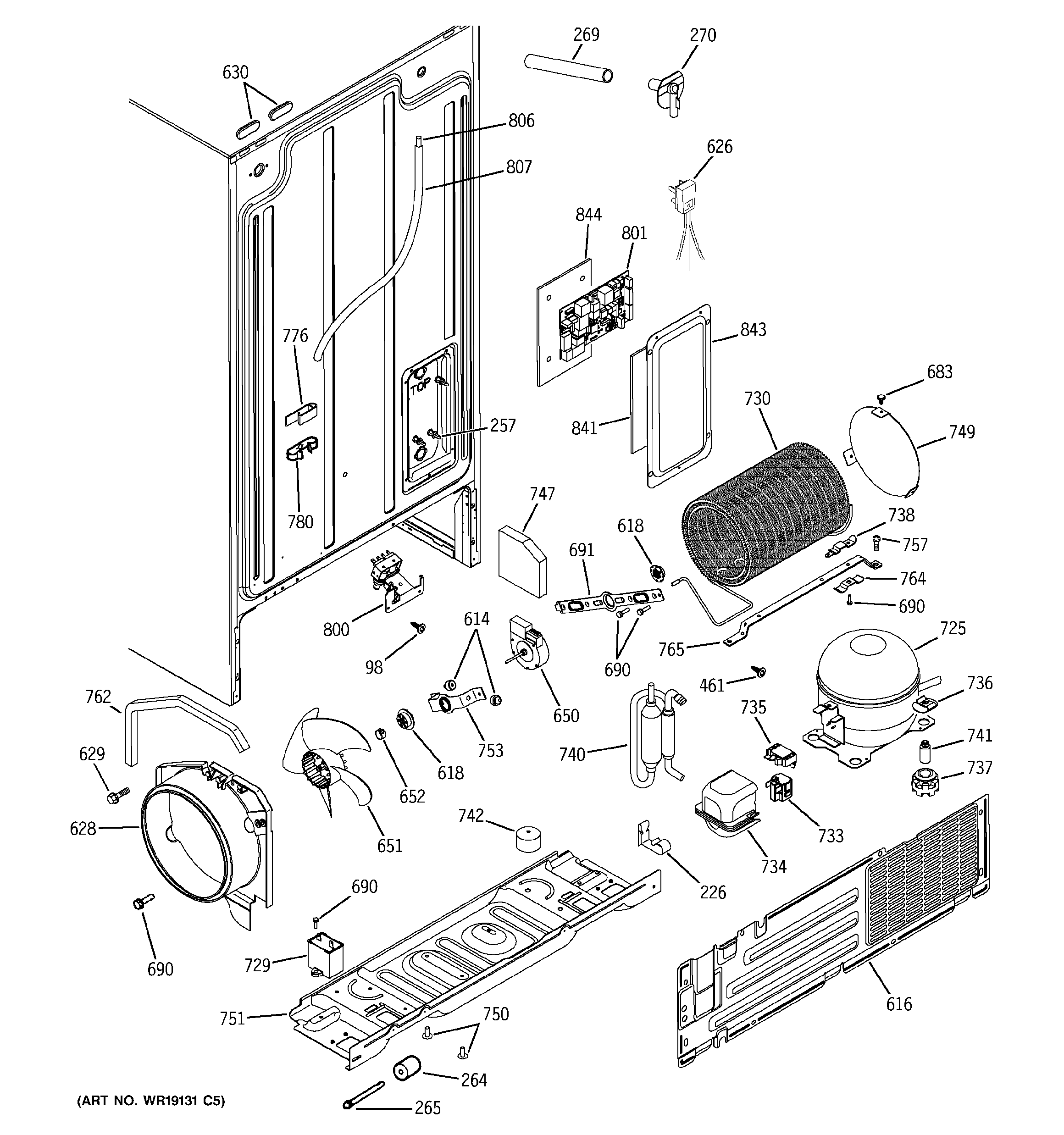

Sealed system & mother board diagram
Dryer filterPart #WR86X0096
Replaced by #WR86X25269
?Manufacturer substitutionThis part replaces WR86X0096. Substitute parts can look different from the original.$74.11 |7% OFF Phone Price : $80.11In Stock - #800
Sealed system & mother board diagram
Refrigerator water inlet valve assemblyPart #WR57X10032
Replaced by #WR57X33326
?Manufacturer substitutionThis part replaces WR57X10032. Substitute parts can look different from the original.$82.68 |7% OFF Phone Price : $88.68In Stock - Refrigerator light bulb
Part #60A
Replaced by #40A15
?Manufacturer substitutionThis part replaces 60A. Substitute parts can look different from the original.$13.61 |13% OFF Phone Price : $15.61In Stock - #240

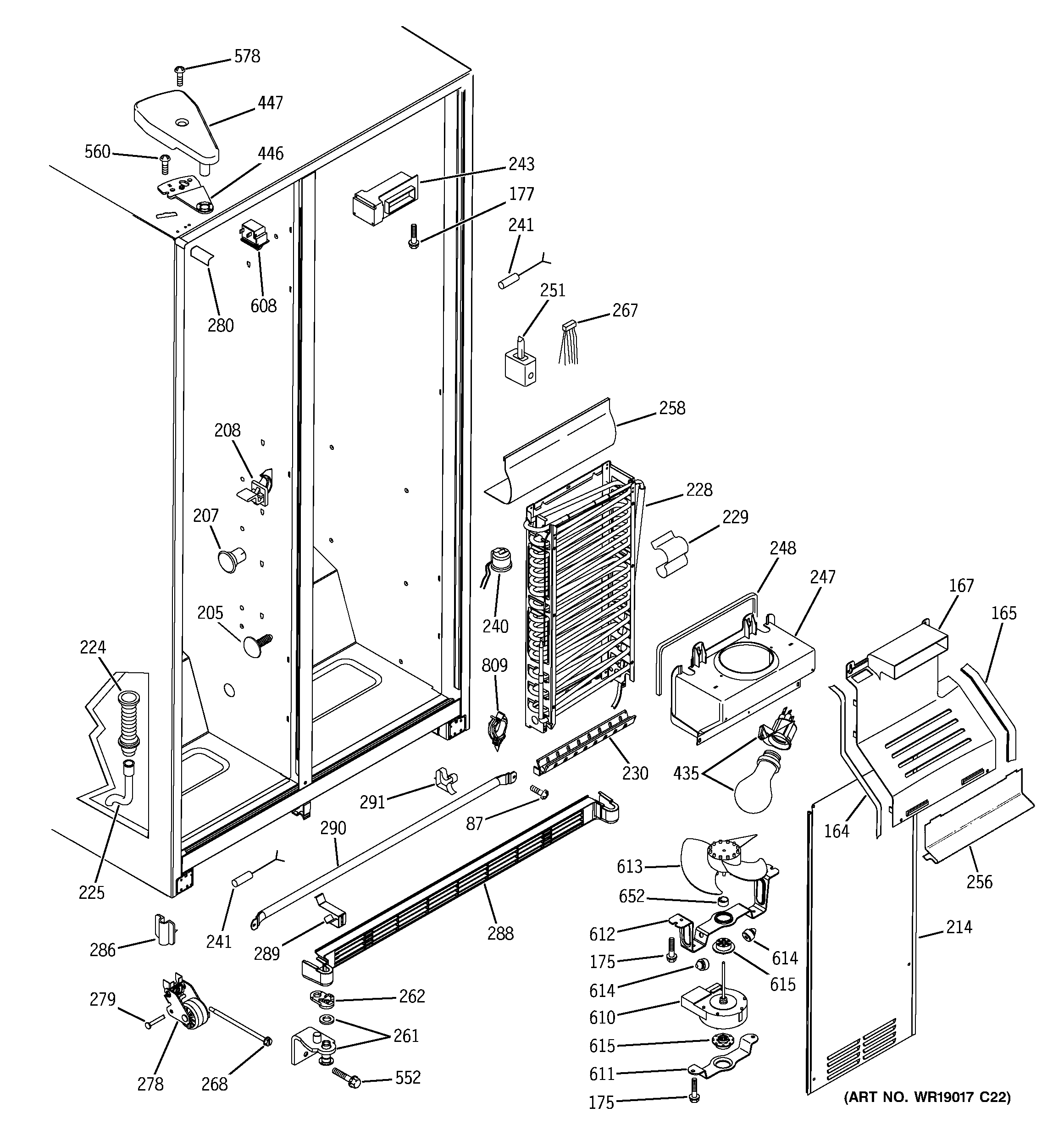

Freezer section diagram
Refrigerator thermostatPart #WR50X10015
Replaced by #WR50X10068
?Manufacturer substitutionThis part replaces WR50X10015. Substitute parts can look different from the original.$22.27 |21% OFF Phone Price : $28.27In Stock - #725
Sealed system & mother board diagram
Comp repl ktPart #WR87X10042
Replaced by #WR87X20798
?Manufacturer substitutionThis part replaces WR87X10042. Substitute parts can look different from the original.$448.79 |$12.00 OFF Phone Price : $460.79In Stock - #36

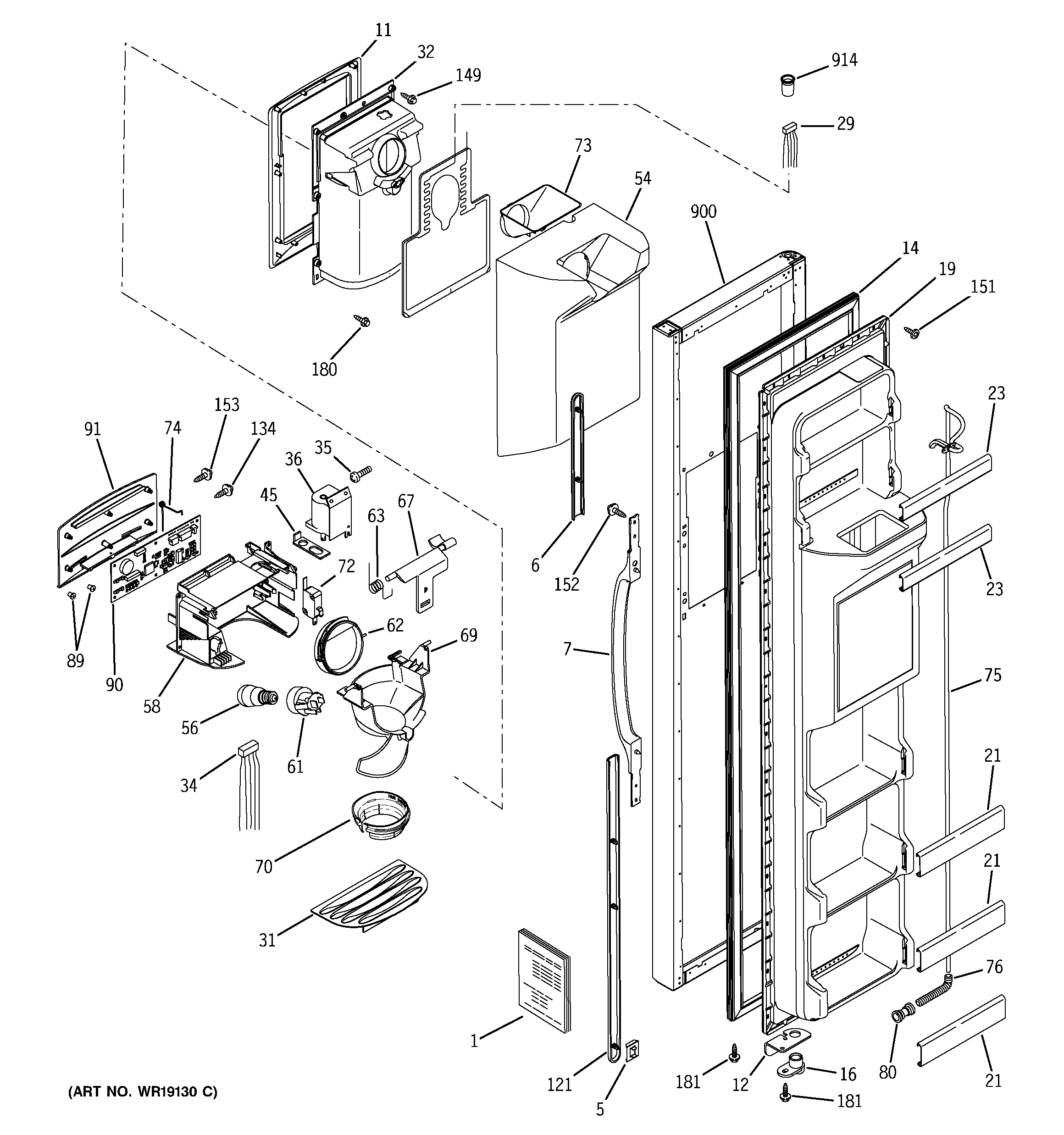

Freezer door diagram
Refrigerator solenoidPart #WR62X10020
Replaced by #WR62X10055
?Manufacturer substitutionThis part replaces WR62X10020. Substitute parts can look different from the original.$57.05 |10% OFF Phone Price : $63.05In Stock - #62
Freezer door diagram
Dr reces asmPart #WR17X3093
Replaced by #WR17X11653
?Manufacturer substitutionThis part replaces WR17X3093. Substitute parts can look different from the original.$15.42 |11% OFF Phone Price : $17.42In Stock - #729
Sealed system & mother board diagram
CapacitorPart #WR62X0079
Replaced by #WR55X24064
?Manufacturer substitutionThis part replaces WR62X0079. Substitute parts can look different from the original.$55.33 |10% OFF Phone Price : $61.33In Stock - #650
Sealed system & mother board diagram
Motor dc conPart #WR60X10065
Replaced by #WR60X10209
?Manufacturer substitutionThis part replaces WR60X10065. Substitute parts can look different from the original.$61.98 |9% OFF Phone Price : $67.98In Stock
