Model # 917374320 Official Craftsman 22" power-propelled lawn mower

Here are the diagrams and repair parts for Official Craftsman 917374320 22" power-propelled lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

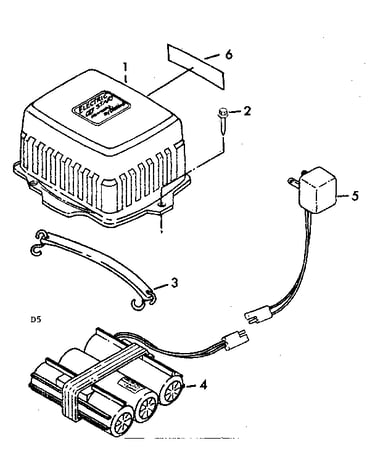

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Blade 69334
Blade

Part #69334

Replaced by #532406713

?
Manufacturer substitution
This part replaces 69334. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Selector Knob 77865
Selector knob

Part #77865

Replaced by #532701037

?
Manufacturer substitution
This part replaces 77865. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Washer 52160
#29

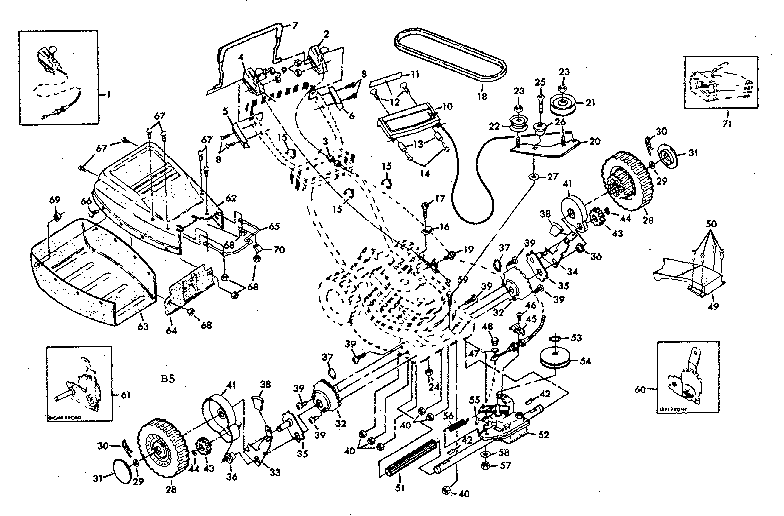

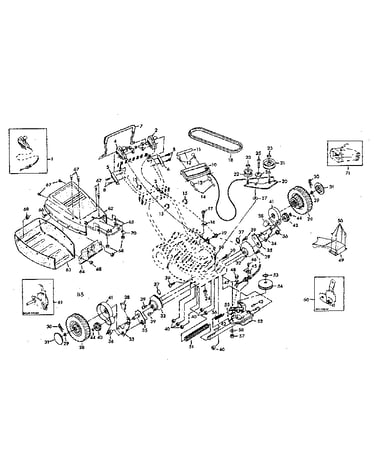

Drive assembly diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Spacer 84920
#44

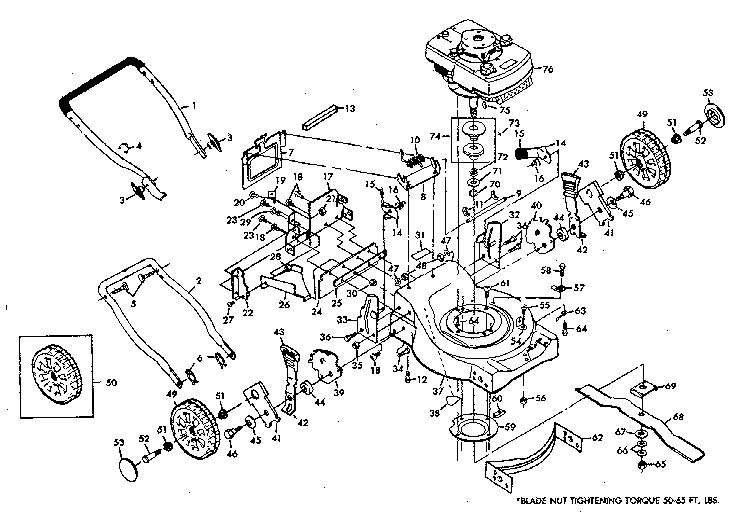

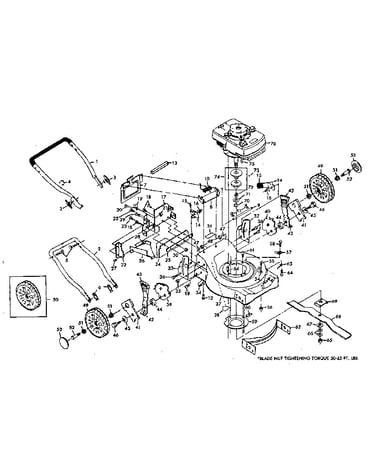

Main frame diagram

Spacer

Part #84920

Replaced by #532401629

?
Manufacturer substitution
This part replaces 84920. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Wheel Bracket 103096X
#39

Main frame diagram

Wheel bracket

Part #103096X

Replaced by #532407492

?
Manufacturer substitution
This part replaces 103096X. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Handle Knob 63688
#3

Main frame diagram

Handle knob

Part #63688

Replaced by #532183724

?
Manufacturer substitution
This part replaces 63688. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Shifter Assembly 83488
#3

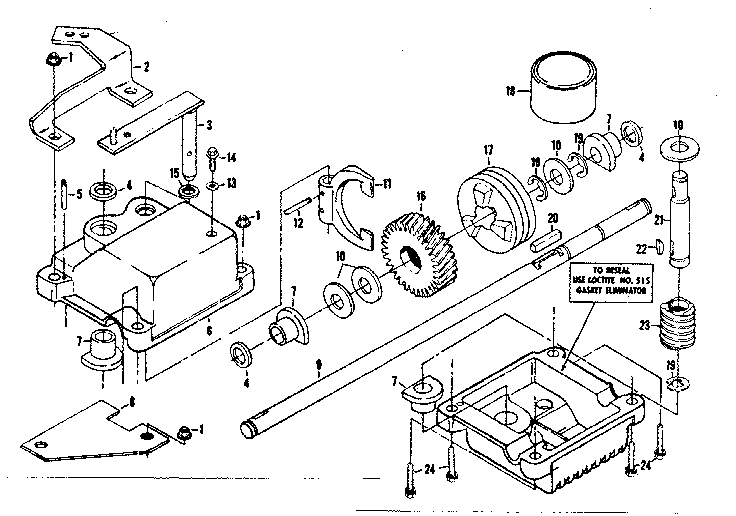

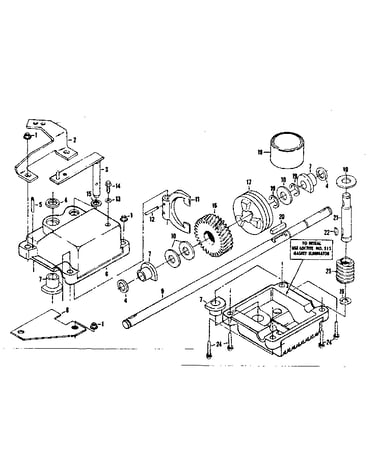

Gear case assembly part no. 85314 diagram

Shifter assembly

Part #83488

Replaced by #582944501

?
Manufacturer substitution
This part replaces 83488. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Keps Nut STD541431
#35

Main frame diagram

Keps nut

Part #STD541431

Replaced by #596040501

?
Manufacturer substitution
This part replaces STD541431. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Nut 68478
#24

Drive assembly diagram

Nut

Part #68478

The manufacturer no longer makes this part, and there's no substitute part

Screw STD511005
#27

Main frame diagram

Screw

Part #STD511005

The manufacturer no longer makes this part, and there's no substitute part
