Model # 917270240 Official Craftsman 4-hp shredder

Here are the diagrams and repair parts for Official Craftsman 917270240 4-hp shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

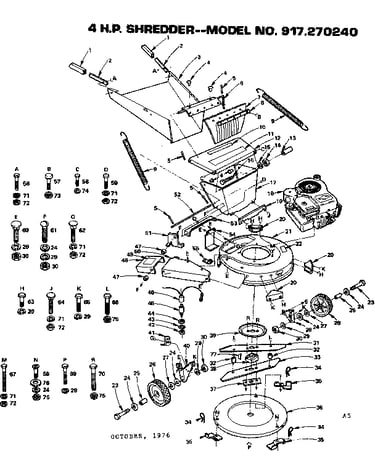

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Carriage Bolt, 5/16-18 X 3/4-in STD533107
#62

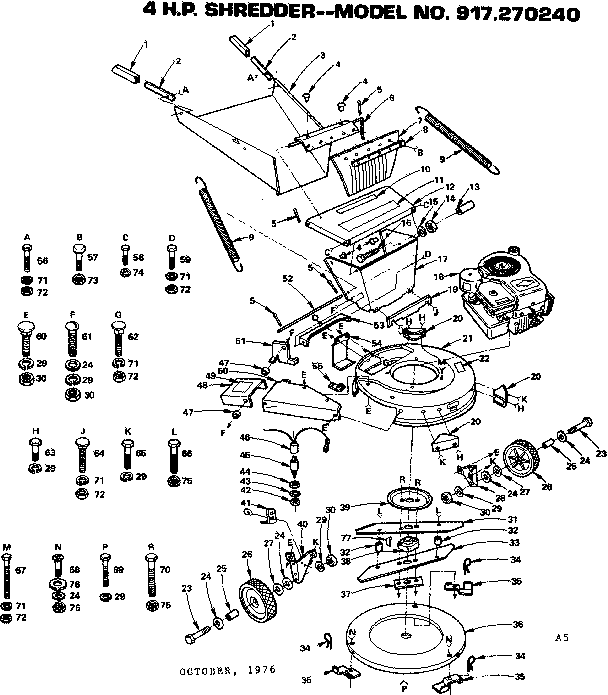

Replacement parts diagram

Carriage bolt, 5/16-18 x 3/4-in

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Tiller Handle Grip 8206H
#1

Replacement parts diagram

Tiller handle grip

Part #8206H

Replaced by #532008206

?
Manufacturer substitution
This part replaces 8206H. Substitute parts can look different from the original.
$17.11
In Stock
Wheel Bracket 4579R
#28

Replacement parts diagram

Wheel bracket

Part #4579R

The manufacturer no longer makes this part, and there's no substitute part

Pivot Pin 4610R
#52

Replacement parts diagram

Pivot pin

Part #4610R

The manufacturer no longer makes this part, and there's no substitute part

Protector 4562R
#39

Replacement parts diagram

Protector

Part #4562R

The manufacturer no longer makes this part, and there's no substitute part

Clip 2521R
#55

Replacement parts diagram

Clip

Part #2521R

The manufacturer no longer makes this part, and there's no substitute part

Deflector 658A74
#6

Replacement parts diagram

Deflector

Part #658A74

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin STD560907
#5

Replacement parts diagram

Cotter pin

Part #STD560907

The manufacturer no longer makes this part, and there's no substitute part

Bolt STD623710
#69

Replacement parts diagram

Bolt

Part #STD623710

The manufacturer no longer makes this part, and there's no substitute part

Ramp 658A71
#3

Replacement parts diagram

Ramp

Part #658A71

The manufacturer no longer makes this part, and there's no substitute part
