Model # ZGG27L21ASS Official GE gas grill

Here are the diagrams and repair parts for Official GE ZGG27L21ASS gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
H-burner WB28X10009
#153

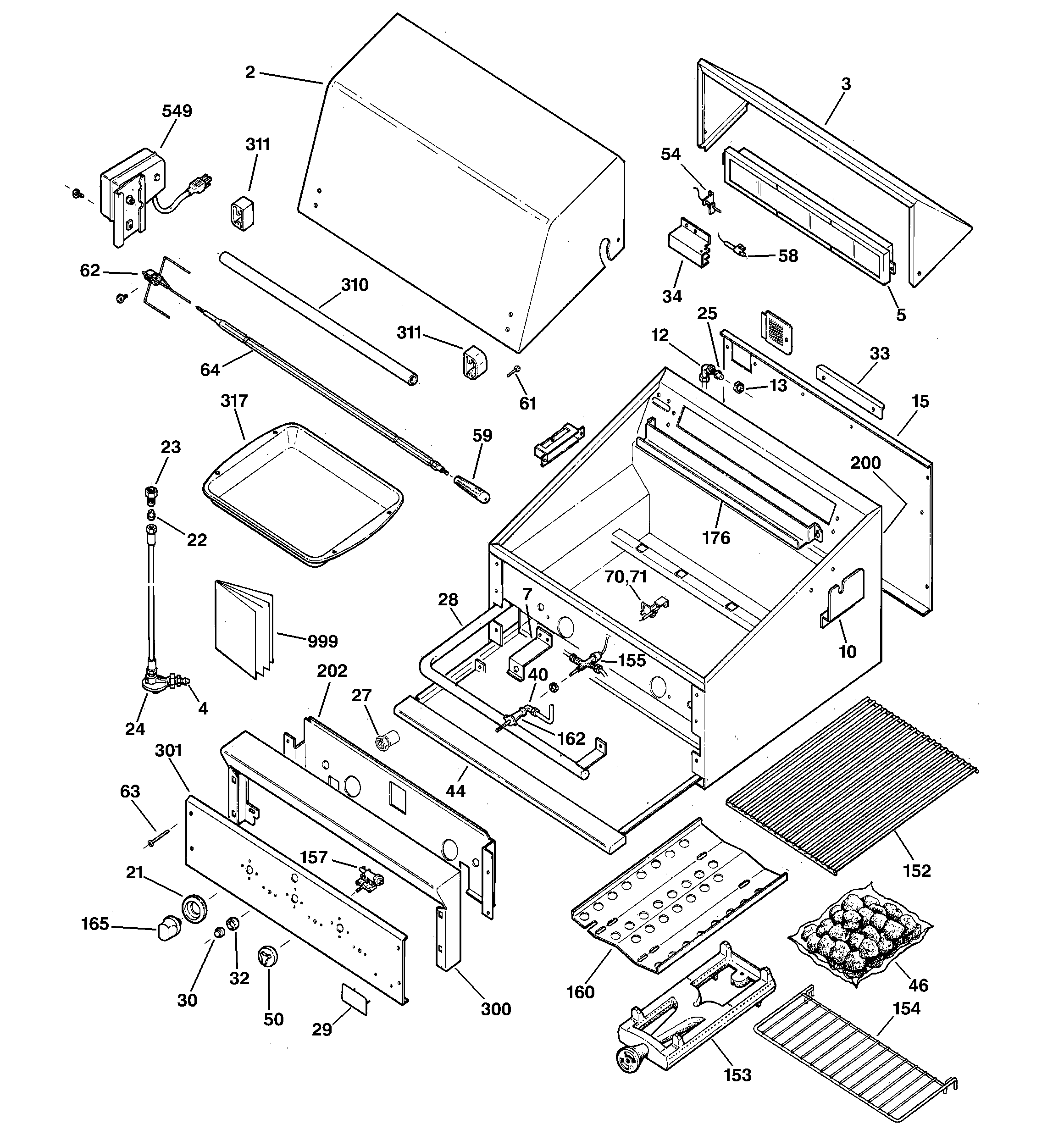

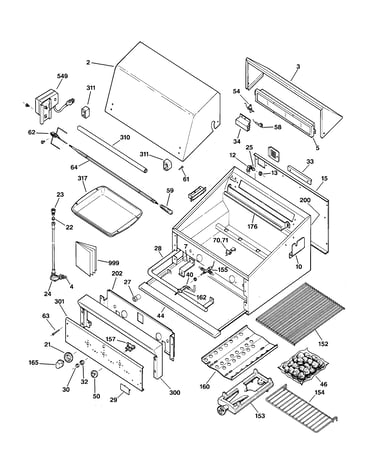

Gas grill parts diagram

H-burner

Part #WB28X10009

Replaced by #WB28X10025

?
Manufacturer substitution
This part replaces WB28X10009. Substitute parts can look different from the original.
$331.42
In Stock
Monogram Logo WB02X10349
#29

Gas grill parts diagram

Monogram logo

Part #WB02X10349

$21.49
In Stock
Uc Only Outd 49-8822
#999

Gas grill parts diagram

Uc only outd

Part #49-8822

Replaced by #049-80377

?
Manufacturer substitution
This part replaces 49-8822. Substitute parts can look different from the original.
$17.99
In Stock
Lid Stop WB02X10426
#33

Gas grill parts diagram

Lid stop

Part #WB02X10426

The manufacturer no longer makes this part, and there's no substitute part

Safety Knob WB03X10014
#30

Gas grill parts diagram

Safety knob

Part #WB03X10014

The manufacturer no longer makes this part, and there's no substitute part

Electrode Bk WB02X10431
#7

Gas grill parts diagram

Electrode bk

Part #WB02X10431

The manufacturer no longer makes this part, and there's no substitute part

Smoke Tray WB32X10003
#176

Gas grill parts diagram

Smoke tray

Part #WB32X10003

The manufacturer no longer makes this part, and there's no substitute part

Coupling WB01X10034
#4

Gas grill parts diagram

Coupling

Part #WB01X10034

The manufacturer no longer makes this part, and there's no substitute part

Igniter Knob WB03X10016
#50

Gas grill parts diagram

Igniter knob

Part #WB03X10016

The manufacturer no longer makes this part, and there's no substitute part

Drip Pan Handle WB15X10011
#44

Gas grill parts diagram

Drip pan handle

Part #WB15X10011

The manufacturer no longer makes this part, and there's no substitute part
