Gas Range

Model # 1037466191 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 1037466191 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 218 parts  |
Lamp Bulb 65973

#NI

All parts diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Support 86931
#50

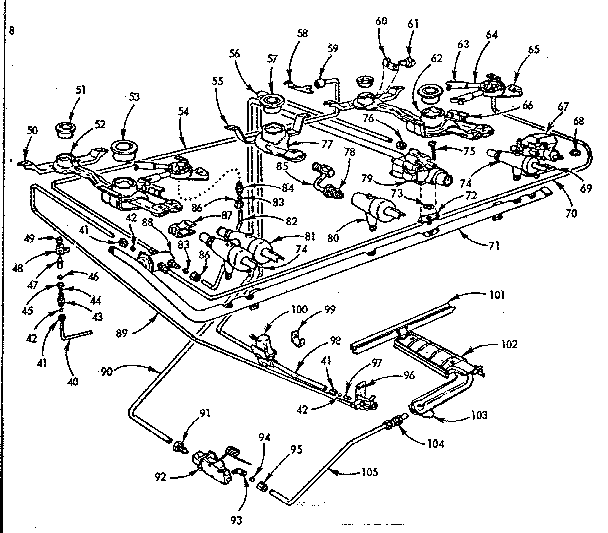

Burner section diagram

Support

Part #86931

This item is not returnable
$2.29
In Stock
Loxit Nut 79719
#78

Burner section diagram

Loxit nut

Part #79719

Replaced by #100108370

?
Manufacturer substitution
This part replaces 79719. Substitute parts can look different from the original.
$36.67
In Stock
Door Arm 97758
#125A

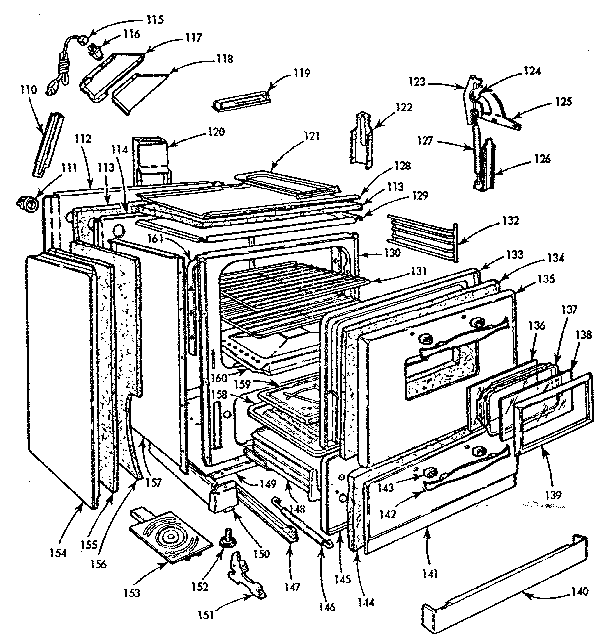

Body section diagram

Door arm

Part #97758

Replaced by #230872

?
Manufacturer substitution
This part replaces 97758. Substitute parts can look different from the original.
This item is not returnable
$6.99
In Stock
Oven Rack 70822
#131

Body section diagram

Oven rack

Part #70822

The manufacturer no longer makes this part, and there's no substitute part

Broiler Grid 97843
#159

Body section diagram

Broiler grid

Part #97843

The manufacturer no longer makes this part, and there's no substitute part

Body 79589
#154E

Body section diagram

Body

Part #79589

The manufacturer no longer makes this part, and there's no substitute part

Leveler 69065
#152

Body section diagram

Leveler

Part #69065

The manufacturer no longer makes this part, and there's no substitute part

Door Lining 97800
#133

Body section diagram

Door lining

Part #97800

The manufacturer no longer makes this part, and there's no substitute part

Molding 97916
#21

Backguard and main top diagram

Molding

Part #97916

The manufacturer no longer makes this part, and there's no substitute part
