Model # CMT231EC Official Thermador convection oven

Here are the diagrams and repair parts for Official Thermador CMT231EC convection oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

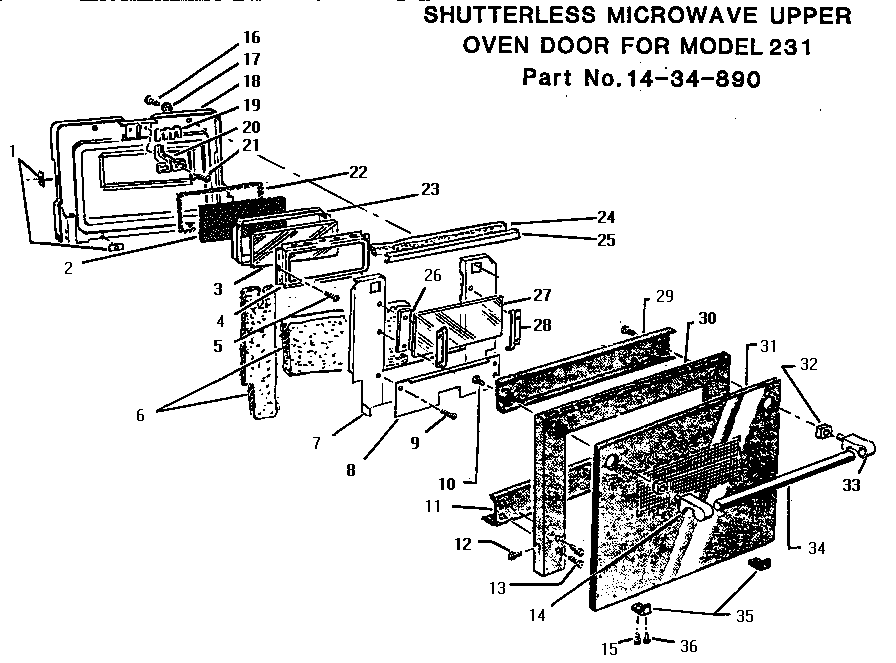

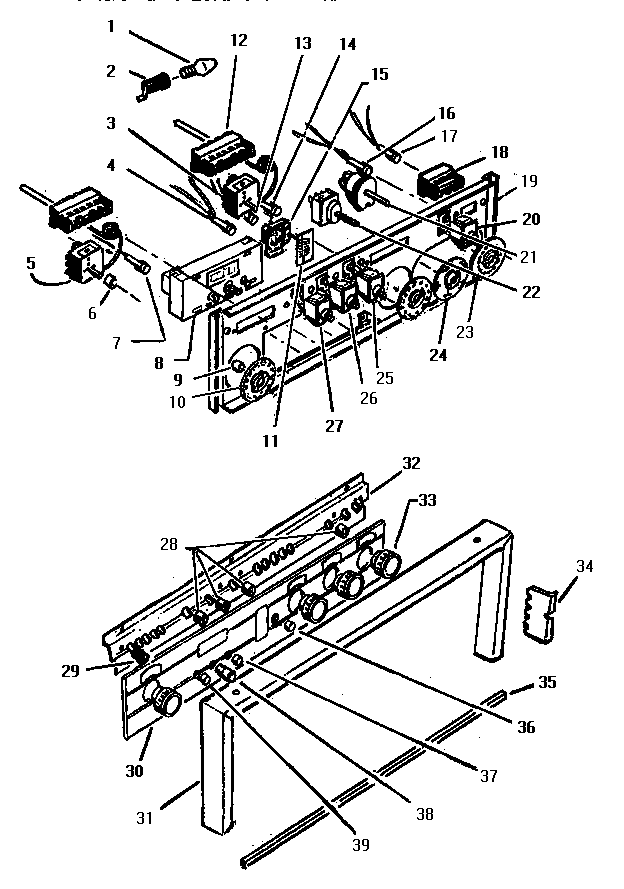

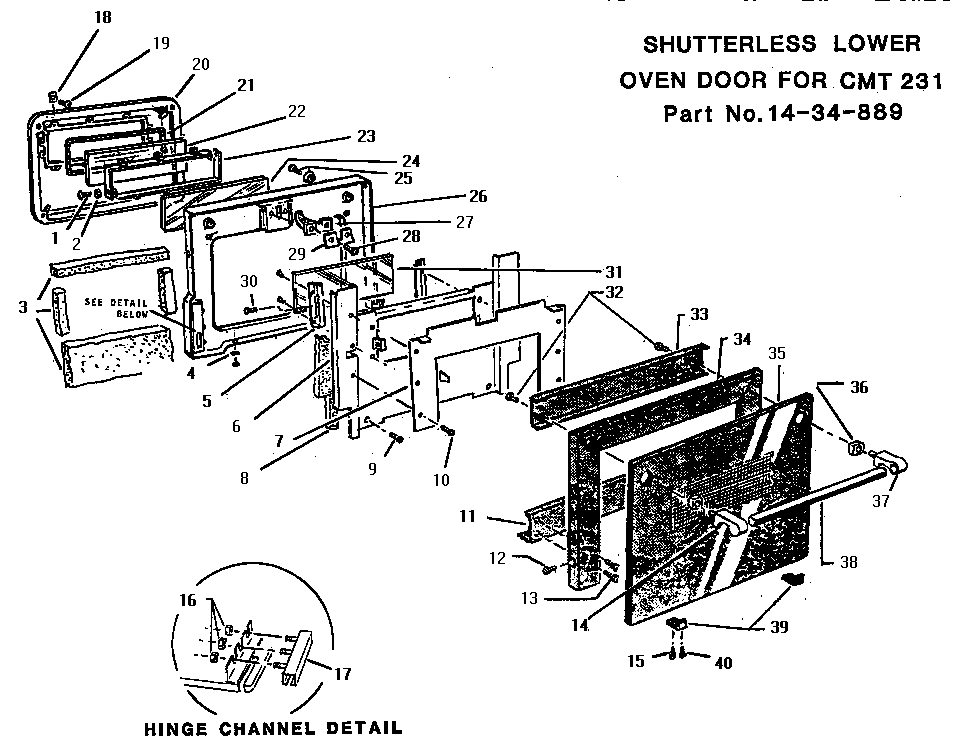

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 316 parts  |
Plate 14-34-198
#19

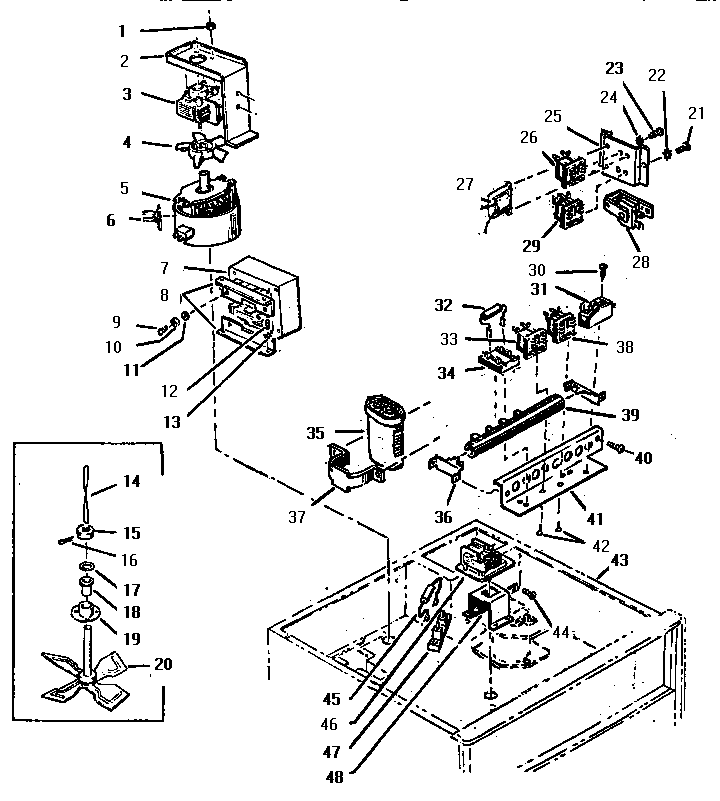

Power & related parts diagram

Plate

Part #14-34-198

$33.49
In Stock
Bracket 14-14-735
#37

Power & related parts diagram

Bracket

Part #14-14-735

This item is not returnable
$2.29
In Stock
Bracket 14-34-832
#4

Body, rear diagram

Bracket

Part #14-34-832

$14.99
In Stock
Socket 13-09-325
#32

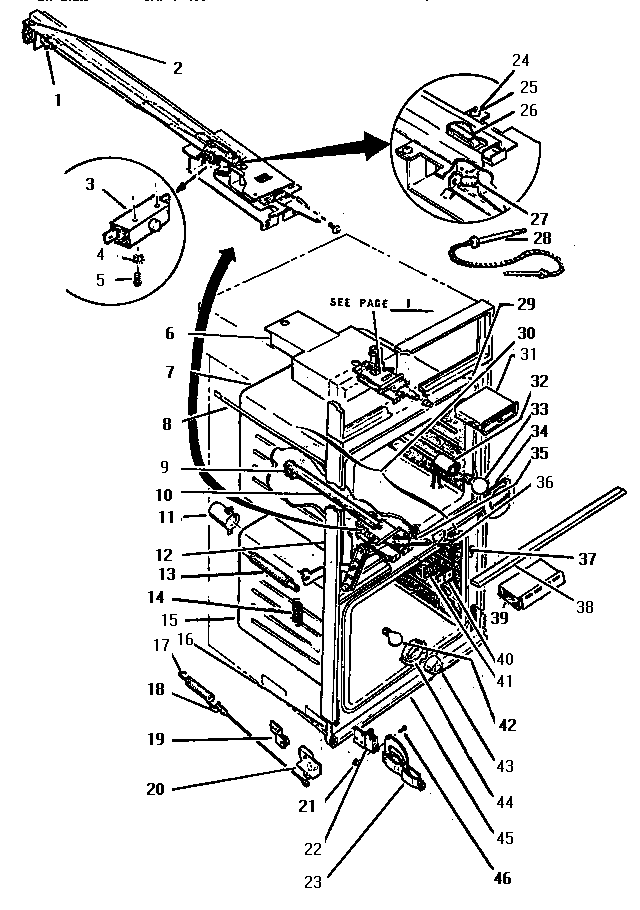

Body & accessory parts diagram

Socket

Part #13-09-325

$14.99
In Stock
Grid 14-39-072
#6

Rack, elements & pan diagram

Grid

Part #14-39-072

$64.99
In Stock
Frame 14-34-598-11
#37

Body & accessory parts diagram

Frame

Part #14-34-598-11

$138.99
In Stock
Guard 14-34-809
#22

Body, rear diagram

Guard

Part #14-34-809

This item is not returnable
$2.29
In Stock
Plate 14-34-807
#8

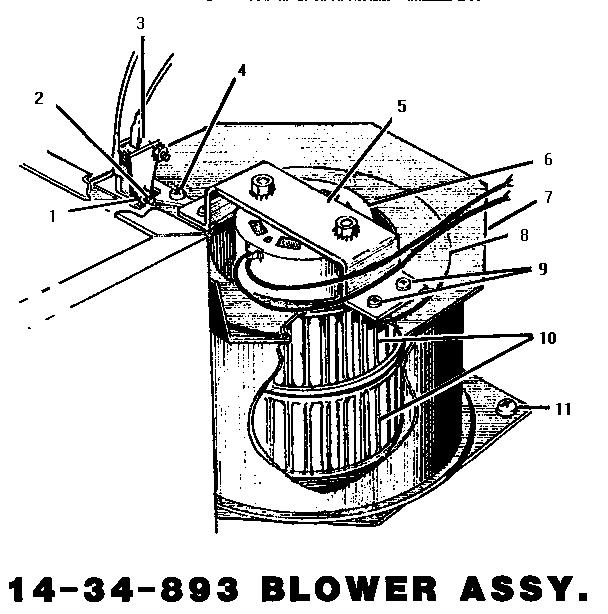

Convection blower assembly diagram

Plate

Part #14-34-807

This item is not returnable
$2.49
In Stock
Cover 14-34-406-01
#21

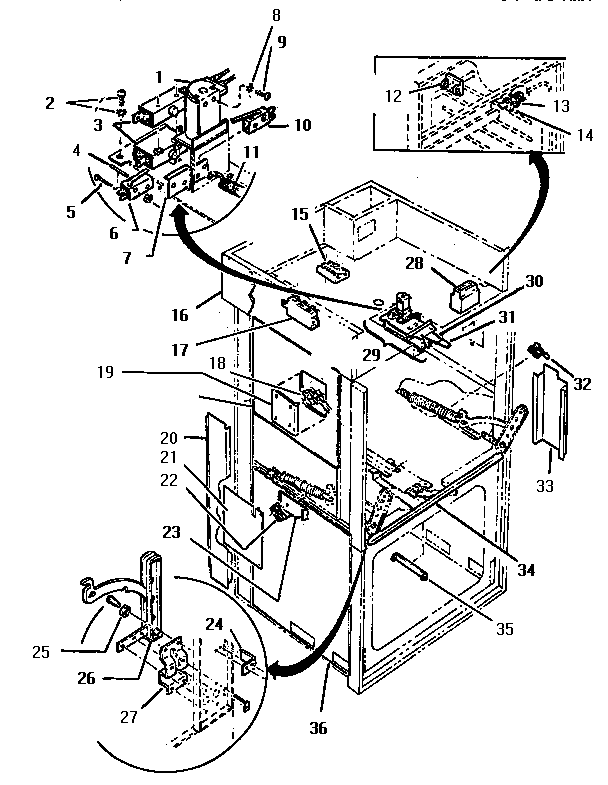

Switches & additional parts diagram

Cover

Part #14-34-406-01

$8.49
In Stock
Screw 14-91-010
Screw

Part #14-91-010

This item is not returnable
$2.16
In Stock
