Adobe Aire
Space Heater

Model # P100 Official Adobe Aire personal comfort center

Here are the diagrams and repair parts for Official Adobe Aire P100 personal comfort center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |

Pump Motor OA046090
#14

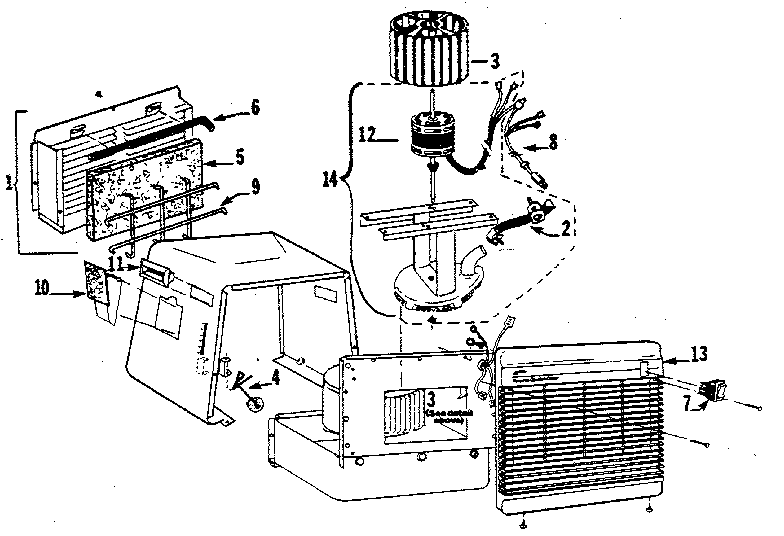

Replacement parts diagram

Pump motor

Part #OA046090

The manufacturer no longer makes this part, and there's no substitute part

Tube Strap OA072774
#2

Replacement parts diagram

Tube strap

Part #OA072774

The manufacturer no longer makes this part, and there's no substitute part

Motor OP116069
#12

Replacement parts diagram

Motor

Part #OP116069

The manufacturer no longer makes this part, and there's no substitute part

Service Cord OP026071
#8

Replacement parts diagram

Service cord

Part #OP026071

The manufacturer no longer makes this part, and there's no substitute part

Grille ZP096072
#13

Replacement parts diagram

Grille

Part #ZP096072

The manufacturer no longer makes this part, and there's no substitute part

Filter Pad Frame OA056091
#1

Replacement parts diagram

Filter pad frame

Part #OA056091

The manufacturer no longer makes this part, and there's no substitute part

Handle OP096076
#11

Replacement parts diagram

Handle

Part #OP096076

The manufacturer no longer makes this part, and there's no substitute part

Space Heater Blower Wheel OA086194
#3

Replacement parts diagram

Space heater blower wheel

Part #OA086194

The manufacturer no longer makes this part, and there's no substitute part

Wtr Lvl Indc OA202724
#4

Replacement parts diagram

Wtr lvl indc

Part #OA202724

The manufacturer no longer makes this part, and there's no substitute part

Switch 1005108000
#7

Replacement parts diagram

Switch

Part #1005108000

The manufacturer no longer makes this part, and there's no substitute part
