Thermador
Refrigerator

Model # T24IR70CSS-01 Official Thermador built-in refrigerator column

Here are the diagrams and repair parts for Official Thermador T24IR70CSS-01 built-in refrigerator column, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

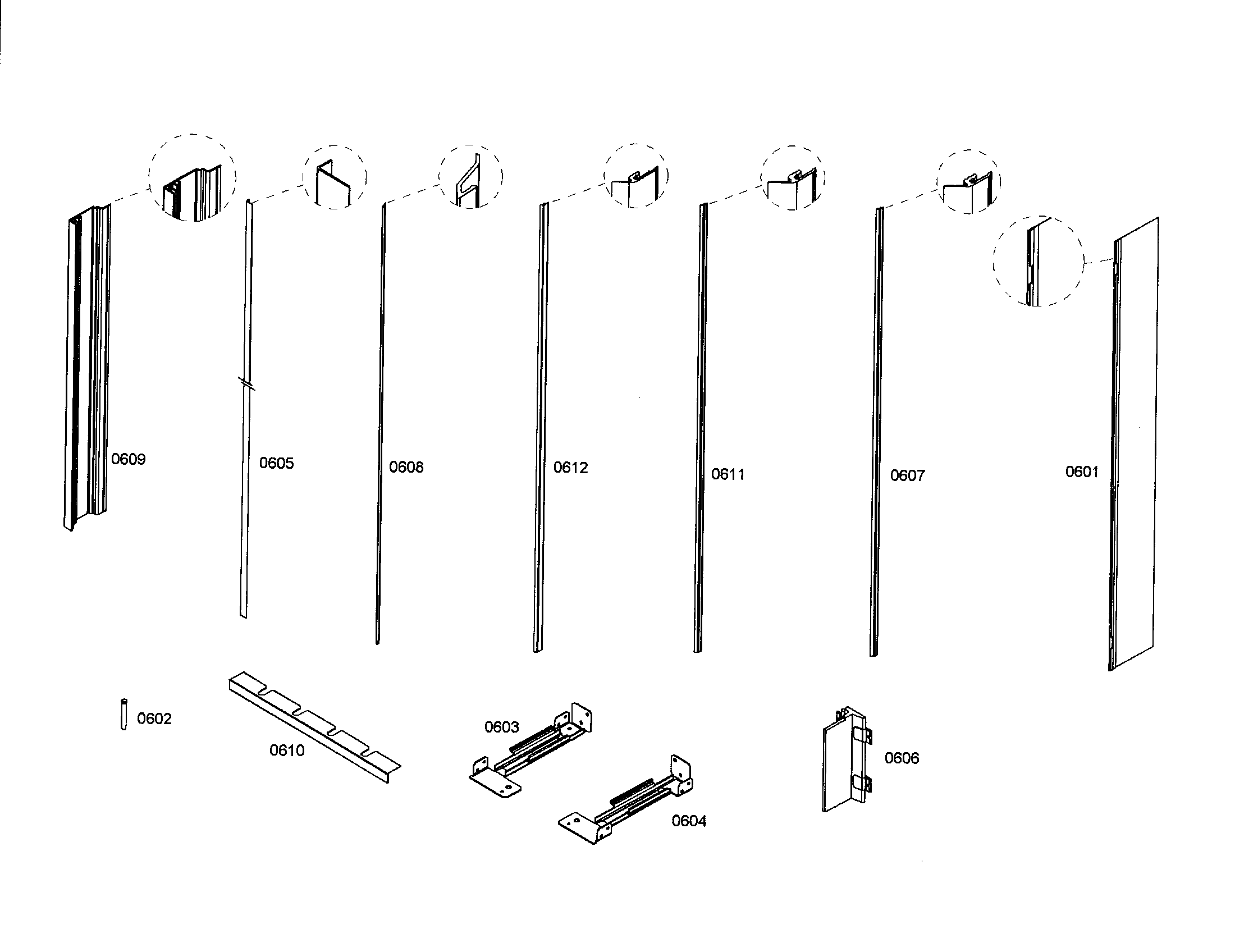

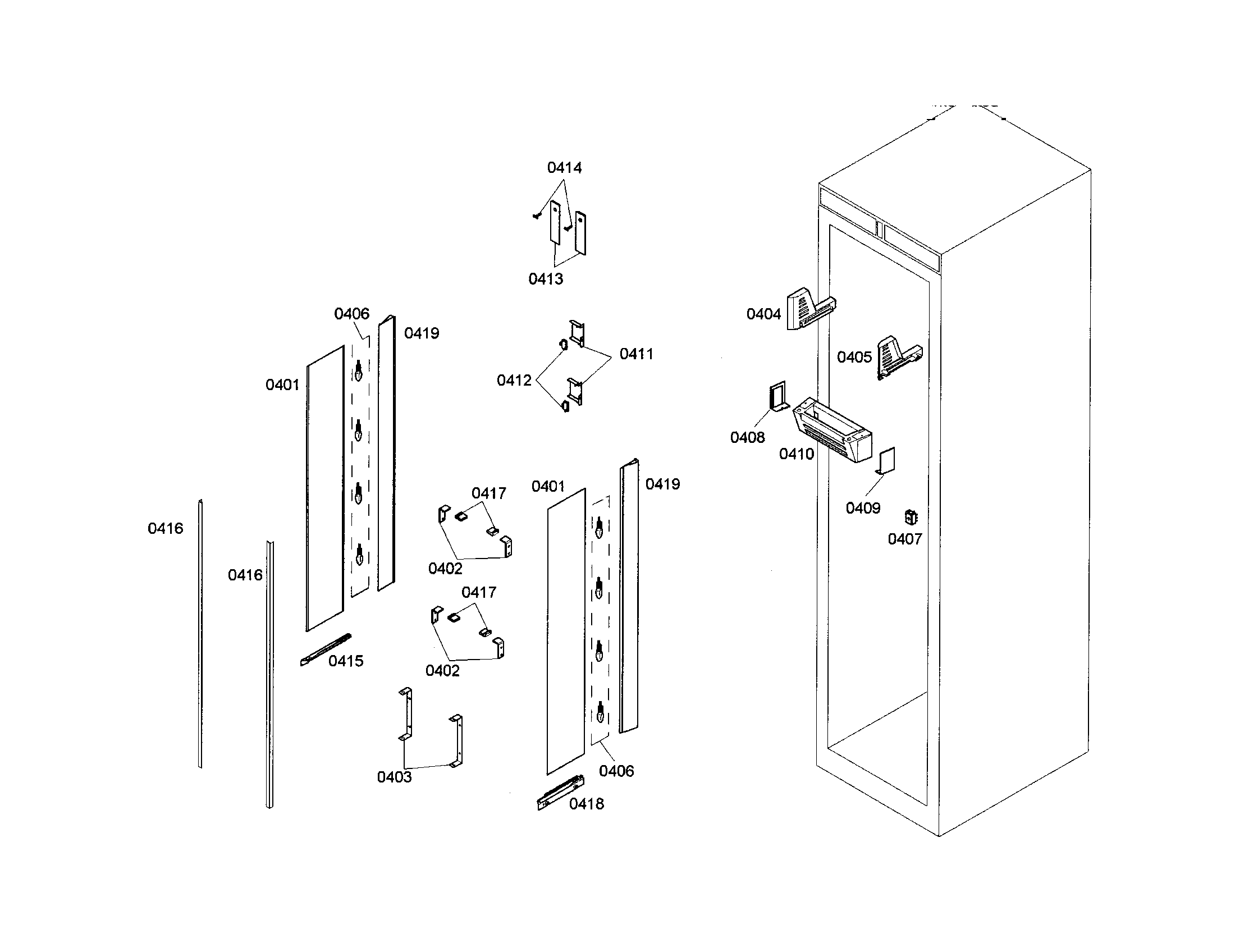

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Refrigerator Module 499931
#512

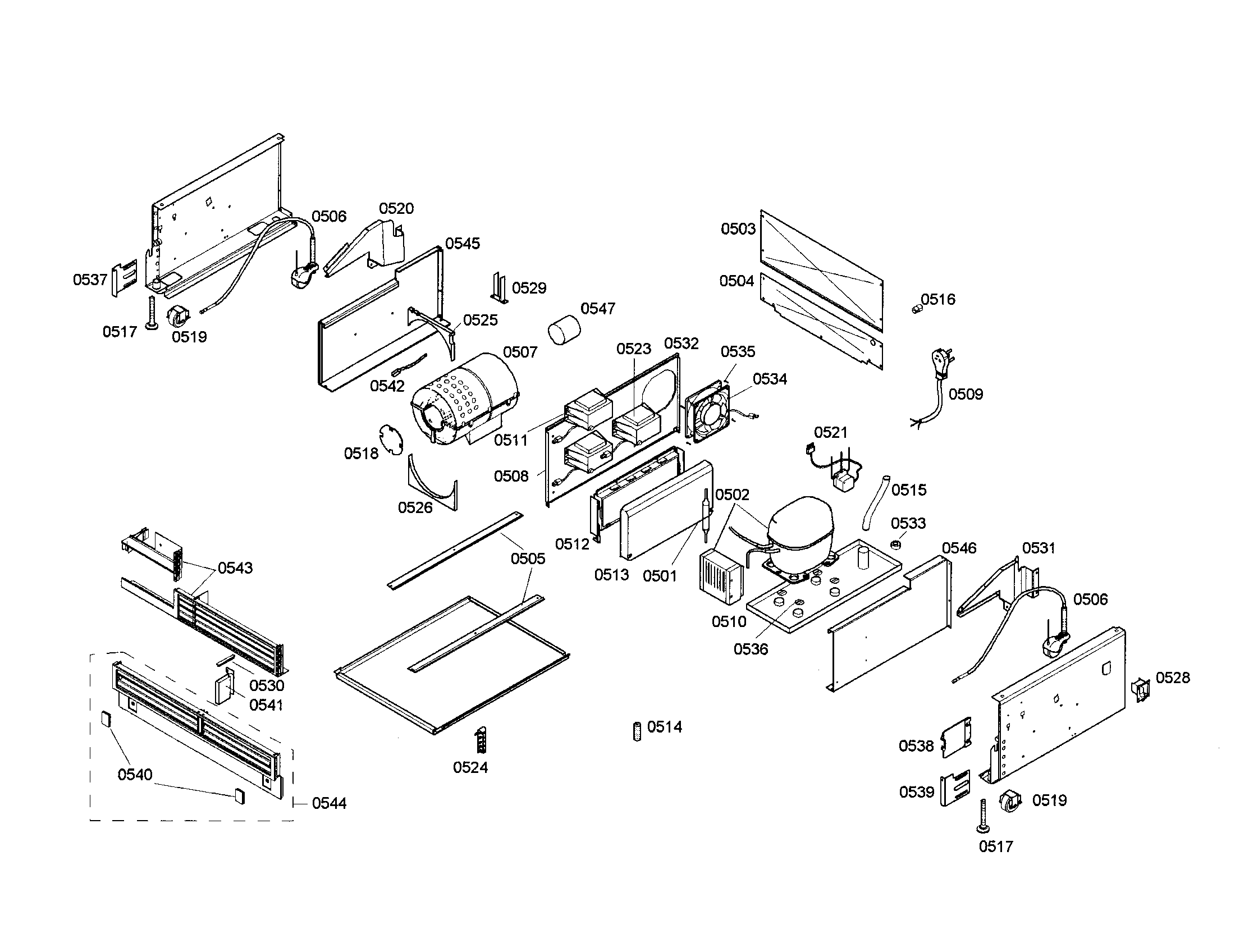

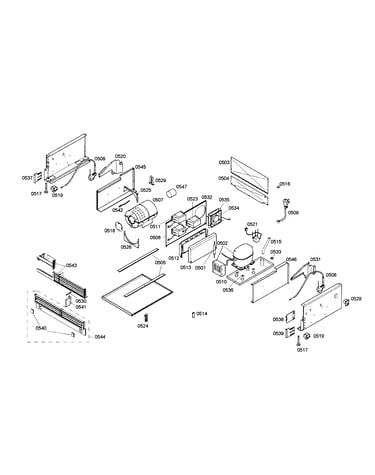

Compressor/condenser diagram

Refrigerator module

Part #499931

Replaced by #00669047

?
Manufacturer substitution
This part replaces 499931. Substitute parts can look different from the original.
$183.52
In Stock
Clip 603971
#320

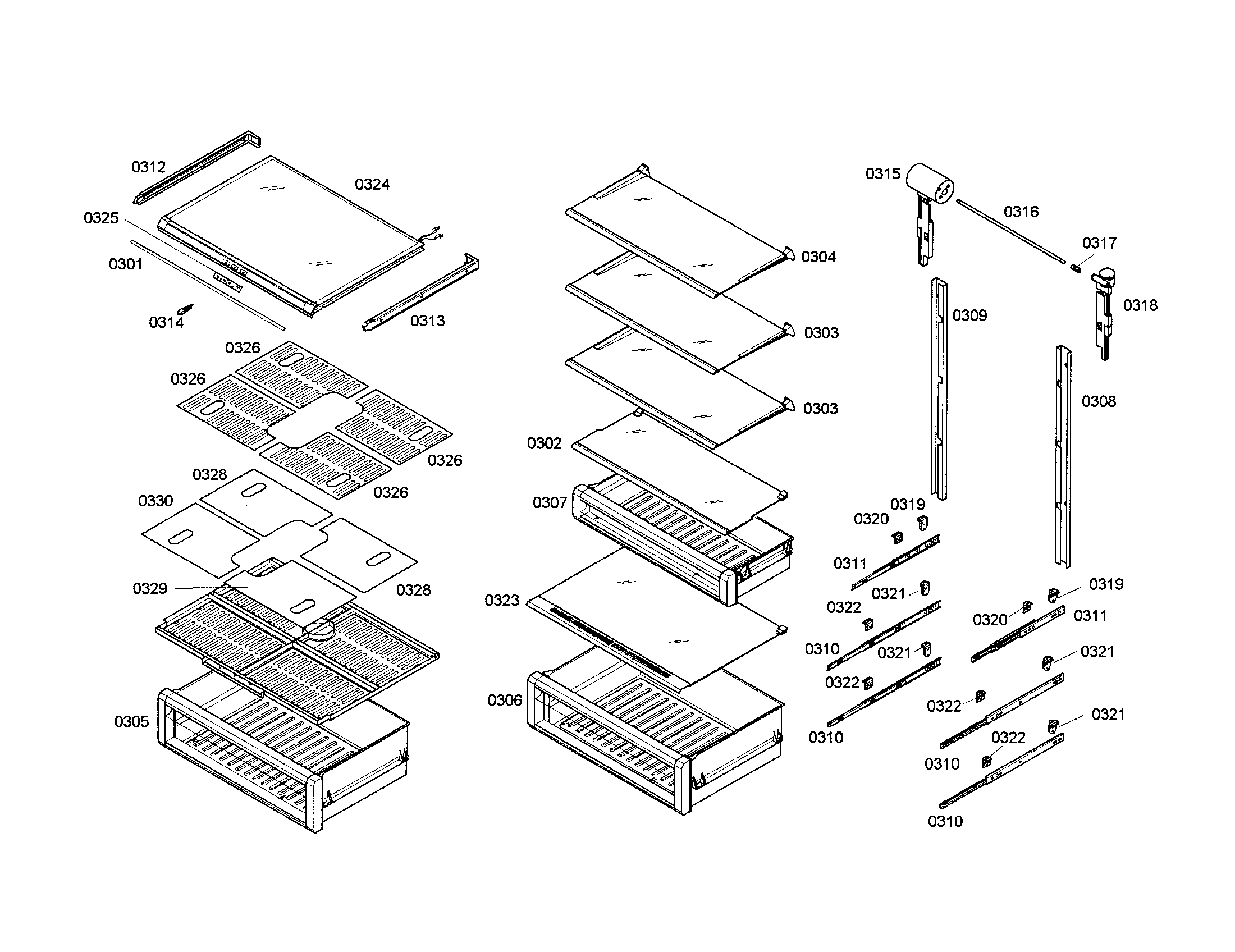

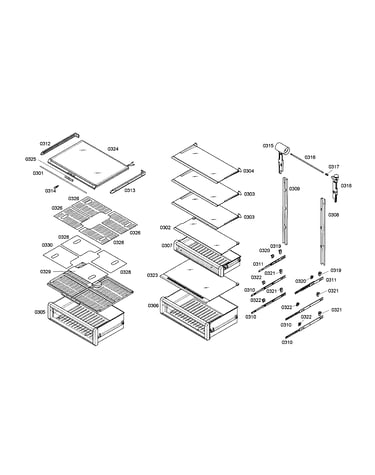

Shelves diagram

Clip

Part #603971

Replaced by #00623319

?
Manufacturer substitution
This part replaces 603971. Substitute parts can look different from the original.
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Door Seal 244425
#214

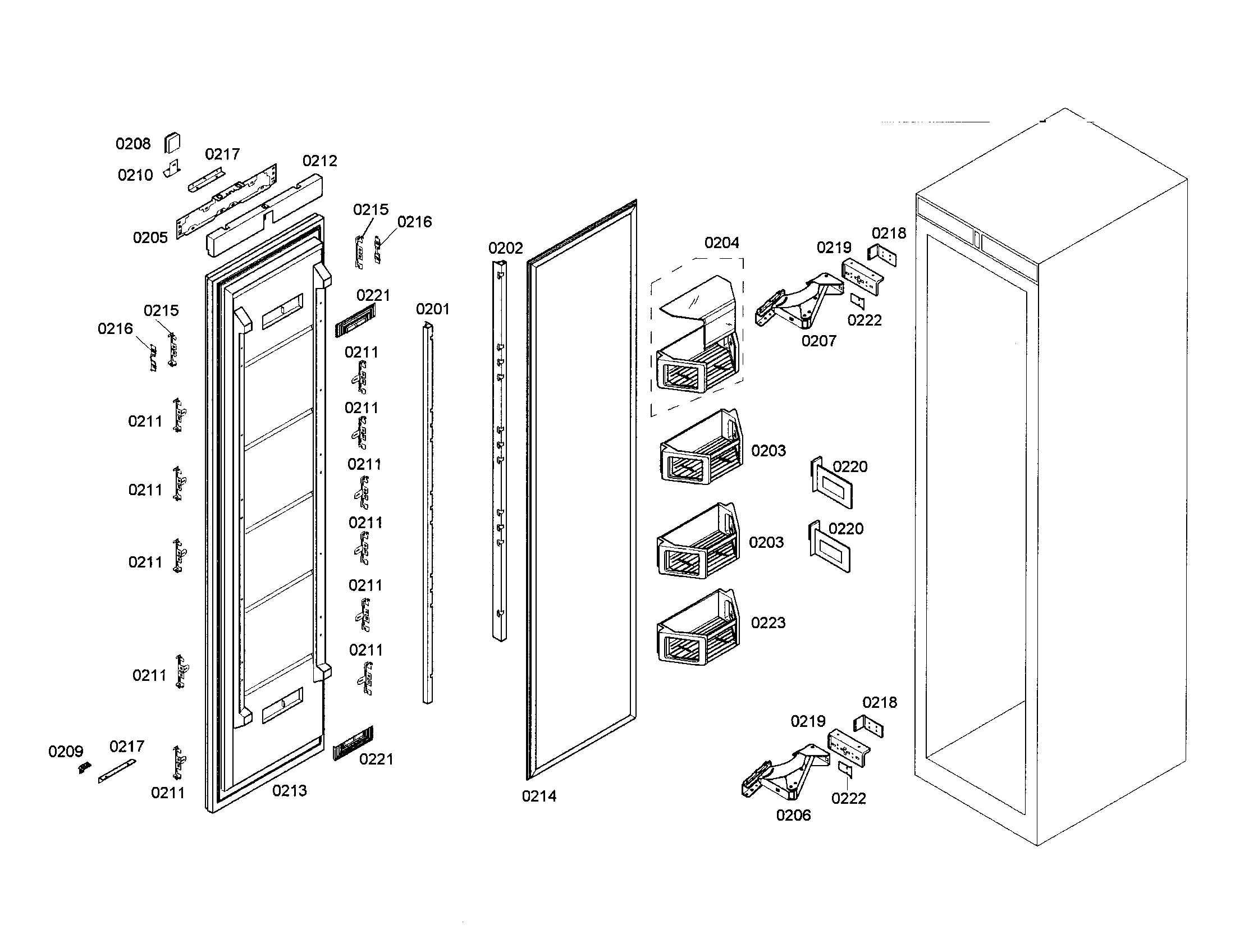

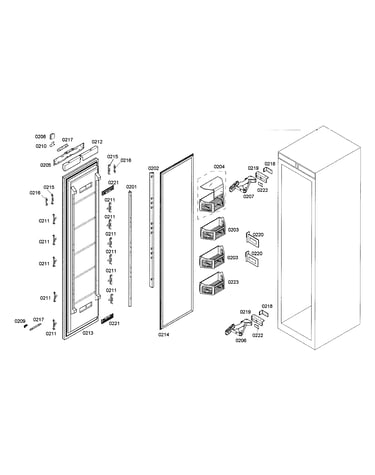

Refrigerator door diagram

Door seal

Part #244425

Replaced by #00716384

?
Manufacturer substitution
This part replaces 244425. Substitute parts can look different from the original.
$142.09 |
8% OFF Phone Price : $154.09
In Stock
Refrigerator Filter 604147
#135

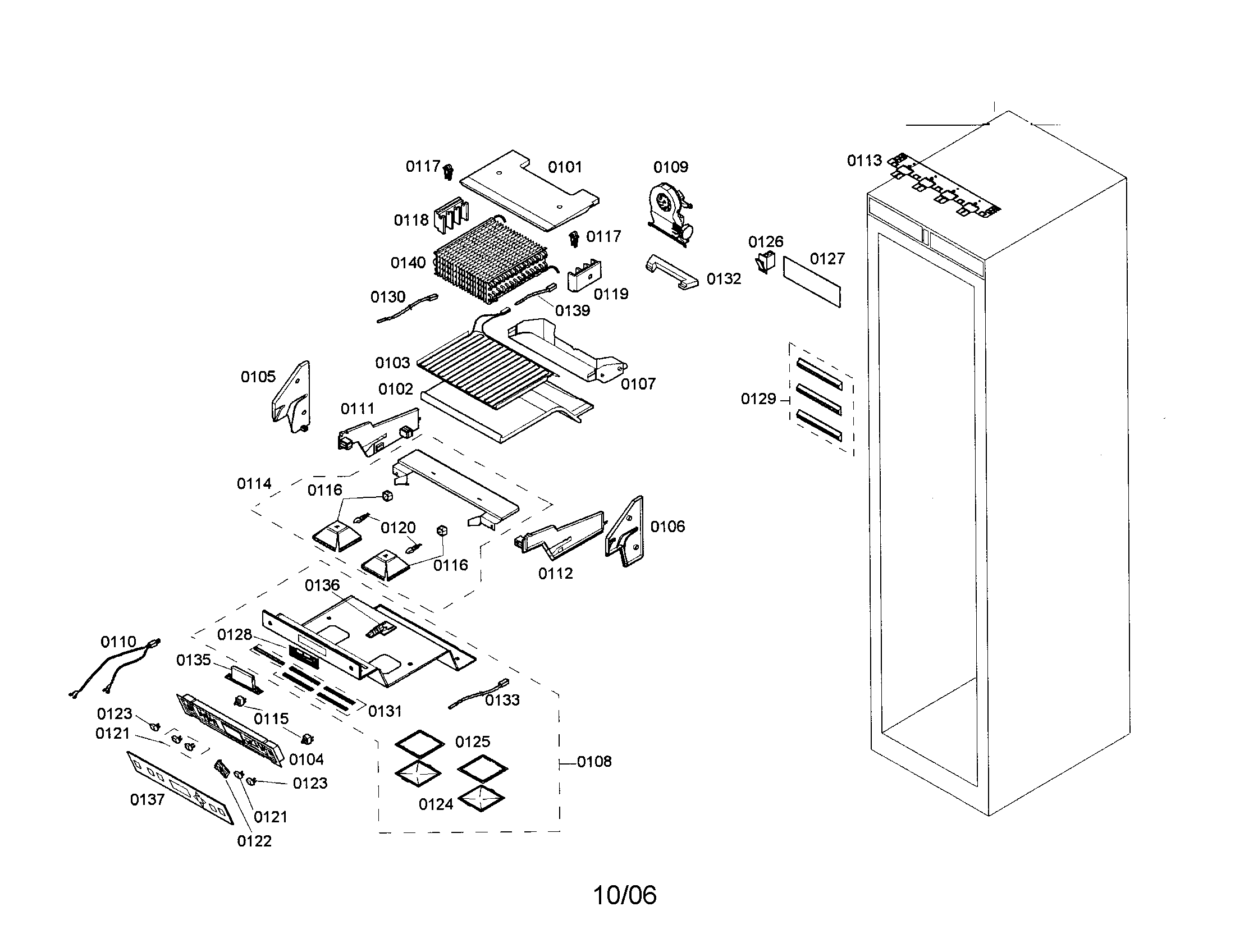

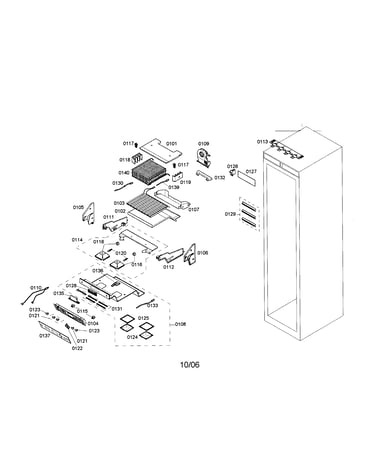

Cabinet diagram

Refrigerator filter

Part #604147

Replaced by #00636459

?
Manufacturer substitution
This part replaces 604147. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$30.19 |
17% OFF Phone Price : $36.19
In Stock
Fan 605322
#534

Compressor/condenser diagram

Fan

Part #605322

Replaced by #00652338

?
Manufacturer substitution
This part replaces 605322. Substitute parts can look different from the original.
$97.79 |
11% OFF Phone Price : $109.79
In Stock
Holder 604674
#538

Compressor/condenser diagram

Holder

Part #604674

Replaced by #00604674

?
Manufacturer substitution
This part replaces 604674. Substitute parts can look different from the original.
$7.94
In Stock
Clip 603968
#319

Shelves diagram

Clip

Part #603968

Replaced by #00607647

?
Manufacturer substitution
This part replaces 603968. Substitute parts can look different from the original.
$7.89
In Stock
Refrigerator Clip 604666
#322

Shelves diagram

Refrigerator clip

Part #604666

Replaced by #00633652

?
Manufacturer substitution
This part replaces 604666. Substitute parts can look different from the original.
This item is not returnable
$8.06
In Stock
Defrost Sensor 604025
Defrost sensor

Part #604025

Replaced by #00617203

?
Manufacturer substitution
This part replaces 604025. Substitute parts can look different from the original.
This item is not returnable
$23.59 |
20% OFF Phone Price : $29.59
In Stock
Refrigerator Holder 604188
#220

Refrigerator door diagram

Refrigerator holder

Part #604188

Replaced by #00604188

?
Manufacturer substitution
This part replaces 604188. Substitute parts can look different from the original.
$8.66
In Stock
