Model # KCST70-16 Official Kelvinator salad & sandwich prep table

Here are the diagrams and repair parts for Official Kelvinator KCST70-16 salad & sandwich prep table, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

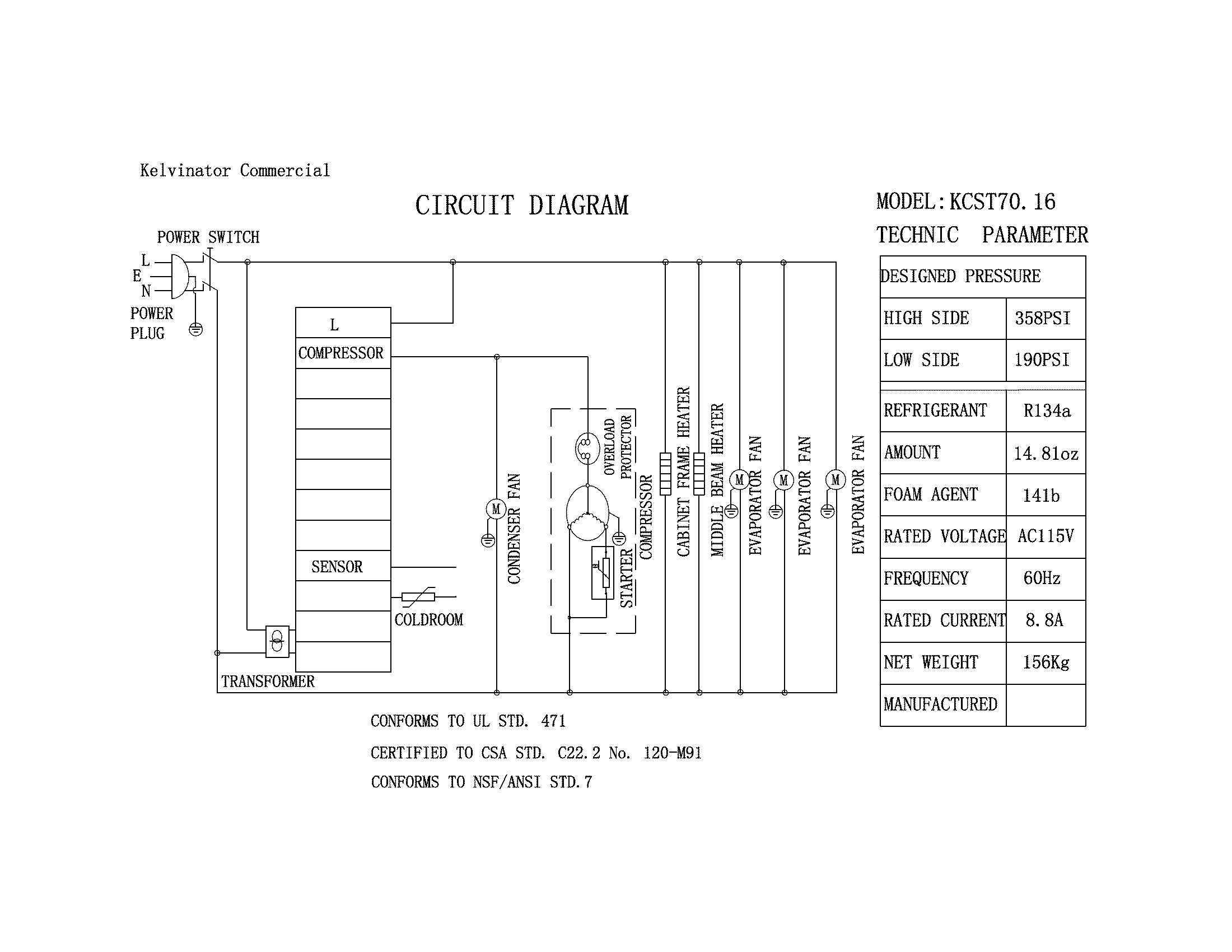

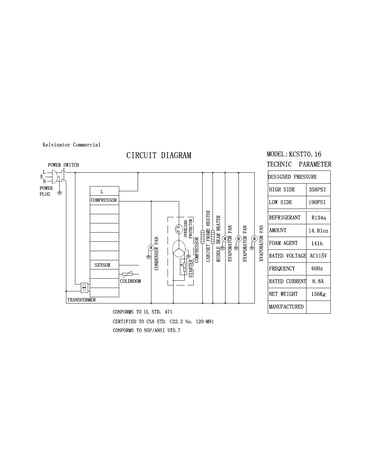

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Hinge 5304493410
#11

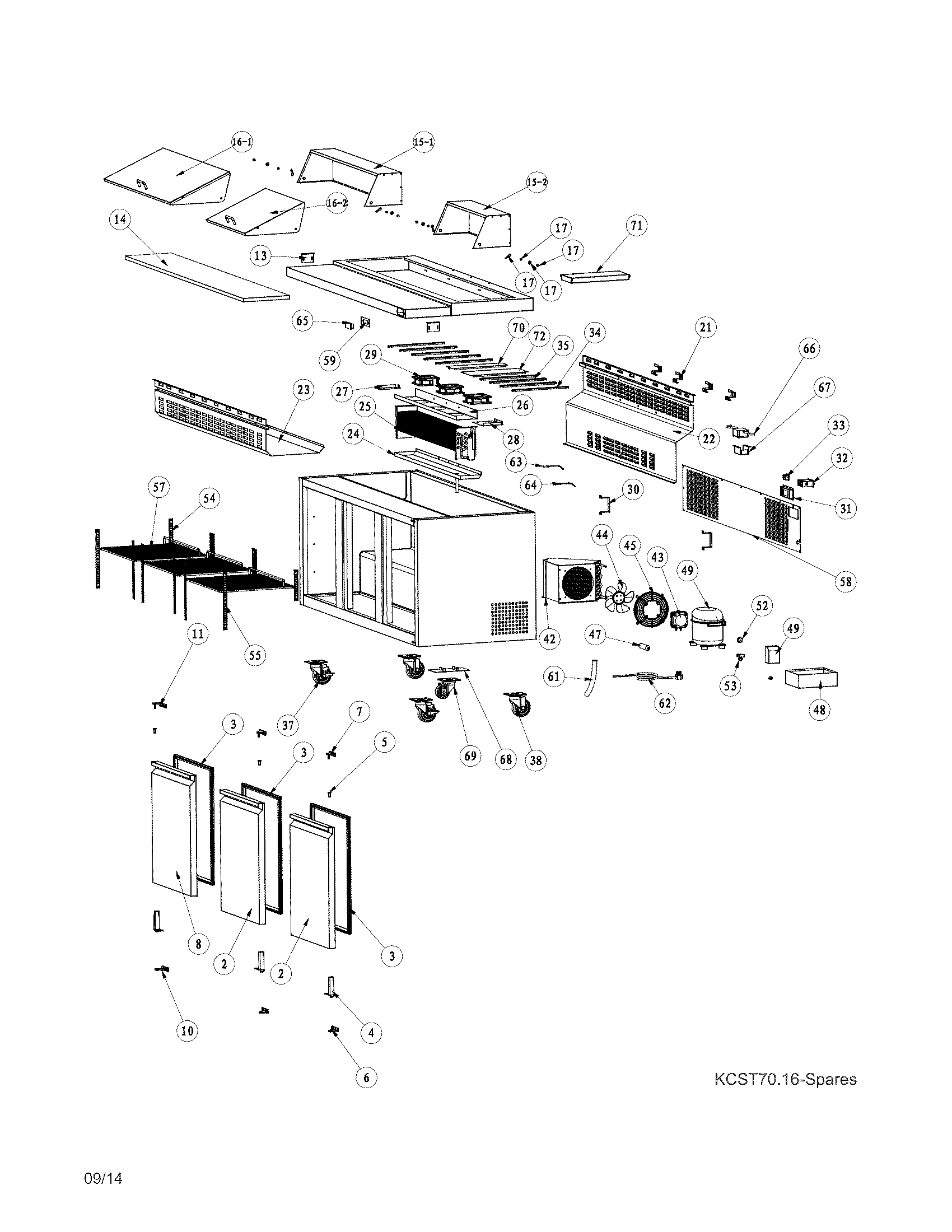

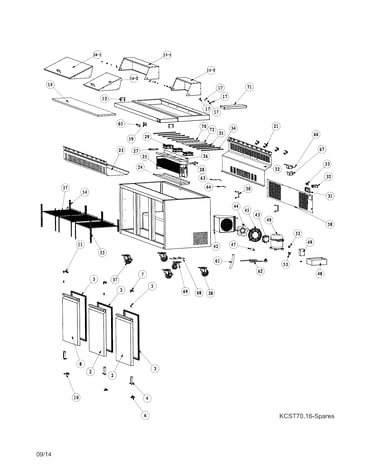

Recommended spare parts diagram

Hinge

Part #5304493410

The manufacturer no longer makes this part, and there's no substitute part

Pan 5304493457
#48

Recommended spare parts diagram

Pan

Part #5304493457

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Bracket 5304493403
#67

Recommended spare parts diagram

Refrigerator bracket

Part #5304493403

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Support 5304493595
#68

Recommended spare parts diagram

Refrigerator support

Part #5304493595

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Condenser 5304493455
#42

Recommended spare parts diagram

Refrigerator condenser

Part #5304493455

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Hood 5304493571
#15-

Recommended spare parts diagram

Refrigerator hood

Part #5304493571

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 5304493100
#62

Recommended spare parts diagram

Power cord

Part #5304493100

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Plate 5304493598
#71

Recommended spare parts diagram

Refrigerator plate

Part #5304493598

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Compressor 5304493028
#49

Recommended spare parts diagram

Refrigerator compressor

Part #5304493028

The manufacturer no longer makes this part, and there's no substitute part

Probe 5304493402
#64

Recommended spare parts diagram

Probe

Part #5304493402

The manufacturer no longer makes this part, and there's no substitute part
