Gas Walk-Behind Mower

Model # 917389350 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917389350 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 214 parts  |
Lock Nut 83923
#39

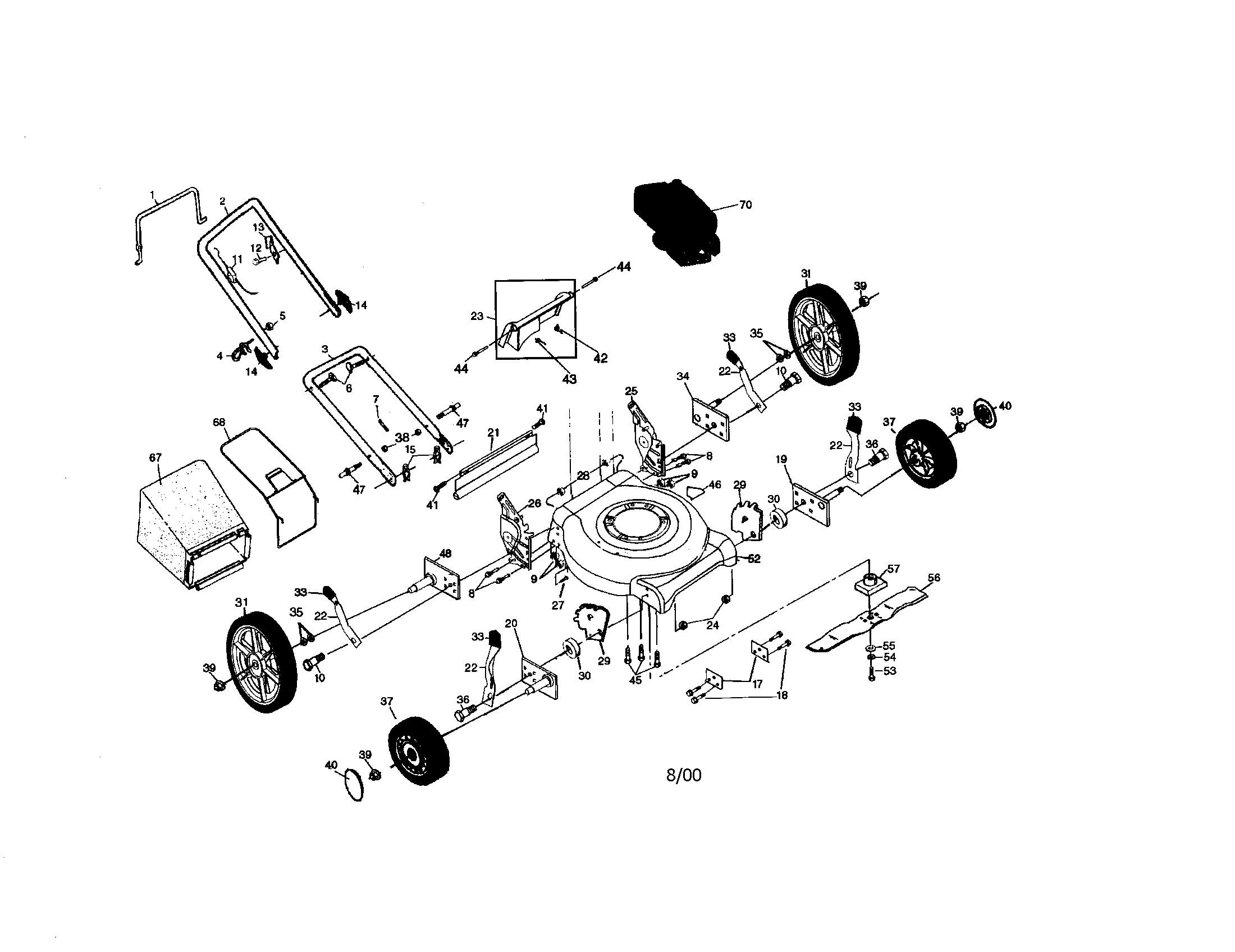

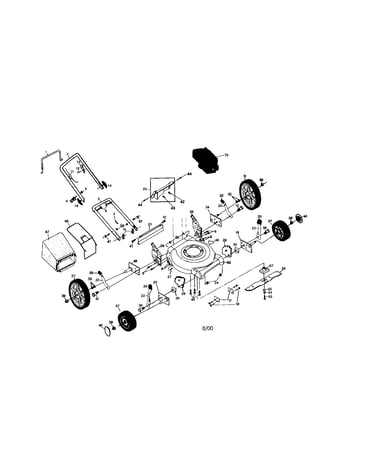

Craftsman rotary lawn mower diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Belt, 21-in 165833
#56

Craftsman rotary lawn mower diagram

Belt, 21-in

Part #165833

Replaced by #532406712

?
Manufacturer substitution
This part replaces 165833. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.13 |
21% OFF Phone Price : $28.13
In Stock
Lawn Mower Blade Adapter 851514
#57

Craftsman rotary lawn mower diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Craftsman rotary lawn mower diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Wheel 151162
#37

Craftsman rotary lawn mower diagram

Lawn mower wheel

Part #151162

Replaced by #582976901

?
Manufacturer substitution
This part replaces 151162. Substitute parts can look different from the original.
This item is not returnable
$27.98 |
18% OFF Phone Price : $33.98
In Stock
Upstop Bracket 850733X004
#13

Craftsman rotary lawn mower diagram

Upstop bracket

Part #850733X004

Replaced by #532850733

?
Manufacturer substitution
This part replaces 850733X004. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Rope Guide 132001
#4

Craftsman rotary lawn mower diagram

Rope guide

Part #132001

Replaced by #586122501

?
Manufacturer substitution
This part replaces 132001. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Handle Bolt 131959
#6

Craftsman rotary lawn mower diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Handle 161105X479
#3

Craftsman rotary lawn mower diagram

Lawn mower handle

Part #161105X479

Replaced by #583716401

?
Manufacturer substitution
This part replaces 161105X479. Substitute parts can look different from the original.
$33.31
In Stock
Nut Lck 5/16 73990500
#38

Craftsman rotary lawn mower diagram

Nut lck 5/16

Part #73990500

Replaced by #596040501

?
Manufacturer substitution
This part replaces 73990500. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
