Power Drill

Model # DW160 Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt DW160 drill, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
DW160 Power Tools
Bearing 445175-00
#35

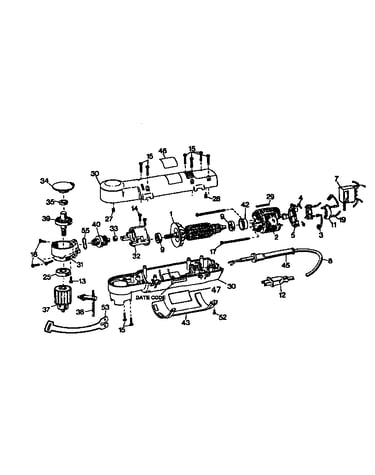

Unit parts diagram

Bearing

Part #445175-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Rubber Plug 95114-00
#28

Unit parts diagram

Black & decker rubber plug

Part #95114-00

The manufacturer no longer makes this part, and there's no substitute part

Rubber Pad 445402-00
#29

Unit parts diagram

Rubber pad

Part #445402-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Drill Motor Brush Spring 445860-00
#4

Unit parts diagram

Sears drill motor brush spring

Part #445860-00

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 445217-02
#42

Unit parts diagram

Sleeve

Part #445217-02

The manufacturer no longer makes this part, and there's no substitute part

Detroit Screw 55206-00
#13

Unit parts diagram

Detroit screw

Part #55206-00

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 150732-00
#47

Unit parts diagram

Nameplate

Part #150732-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Screw 448269-00
#17

Unit parts diagram

Sears screw

Part #448269-00

The manufacturer no longer makes this part, and there's no substitute part

Slv Bearing 131557-00
#33

Unit parts diagram

Slv bearing

Part #131557-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Gear Case 449033-01
#32

Unit parts diagram

Craftsman gear case

Part #449033-01

The manufacturer no longer makes this part, and there's no substitute part
