Model # IBM LASER 4019 Official IBM laser 4019

Here are the diagrams and repair parts for Official IBM IBM-LASER-4019 laser 4019, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

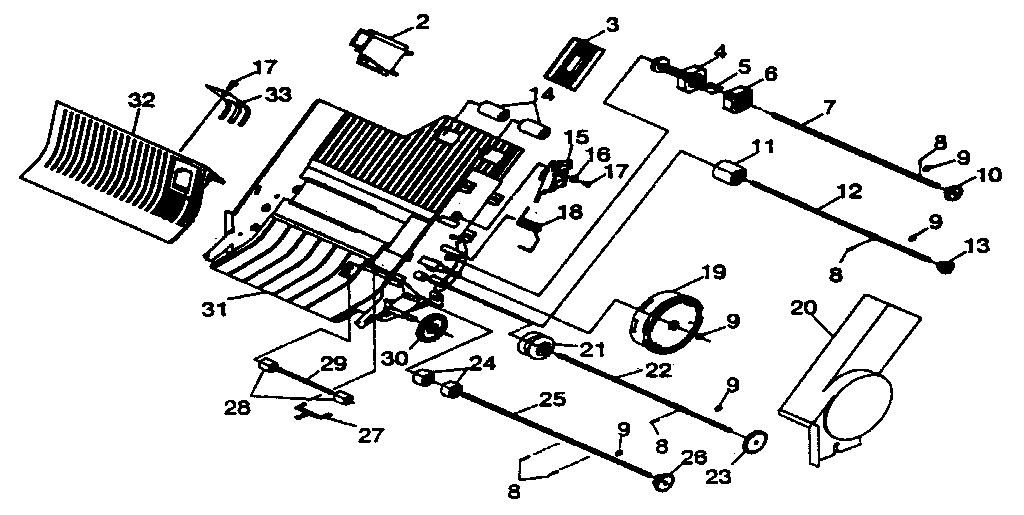

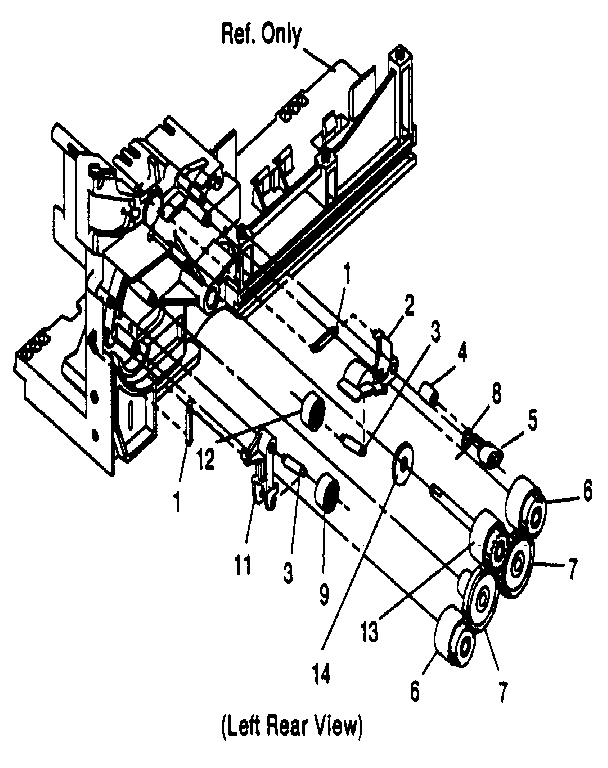

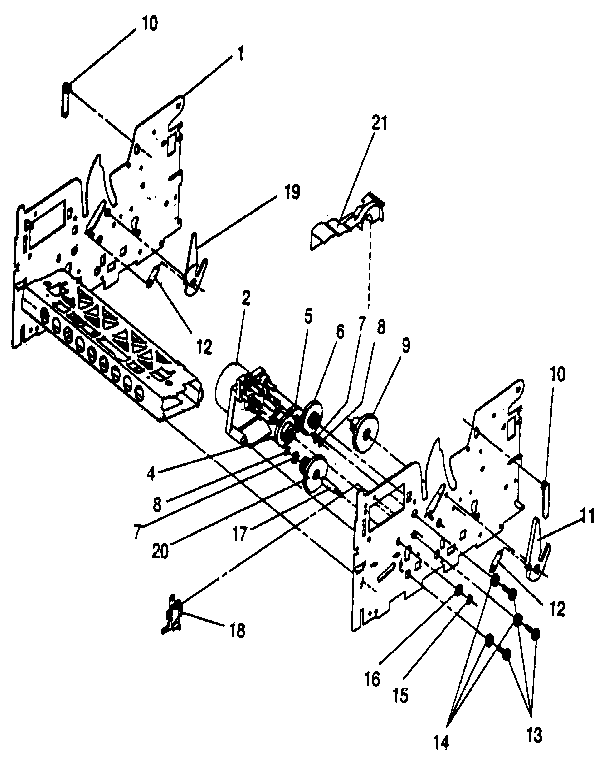

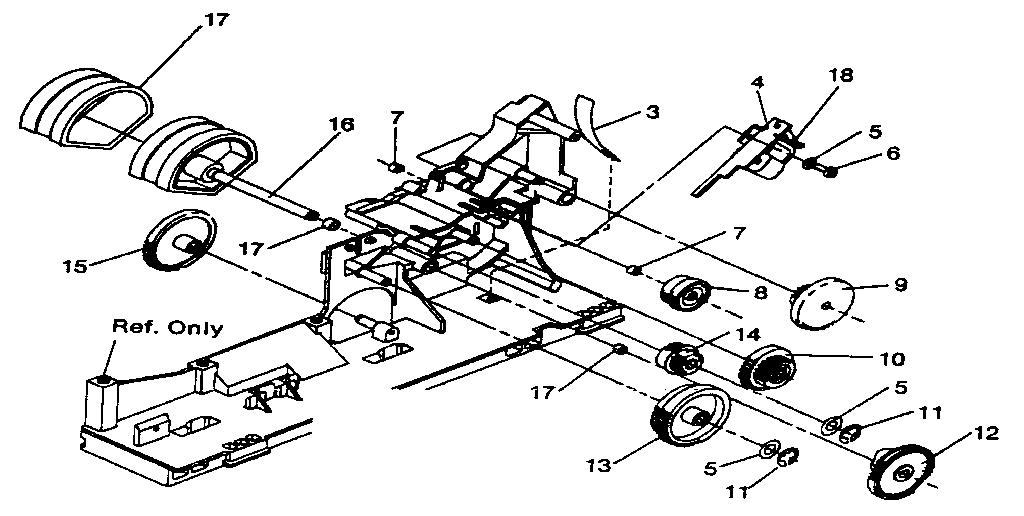

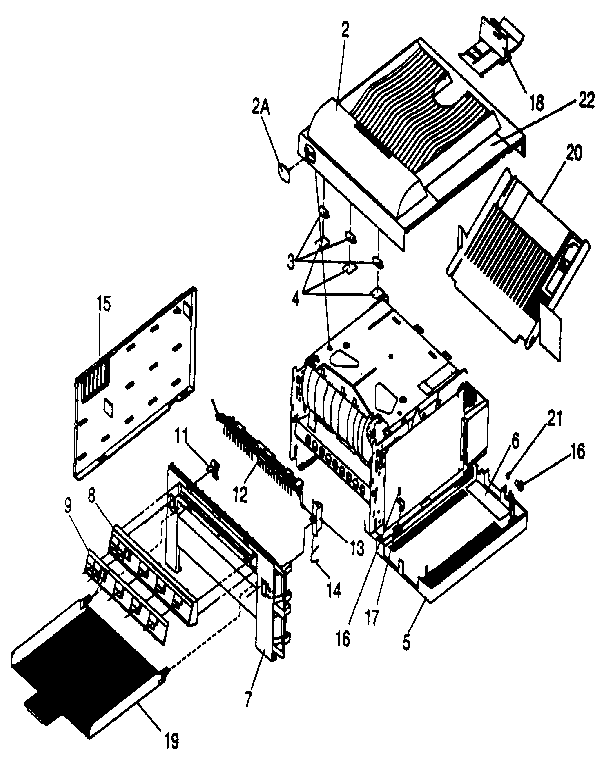

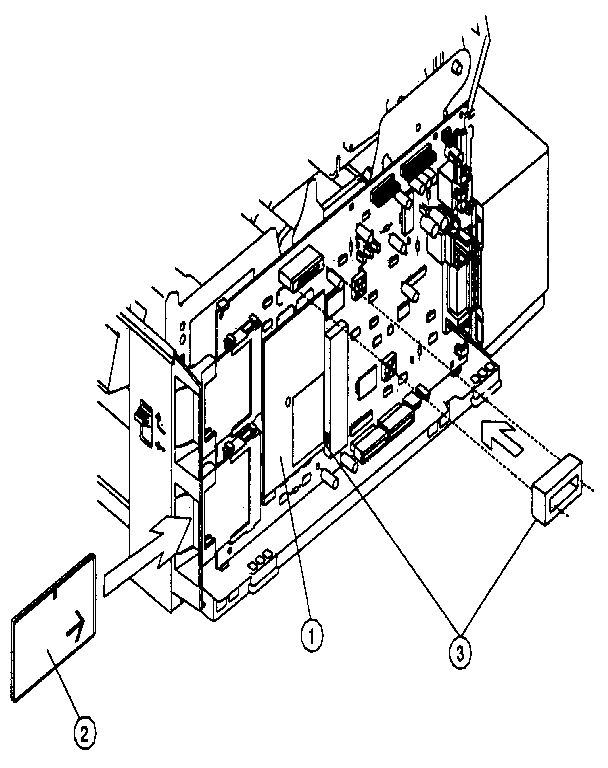

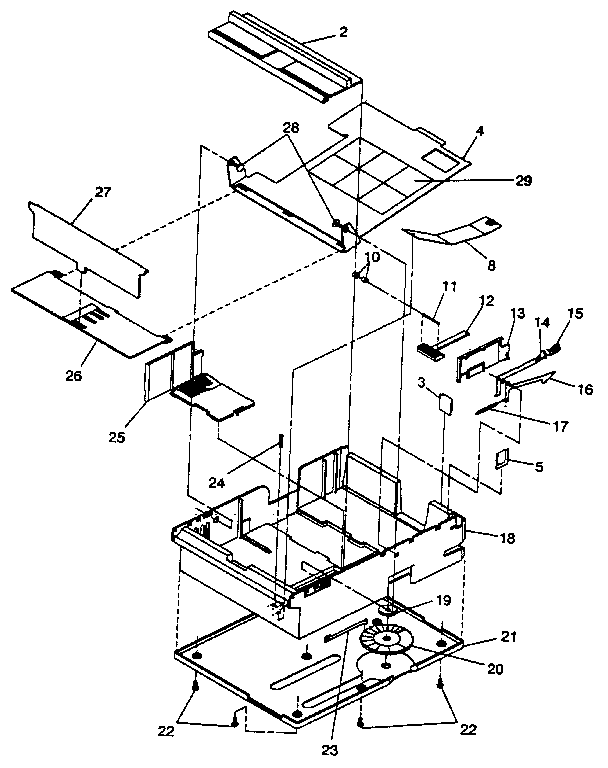

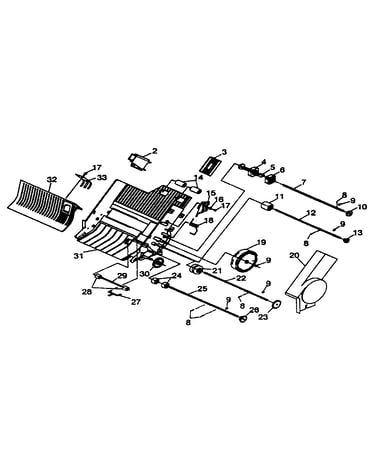

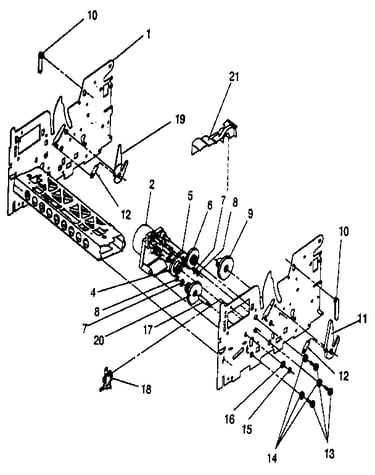

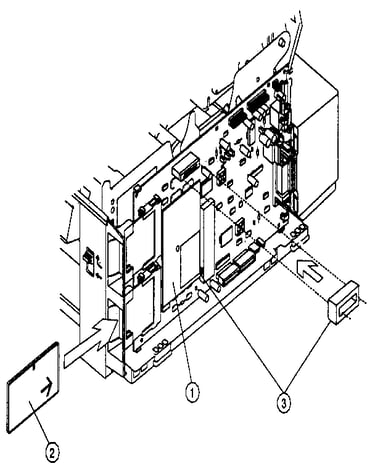

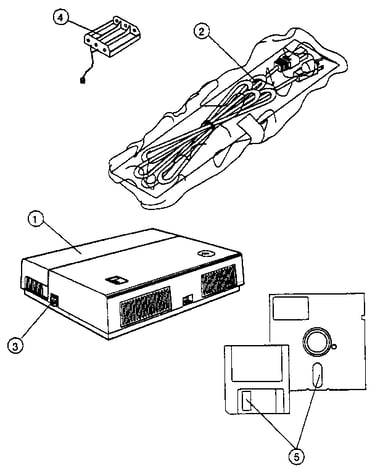

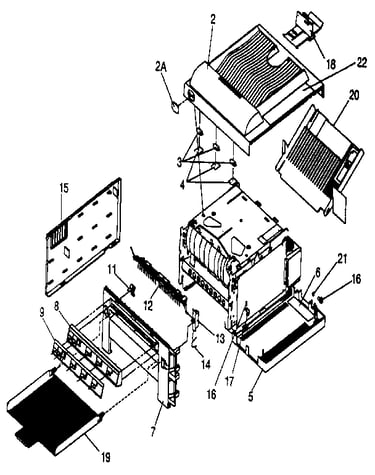

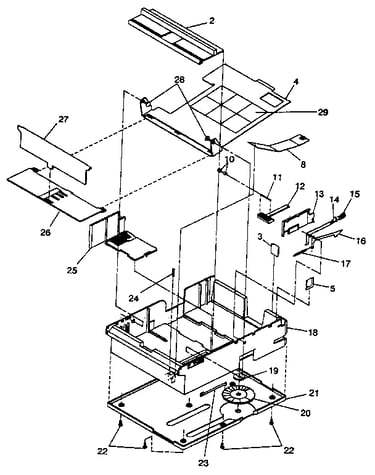

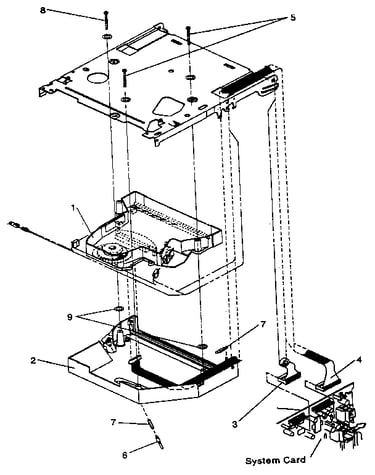

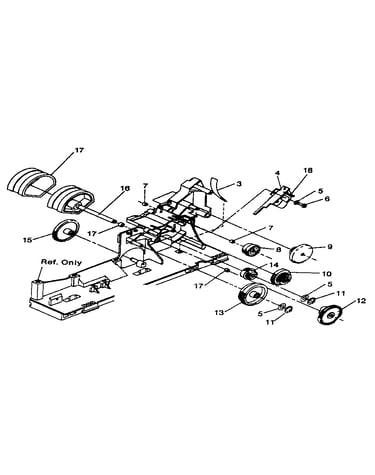

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |
100 Vac Japan 1383323
#1B

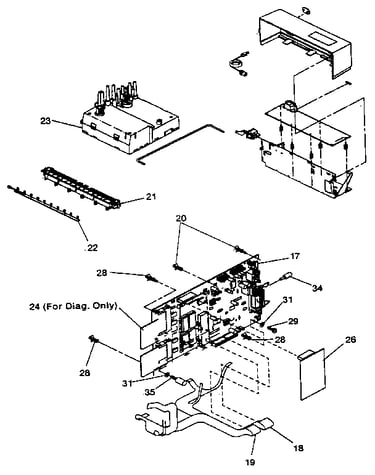

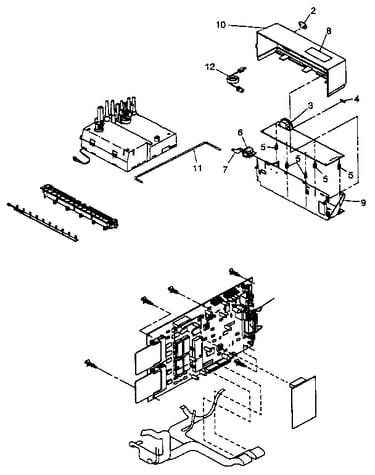

Assembly 12: electronics diagram

100 vac japan

Part #1383323

The manufacturer no longer makes this part, and there's no substitute part

4a 220 V Fuse 1035364
#4A

Assembly 12: electronics diagram

4a 220 v fuse

Part #1035364

The manufacturer no longer makes this part, and there's no substitute part

Fuser Lamp 220 V 1383324
#5A

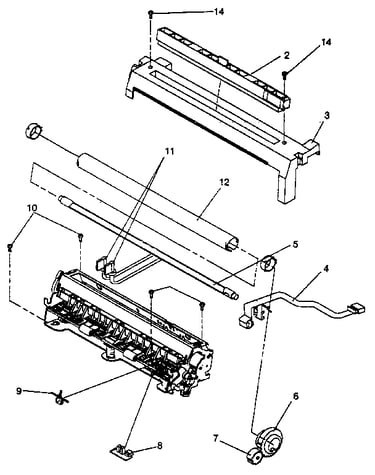

Assembly 11: fuser diagram

Fuser lamp 220 v

Part #1383324

The manufacturer no longer makes this part, and there's no substitute part

Instructions Label 1039088
#8

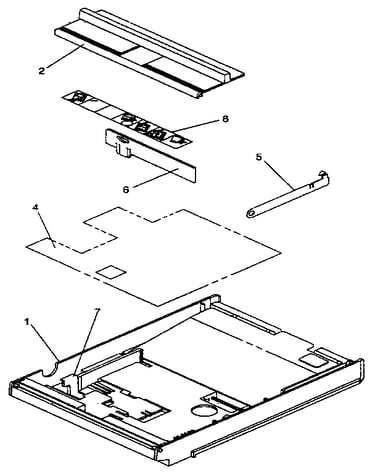

Assembly 8: standard paper tray (200-sheet) diagram

Instructions label

Part #1039088

The manufacturer no longer makes this part, and there's no substitute part

D-roller Tire 1039540
#8

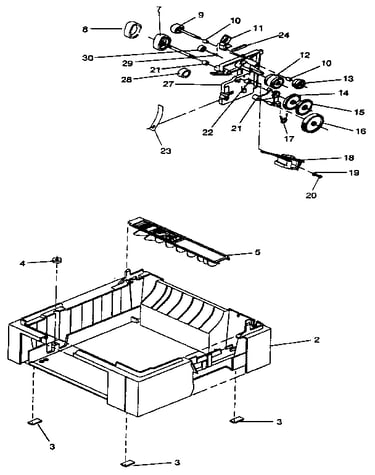

Assembly 10: optional paper drive diagram

D-roller tire

Part #1039540

The manufacturer no longer makes this part, and there's no substitute part

Fuser Asm. 220 V (with Lamp) 1383437
#1B

Assembly 11: fuser diagram

Fuser asm. 220 v (with lamp)

Part #1383437

The manufacturer no longer makes this part, and there's no substitute part

Fuser Input Guide 1383419
#18

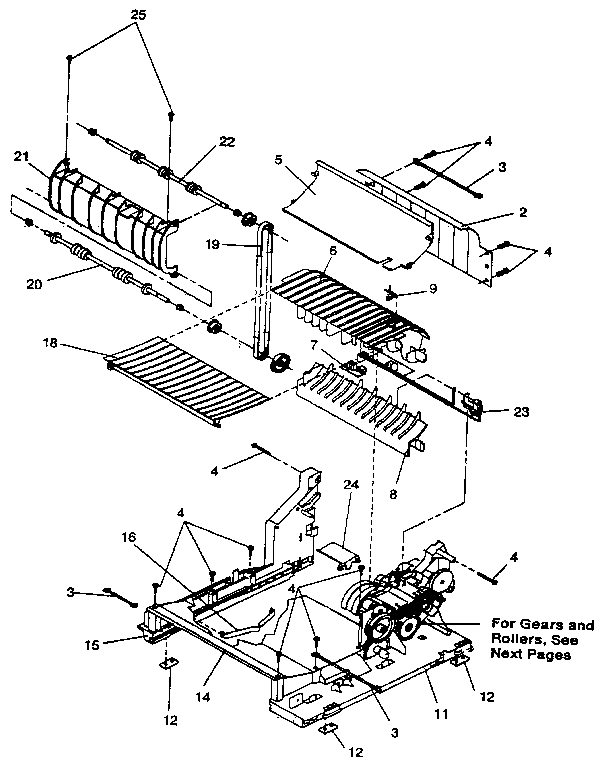

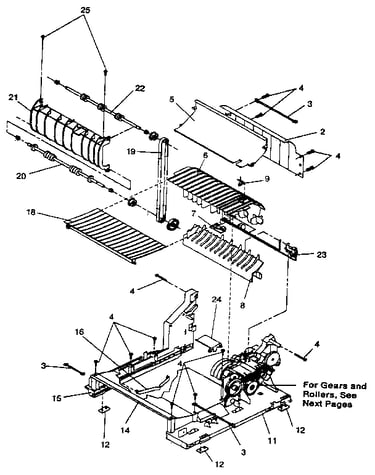

Assembly 5: paper feed assembly diagram

Fuser input guide

Part #1383419

The manufacturer no longer makes this part, and there's no substitute part

Torsion Load Spring 1039384
#5

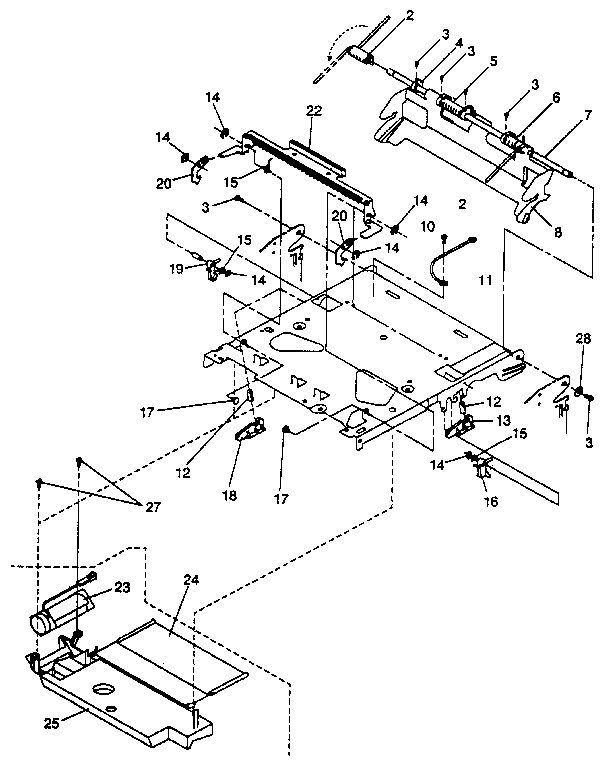

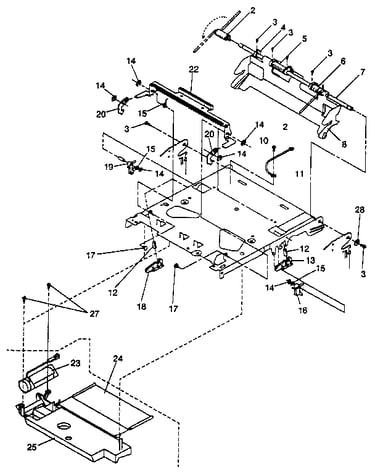

Assembly 4: upper frame diagram

Torsion load spring

Part #1039384

The manufacturer no longer makes this part, and there's no substitute part

Fuser Hot Roll (including Bearings) 1383322
#13

Assembly 11: fuser diagram

Fuser hot roll (including bearings)

Part #1383322

The manufacturer no longer makes this part, and there's no substitute part

Plenum Asm. 1039081
#25

Assembly 4: upper frame diagram

Plenum asm.

Part #1039081

The manufacturer no longer makes this part, and there's no substitute part
