Model # N4H318AKA100 Official ICP split-system air conditioner

Here are the diagrams and repair parts for Official ICP N4H318AKA100 split-system air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Condensing Unit Defrost Control Board 1173636
#26

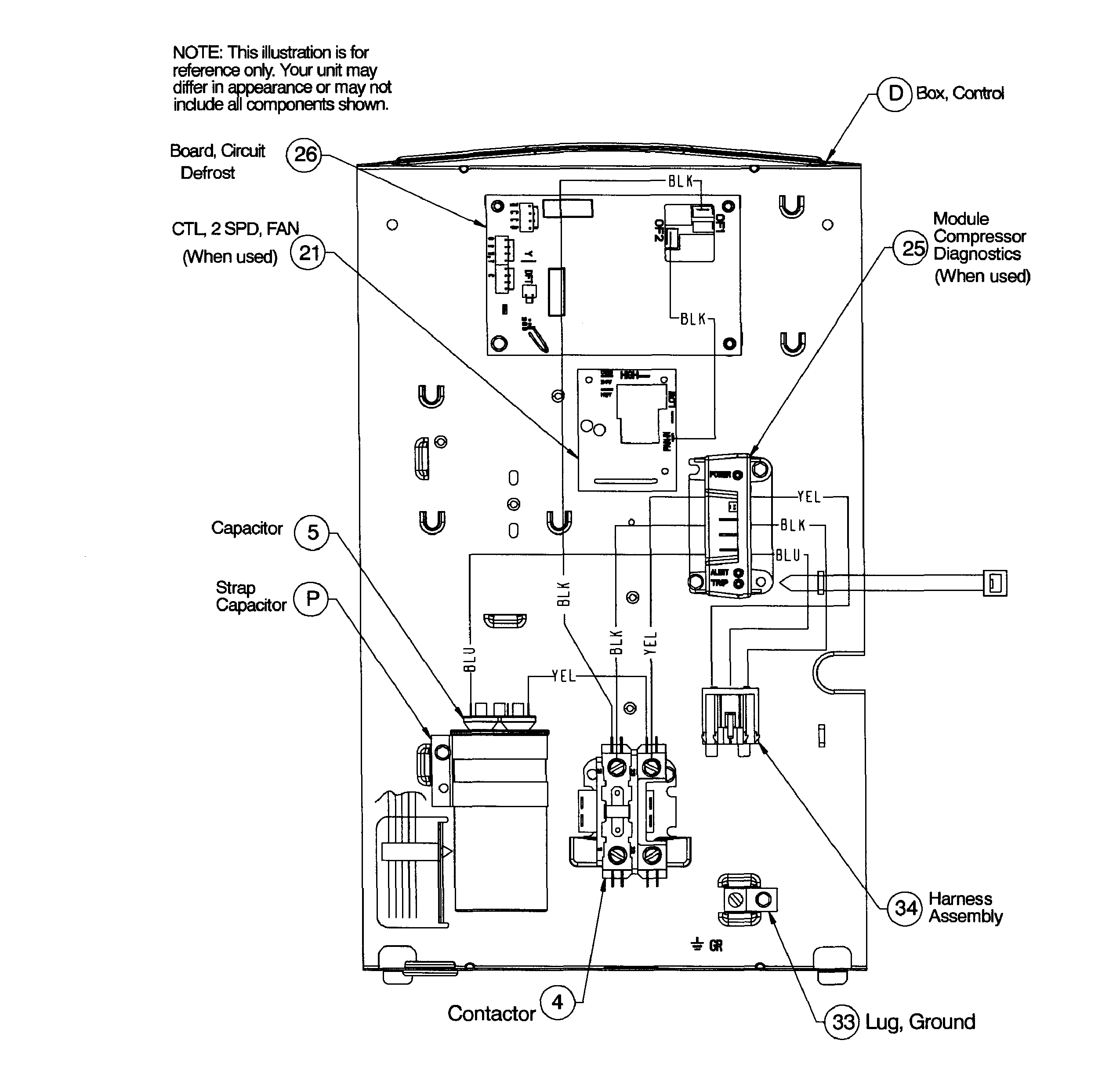

Control box diagram

Condensing unit defrost control board

Part #1173636

$174.11 |
6% OFF Phone Price : $186.11
In Stock
Motor Cnd 1172707
#2

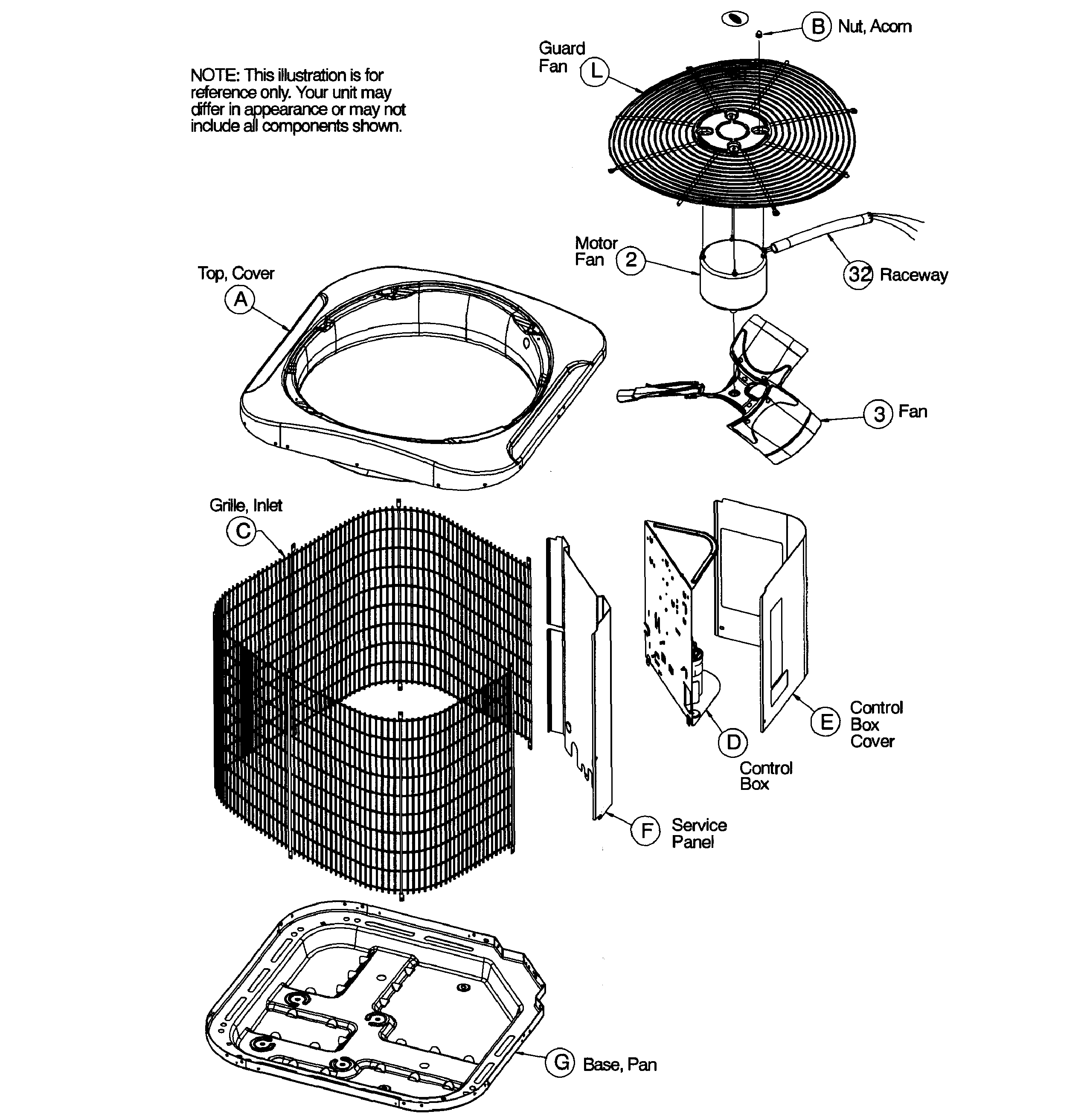

Cabinet diagram

Motor cnd

Part #1172707

Replaced by #1186357

?
Manufacturer substitution
This part replaces 1172707. Substitute parts can look different from the original.
$200.13 |
6% OFF Phone Price : $212.13
In Stock
Kit 1174192
#NI

Cabinet diagram

Kit

Part #1174192

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Contactor 1172472
#4

Control box diagram

Central air conditioner contactor

Part #1172472

$61.35 |
9% OFF Phone Price : $67.35
In Stock
Clip 1173640
#30

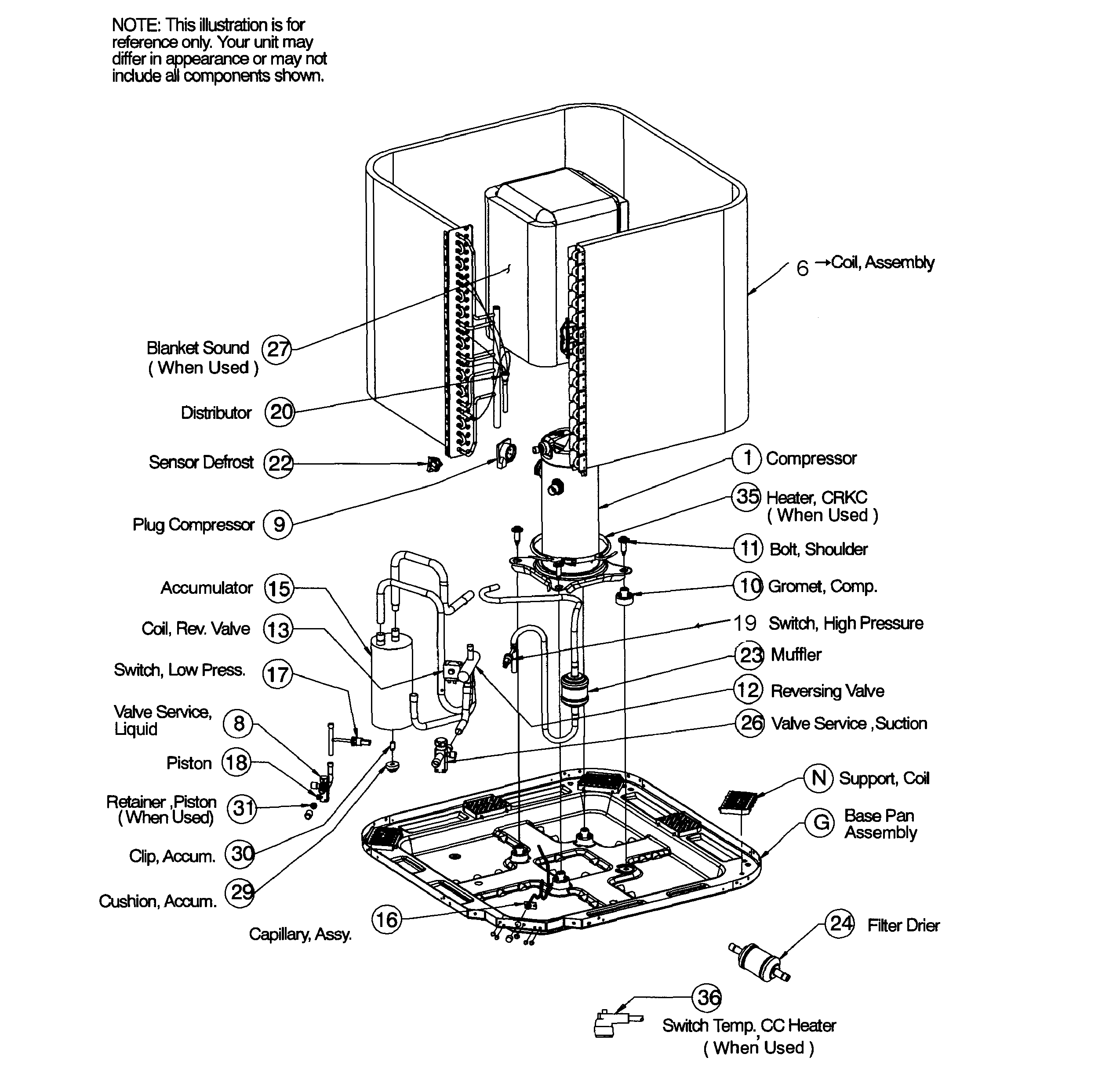

Heat pump diagram

Clip

Part #1173640

This item is not returnable
$2.16
In Stock
Accumulatr 1173631
#15

Heat pump diagram

Accumulatr

Part #1173631

$135.76
In Stock
Capillary 1174096
#16

Heat pump diagram

Capillary

Part #1174096

$135.14
In Stock
Piston 1173634
#18

Heat pump diagram

Piston

Part #1173634

$9.94
In Stock
Retainer 1173641
#31

Heat pump diagram

Retainer

Part #1173641

$9.06
In Stock
Raceway 1173642
#32

Cabinet diagram

Raceway

Part #1173642

$26.91
In Stock
