Model # 316792640 Official Craftsman extended trimmer attachment

Here are the diagrams and repair parts for Official Craftsman 316792640 extended trimmer attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |

Line Trimmer Gearbox 753-08180
#5

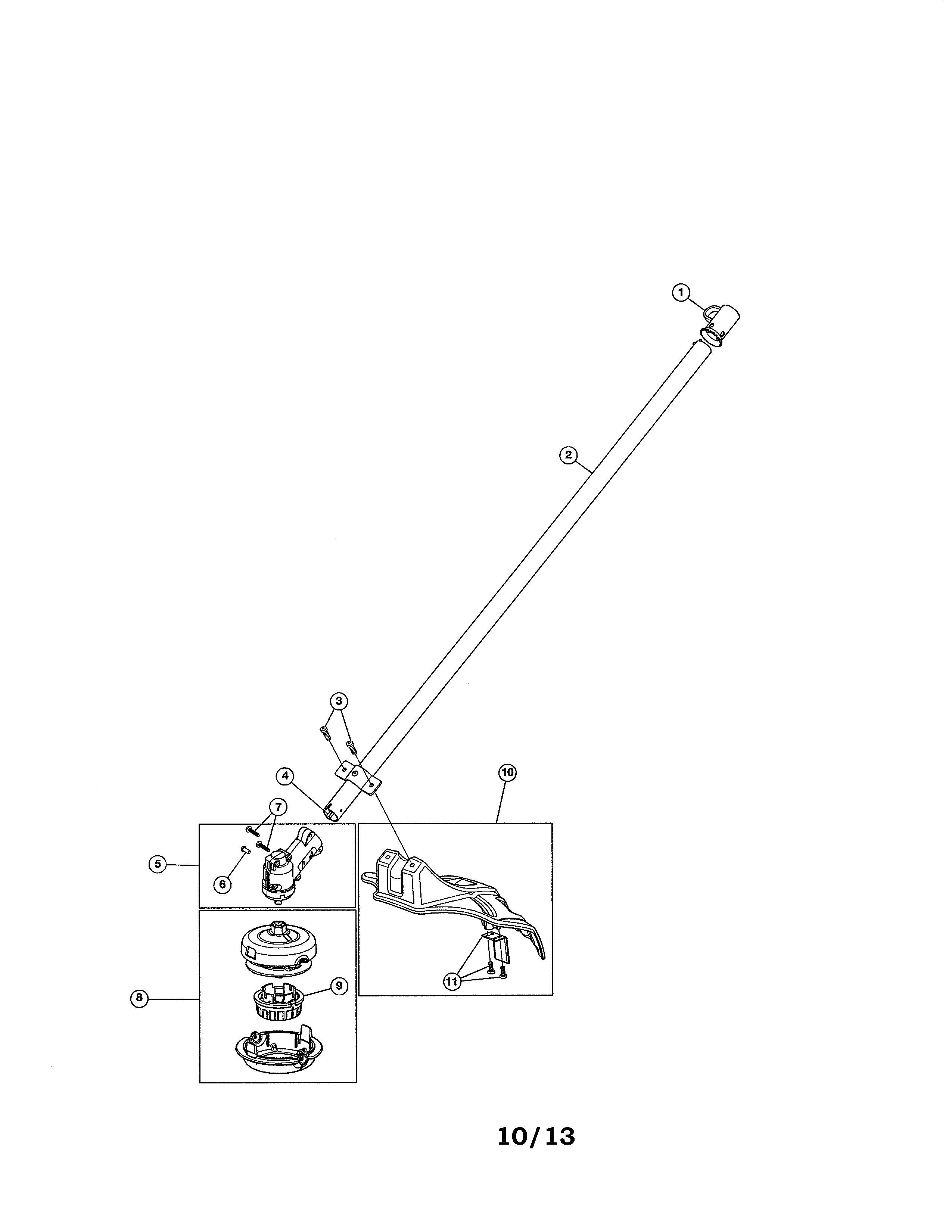

Trimmer attachment diagram

Line trimmer gearbox

Part #753-08180

BEST SELLER
$56.69
10% OFF Phone Price : $62.69
In Stock
Line Trimmer Cutting Head Assembly 753-08197
#8

Trimmer attachment diagram

Line trimmer cutting head assembly

Part #753-08197

This item is not returnable
$20.96
22% OFF Phone Price : $26.96
In Stock
Lawn & Garden Equipment Screw 791-182519
#6

Trimmer attachment diagram

Lawn & garden equipment screw

Part #791-182519

This item is not returnable
$6.73
13% OFF Phone Price : $7.73
In Stock
Line Trimmer Handlebar Clamp (replaces 791-612605) 731-08926
#1

Trimmer attachment diagram

Line trimmer handlebar clamp (replaces 791-612605)

Part #731-08926

This item is not returnable
$4.10
20% OFF Phone Price : $5.10
In Stock
Line Trimmer Debris Shield 753-08177
#10

Trimmer attachment diagram

Line trimmer debris shield

Part #753-08177

This item is not returnable
$18.56
10% OFF Phone Price : $20.56
In Stock
Mtd Line Trimmer Drive Shaft, Lower 753-08192
#4

Trimmer attachment diagram

Mtd line trimmer drive shaft, lower

Part #753-08192

In Stock
Knob 753-08157
#9

Trimmer attachment diagram

Knob

Part #753-08157

In Stock
Yard Machines Lawn & Garden Equipment Screw 791-182195
#7

Trimmer attachment diagram

Yard machines lawn & garden equipment screw

Part #791-182195

This item is not returnable
$10.87
16% OFF Phone Price : $12.87
In Stock
Line Trimmer String Cut-off Blade 753-08178
#11

Trimmer attachment diagram

Line trimmer string cut-off blade

Part #753-08178

This item is not returnable

Get free shipping with Automatic Reorder

In Stock
Kmart Lawn & Garden Equipment Screw 753-06125
#3

Trimmer attachment diagram

Kmart lawn & garden equipment screw

Part #753-06125

This item is not returnable
$10.46
16% OFF Phone Price : $12.46
In Stock
