Countertop Microwave

Model # KCMS135SAL0 Official KitchenAid microwave

Here are the diagrams and repair parts for Official KitchenAid KCMS135SAL0 microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

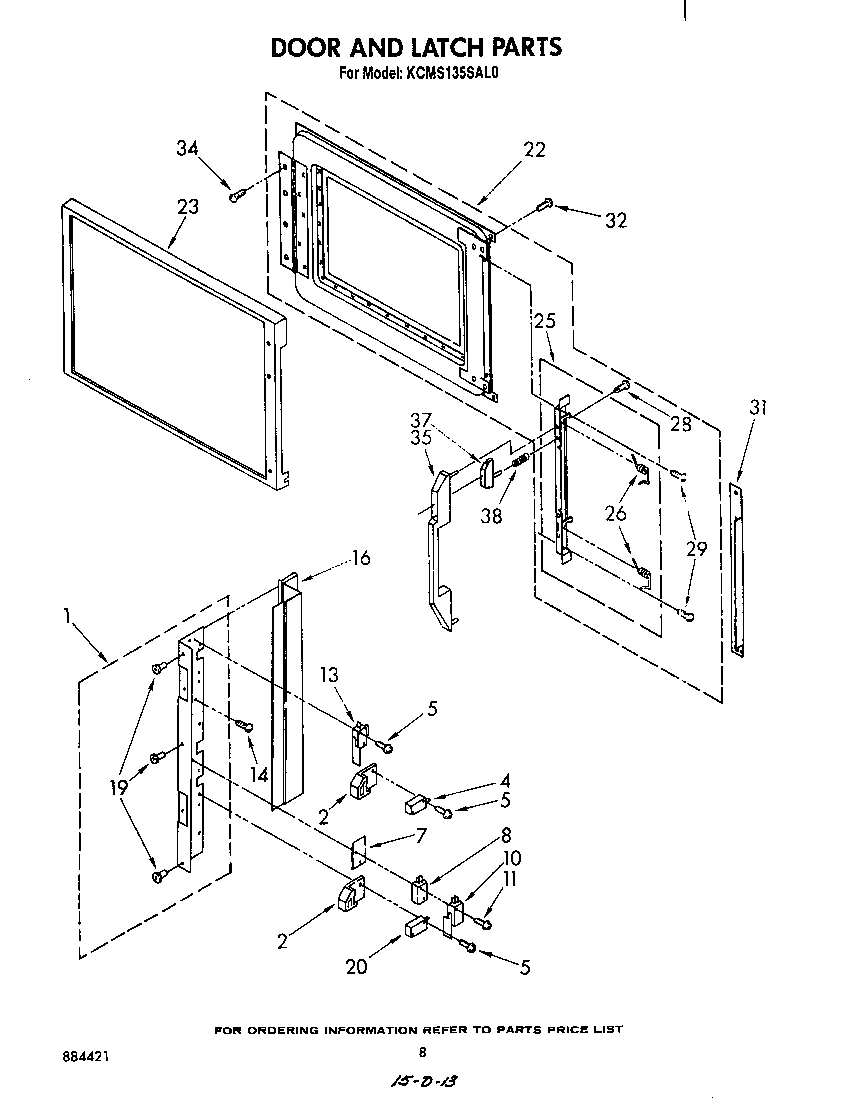

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
KCMS135SAL0 Microwaves
Magnetron 660595
#29

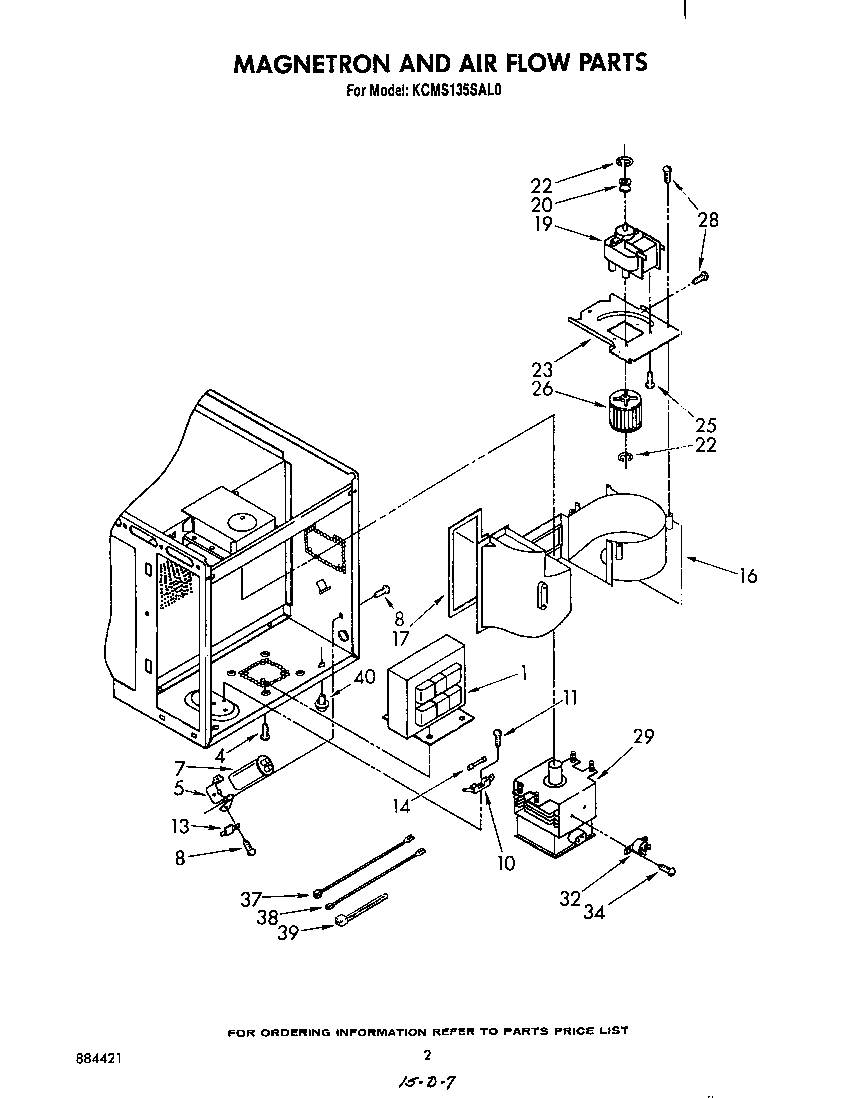

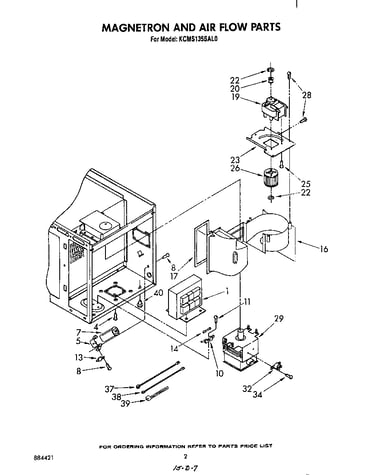

Magnetron and air flow diagram

Magnetron

Part #660595

The manufacturer no longer makes this part, and there's no substitute part

Fuse 661172
#14

Magnetron and air flow diagram

Fuse

Part #661172

Replaced by #STD388200

?
Manufacturer substitution
This part replaces 661172. Substitute parts can look different from the original.
This item is not returnable
$2.53 |
28% OFF Phone Price : $3.53
In Stock
Light Bulb 313969
#11

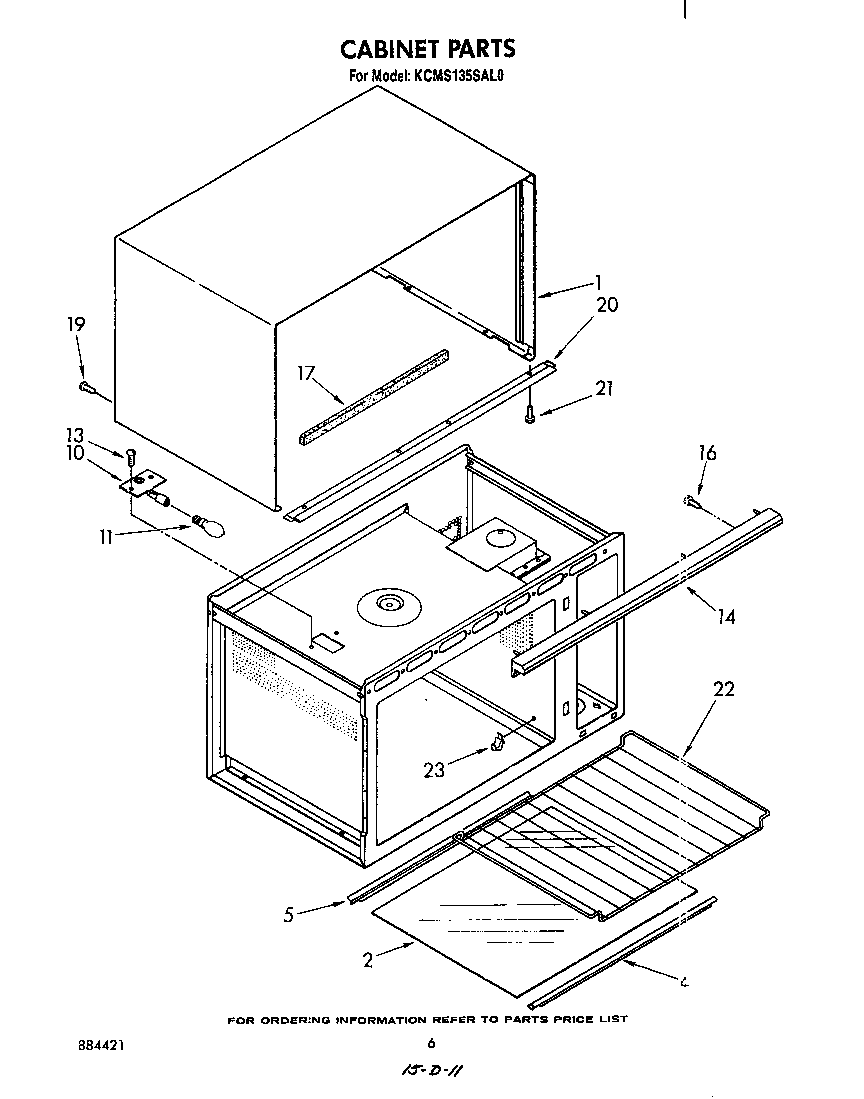

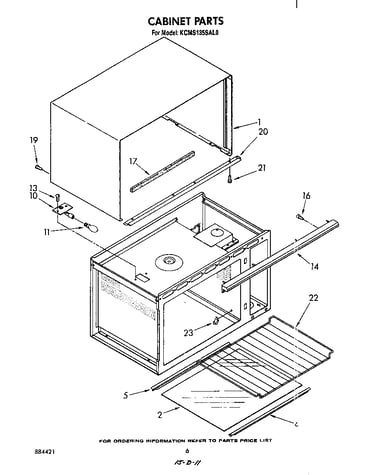

Cabinet diagram

Light bulb

Part #313969

Replaced by #WP3395618

?
Manufacturer substitution
This part replaces 313969. Substitute parts can look different from the original.
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Wall Oven Touch-up Paint 261869

#NI

All parts diagram

Wall oven touch-up paint

Part #261869

Replaced by #WP261869

?
Manufacturer substitution
This part replaces 261869. Substitute parts can look different from the original.
This item is not returnable
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Appliance Touch-up Paint, 6-oz (citrine White) 261900

#NI

All parts diagram

Appliance touch-up paint, 6-oz (citrine white)

Part #261900

$23.19 |
21% OFF Phone Price : $29.19
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831

#NI

All parts diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

$318.95
In Stock
Microwave Stirrer Fan Drive Belt 313646
#14

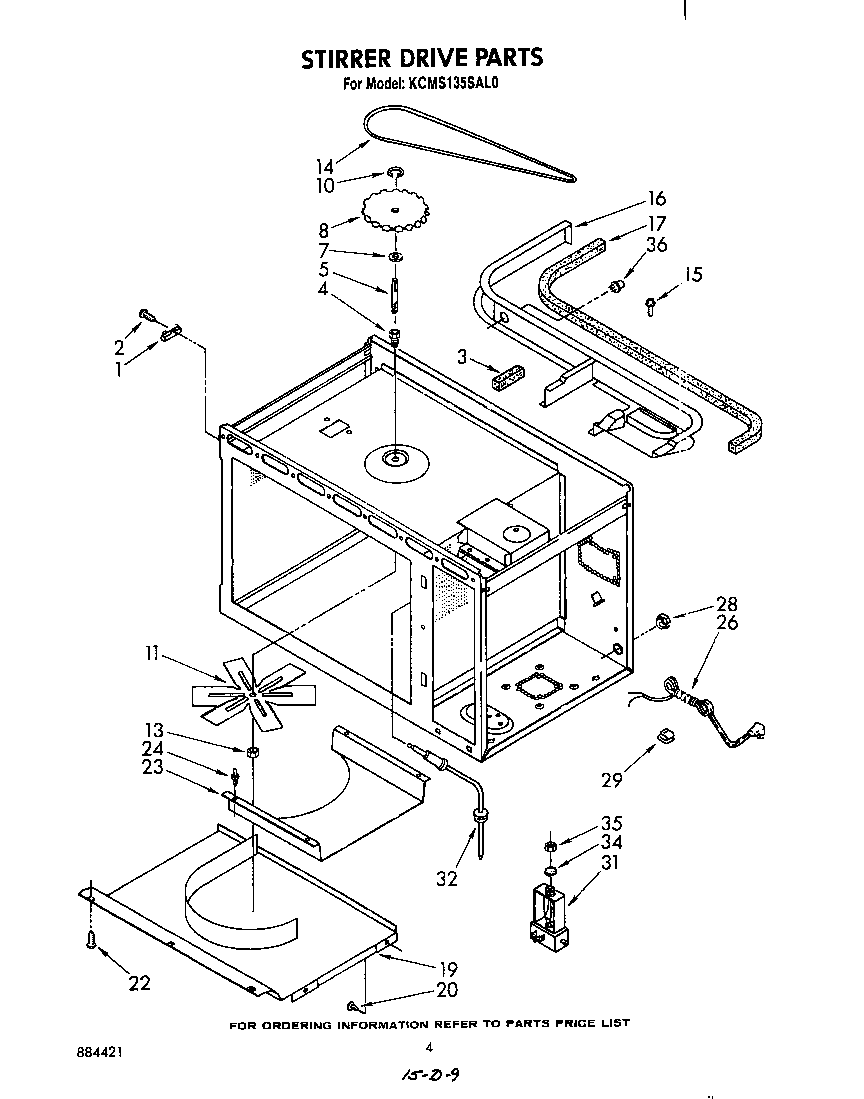

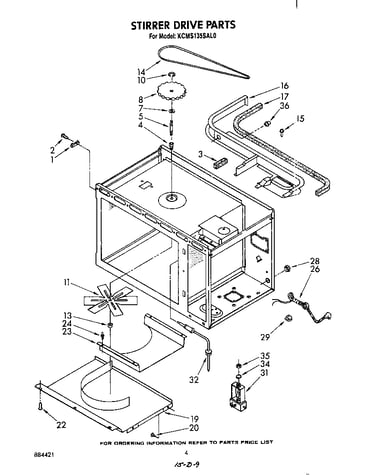

Stirrer drive diagram

Microwave stirrer fan drive belt

Part #313646

Replaced by #WP313646

?
Manufacturer substitution
This part replaces 313646. Substitute parts can look different from the original.
$31.49
In Stock
Switch 661146
Switch

Part #661146

Replaced by #814037

?
Manufacturer substitution
This part replaces 661146. Substitute parts can look different from the original.
$33.18
In Stock
Cable Tie 309330
#39

Magnetron and air flow diagram

Cable tie

Part #309330

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 309330. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Adhesive 482338

#NI

All parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
