Gas Wall Oven

Model # PKO151 Official Modern Maid gas wall oven

Here are the diagrams and repair parts for Official Modern Maid PKO151 gas wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

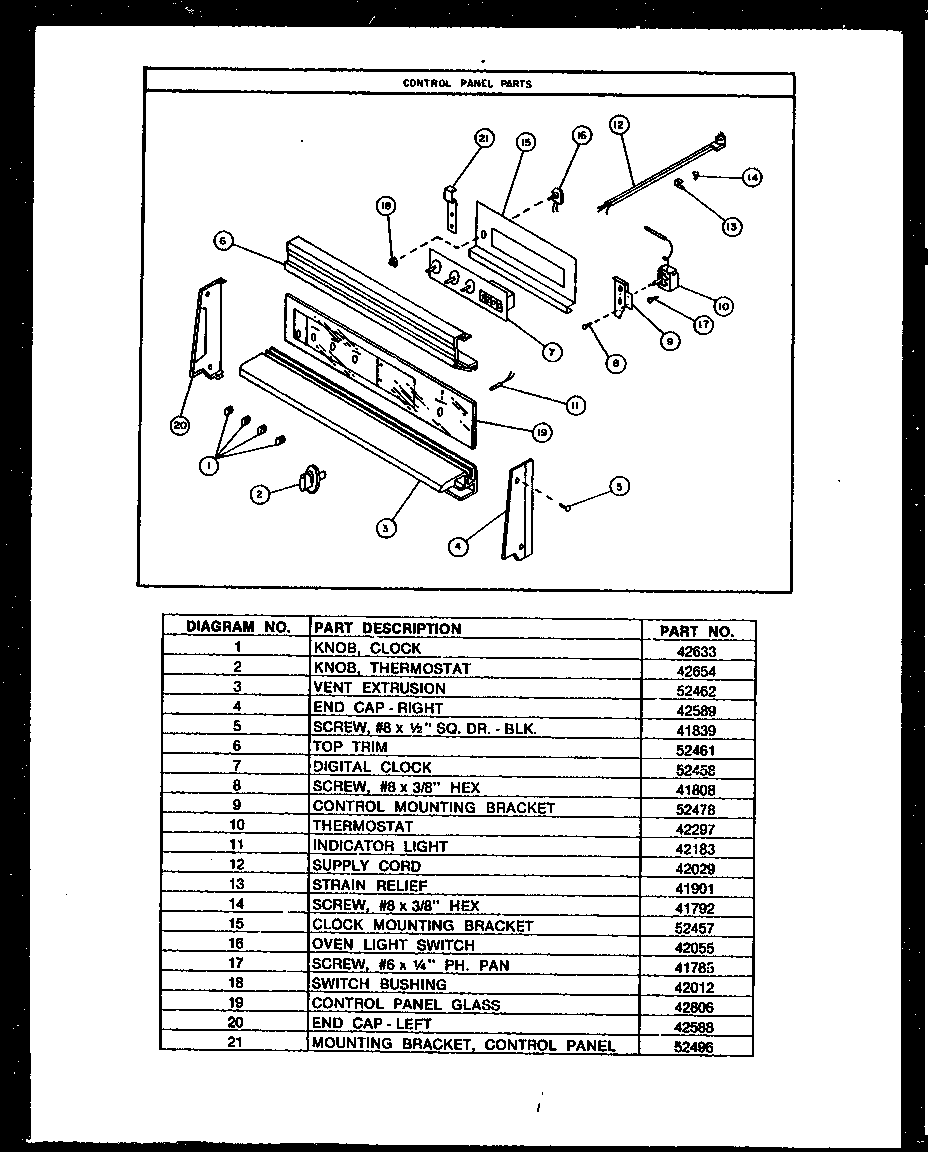

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Grid 98682
#2

Oven / broiler parts diagram

Grid

Part #98682

Replaced by #4396923

?
Manufacturer substitution
This part replaces 98682. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Control Access Cover 40853
#21

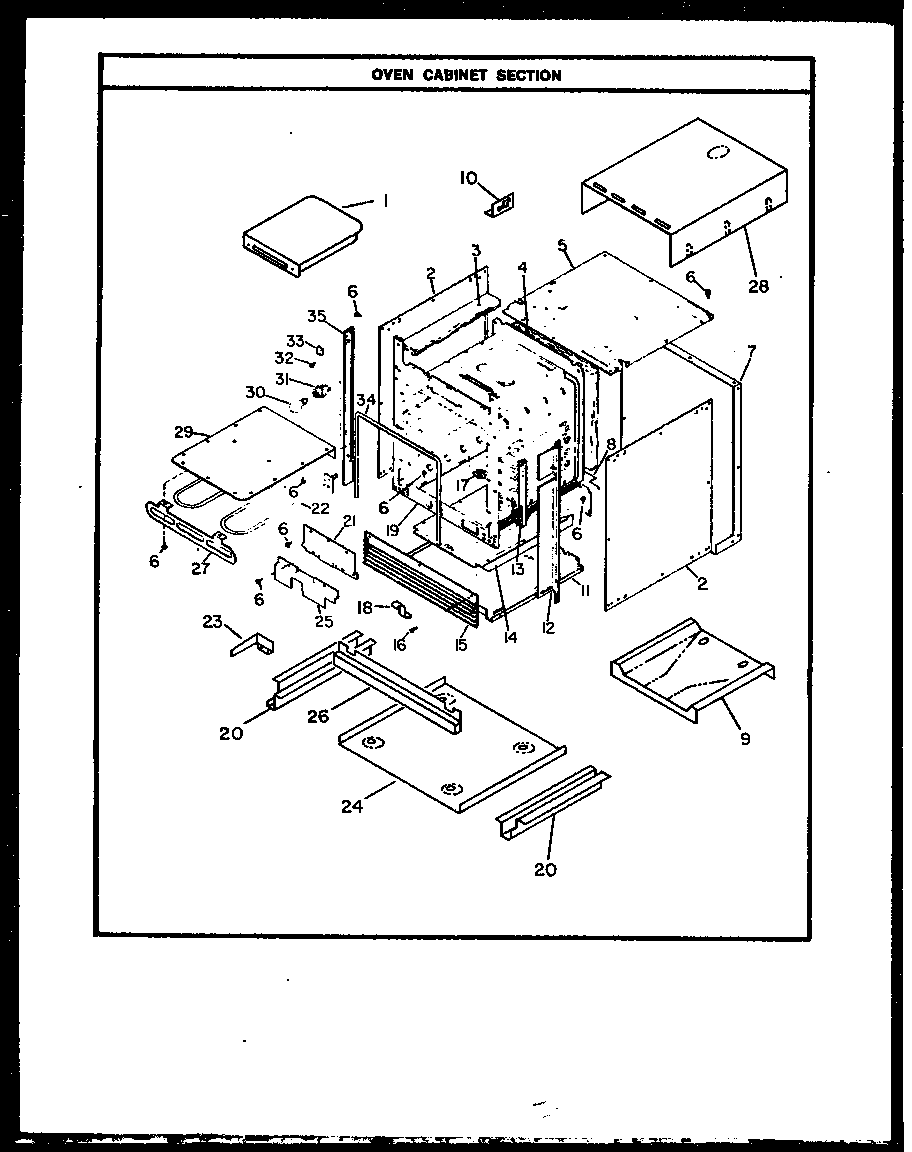

Oven cabinet section diagram

Control access cover

Part #40853

The manufacturer no longer makes this part, and there's no substitute part

Broil Element 42165
#22

Oven cabinet section diagram

Broil element

Part #42165

The manufacturer no longer makes this part, and there's no substitute part

Door Frame 40409
#2

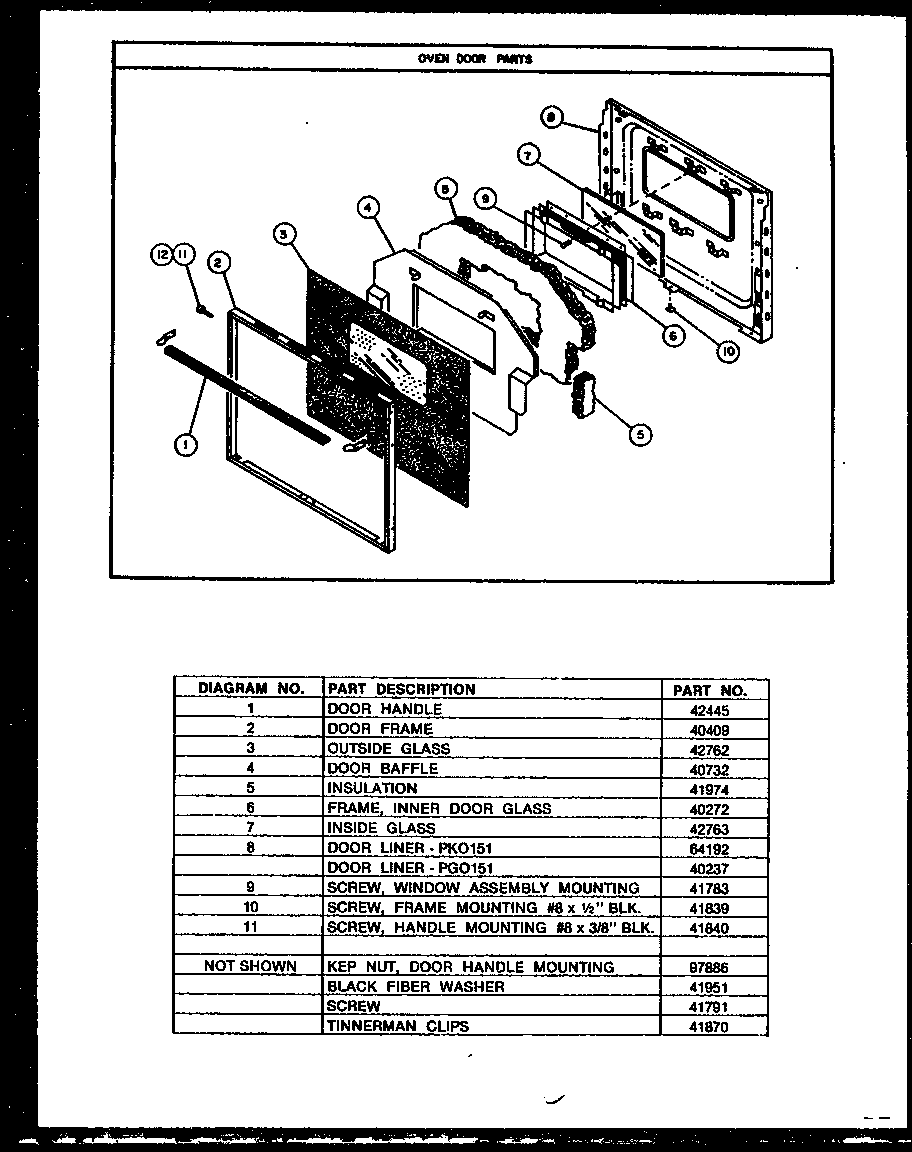

Oven door parts diagram

Door frame

Part #40409

The manufacturer no longer makes this part, and there's no substitute part

Shut-off Valve 62749
#3

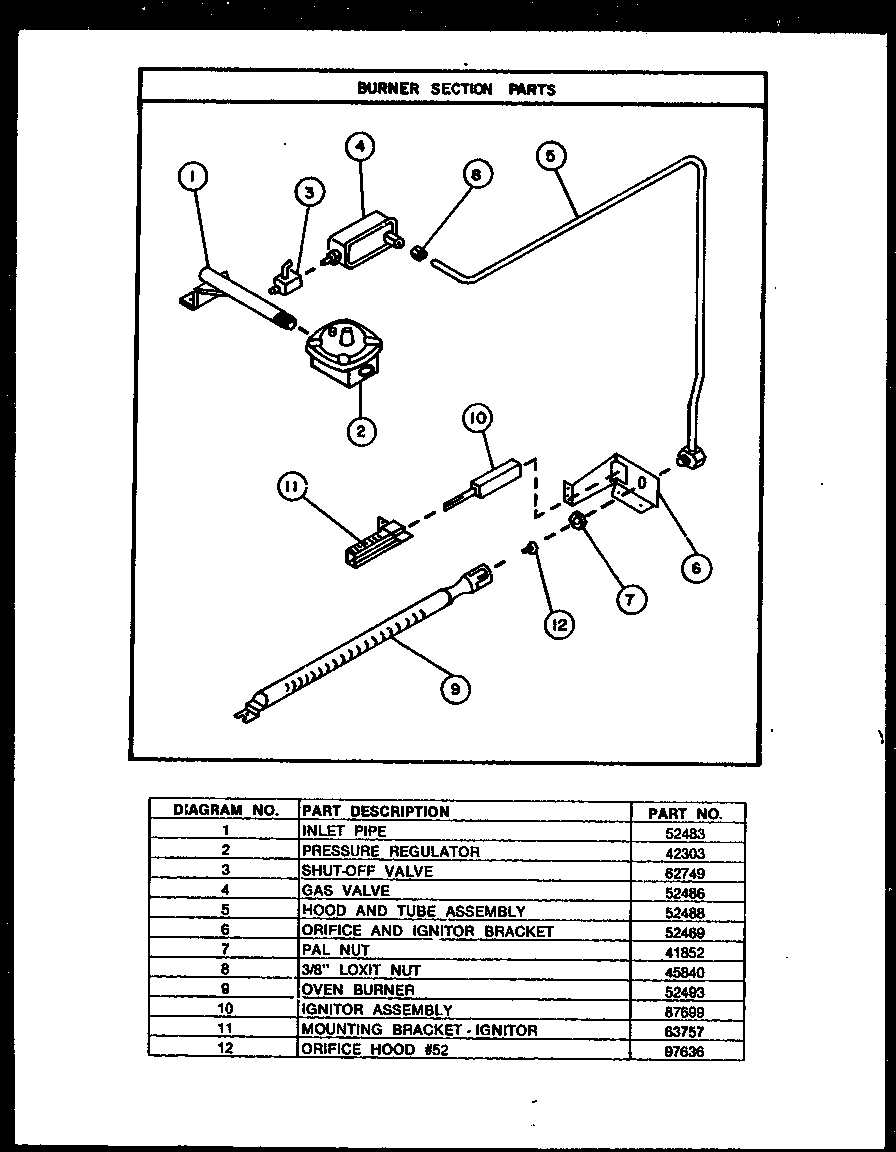

Burner section parts diagram

Shut-off valve

Part #62749

The manufacturer no longer makes this part, and there's no substitute part

Pipe Inlet 52483
#1

Burner section parts diagram

Pipe inlet

Part #52483

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Base Extension 40283
#20

Oven cabinet section diagram

Cabinet base extension

Part #40283

The manufacturer no longer makes this part, and there's no substitute part

Insulation, 2 X 6 X 20 41098
#3B

Oven cabinet section diagram

Insulation, 2 x 6 x 20

Part #41098

The manufacturer no longer makes this part, and there's no substitute part

Capillary Bulb Clip 41874
#17

Oven cabinet section diagram

Capillary bulb clip

Part #41874

The manufacturer no longer makes this part, and there's no substitute part

Screw #8 X 1/2, Blk. 41839
Screw #8 x 1/2, blk.

Part #41839

The manufacturer no longer makes this part, and there's no substitute part
