Hoover
Upright Vacuum

Model # U4347--- Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U4347- upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |

Motor Cushion 31164004
#996F

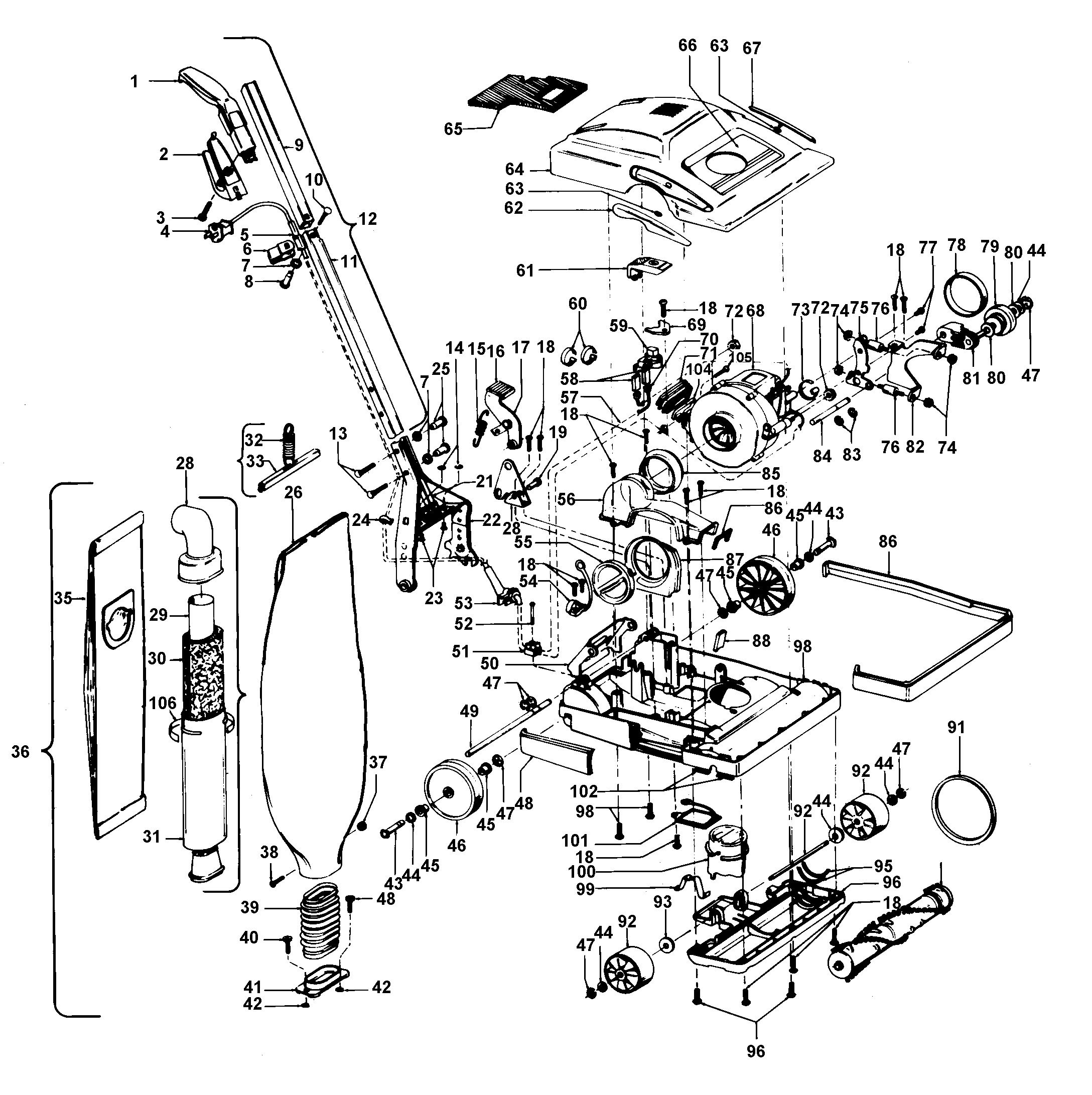

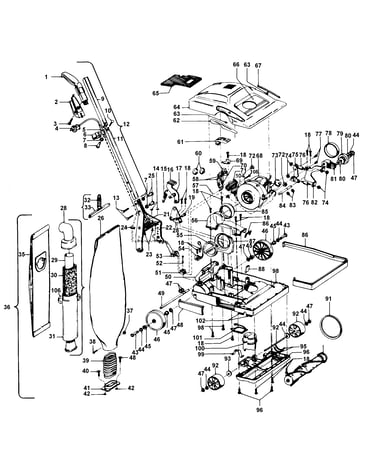

Handle, mainbody, outerbag, hood diagram

Motor cushion

Part #31164004

The manufacturer no longer makes this part, and there's no substitute part

Wheel 38522036
#46

Handle, mainbody, outerbag, hood diagram

Wheel

Part #38522036

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447072
#3

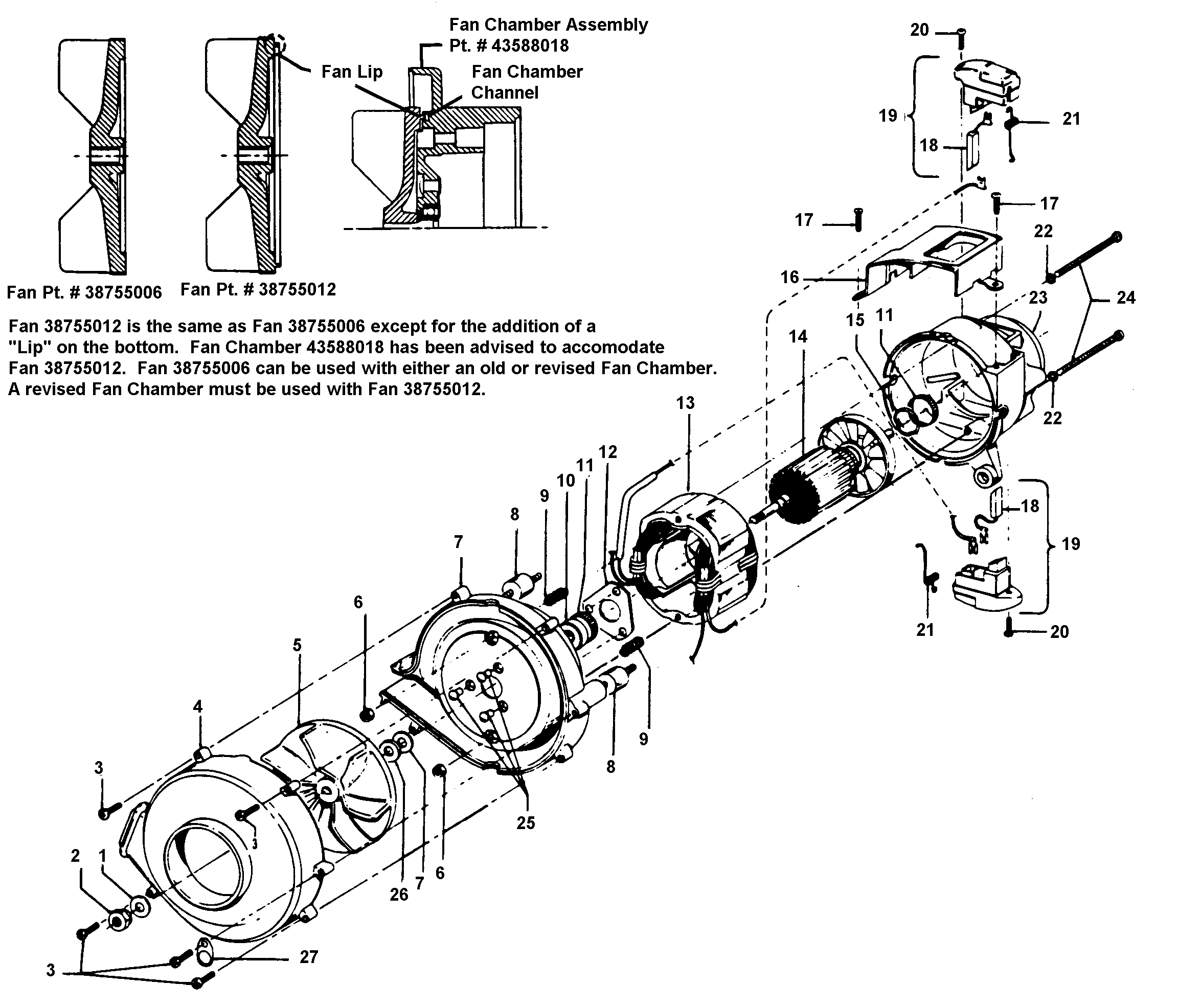

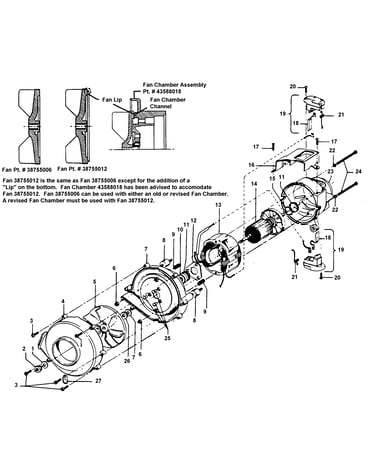

Motor assembly diagram

Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Thread Guard 41435061
#6

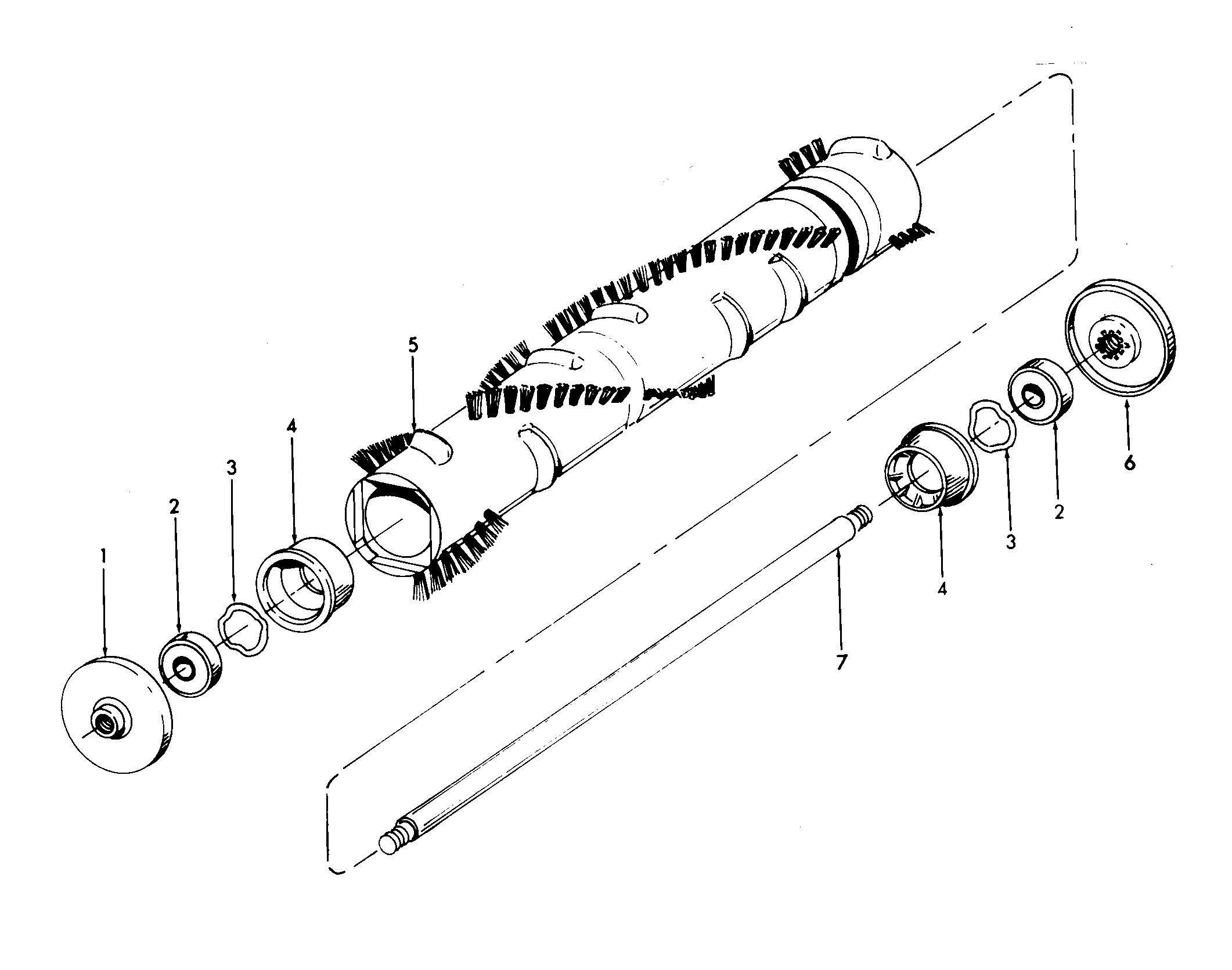

Agitator diagram

Thread guard

Part #41435061

The manufacturer no longer makes this part, and there's no substitute part

Front Wheel 38522034
#92

Handle, mainbody, outerbag, hood diagram

Front wheel

Part #38522034

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing 37191090
#23

Motor assembly diagram

Motor housing

Part #37191090

The manufacturer no longer makes this part, and there's no substitute part

Washer 21345113
Washer

Part #21345113

The manufacturer no longer makes this part, and there's no substitute part

Cord Hook 39442017
#2

Handle, mainbody, outerbag, hood diagram

Cord hook

Part #39442017

The manufacturer no longer makes this part, and there's no substitute part

Pulley Arm 43256007
#81

Handle, mainbody, outerbag, hood diagram

Pulley arm

Part #43256007

The manufacturer no longer makes this part, and there's no substitute part

Sndwh Mount 32724010
#76

Handle, mainbody, outerbag, hood diagram

Sndwh mount

Part #32724010

The manufacturer no longer makes this part, and there's no substitute part
