Model # DU18H4 Official Maytag dishwasher
Here are the diagrams and repair parts for Official Maytag DU18H4 dishwasher, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

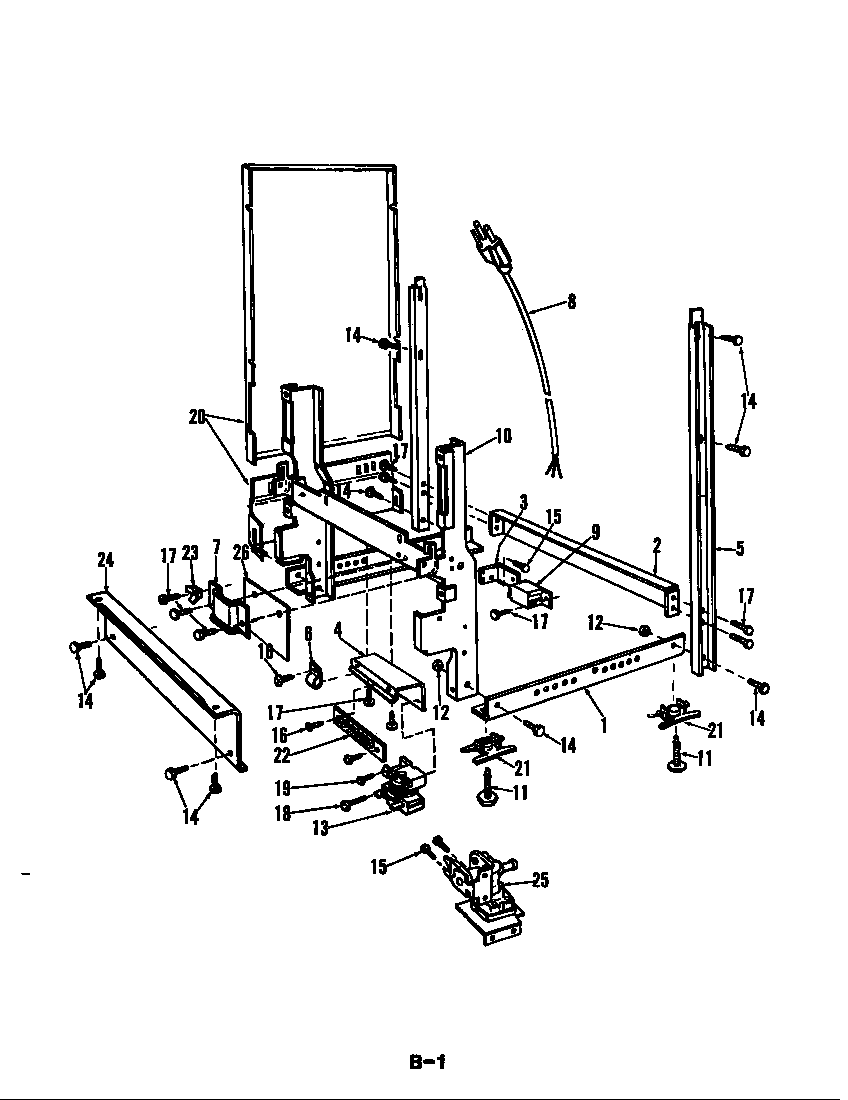

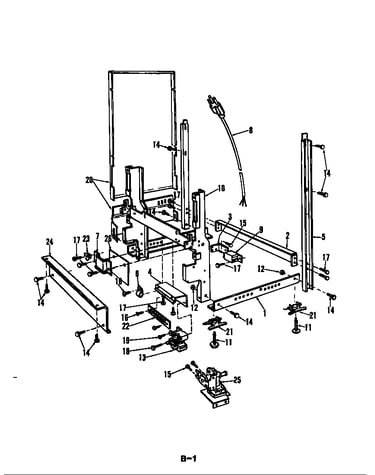

SELECT DIAGRAM
Browse Parts for
DU18H4 Dishwasher
#34A

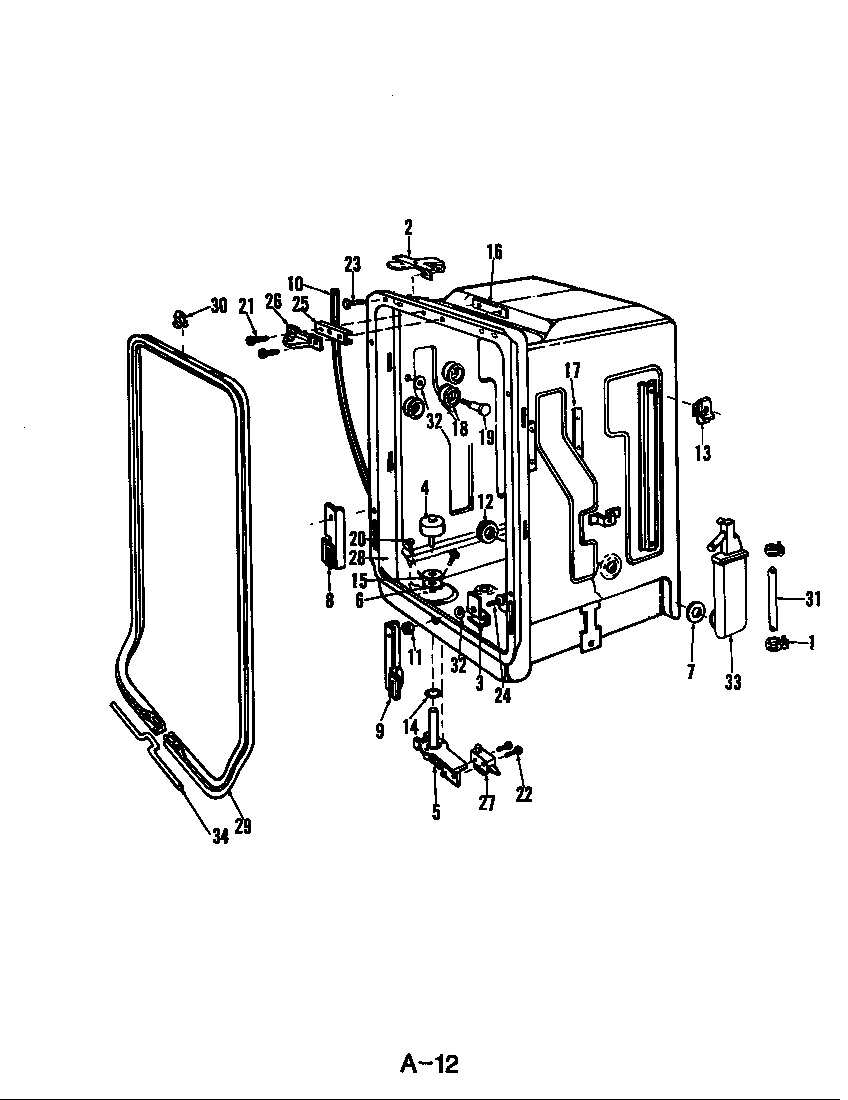

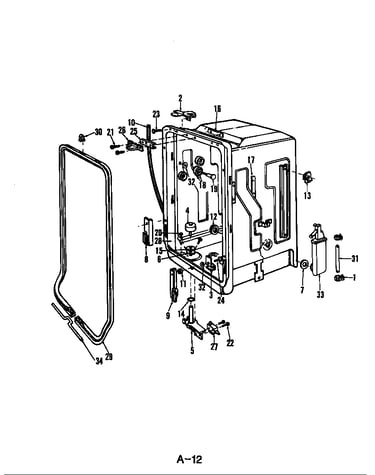

Tub diagram
Sealant
Part #807509
Replaced by #W10841140
?
Manufacturer substitution
This part replaces 807509. Substitute parts can look different from the original.
$14.99 |
12% OFF Phone Price : $16.99
In Stock
#20

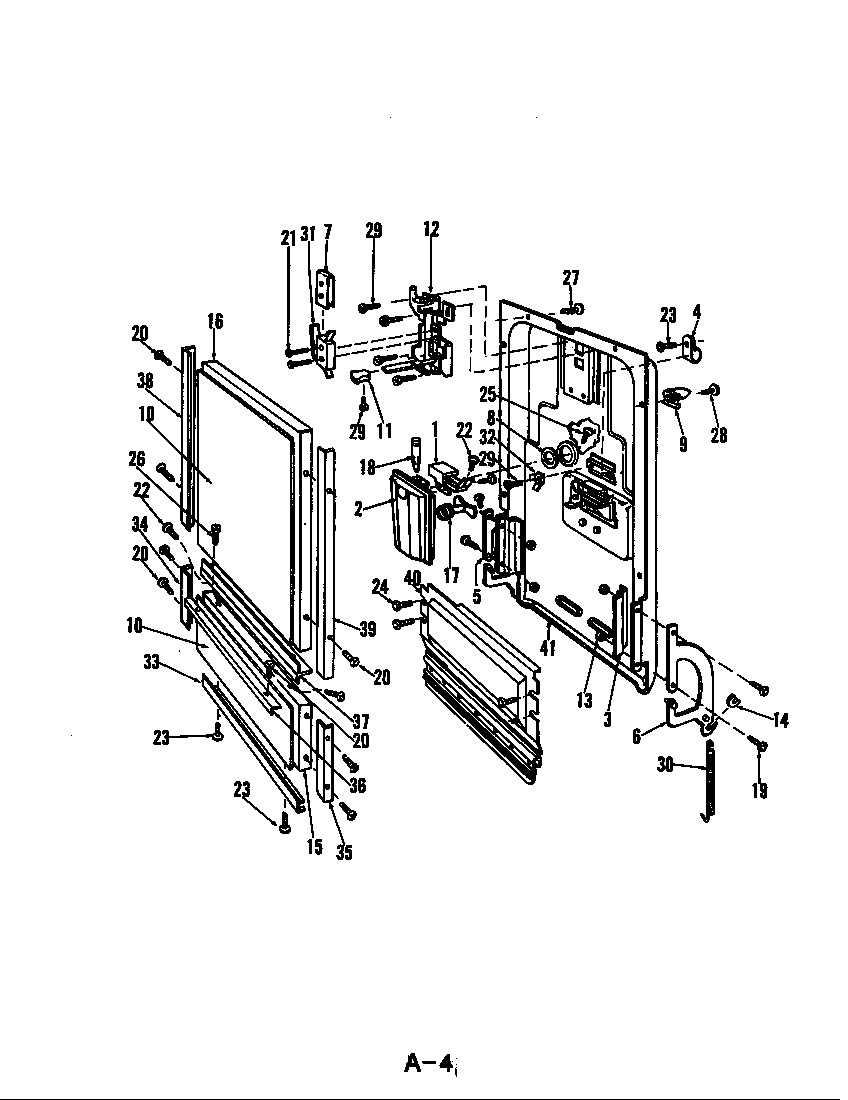

Door parts diagram
Screw
Part #807293
Replaced by #WP74004005
?
Manufacturer substitution
This part replaces 807293. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock

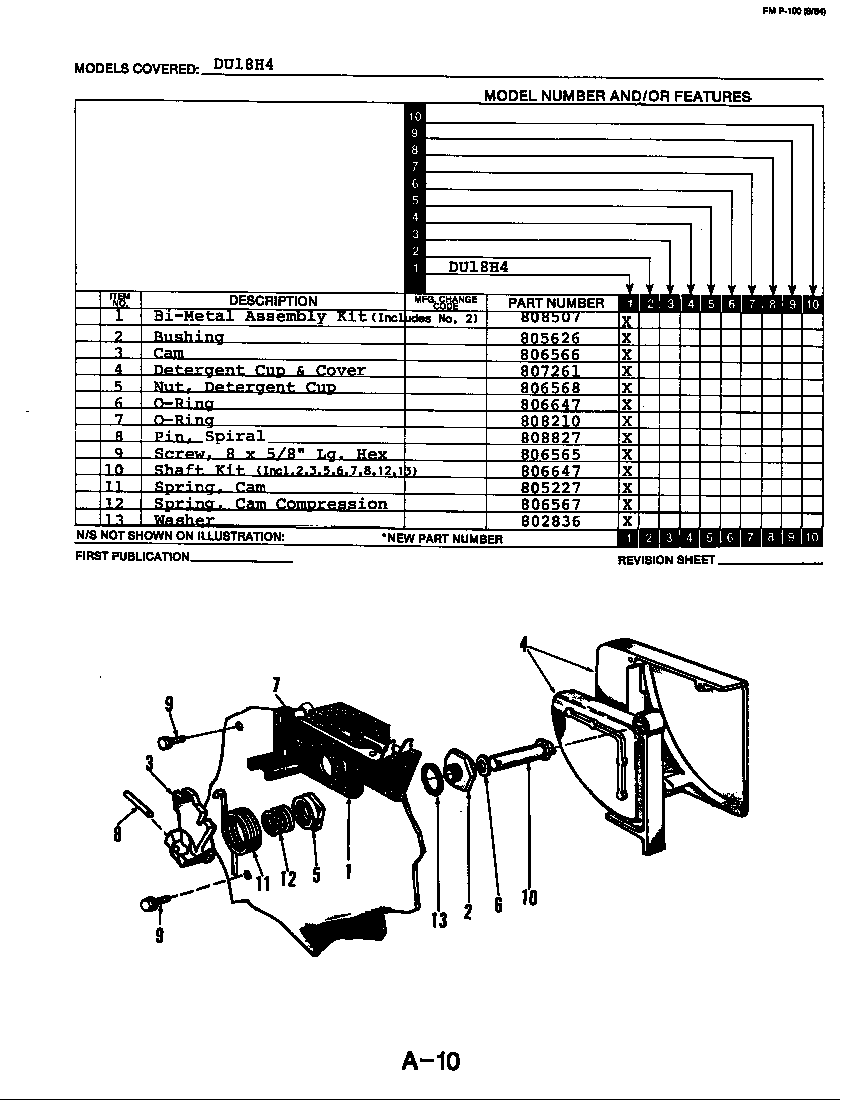

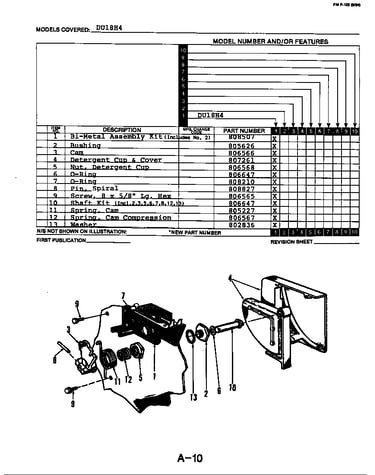

O-ring
Part #806647
The manufacturer no longer makes this part, and there's no substitute part
#28

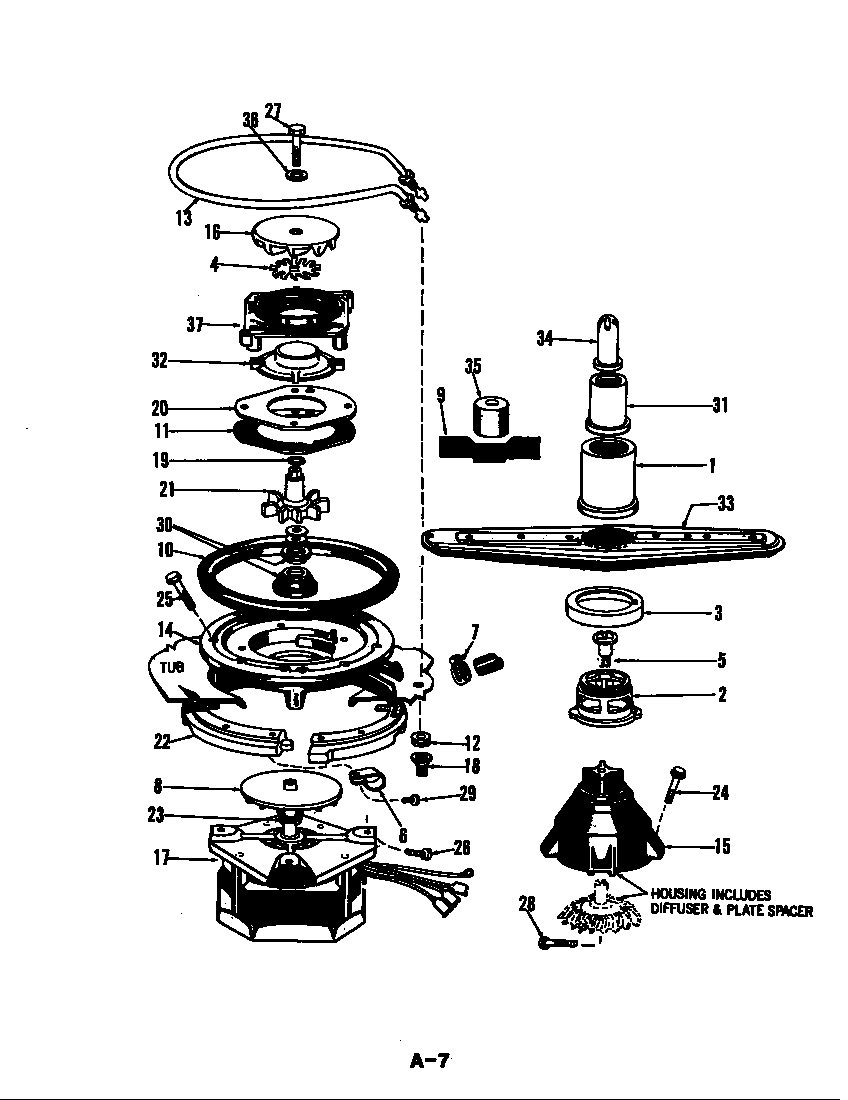

Motor & pump diagram
Screw
Part #809121
The manufacturer no longer makes this part, and there's no substitute part
#21
Tub diagram
Screw
Part #806890
Replaced by #WP22001496
?
Manufacturer substitution
This part replaces 806890. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Screw
Part #807501
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 807501. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
#7
Motor & pump diagram
Clamp
Part #808186
Replaced by #WP285655
?
Manufacturer substitution
This part replaces 808186. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
#23
Door parts diagram
Screw
Part #803416
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 803416. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
#3

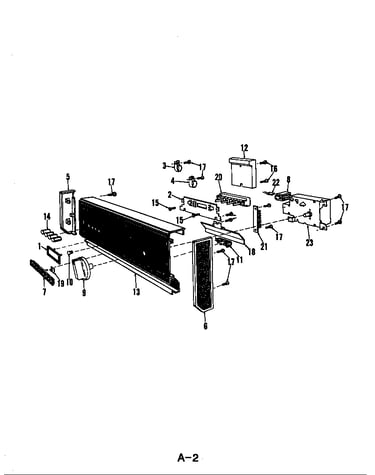

Control panel diagram
Clamp
Part #805584
Replaced by #W10833902
?
Manufacturer substitution
This part replaces 805584. Substitute parts can look different from the original.
This item is not returnable
$6.33
In Stock
#4

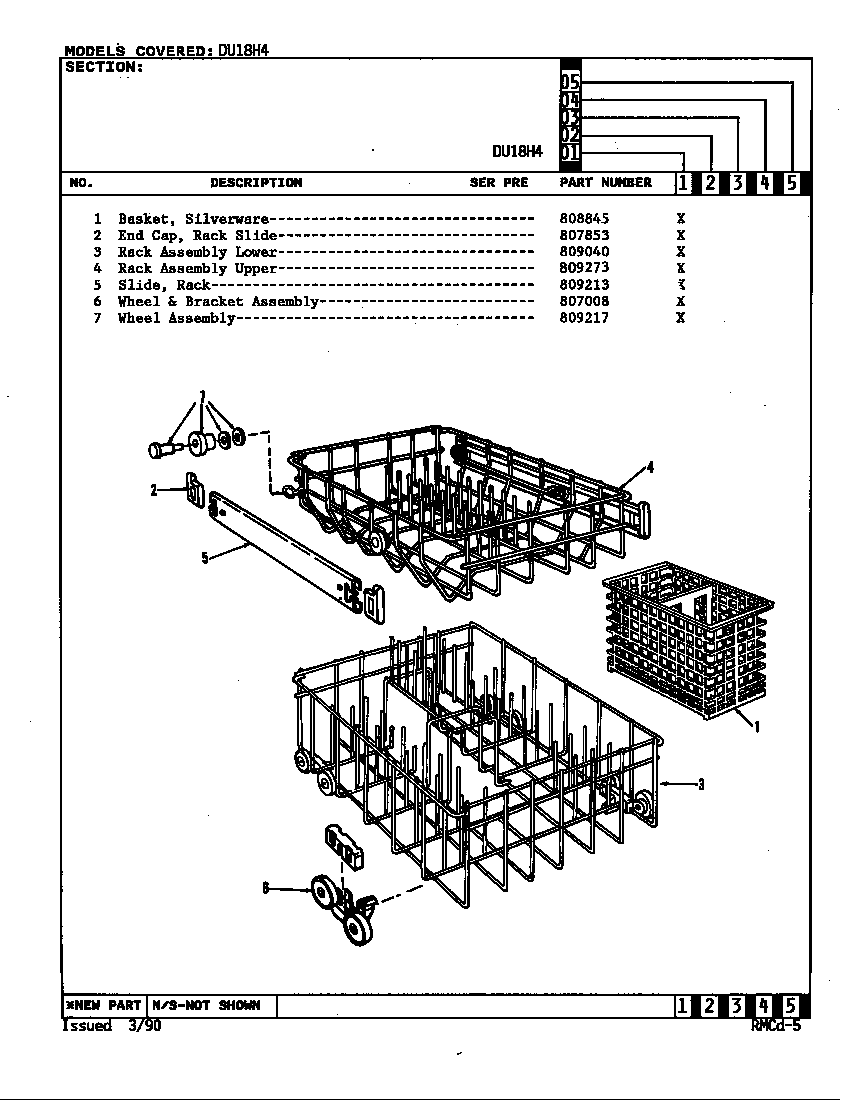

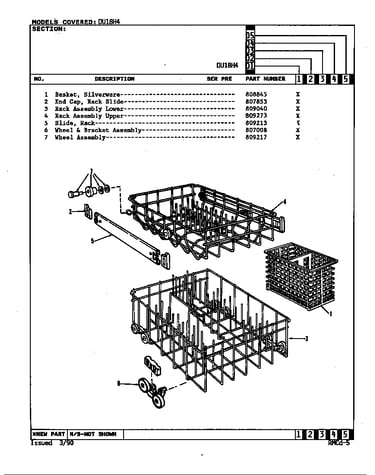

Rack diagram
Rack
Part #809273
The manufacturer no longer makes this part, and there's no substitute part
