Frigidaire
Top-Mount Refrigerator

Model # FFTR1222QB0 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FFTR1222QB0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

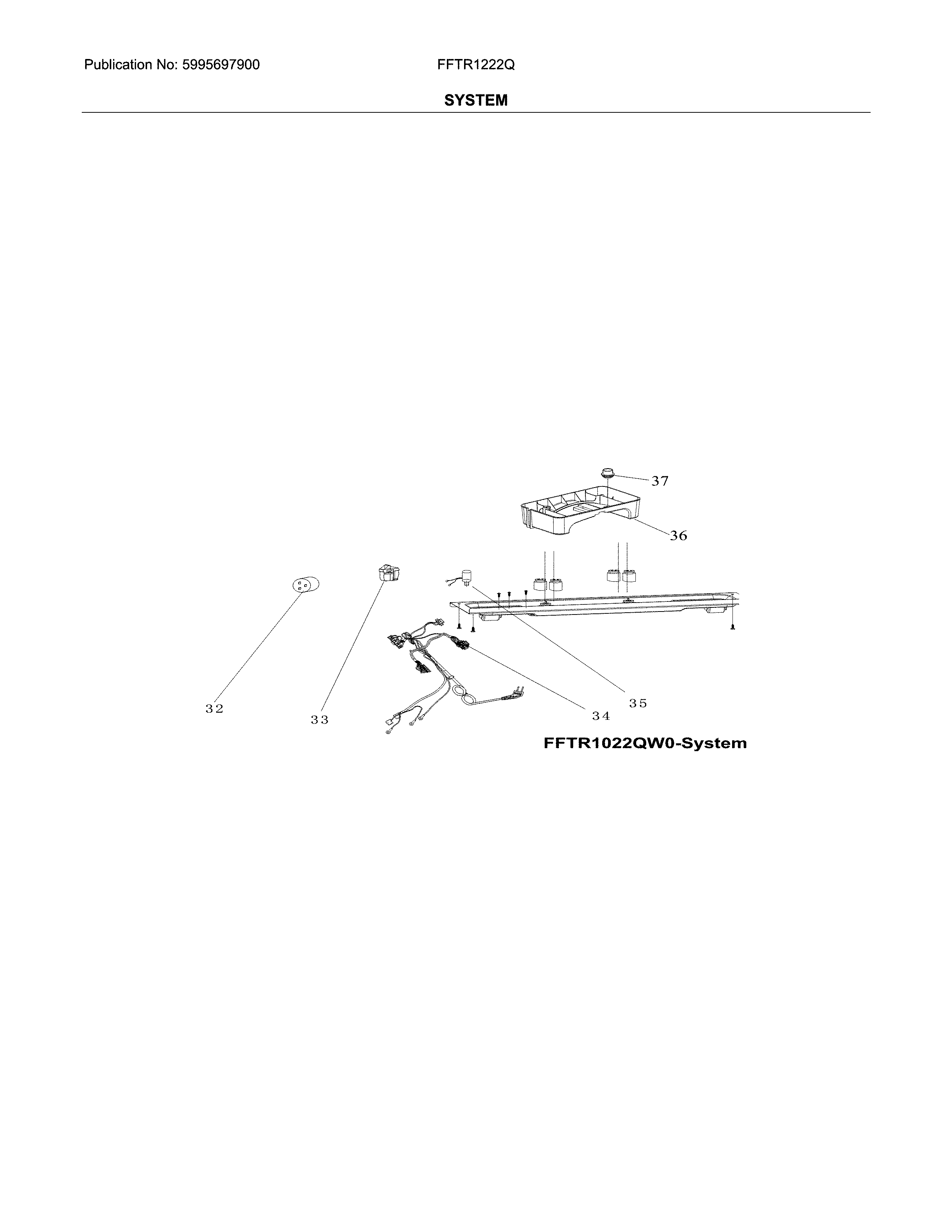

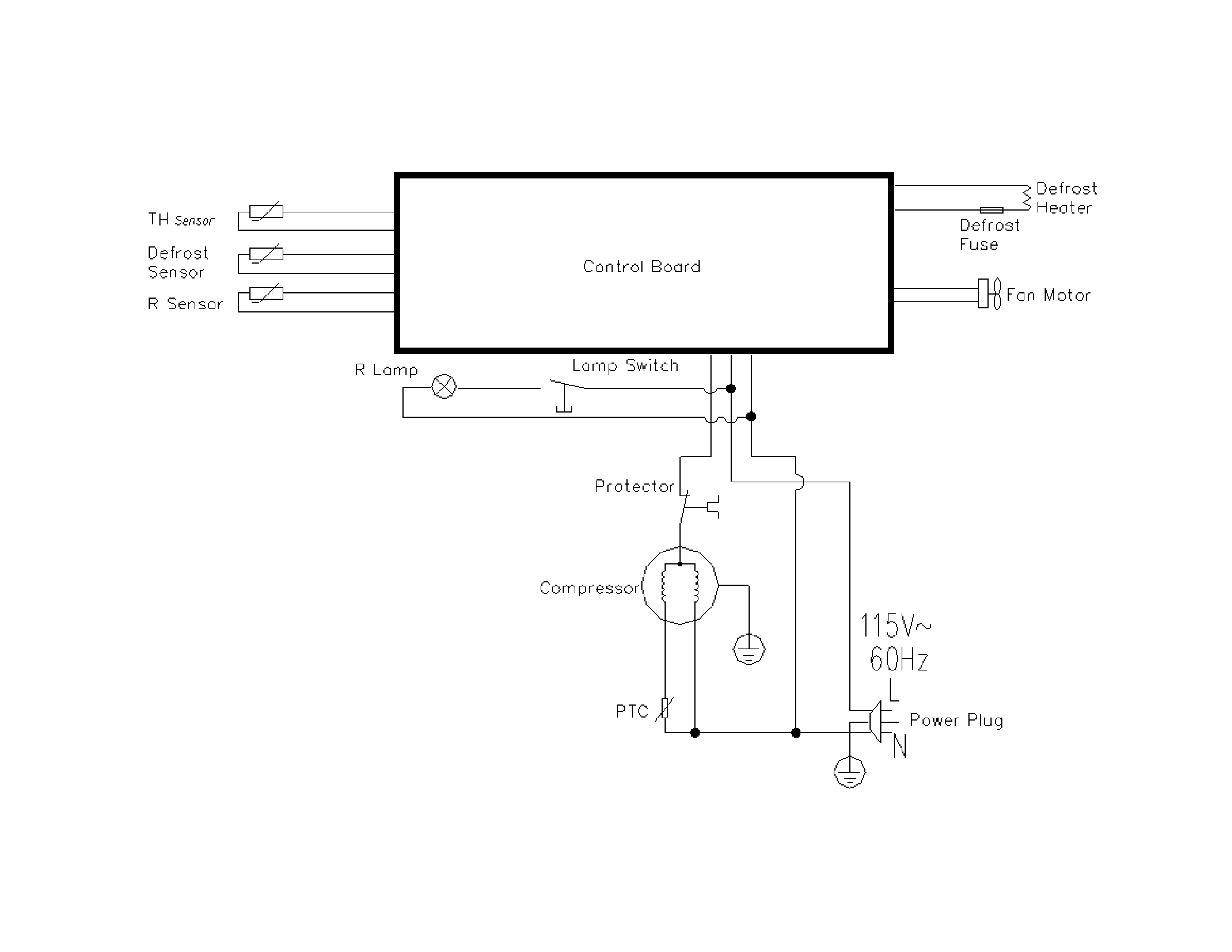

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Refrigerator Electronic Control Board 5304498695
#60

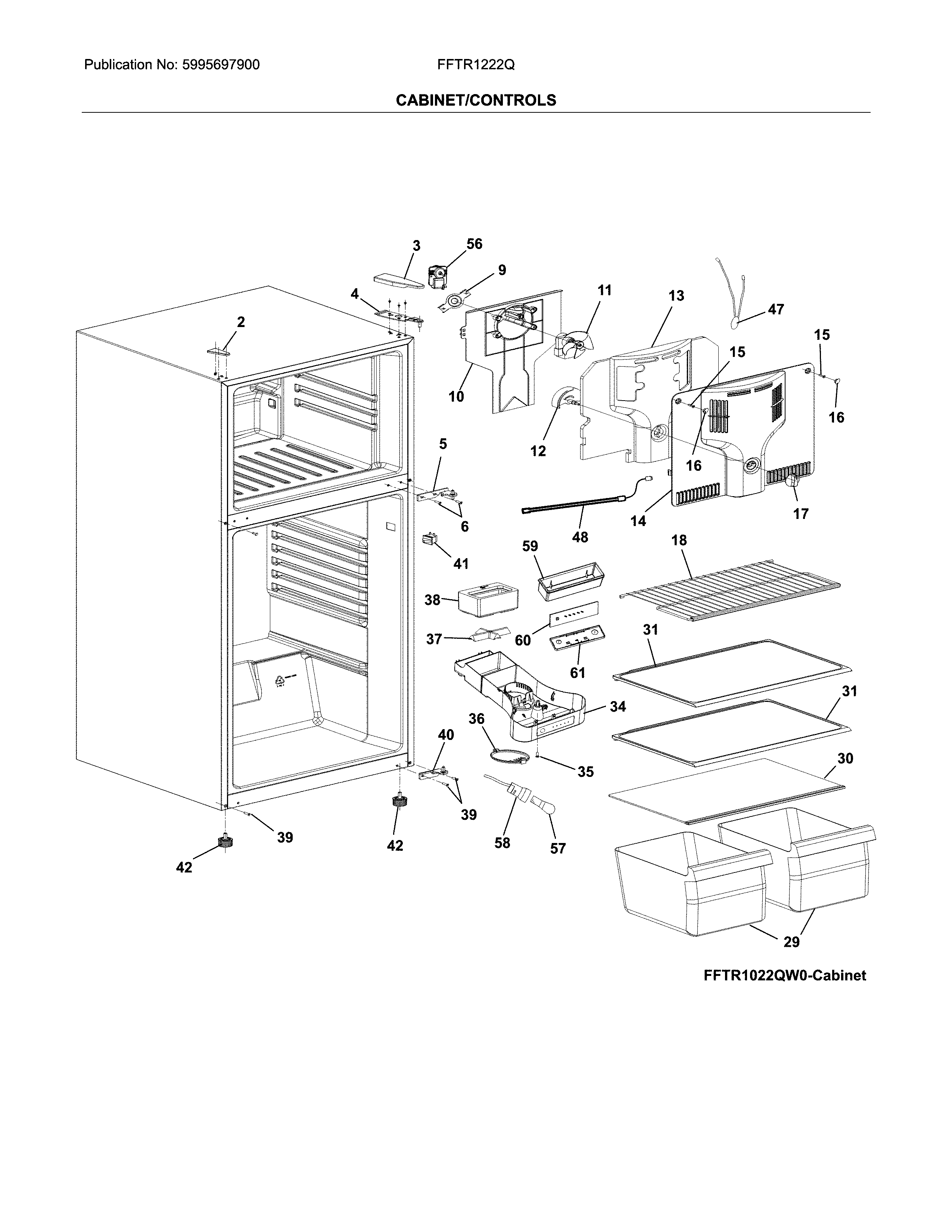

Cabinet/controls diagram

Refrigerator electronic control board

Part #5304498695

This item is not returnable
$126.18 |
9% OFF Phone Price : $138.18
In Stock
Refrigerator Air Damper Control Knob 5304490963
#17

Cabinet/controls diagram

Refrigerator air damper control knob

Part #5304490963

$38.11
In Stock
Refrigerator Fan Blade 5304490957
#11

Cabinet/controls diagram

Refrigerator fan blade

Part #5304490957

This item is not returnable
$23.09
In Stock
Refrigerator Duct 5304491050
#37

Cabinet/controls diagram

Refrigerator duct

Part #5304491050

This item is not returnable
$4.09
In Stock
Refrigerator Bottom Hinge 5304490979
#40

Cabinet/controls diagram

Refrigerator bottom hinge

Part #5304490979

$18.17
In Stock

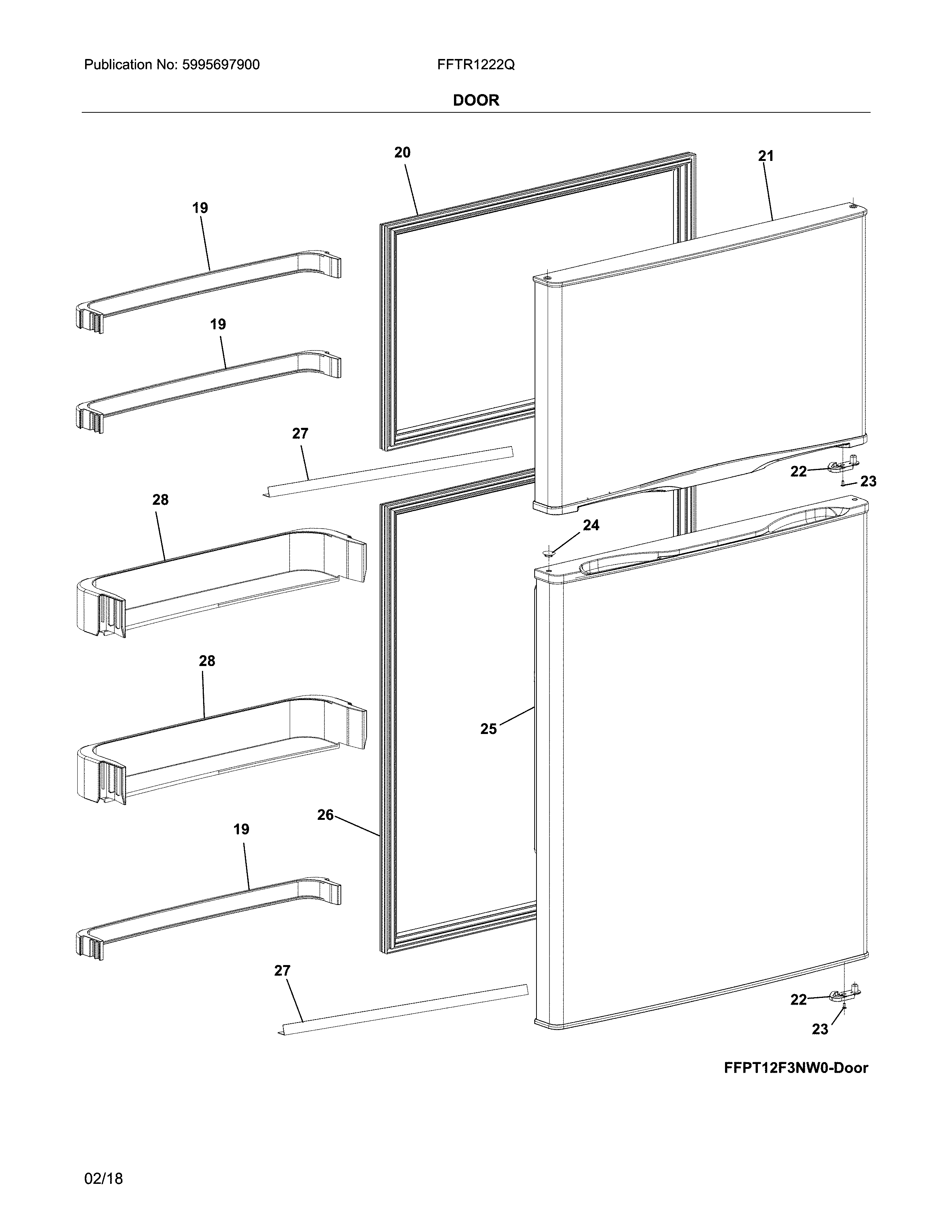

Refrigerator Door Gasket 5304490971
#26

Door diagram

Refrigerator door gasket

Part #5304490971

$264.89 |
$12.00 OFF Phone Price : $276.89
In Stock
Refrigerator Crisper Drawer 5304470324
#29

Cabinet/controls diagram

Refrigerator crisper drawer

Part #5304470324

$126.40
In Stock
Refrigerator Light Switch 5304498687
#41

Cabinet/controls diagram

Refrigerator light switch

Part #5304498687

$43.31
In Stock
Refrigerator Defrost Heater 5304491703
#48

Cabinet/controls diagram

Refrigerator defrost heater

Part #5304491703

$106.69
In Stock
Refrigerator Freezer Door Gasket (white) 5304490966
#20

Door diagram

Refrigerator freezer door gasket (white)

Part #5304490966

$70.94 |
8% OFF Phone Price : $76.94
In Stock
