Model # E11306 Official Snapper snow thrower - series 6

Here are the diagrams and repair parts for Official Snapper E11306 snow thrower - series 6, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

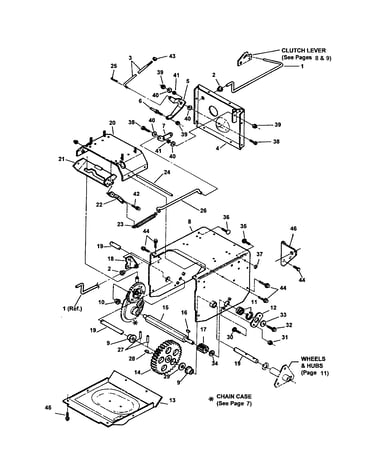

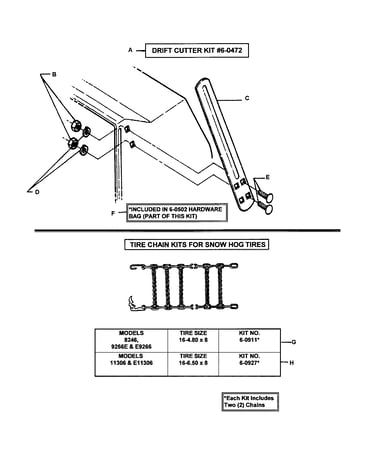

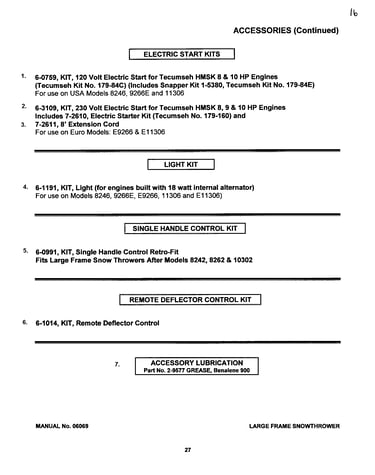

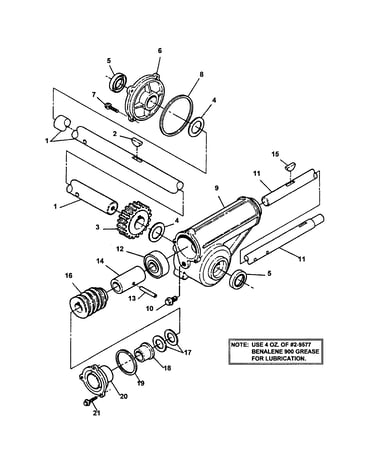

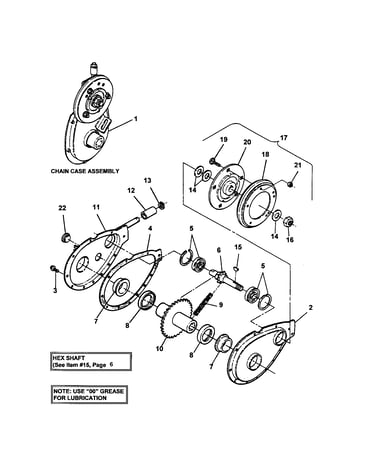

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 280 parts  |
Extension Spring 2-8212
#7

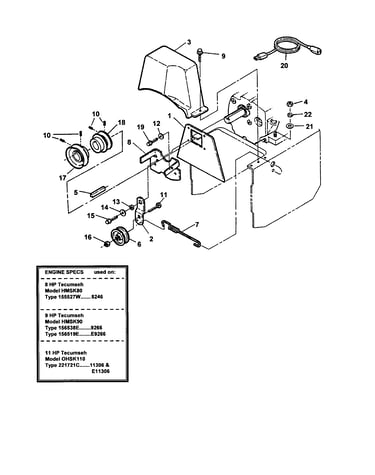

Engines/pulley/idler diagram

Extension spring

Part #2-8212

Replaced by #7028212YP

?
Manufacturer substitution
This part replaces 2-8212. Substitute parts can look different from the original.
$17.51 |
10% OFF Phone Price : $19.51
In Stock
Belt 2-9101
#23A

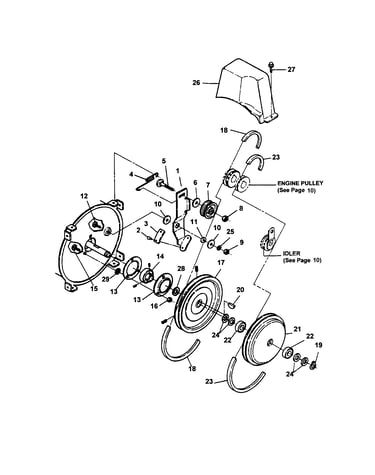

Belts/idler/drive plate/sheave diagram

Belt

Part #2-9101

Replaced by #7029101YP

?
Manufacturer substitution
This part replaces 2-9101. Substitute parts can look different from the original.
This item is not returnable

Get free shipping with Automatic Reorder

$31.56 |
16% OFF Phone Price : $37.56
In Stock
Lube Fitting 1-3864
#2

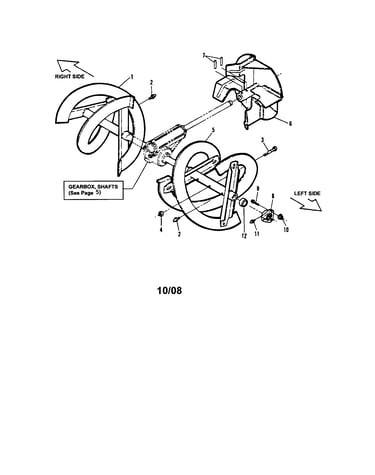

Augers/impeller diagram

Lube fitting

Part #1-3864

Replaced by #7013864SM

?
Manufacturer substitution
This part replaces 1-3864. Substitute parts can look different from the original.
This item is not returnable
$6.23
In Stock
Belt 1-3939
#18A

Belts/idler/drive plate/sheave diagram

Belt

Part #1-3939

Replaced by #7013939YP

?
Manufacturer substitution
This part replaces 1-3939. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$34.42
In Stock
Ring, Chute (59 Tooth, 229 Degrees) 3-9765
#10

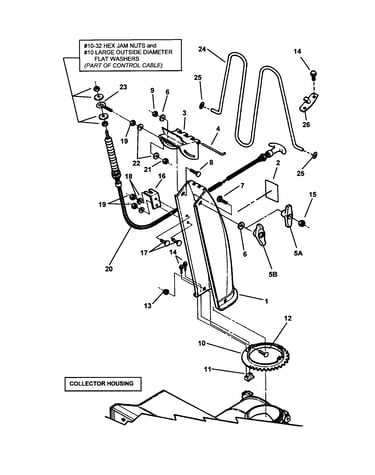

Discharge chute diagram

Ring, chute (59 tooth, 229 degrees)

Part #3-9765

The manufacturer no longer makes this part, and there's no substitute part

Washer 9/32" Flat 9-0055
#33

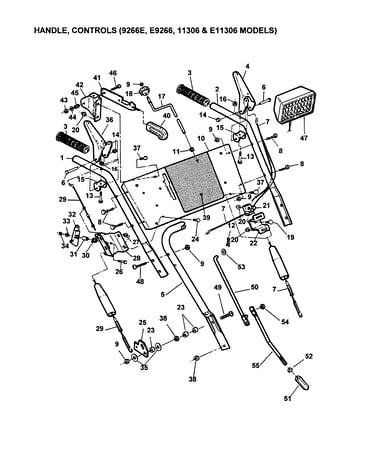

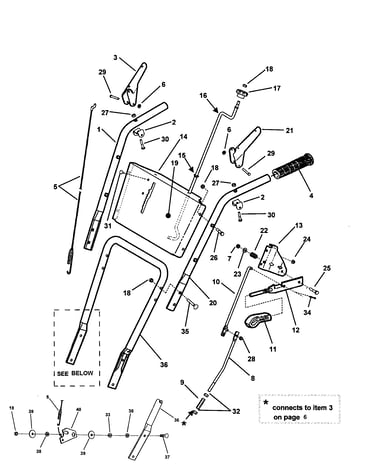

Handles/controls diagram

Washer 9/32" flat

Part #9-0055

The manufacturer no longer makes this part, and there's no substitute part

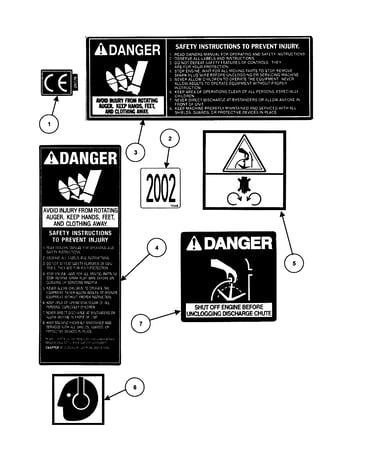

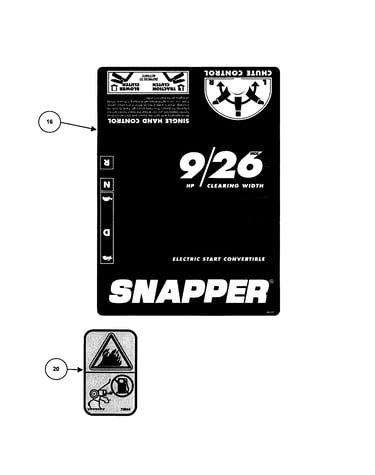

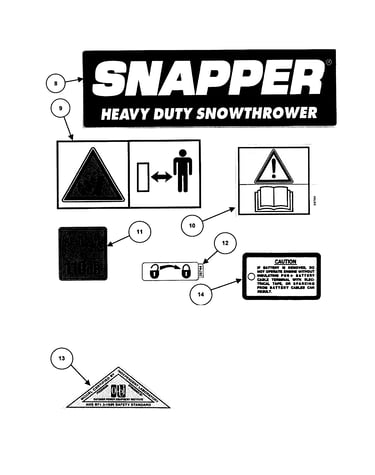

Danger Decal 2-4773
Danger decal

Part #2-4773

The manufacturer no longer makes this part, and there's no substitute part

Nut, 1/4-20 Hex Flange Lock 9-1065
Nut, 1/4-20 hex flange lock

Part #9-1065

The manufacturer no longer makes this part, and there's no substitute part

Decal, Danger Rotating Auger 2-8280
Decal, danger rotating auger

Part #2-8280

The manufacturer no longer makes this part, and there's no substitute part

Assembly, 26" Blower (8265 & 9265 Models) (incl. 1-6578 Decal) 5-2135
#1A

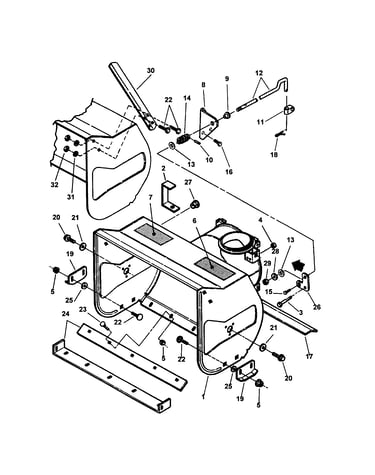

Collector housing diagram

Assembly, 26" blower (8265 & 9265 models) (incl. 1-6578 decal)

Part #5-2135

The manufacturer no longer makes this part, and there's no substitute part
