GE
Warming Drawer

Model # ZKD910BF4BB Official GE warming drawer

Here are the diagrams and repair parts for Official GE ZKD910BF4BB warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Front Assy 2 WB55X10823
#16

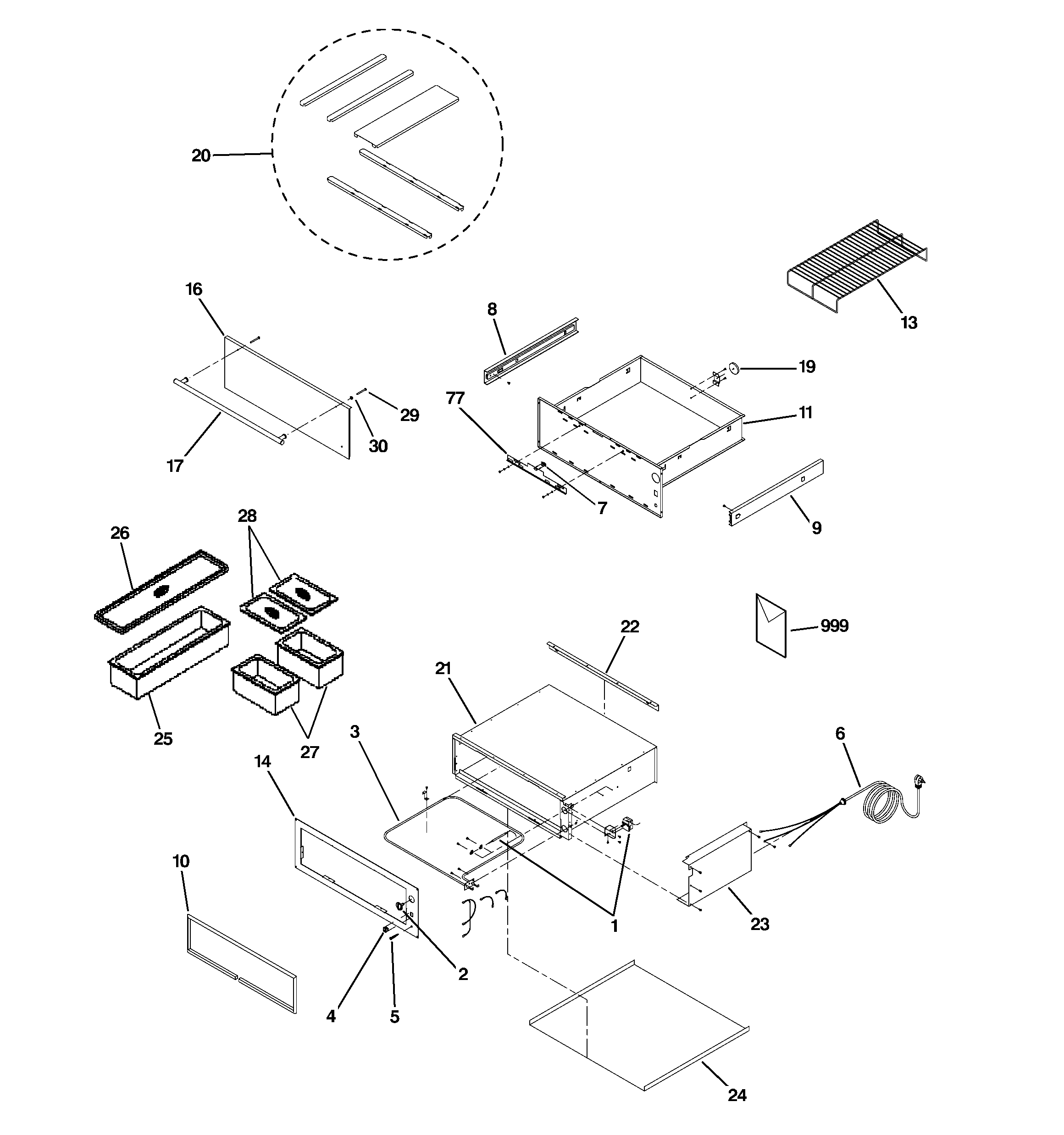

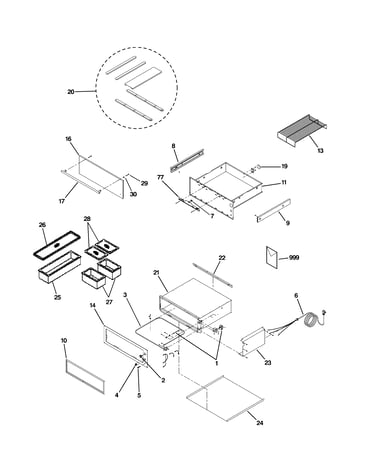

Warming drawer diagram

Front assy 2

Part #WB55X10823

$248.99
In Stock
Cover WB02X11009
#24

Warming drawer diagram

Cover

Part #WB02X11009

$197.65
In Stock
Quarter Pan WB49X10160
#27

Warming drawer diagram

Quarter pan

Part #WB49X10160

$93.19
In Stock
Bolt,hex Hea WB01X10288
#29

Warming drawer diagram

Bolt,hex hea

Part #WB01X10288

This item is not returnable
$4.35
In Stock
Anti Tip Bra WB02X11010
#22

Warming drawer diagram

Anti tip bra

Part #WB02X11010

$55.15
In Stock
Cavity 27" WB63X10058
#21

Warming drawer diagram

Cavity 27"

Part #WB63X10058

$181.80
In Stock
Magnet Closure WB02X10592
#19

Warming drawer diagram

Magnet closure

Part #WB02X10592

$153.33
In Stock
Heating Element WB44X10029
#3

Warming drawer diagram

Heating element

Part #WB44X10029

$86.69 |
6% OFF Phone Price : $92.69
In Stock
Indicator Lamp WB02X10587
#5

Warming drawer diagram

Indicator lamp

Part #WB02X10587

$74.69 |
7% OFF Phone Price : $80.69
In Stock
Gasket Seal WB02X11288
#10

Warming drawer diagram

Gasket seal

Part #WB02X11288

$48.88
In Stock
