Gas Walk-Behind Mower

Model # 917376941 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917376941 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

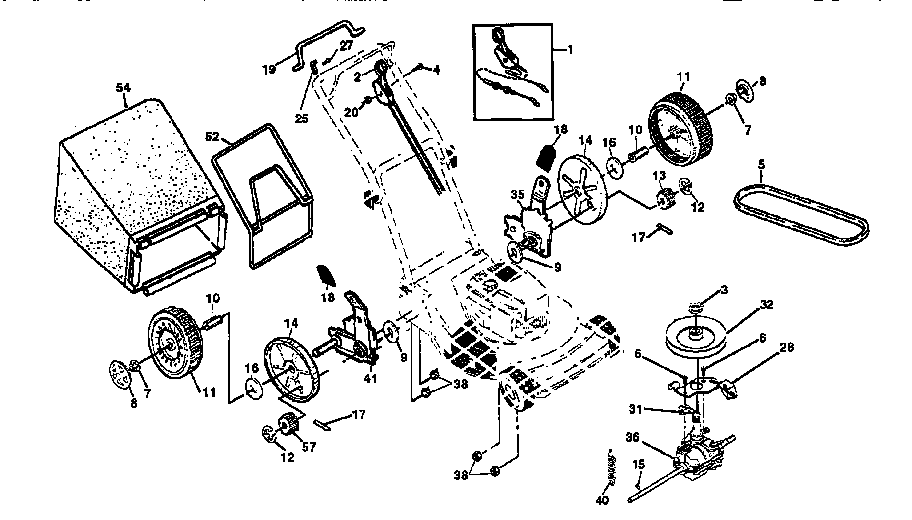

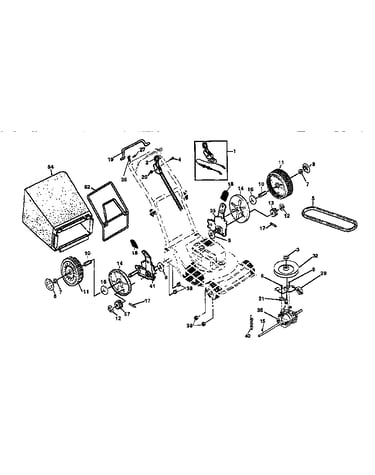

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 253 parts  |
Lawn Mower Height Adjuster Knob 701037
Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Primer 36045
#350

Engine 143.966504 (71/143) diagram

Primer

Part #36045

Replaced by #36045A

?
Manufacturer substitution
This part replaces 36045. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.74 |
13% OFF Phone Price : $7.74
In Stock
Lawn Mower Blade Adapter 851514
#46

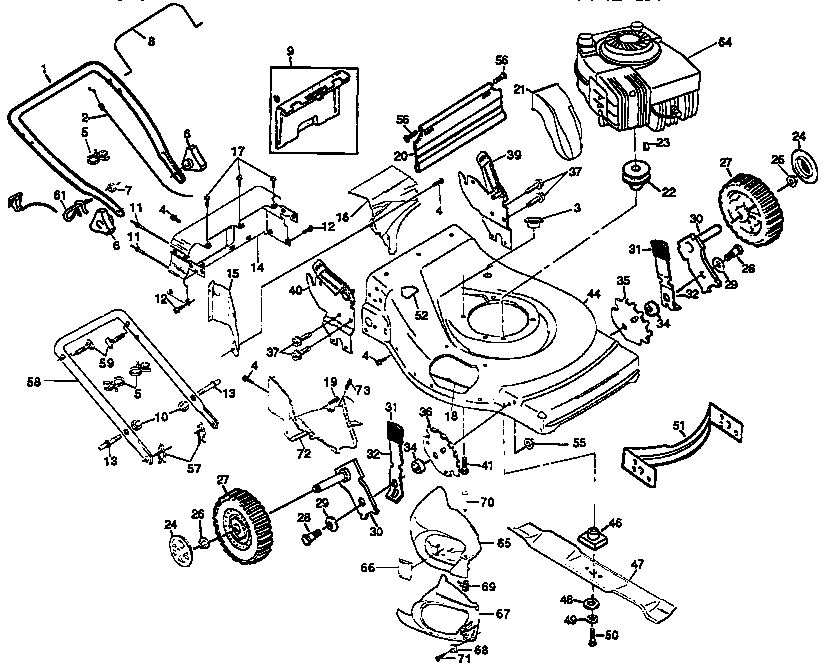

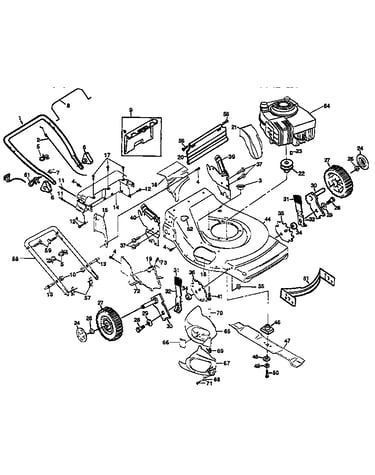

Main frame diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Lawn & Garden Equipment Engine Recoil Starter Rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032) 590535
Lawn & garden equipment engine recoil starter rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032)

Part #590535

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Line 34357
#290

Engine 143.966504 (71/143) diagram

Line

Part #34357

Replaced by #29774

?
Manufacturer substitution
This part replaces 34357. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Washer 632673
#33

Carburetor 640020 (71/143) diagram

Washer

Part #632673

Replaced by #27110A

?
Manufacturer substitution
This part replaces 632673. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#292

Engine 143.966504 (71/143) diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Tractor Accessories Lawn & Garden Equipment Engine Recoil Starter (replaces 590637, 590702) 590739
#0

Starter 590739 div 71/143 diagram

Tractor accessories lawn & garden equipment engine recoil starter (replaces 590637, 590702)

Part #590739

BEST SELLER
$46.99 |
11% OFF Phone Price : $52.99
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#56

Main frame diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Starter 590702
Starter

Part #590702

Replaced by #590739

?
Manufacturer substitution
This part replaces 590702. Substitute parts can look different from the original.
BEST SELLER
$46.99 |
11% OFF Phone Price : $52.99
In Stock
