Model # MDG17MNAWW1 Official Maytag commercial dryer

Here are the diagrams and repair parts for Official Maytag MDG17MNAWW1 commercial dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

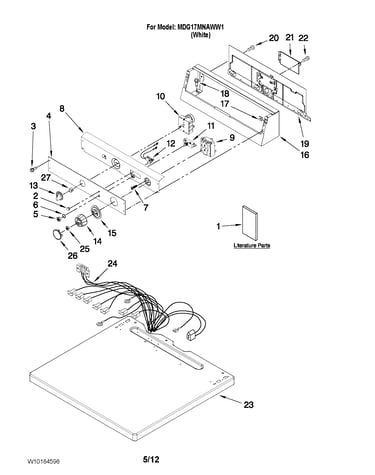

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Dryer Thermal Fuse 3392519
#30

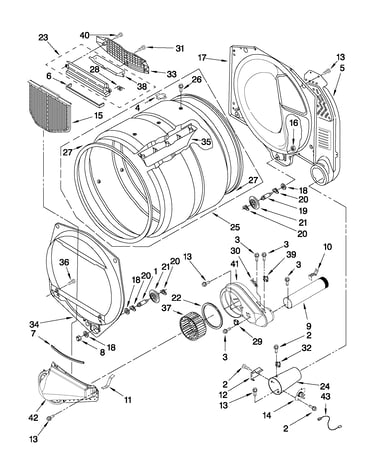

Bulkhead parts diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$19.12 |
9% OFF Phone Price : $21.12
In Stock
Support 8536973
#21

Bulkhead parts diagram

Support

Part #8536973

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces 8536973. Substitute parts can look different from the original.
BEST SELLER
$16.24 |
11% OFF Phone Price : $18.24
In Stock
Dryer Valve Coil Kit 694540
#13

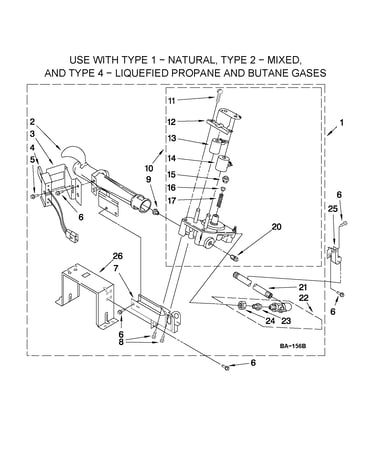

W10135231 burner assembly diagram

Dryer valve coil kit

Part #694540

Replaced by #279834

?
Manufacturer substitution
This part replaces 694540. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Dryer Gas Valve Coil Kit 694539
#14

W10135231 burner assembly diagram

Dryer gas valve coil kit

Part #694539

Replaced by #279834

?
Manufacturer substitution
This part replaces 694539. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Whirlpool Dryer Repair Kit (4392067) (replaces 2015, 80047) - Dryer Maintenance Kit By Whirlpool 4392067
#NI

Optional parts (not included) diagram

Whirlpool dryer repair kit (4392067) (replaces 2015, 80047) - dryer maintenance kit by whirlpool

Part #4392067

BEST SELLER
$49.32 |
11% OFF Phone Price : $55.32
In Stock
Igniter 686590
Igniter

Part #686590

Replaced by #279311

?
Manufacturer substitution
This part replaces 686590. Substitute parts can look different from the original.
BEST SELLER
$22.08 |
21% OFF Phone Price : $28.08
In Stock
Catch 3392538
#54

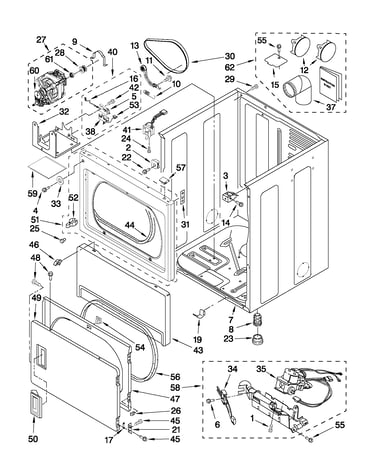

Cabinet parts diagram

Catch

Part #3392538

Replaced by #279570

?
Manufacturer substitution
This part replaces 3392538. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Strike 696144
#52

Cabinet parts diagram

Strike

Part #696144

Replaced by #279570

?
Manufacturer substitution
This part replaces 696144. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Screen W10049370
#15

Bulkhead parts diagram

Screen

Part #W10049370

Replaced by #W10120998

?
Manufacturer substitution
This part replaces W10049370. Substitute parts can look different from the original.
BEST SELLER
$58.57 |
9% OFF Phone Price : $64.57
In Stock
Motor Pulley 3394341
#28

Cabinet parts diagram

Motor pulley

Part #3394341

Replaced by #WP8066184

?
Manufacturer substitution
This part replaces 3394341. Substitute parts can look different from the original.
BEST SELLER
$34.26 |
15% OFF Phone Price : $40.26
In Stock
