Model # DSC-W230 Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W230 digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

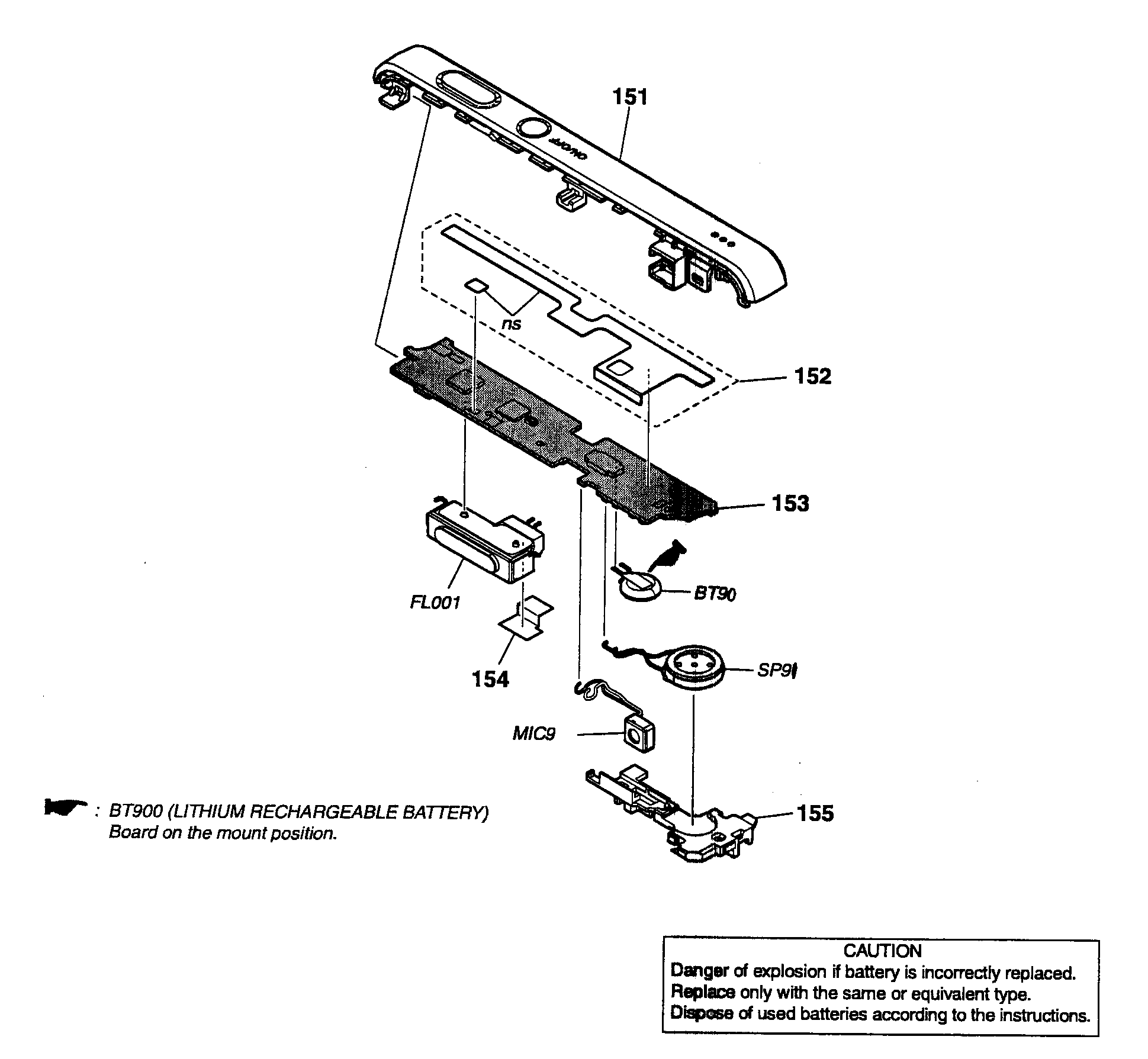

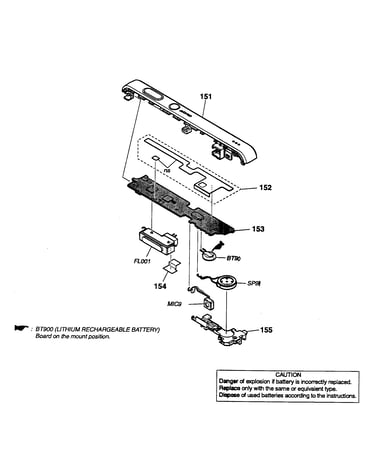

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Lcd Window 413548001
#9

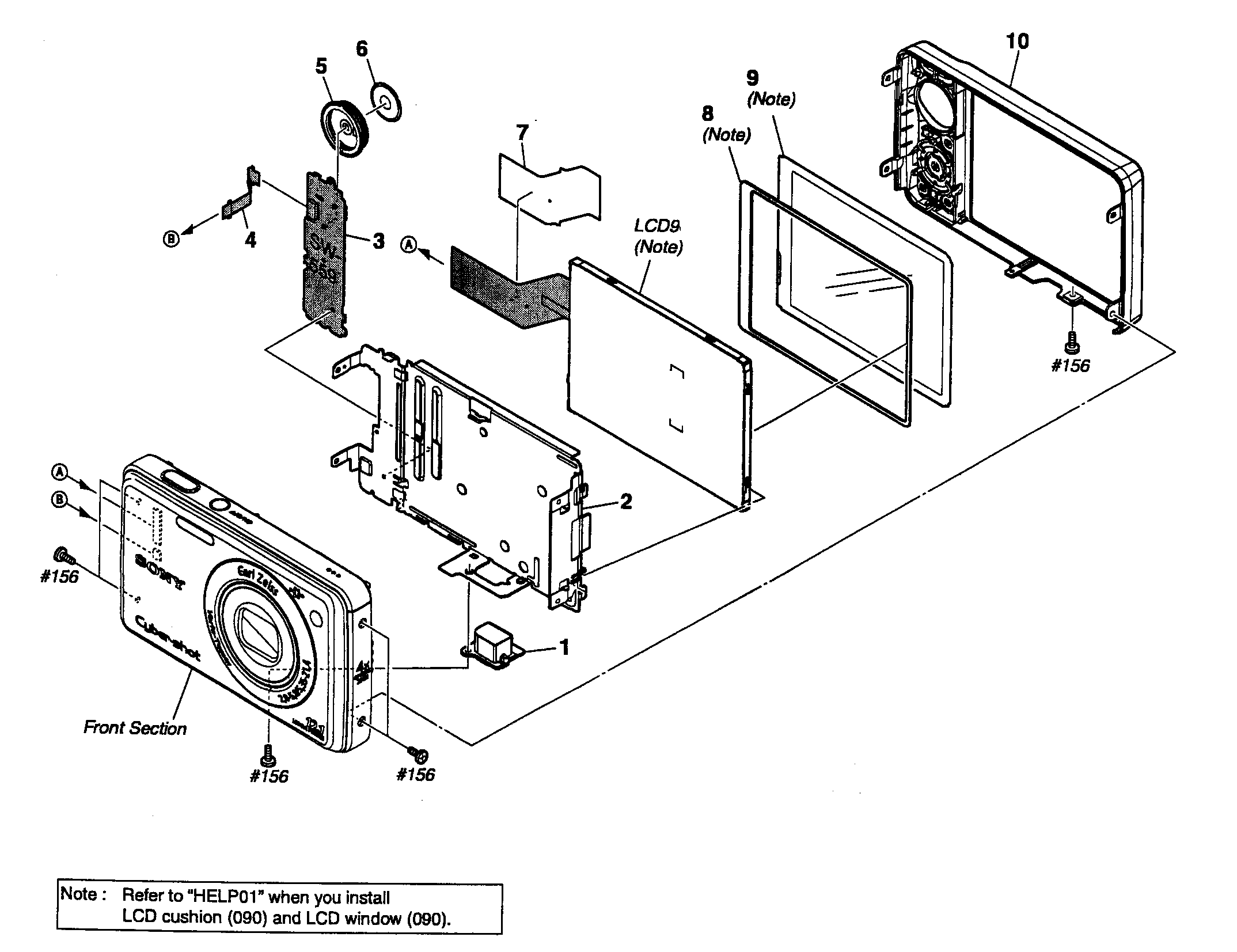

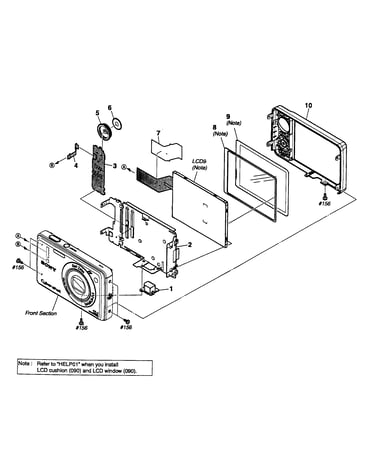

Lcd assy diagram

Lcd window

Part #413548001

$55.52
In Stock
Harness 196576611
#106

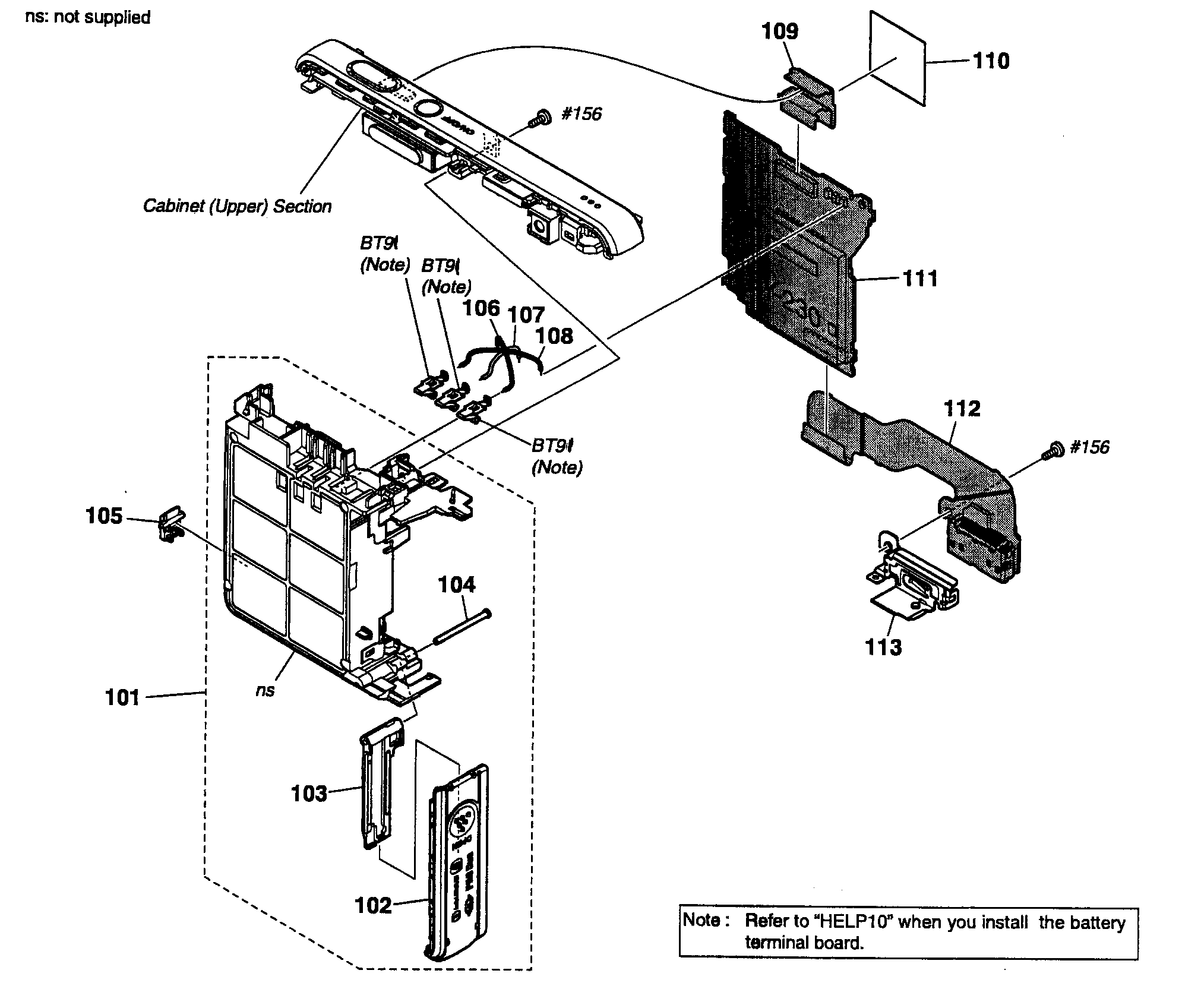

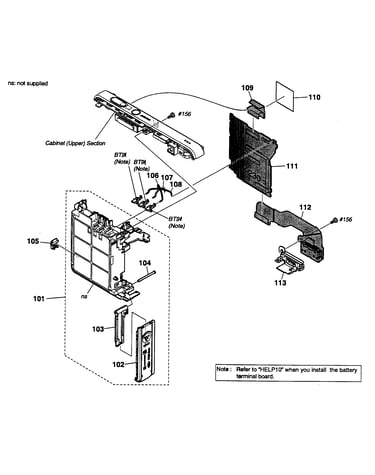

Battery assy diagram

Harness

Part #196576611

$13.24
In Stock
Pcb Cd-754 A1552405A
#54

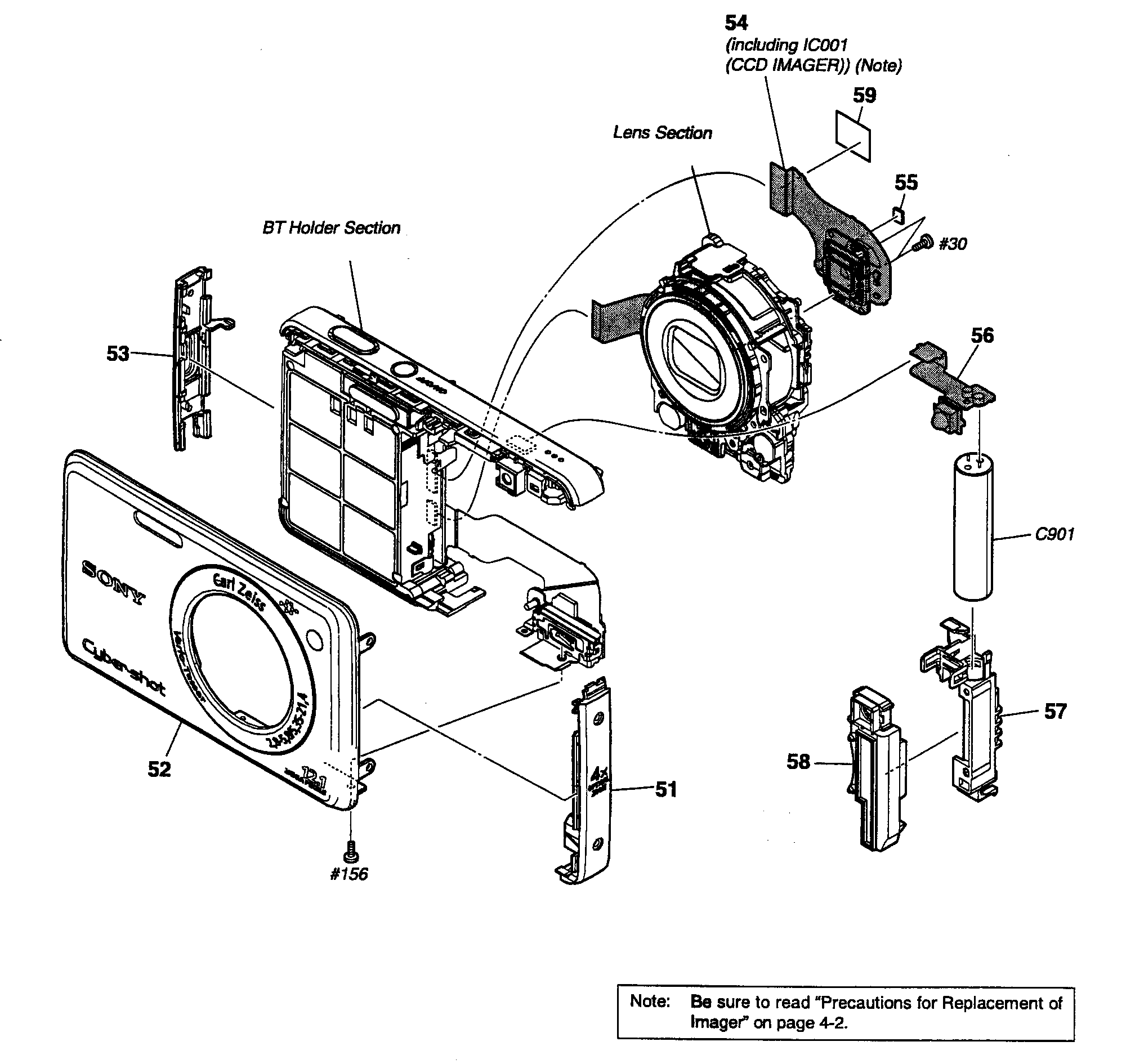

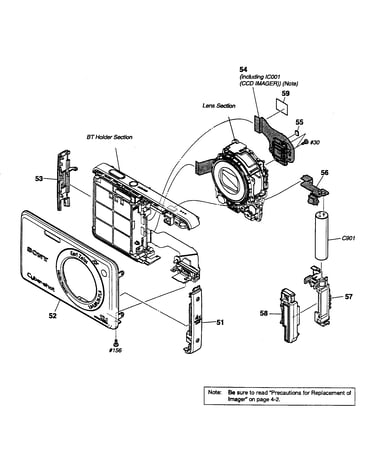

Front assy diagram

Pcb cd-754

Part #A1552405A

$95.50
In Stock
Inductor 140082011
#NI

Lcd assy diagram

Inductor

Part #140082011

This item is not returnable
$2.30
In Stock
Connector 182063451
#NI

Lcd assy diagram

Connector

Part #182063451

$11.75
In Stock
Pcb,fpc006 187775111
#109

Battery assy diagram

Pcb,fpc006

Part #187775111

$16.17
In Stock
Switch 178681922
#NI

Lcd assy diagram

Switch

Part #178681922

$8.26
In Stock
Gear Block 14803811
#207

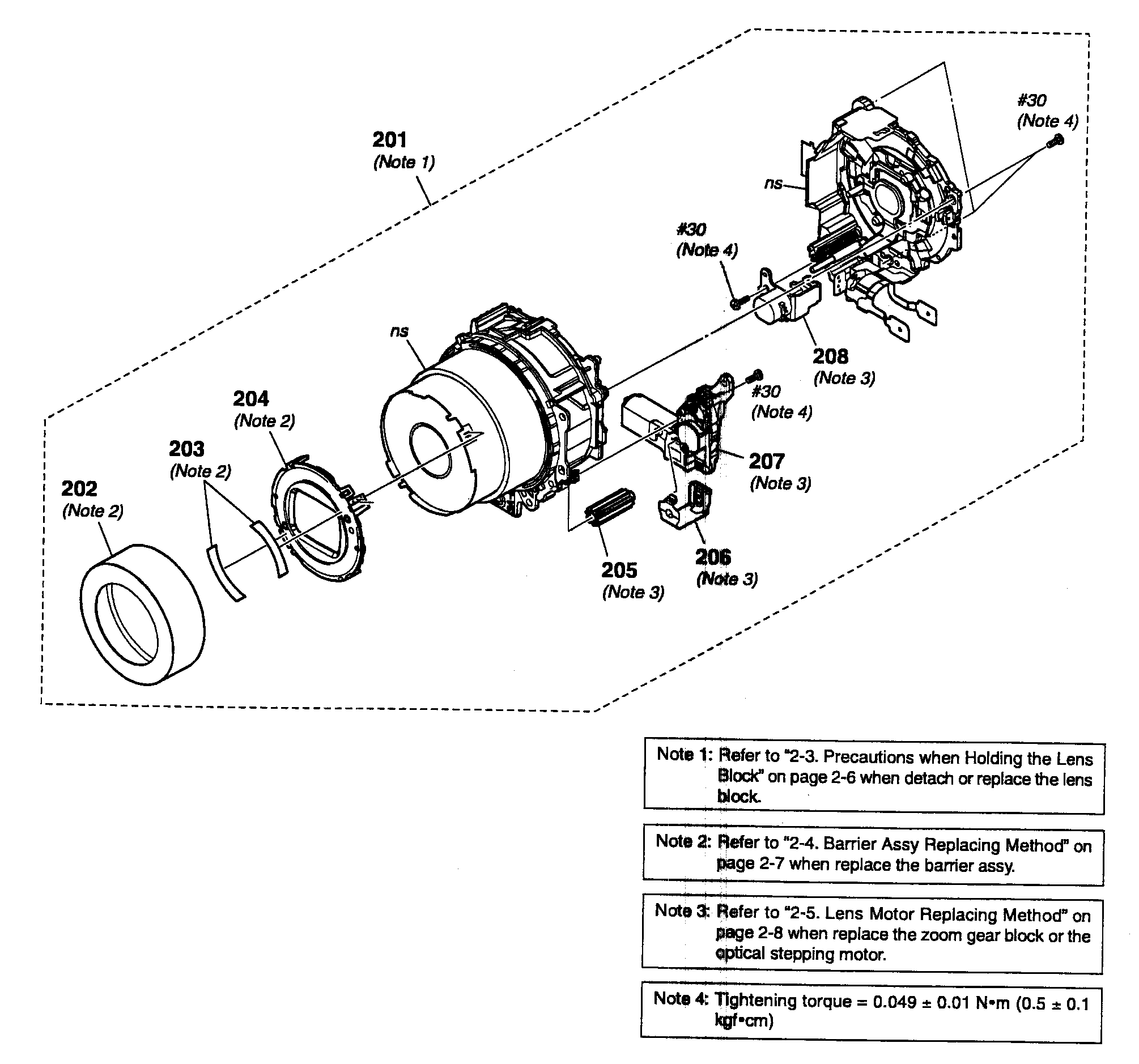

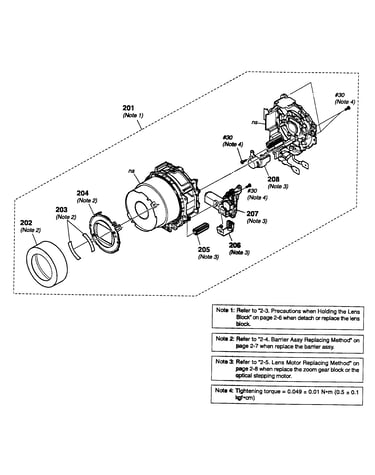

Lens assy diagram

Gear block

Part #14803811

This item is not returnable
$2.16
In Stock
Switch 178691431
#NI

Lcd assy diagram

Switch

Part #178691431

This item is not returnable
$2.65
In Stock
Step.motor 178767211
#208

Lens assy diagram

Step.motor

Part #178767211

$31.69
In Stock
