Model # EHIA20HB10 Official ICP electric heater kit
Here are the diagrams and repair parts for Official ICP EHIA20HB10 electric heater kit, as well as links to manuals and error code tables, if available.
Installation guideBy Schematic
SELECT DIAGRAM
Browse Parts for
EHIA20HB10 Electric Heater Kit
#NI

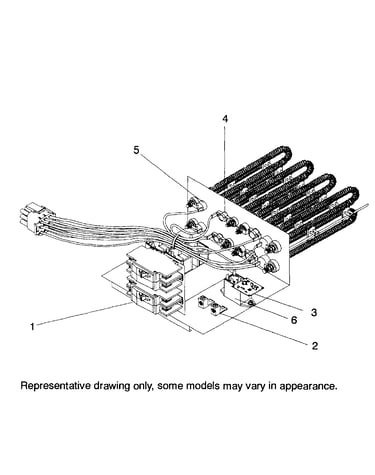

Heater assy diagram
Seal,brekr
Part #1087843
$23.51
In Stock
#6
Heater assy diagram
Relay
Part #1172506
$34.70 |
15% OFF Phone Price : $40.70
In Stock
#1A
Heater assy diagram
Circuit breaker
Part #1084792
The manufacturer no longer makes this part, and there's no substitute part
#1
Heater assy diagram
Breaker
Part #1083190
The manufacturer no longer makes this part, and there's no substitute part
#2
Heater assy diagram
Lug
Part #91590
The manufacturer no longer makes this part, and there's no substitute part
#5
Heater assy diagram
Thermal cut-off
Part #1176269
The manufacturer no longer makes this part, and there's no substitute part
#4
Heater assy diagram
Limit thermal,l145-40f
Part #1176271
The manufacturer no longer makes this part, and there's no substitute part
#3A
Heater assy diagram
Pcb rectif
Part #1171906
The manufacturer no longer makes this part, and there's no substitute part
#3
Heater assy diagram
Diode board
Part #1171780
The manufacturer no longer makes this part, and there's no substitute part
