Kenmore
Gas Range

Model # 9117217610 Official Kenmore 30" gas range

Here are the diagrams and repair parts for Official Kenmore 9117217610 30" gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

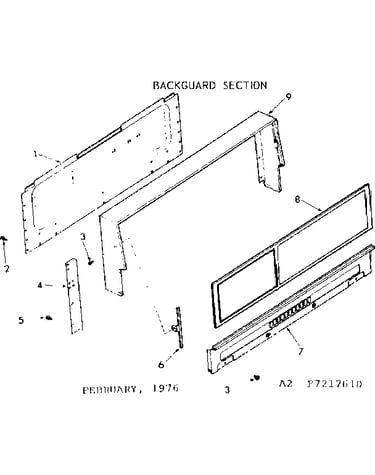

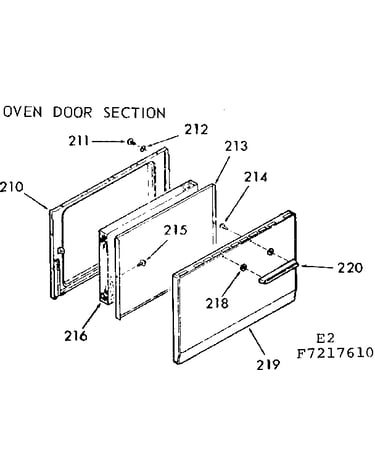

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 154 parts  |
Screw 105771
#250

Optional rotisserie diagram

Screw

Part #105771

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces 105771. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102430
Screw

Part #102430

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102430. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102428
#183

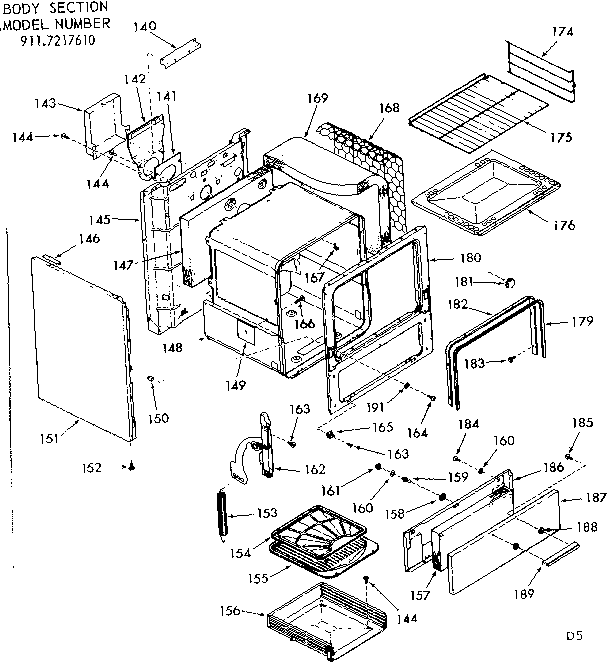

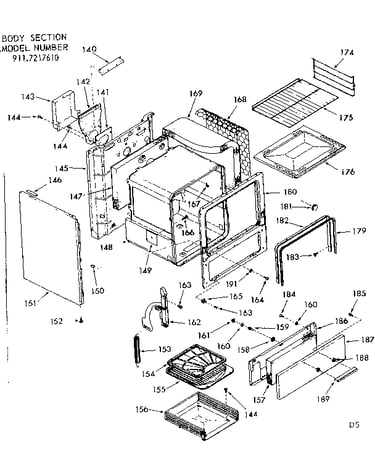

Body section diagram

Screw

Part #102428

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102428. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 295849
Screw

Part #295849

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 295849. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer 106462
Washer

Part #106462

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces 106462. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Screw 120791
#51

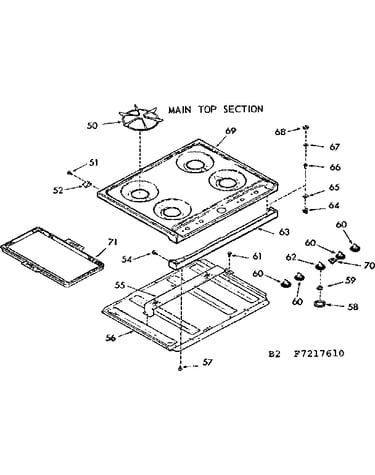

Main top section diagram

Screw

Part #120791

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces 120791. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Frame 302285
#180

Body section diagram

Frame

Part #302285

$69.99
In Stock
Lead Wire (white) 284278
#262A

Optional rotisserie diagram

Lead wire (white)

Part #284278

This item is not returnable
$2.29
In Stock
Screw 239268
#100

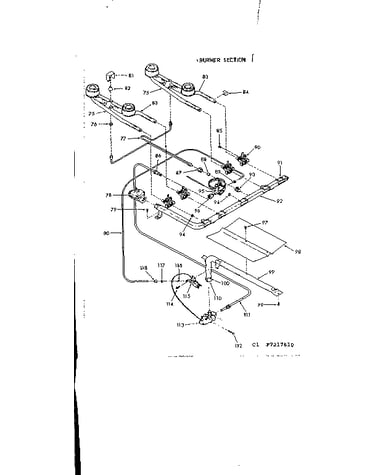

Burner section diagram

Screw

Part #239268

Replaced by #WB1X1118

?
Manufacturer substitution
This part replaces 239268. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
