Model # DGDMW5 Official Frigidaire dual-fuel dryer - lf31687010

Here are the diagrams and repair parts for Official Frigidaire DGDMW5 dual-fuel dryer - lf31687010, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

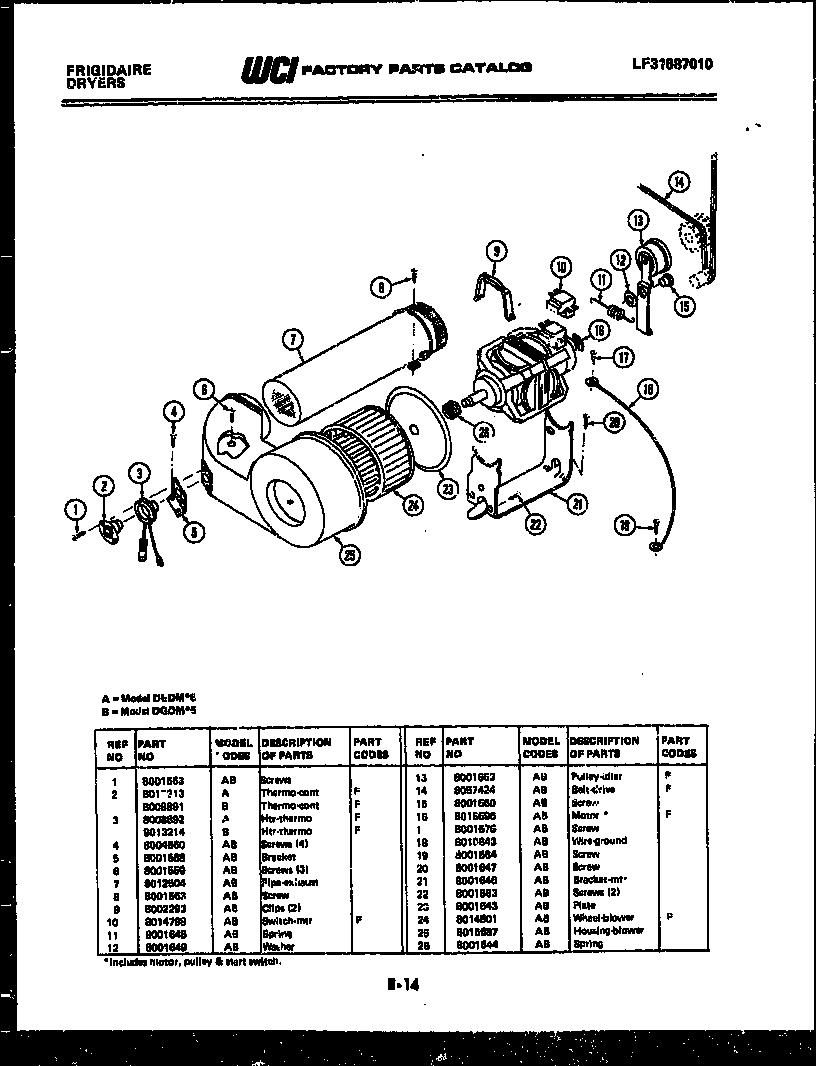

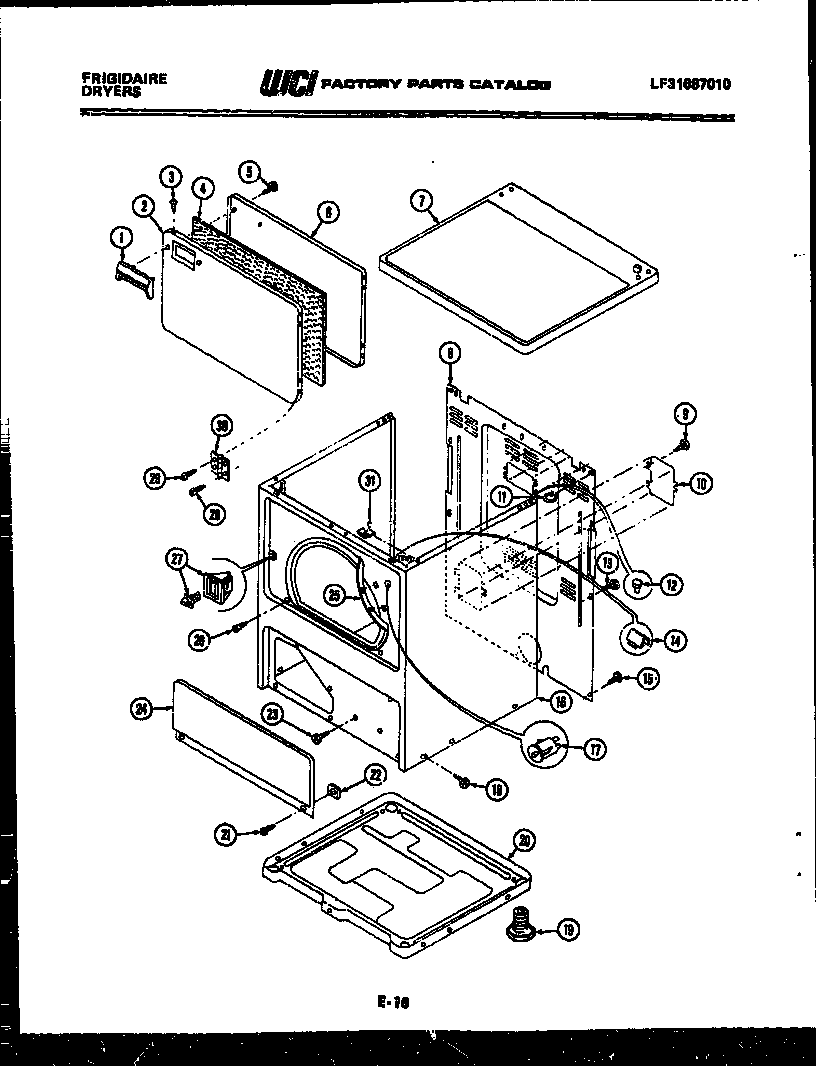

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Washer Block 6563359
#5

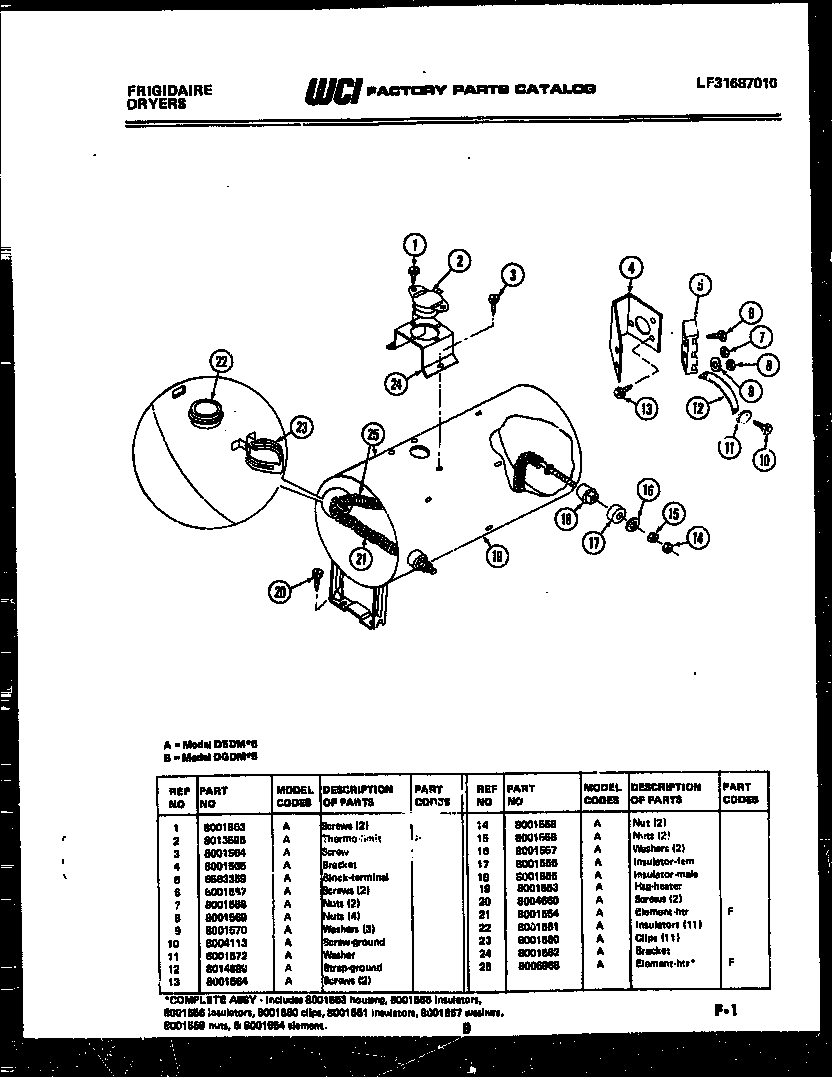

Element and housing parts diagram

Washer block

Part #6563359

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 6563359. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock

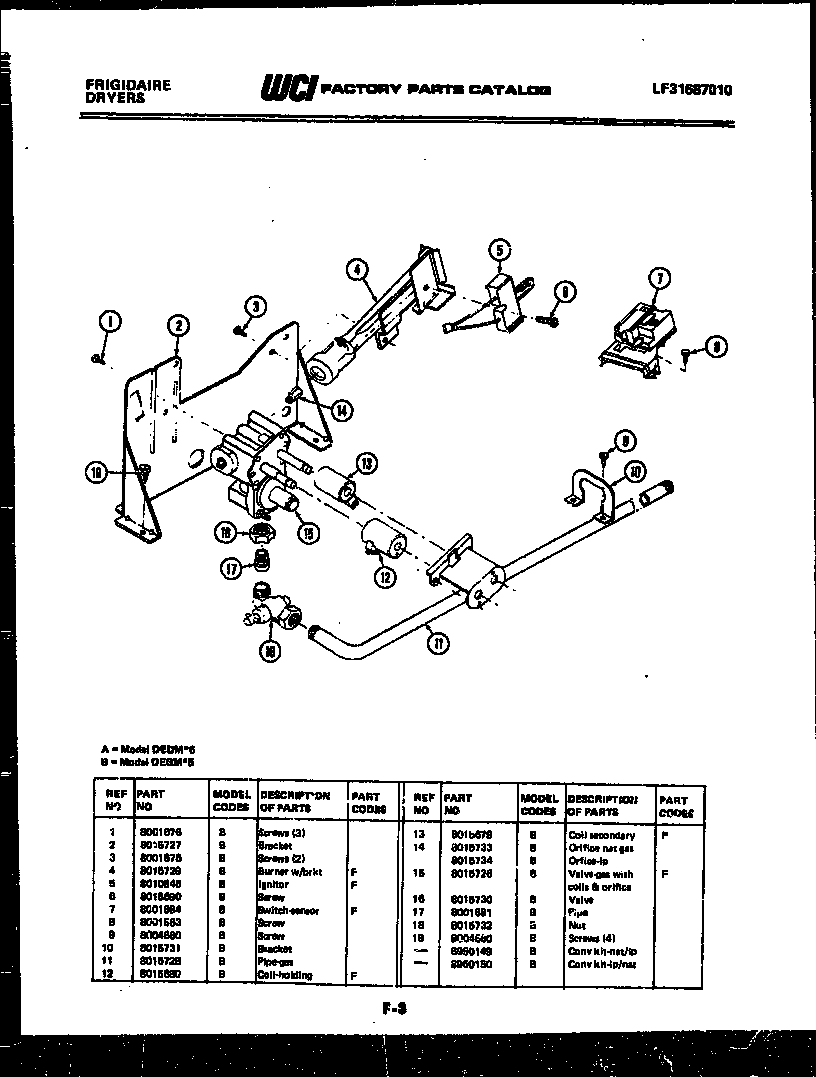

Igniter 8010845
#5

Combustion chamber diagram

Igniter

Part #8010845

Replaced by #5303937186

?
Manufacturer substitution
This part replaces 8010845. Substitute parts can look different from the original.
$61.19 |
9% OFF Phone Price : $67.19
In Stock
Nut 8001569
#8

Element and housing parts diagram

Nut

Part #8001569

Replaced by #5303015673

?
Manufacturer substitution
This part replaces 8001569. Substitute parts can look different from the original.
This item is not returnable
$2.19
In Stock
Rivet (2) (part Of Ref 22, But May Be Ordered Separately 8057422
#10

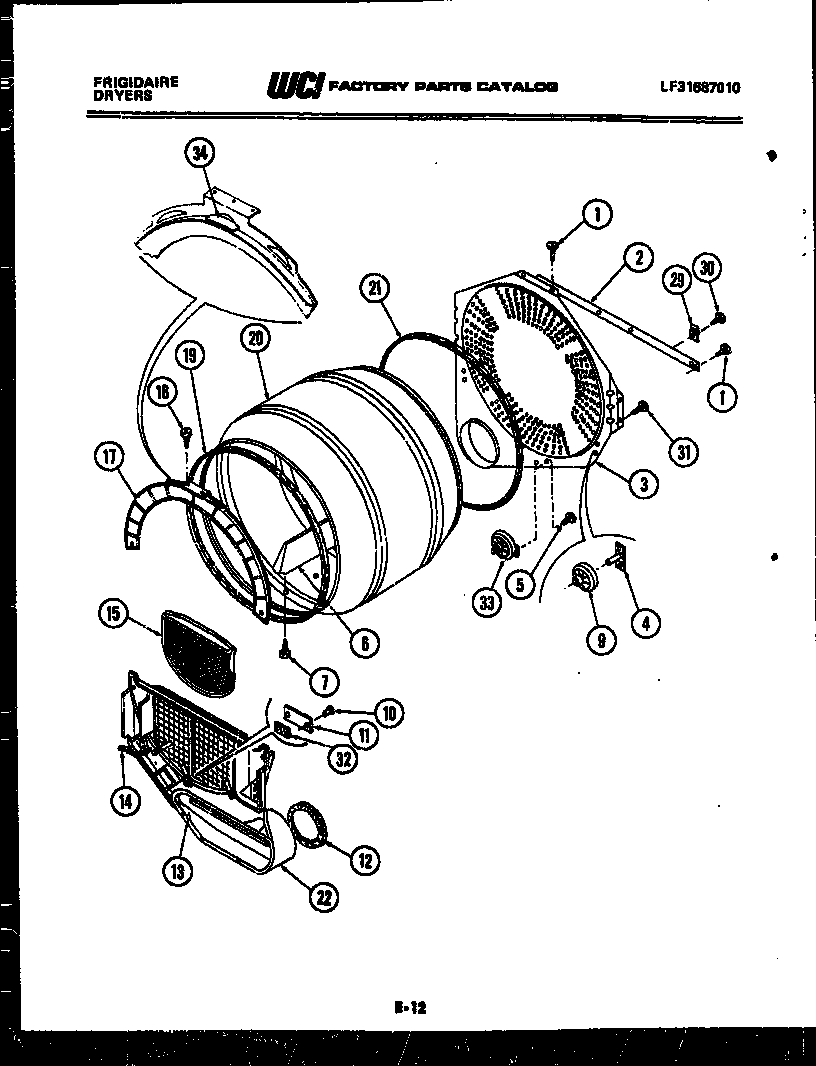

Drum parts diagram

Rivet (2) (part of ref 22, but may be ordered separately

Part #8057422

The manufacturer no longer makes this part, and there's no substitute part

Chamber-cmbstn 8001696
#10

Combustion chamber diagram

Chamber-cmbstn

Part #8001696

The manufacturer no longer makes this part, and there's no substitute part

Push To Start Start Switch 1132293
#4

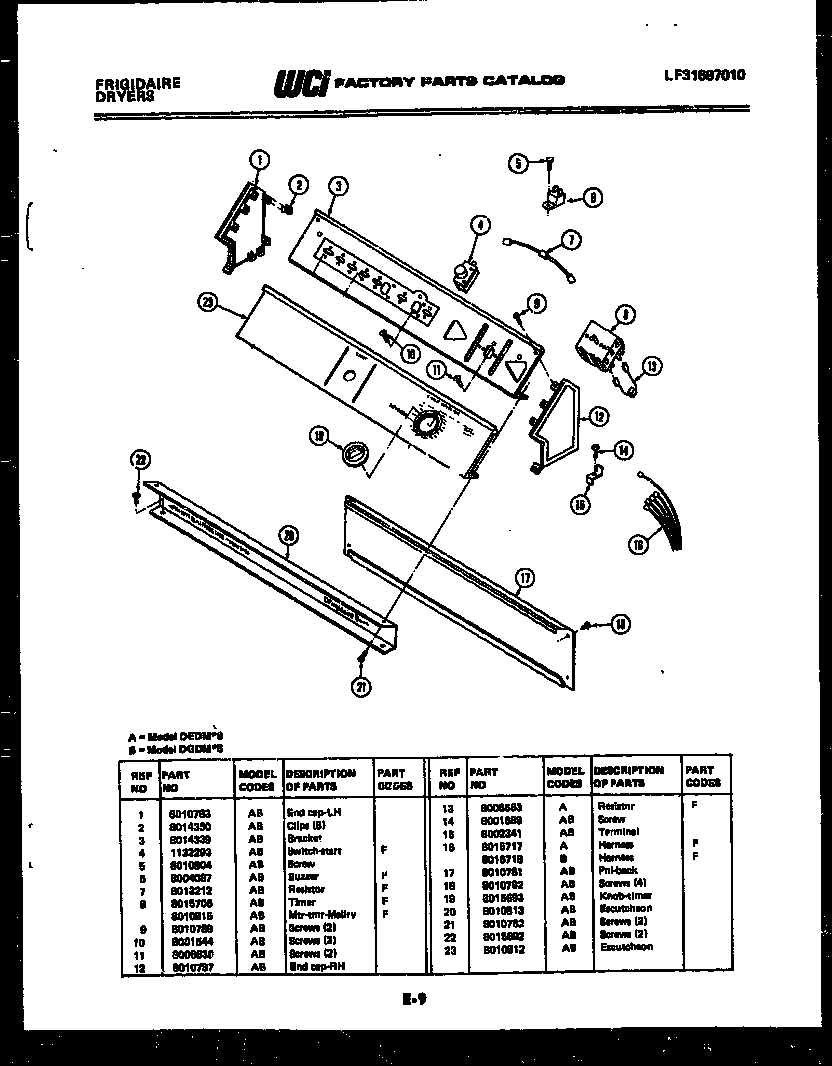

Console and control parts diagram

Push to start start switch

Part #1132293

The manufacturer no longer makes this part, and there's no substitute part

Cup Washer 8001572
Cup washer

Part #8001572

The manufacturer no longer makes this part, and there's no substitute part

Roller 8057416
#33

Drum parts diagram

Roller

Part #8057416

The manufacturer no longer makes this part, and there's no substitute part

Nut (2) 8001558
Nut (2)

Part #8001558

The manufacturer no longer makes this part, and there's no substitute part

Baffle (3) 8015686
#6

Drum parts diagram

Baffle (3)

Part #8015686

The manufacturer no longer makes this part, and there's no substitute part
