Craftsman
Drill/Driver

Model # 973113451 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 973113451 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

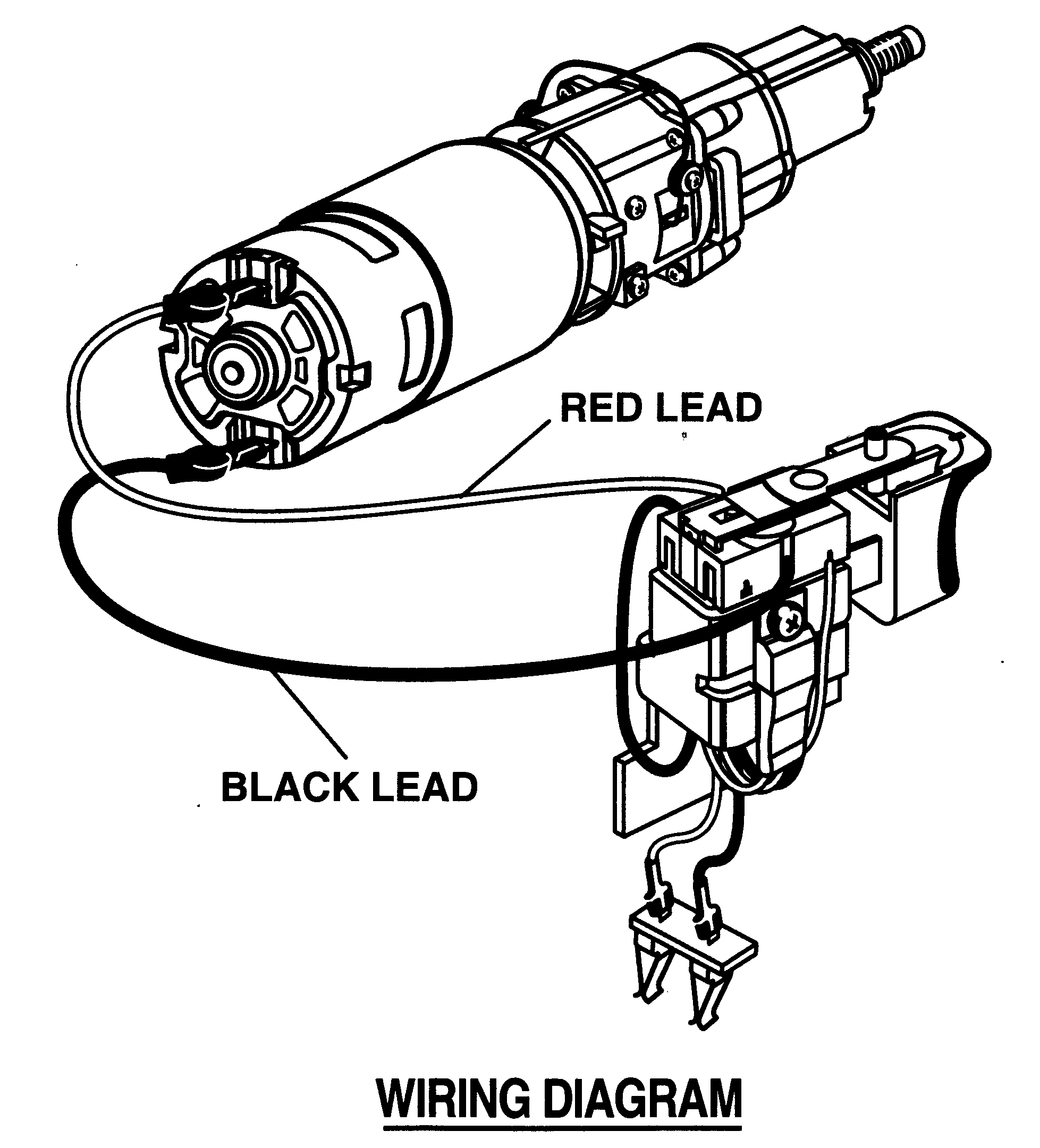

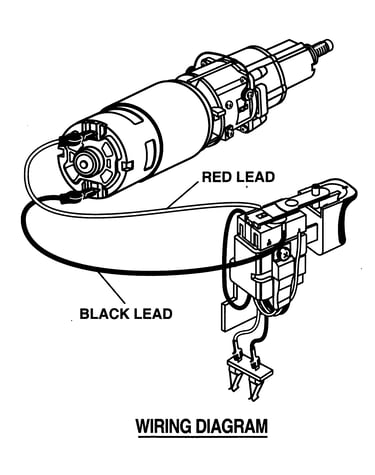

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |

Clutch Cap 4011801
#8

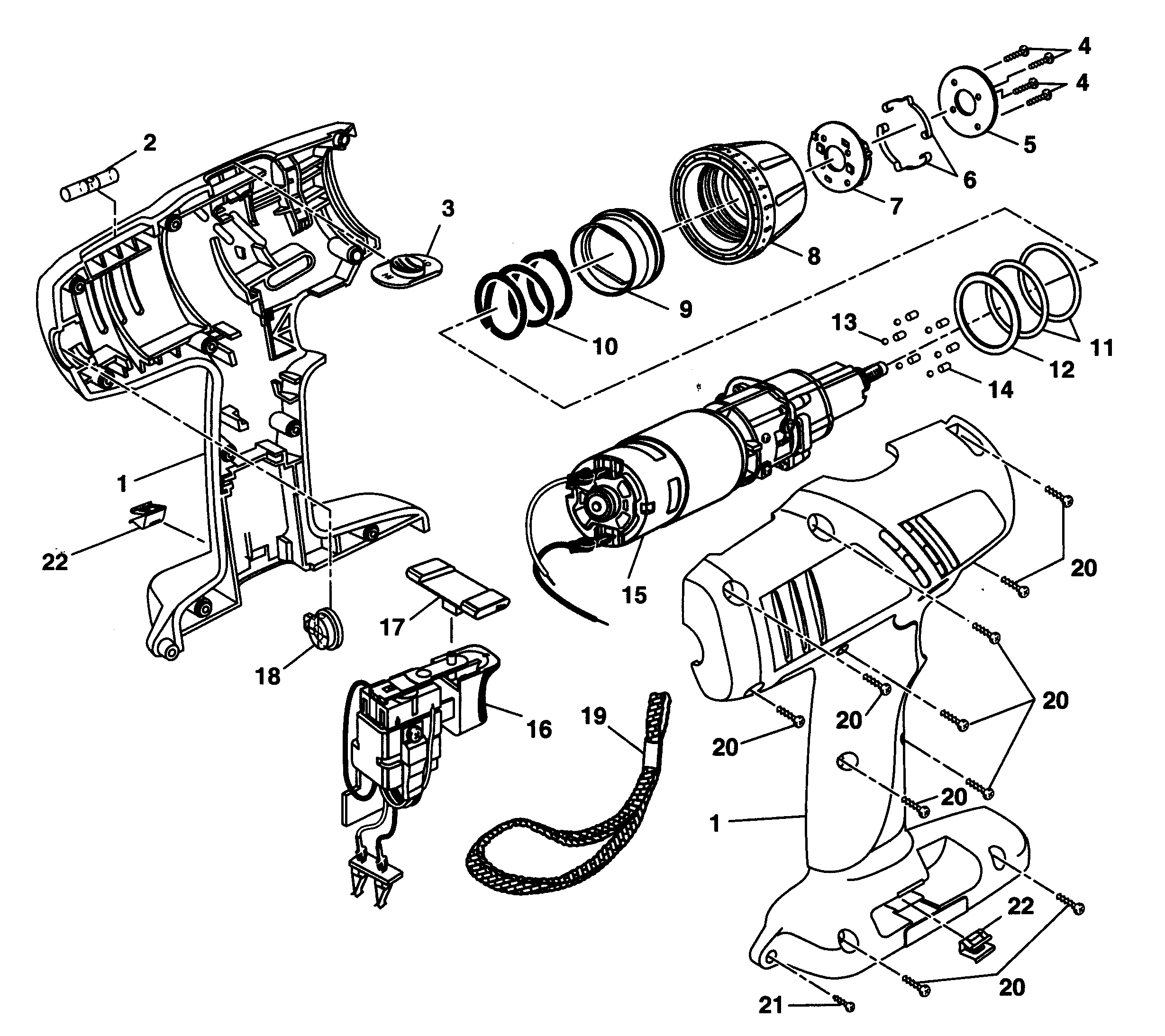

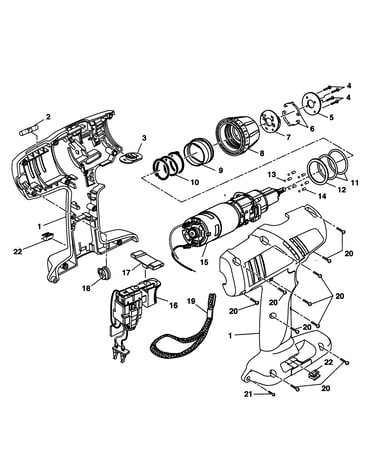

Housing diagram

Clutch cap

Part #4011801

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 983000-094
#NI

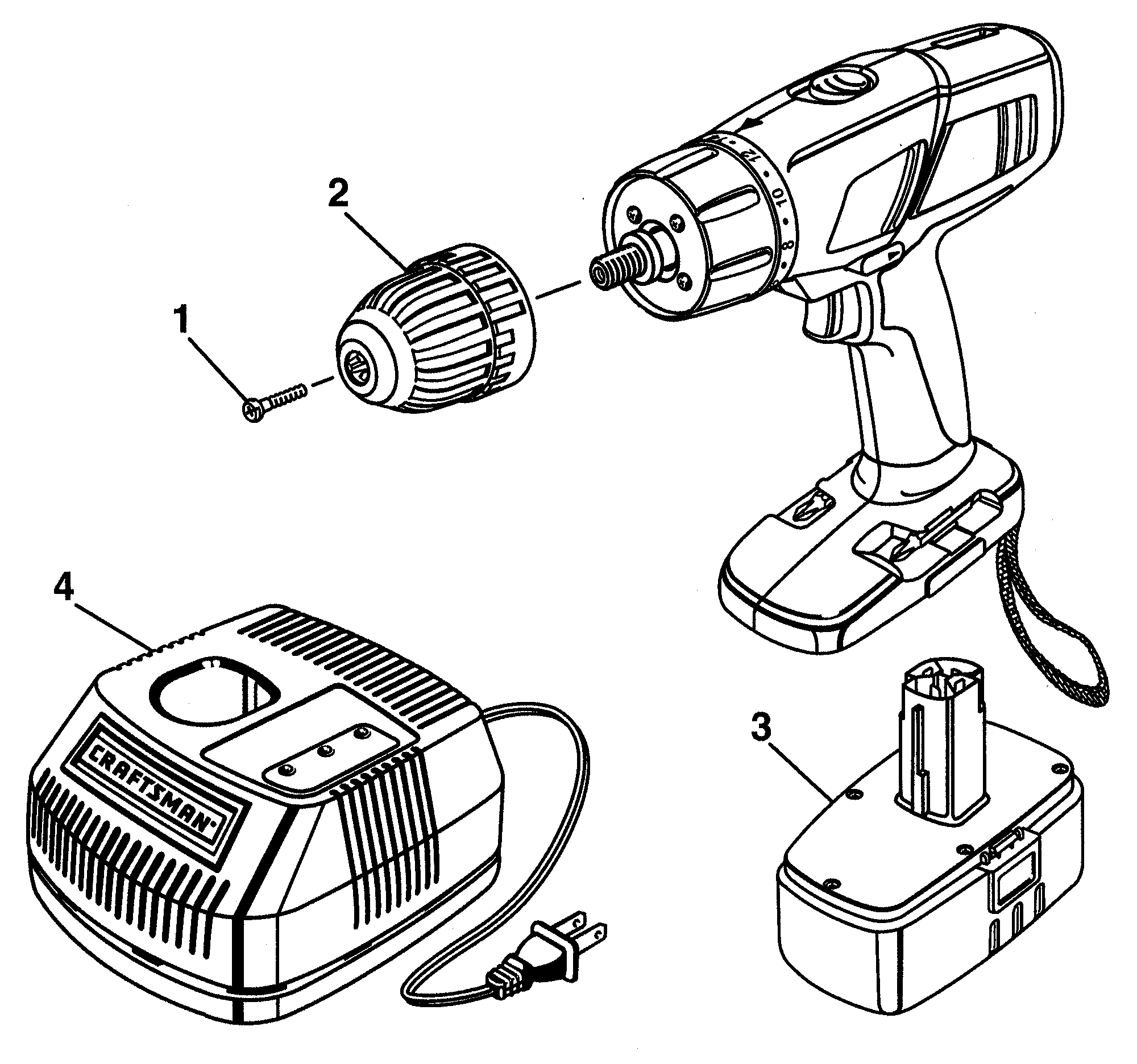

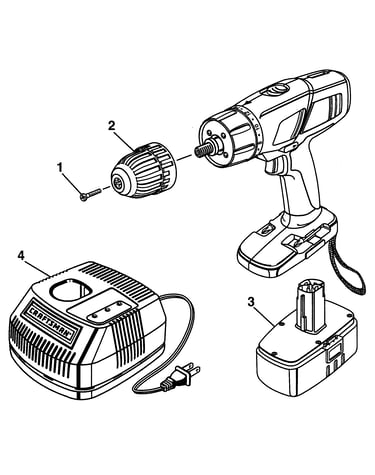

Drill diagram

Owner's manual

Part #983000-094

The manufacturer no longer makes this part, and there's no substitute part

Charger 1425301
#4

Drill diagram

Charger

Part #1425301

The manufacturer no longer makes this part, and there's no substitute part

Screw 6620306
#21

Housing diagram

Screw

Part #6620306

The manufacturer no longer makes this part, and there's no substitute part

Motor With Gear 983342-001
#15

Housing diagram

Motor with gear

Part #983342-001

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Screw 616478-003
#1

Drill diagram

Drill chuck screw

Part #616478-003

The manufacturer no longer makes this part, and there's no substitute part

Washer 6838001
#12

Housing diagram

Washer

Part #6838001

The manufacturer no longer makes this part, and there's no substitute part

Rear Level 3048003
#18

Housing diagram

Rear level

Part #3048003

The manufacturer no longer makes this part, and there's no substitute part

Switch 2701239
#16

Housing diagram

Switch

Part #2701239

The manufacturer no longer makes this part, and there's no substitute part

Drill Screw, M3 X 20 6620311
#4

Housing diagram

Drill screw, m3 x 20

Part #6620311

The manufacturer no longer makes this part, and there's no substitute part
