Whirlpool
Washer

Model # LLT8233DQ0 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool LLT8233DQ0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

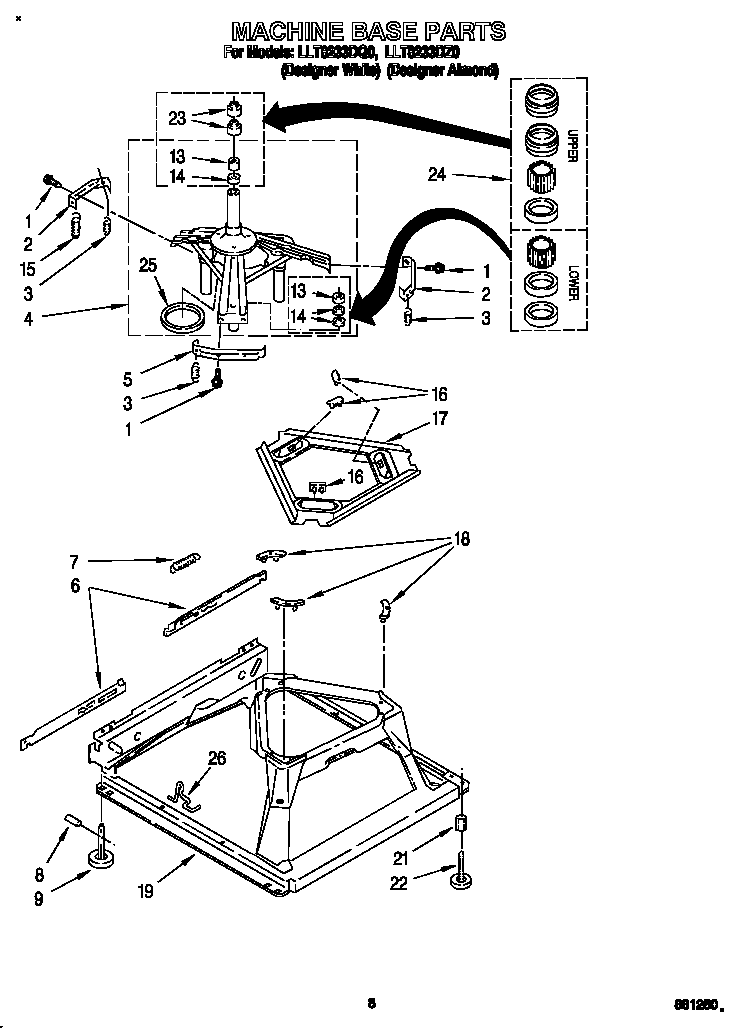

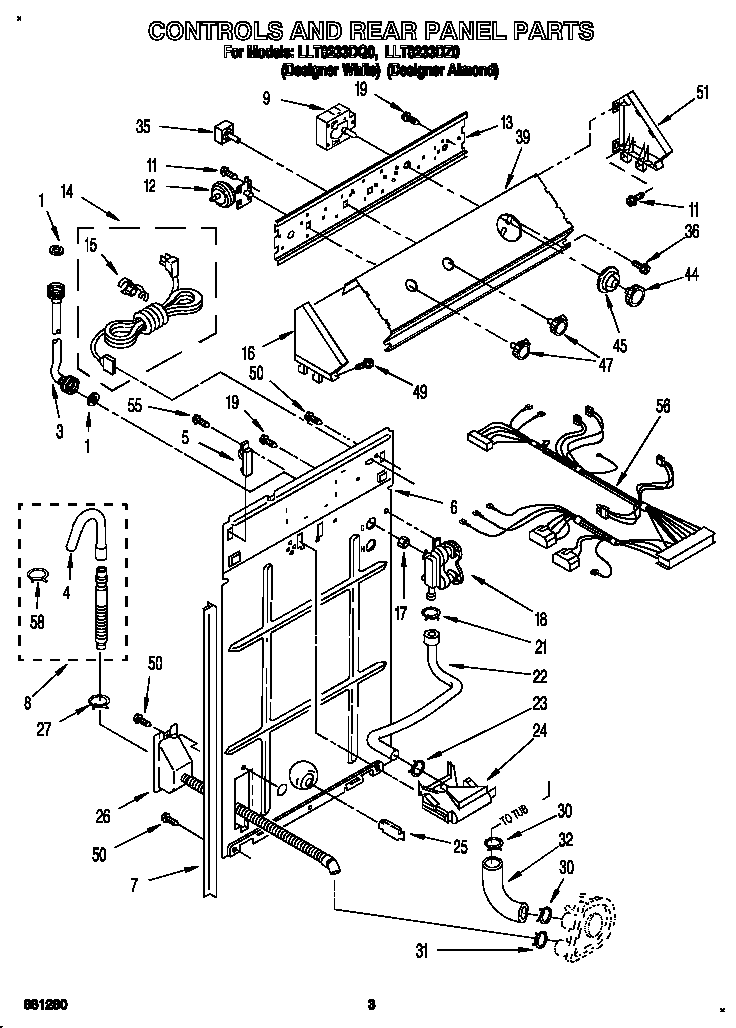

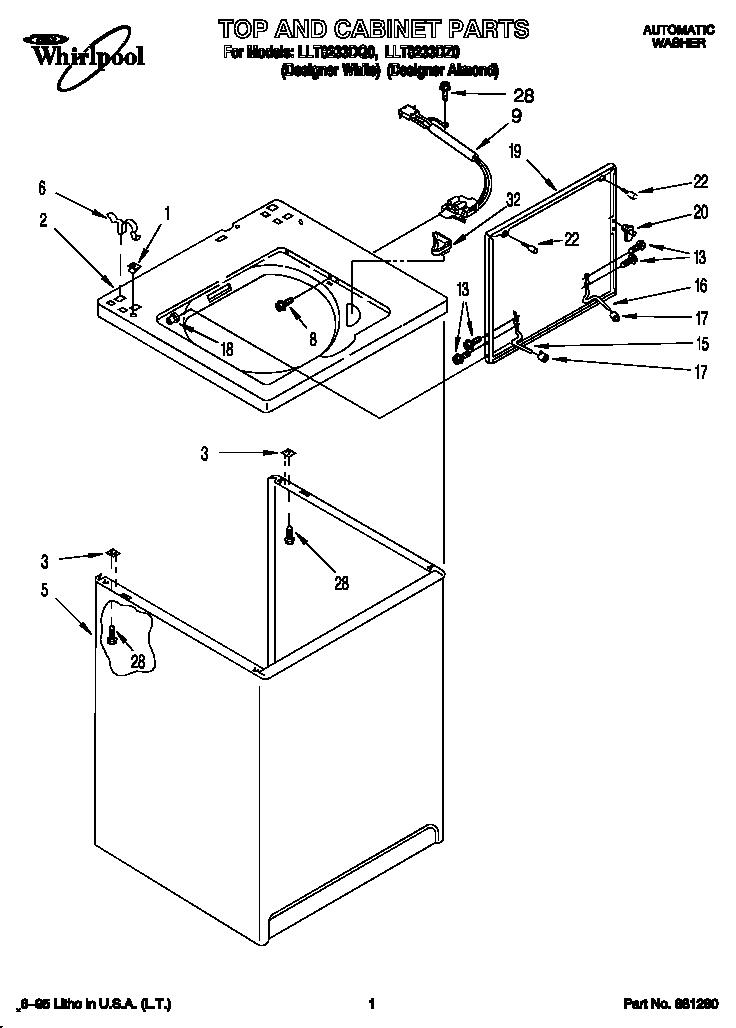

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 233 parts  |
Agitator Dog 387091
#10

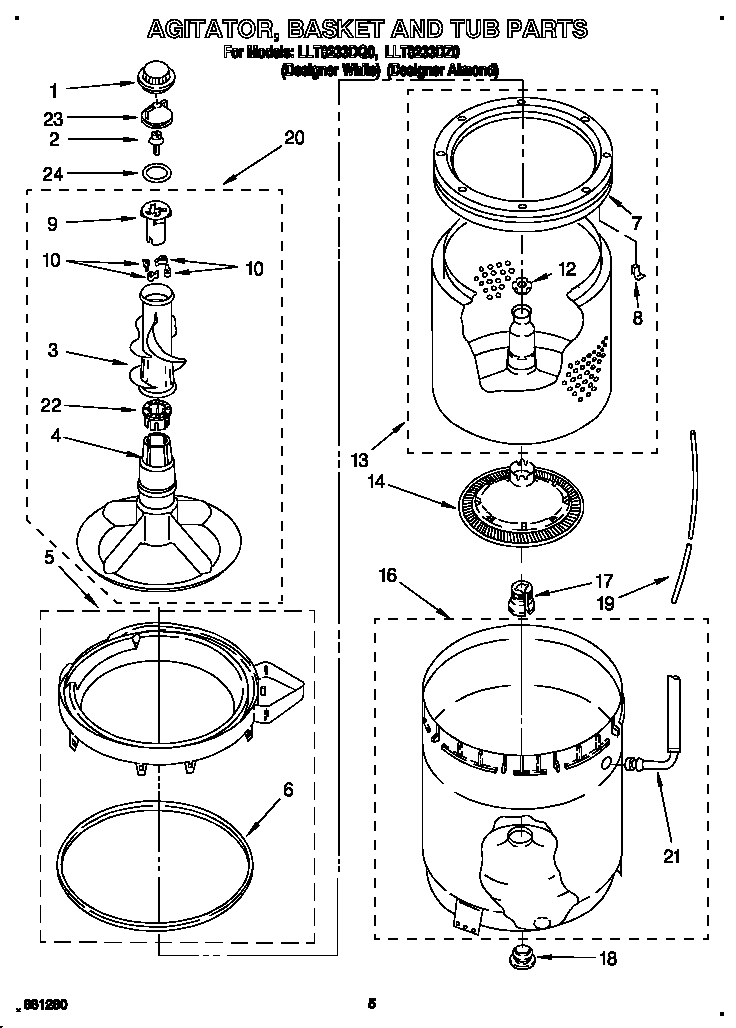

Agitator, basket and tub diagram

Agitator dog

Part #387091

Replaced by #80040

?
Manufacturer substitution
This part replaces 387091. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.94 |
17% OFF Phone Price : $5.94
In Stock
Coupling 62693
#13

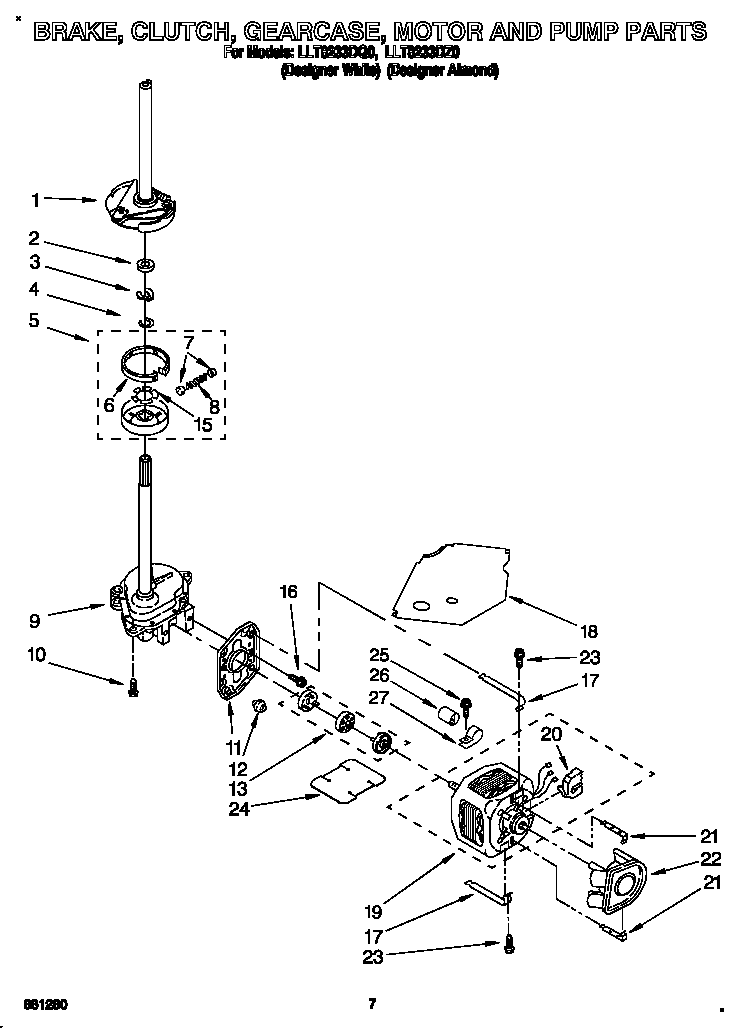

Brake, clutch, gearcase, motor and pump diagram

Coupling

Part #62693

Replaced by #285753A

?
Manufacturer substitution
This part replaces 62693. Substitute parts can look different from the original.
BEST SELLER
$22.13 |
21% OFF Phone Price : $28.13
In Stock
Gear 62570
#25

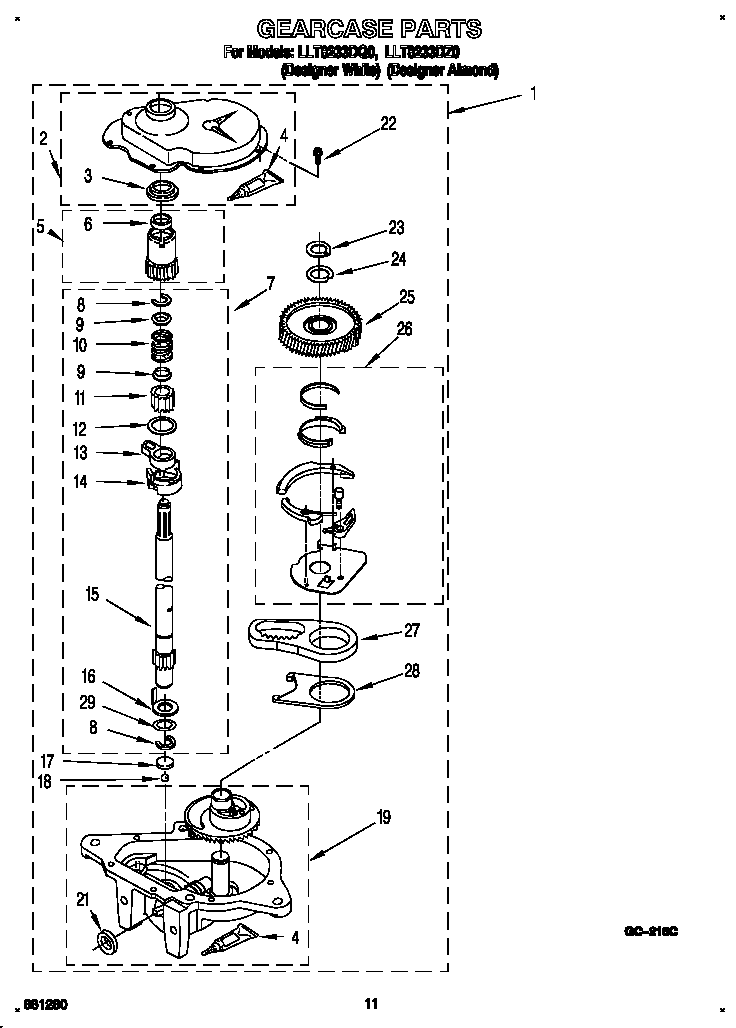

Gearcase diagram

Gear

Part #62570

Replaced by #3360629

?
Manufacturer substitution
This part replaces 62570. Substitute parts can look different from the original.
BEST SELLER
$252.45 |
5% OFF Phone Price : $264.45
In Stock
Gear Case 3360630
Gear case

Part #3360630

Replaced by #3360629

?
Manufacturer substitution
This part replaces 3360630. Substitute parts can look different from the original.
BEST SELLER
$252.45 |
5% OFF Phone Price : $264.45
In Stock
Clutch 3946794
#5

Brake, clutch, gearcase, motor and pump diagram

Clutch

Part #3946794

Replaced by #285785

?
Manufacturer substitution
This part replaces 3946794. Substitute parts can look different from the original.
BEST SELLER
$29.44 |
17% OFF Phone Price : $35.44
In Stock
Washer Drain Pump 3363394
#22

Brake, clutch, gearcase, motor and pump diagram

Washer drain pump

Part #3363394

Replaced by #WP3363394

?
Manufacturer substitution
This part replaces 3363394. Substitute parts can look different from the original.
BEST SELLER
$32.85 |
15% OFF Phone Price : $38.85
In Stock
Washer Drive Block 389140
#17

Agitator, basket and tub diagram

Washer drive block

Part #389140

Replaced by #WP389140

?
Manufacturer substitution
This part replaces 389140. Substitute parts can look different from the original.
BEST SELLER
$24.66 |
20% OFF Phone Price : $30.66
In Stock
Washer Spanner Nut 21366
#12

Agitator, basket and tub diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer Drive Motor 661600
#19

Brake, clutch, gearcase, motor and pump diagram

Washer drive motor

Part #661600

Replaced by #WP661600

?
Manufacturer substitution
This part replaces 661600. Substitute parts can look different from the original.
BEST SELLER
$142.22 |
8% OFF Phone Price : $154.22
In Stock
Washer Agitator Bolt 358237
#2

Agitator, basket and tub diagram

Washer agitator bolt

Part #358237

Replaced by #WP358237

?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.92 |
14% OFF Phone Price : $6.92
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

View all

Why won't my washing machine drain?

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Read more

Why won't my washing machine agitate or spin?

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Read more

Why won't my washing machine start?

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Read more

Why your washing machine won't finish its cycle

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Read more

Why is my washing machine noisy or shaking?

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Read more

Why won't my washing machine fill?

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Read more

Why doesn't my washing machine work at all?

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Read more

Why does my washing machine overfill?

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Read more

Why is the water in my washing machine the wrong temperature?

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Read more
