Model # 9-9984X1 Official Murray 26" men's atb outrage bicycle

Here are the diagrams and repair parts for Official Murray 9-9984X1 26" men's atb outrage bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Cable Casing 308525

#NI

All parts diagram

Cable casing

Part #308525

The manufacturer no longer makes this part, and there's no substitute part

Handlebar Stem 040818E700
#10

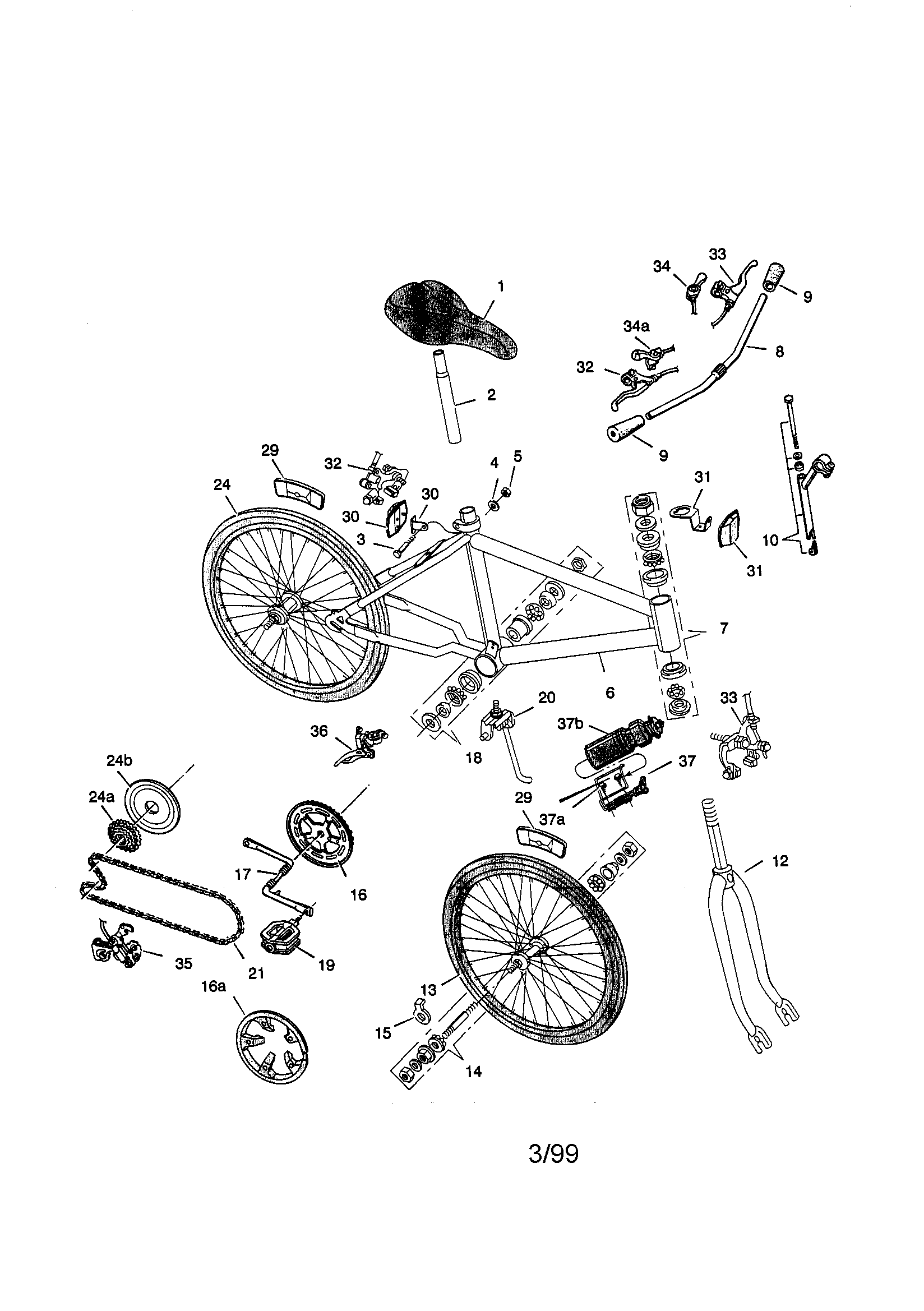

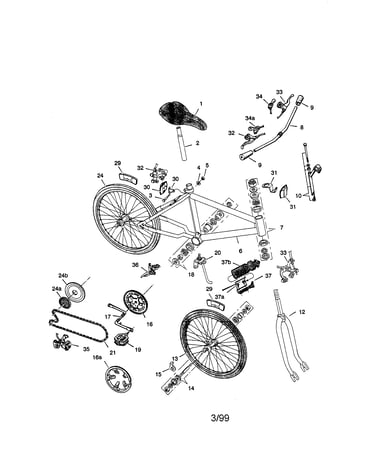

Men's 26" atb outrage diagram

Handlebar stem

Part #040818E700

The manufacturer no longer makes this part, and there's no substitute part

Bottle 750829
#37B

Men's 26" atb outrage diagram

Bottle

Part #750829

The manufacturer no longer makes this part, and there's no substitute part

Rflctr Set 750565
#29

Men's 26" atb outrage diagram

Rflctr set

Part #750565

The manufacturer no longer makes this part, and there's no substitute part

Tire 26" 75X776PA

#NI

All parts diagram

Tire 26"

Part #75X776PA

The manufacturer no longer makes this part, and there's no substitute part

Chain 070543
#21

Men's 26" atb outrage diagram

Chain

Part #070543

The manufacturer no longer makes this part, and there's no substitute part

F Axle 303588
#14

Men's 26" atb outrage diagram

F axle

Part #303588

The manufacturer no longer makes this part, and there's no substitute part

Fr Sprkt 750739
#16

Men's 26" atb outrage diagram

Fr sprkt

Part #750739

The manufacturer no longer makes this part, and there's no substitute part

Pedal-l 751470
#19A

Men's 26" atb outrage diagram

Pedal-l

Part #751470

The manufacturer no longer makes this part, and there's no substitute part

Screw 26X230

#NI

All parts diagram

Screw

Part #26X230

The manufacturer no longer makes this part, and there's no substitute part
