Model # WPSR3100W2AA Official GE washer

Here are the diagrams and repair parts for Official GE WPSR3100W2AA washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

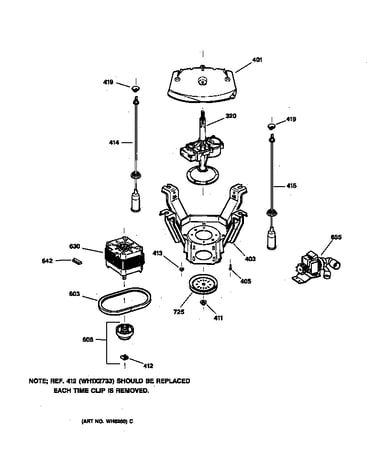

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Washer Hub Nut (replaces Wh02x1193) WH2X1193
#325

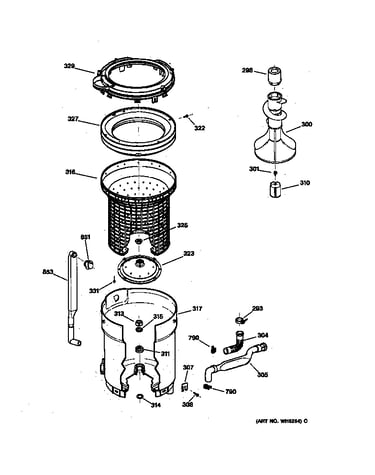

Tub, basket & agitator diagram

Washer hub nut (replaces wh02x1193)

Part #WH2X1193

BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Split Ring WH2X1195
#313

Tub, basket & agitator diagram

Split ring

Part #WH2X1195

Replaced by #WH02X10265

?
Manufacturer substitution
This part replaces WH2X1195. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Seal WH2X1196
#311

Tub, basket & agitator diagram

Seal

Part #WH2X1196

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH2X1196. Substitute parts can look different from the original.
BEST SELLER
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Washer Tub Mounting Hub Washer (replaces Wh02x1199) WH2X1199
#315

Tub, basket & agitator diagram

Washer tub mounting hub washer (replaces wh02x1199)

Part #WH2X1199

BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Agitator A WH43X142
#300

Tub, basket & agitator diagram

Agitator a

Part #WH43X142

Replaced by #WH43X10034

?
Manufacturer substitution
This part replaces WH43X142. Substitute parts can look different from the original.
BEST SELLER
$62.69 |
9% OFF Phone Price : $68.69
In Stock
Extra Large Tub Assembly WH45X10024
#317

Tub, basket & agitator diagram

Extra large tub assembly

Part #WH45X10024

Replaced by #WH45X20473

?
Manufacturer substitution
This part replaces WH45X10024. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$100.87 |
11% OFF Phone Price : $112.87
In Stock
Water Valve WH13X10004
#805

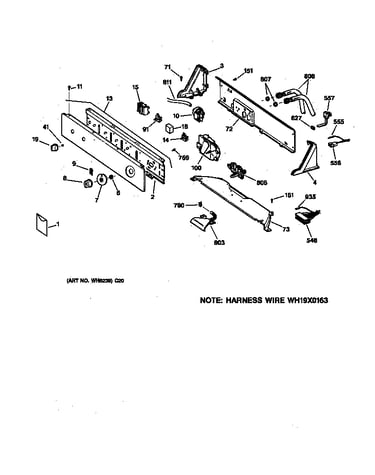

Controls & backsplash diagram

Water valve

Part #WH13X10004

Replaced by #WH13X10024

?
Manufacturer substitution
This part replaces WH13X10004. Substitute parts can look different from the original.
BEST SELLER
$68.35 |
8% OFF Phone Price : $74.35
In Stock
Washer Timer Knob Clip (replaces Wh01x2117, Wh1x1499, Wh1x1610, Wh2x561) WH1X2117
#9

Controls & backsplash diagram

Washer timer knob clip (replaces wh01x2117, wh1x1499, wh1x1610, wh2x561)

Part #WH1X2117

BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Washer Top WH44X10027
#391

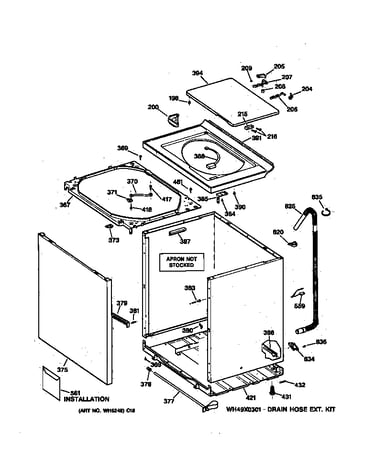

Cabinet, cover & front panel diagram

Washer top

Part #WH44X10027

Replaced by #WH44X21834

?
Manufacturer substitution
This part replaces WH44X10027. Substitute parts can look different from the original.
BEST SELLER
$62.35 |
9% OFF Phone Price : $68.35
In Stock
Hose Dr Ex WH41X367
#825

Cabinet, cover & front panel diagram

Hose dr ex

Part #WH41X367

Replaced by #WH41X10096

?
Manufacturer substitution
This part replaces WH41X367. Substitute parts can look different from the original.
BEST SELLER
$22.74 |
21% OFF Phone Price : $28.74
In Stock
