Model # 6479157021 Official Kenmore electric range
Here are the diagrams and repair parts for Official Kenmore 6479157021 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for6479157021 Ranges
- #90

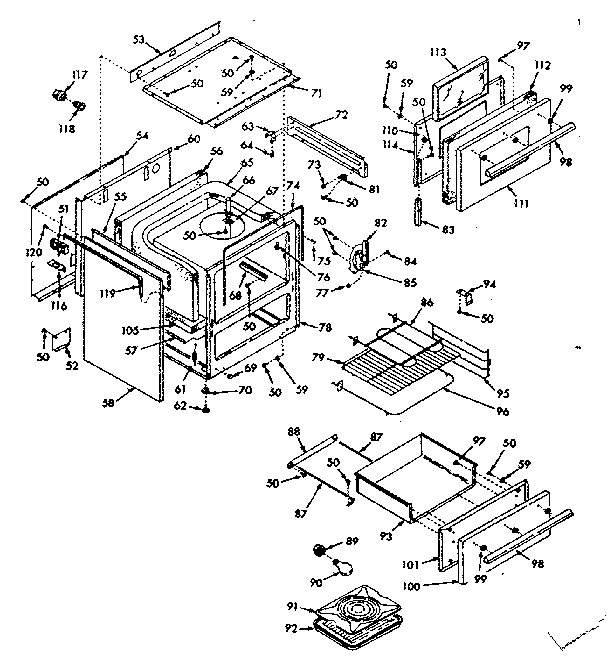

Body section diagram
Lamp bulbPart #630610
Replaced by #40A15
?Manufacturer substitutionThis part replaces 630610. Substitute parts can look different from the original.$13.61 |13% OFF Phone Price : $15.61In Stock - #39

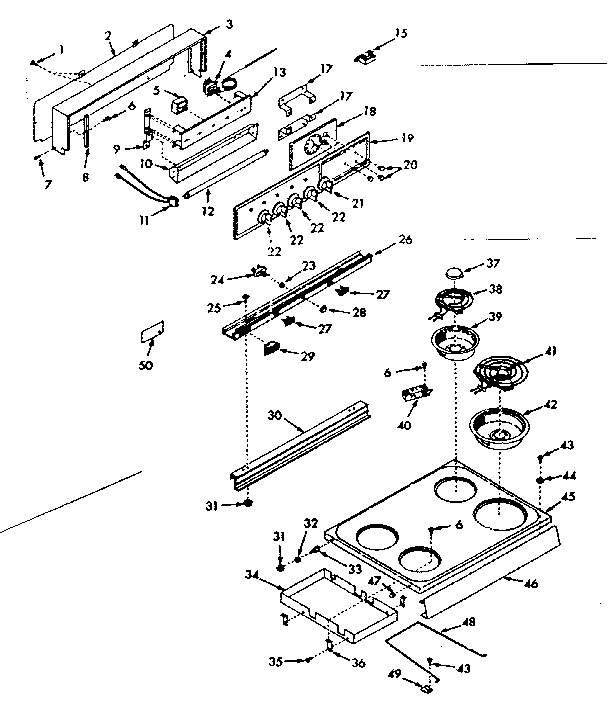

Backguard & main top section diagram
BowlPart #640608
Replaced by #WB32X107
?Manufacturer substitutionThis part replaces 640608. Substitute parts can look different from the original.$11.84 |14% OFF Phone Price : $13.84In Stock - Screw
Part #120791
Replaced by #WB1X1137
?Manufacturer substitutionThis part replaces 120791. Substitute parts can look different from the original.$7.95 |11% OFF Phone Price : $8.95In Stock - #35
Backguard & main top section diagram
Ge screwPart #120855
$8.37In Stock - #37
Backguard & main top section diagram
MedallionPart #630679
The manufacturer no longer makes this part, and there's no substitute part
- #41B
Backguard & main top section diagram
8 top unitPart #630781
The manufacturer no longer makes this part, and there's no substitute part
- #96B
Body section diagram
Bake elementPart #630776
The manufacturer no longer makes this part, and there's no substitute part
- #96A
Body section diagram
Bake elementPart #630718
The manufacturer no longer makes this part, and there's no substitute part
- #42
Backguard & main top section diagram
BowlPart #640609
Replaced by #WB32X106
?Manufacturer substitutionThis part replaces 640609. Substitute parts can look different from the original.$18.45 |10% OFF Phone Price : $20.45In Stock - #88
Body section diagram
SupportPart #581146
The manufacturer no longer makes this part, and there's no substitute part
