Model # 11638189891 Official Kenmore vacuum cleaner
Here are the diagrams and repair parts for Official Kenmore 11638189891 vacuum cleaner, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
11638189891 Vacuum Cleaners
#5

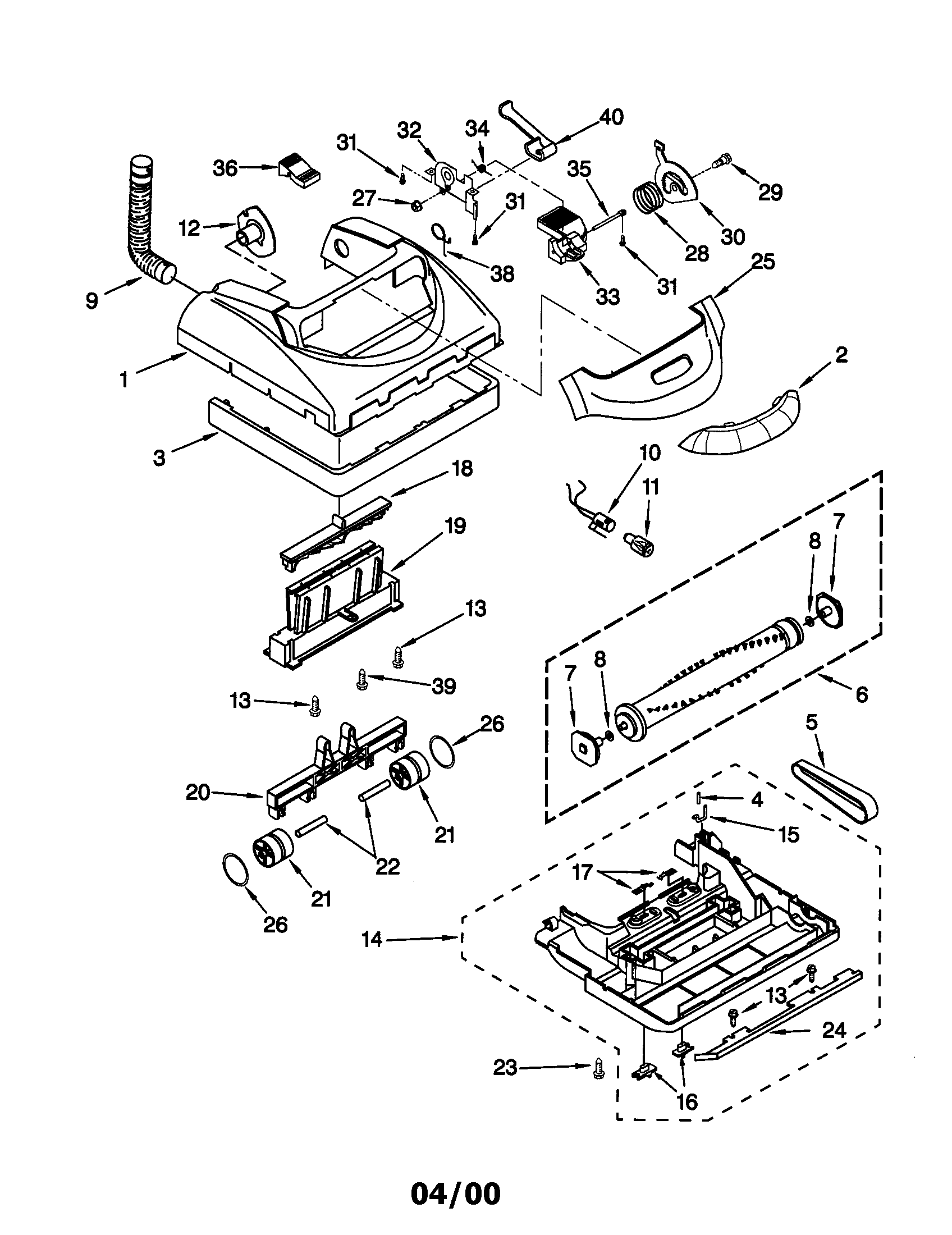

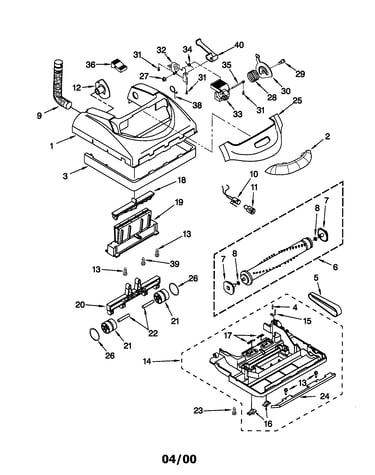

Nozzle diagram
Vacuum drive belt
Part #4369591
The manufacturer no longer makes this part, and there's no substitute part
#3
Hose and attachments diagram
Vacuum crevice tool
Part #4368684
The manufacturer no longer makes this part, and there's no substitute part
Vacuum hose assembly (replaces 4370786)
Part #4370760
The manufacturer no longer makes this part, and there's no substitute part
Vacuum screw
Part #4368563
The manufacturer no longer makes this part, and there's no substitute part
#11
Nozzle diagram
Bulb
Part #4370018
The manufacturer no longer makes this part, and there's no substitute part
#14

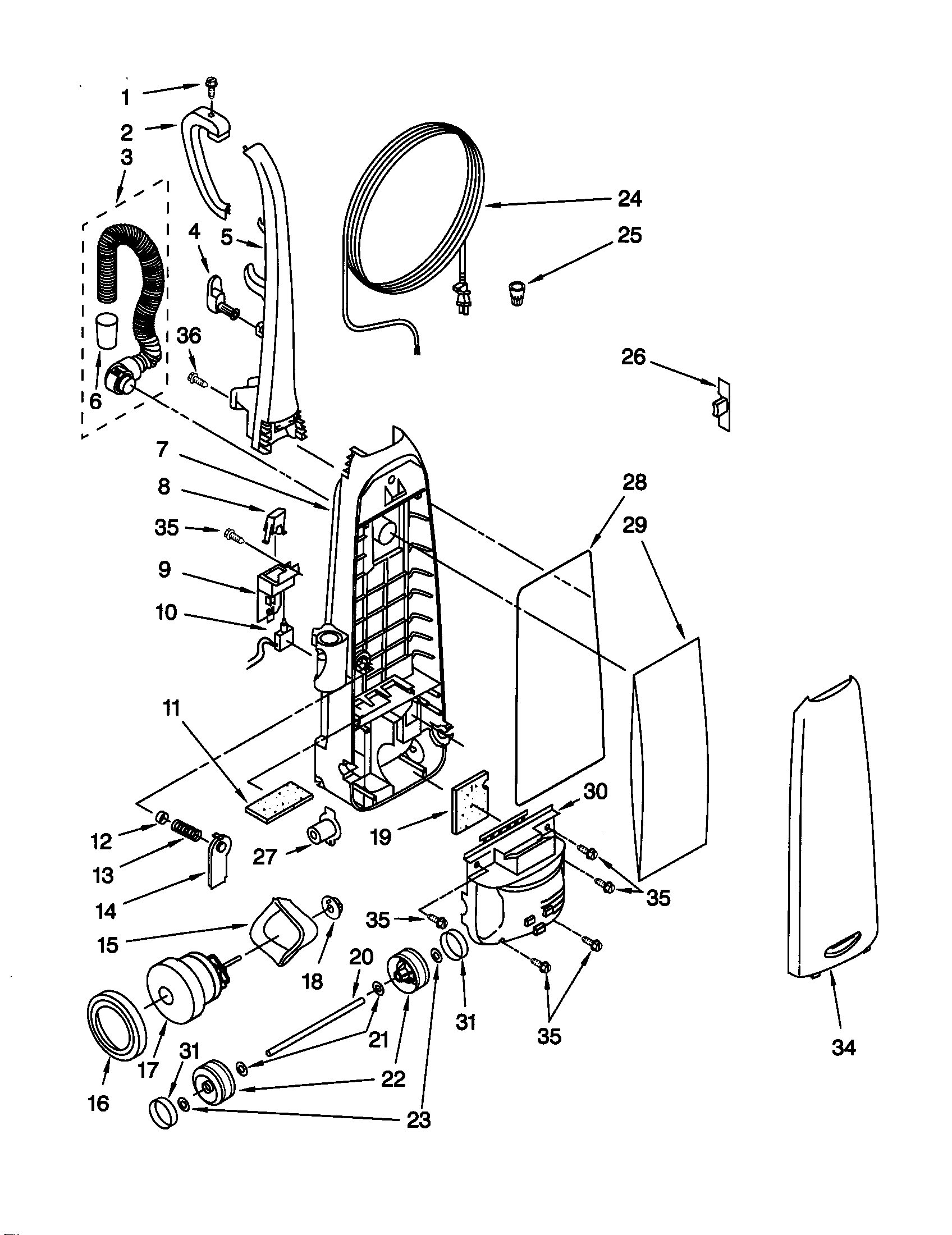

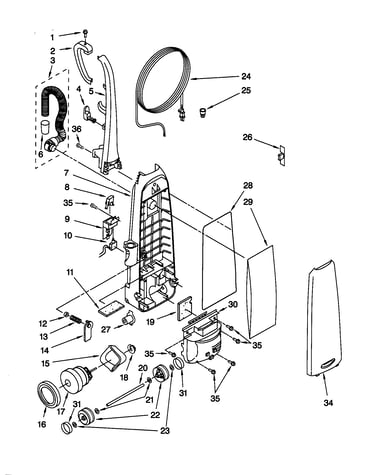

Dust compartment and motor diagram
Cover
Part #4370758
The manufacturer no longer makes this part, and there's no substitute part
#9
Dust compartment and motor diagram
Vacuum switch cover
Part #4370762
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Service parts list
Part #LIT4370956
The manufacturer no longer makes this part, and there's no substitute part
#27
Nozzle diagram
Nut
Part #4370252
The manufacturer no longer makes this part, and there's no substitute part
#1
Hose and attachments diagram
Extension wand
Part #4369625
The manufacturer no longer makes this part, and there's no substitute part
