Microwave/Hood Combo

Model # JVM1540DM5CC Official GE microwave

Here are the diagrams and repair parts for Official GE JVM1540DM5CC microwave, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forJVM1540DM5CC Microwave

  • Microwave Magnetron WB27X10927
    #1428

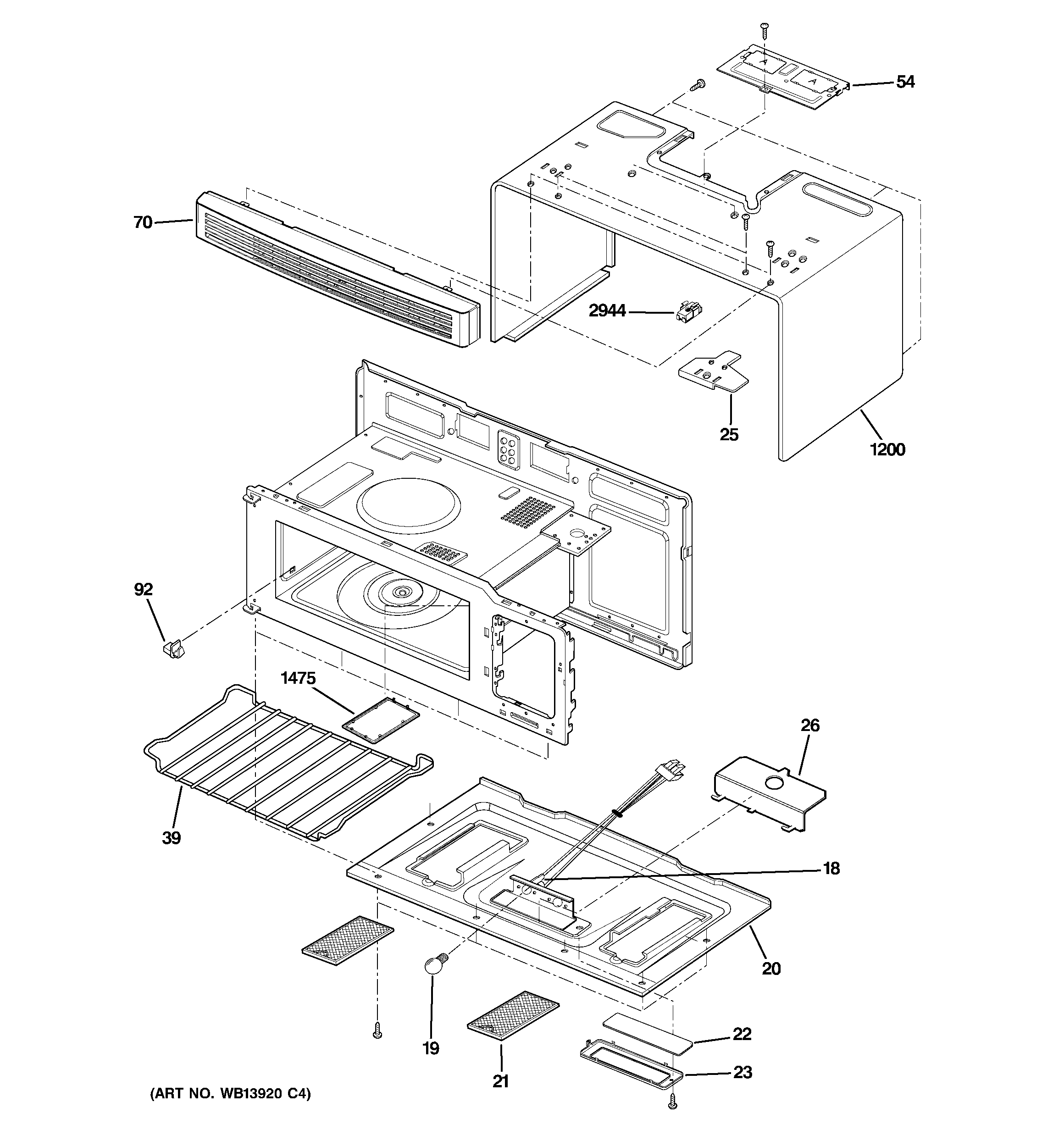

    Interior parts (1) diagram

    Microwave magnetron

    Part #WB27X10927

    BEST SELLER
    $143.01
    8% OFF Phone Price : $155.01
    In Stock
  • Glass Tray WB49X10225
    #85

    Interior parts (1) diagram

    Glass tray

    Part #WB49X10225

    Replaced by #WB49X10129

    ?
    Manufacturer substitution
    This part replaces WB49X10225. Substitute parts can look different from the original.
    $90.29
    6% OFF Phone Price : $96.29
    In Stock
  • Microwave Mounting Plate WB56X10669
    #9001

    Installation parts diagram

    Microwave mounting plate

    Part #WB56X10669

    Replaced by #WB56X35363

    ?
    Manufacturer substitution
    This part replaces WB56X10669. Substitute parts can look different from the original.
    This item is not returnable
    $21.83
    22% OFF Phone Price : $27.83
    In Stock
  • Microwave Vent Damper WB06X10686
    #53

    Installation parts diagram

    Microwave vent damper

    Part #WB06X10686

    This item is not returnable
    $12.78
    14% OFF Phone Price : $14.78
    In Stock
  • Microwave High-voltage Capacitor WB27X10808
    #1440

    Control parts diagram

    Microwave high-voltage capacitor

    Part #WB27X10808

    $38.50
    13% OFF Phone Price : $44.50
    In Stock
  • Microwave Thermostat WB27X11097
    #115

    Interior parts (1) diagram

    Microwave thermostat

    Part #WB27X11097

    $11.95
    14% OFF Phone Price : $13.95
    In Stock
  • Noise Filter WB27X11134
    #7003

    Interior parts (2) diagram

    Noise filter

    Part #WB27X11134

    $49.16
    11% OFF Phone Price : $55.16
    In Stock
  • Microwave Grease Filter WB06X10359
    #21

    Oven cavity parts diagram

    Microwave grease filter

    Part #WB06X10359

    $41.35
    13% OFF Phone Price : $47.35
    In Stock
  • Lever WB06X10684
    #31

    Latch board parts diagram

    Lever

    Part #WB06X10684

    In Stock
  • Microwave Stirrer Fan Holder WB02X11261
    #35

    Interior parts (1) diagram

    Microwave stirrer fan holder

    Part #WB02X11261

    Replaced by #WB02X35690

    ?
    Manufacturer substitution
    This part replaces WB02X11261. Substitute parts can look different from the original.
    In Stock
