White-Westinghouse
Washer

Model # LT350RXD1 Official White-Westinghouse 27" front-loading washer - 5995229142

Here are the diagrams and repair parts for Official White-Westinghouse LT350RXD1 27" front-loading washer - 5995229142, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |

Washer Valve 5303207418
#10

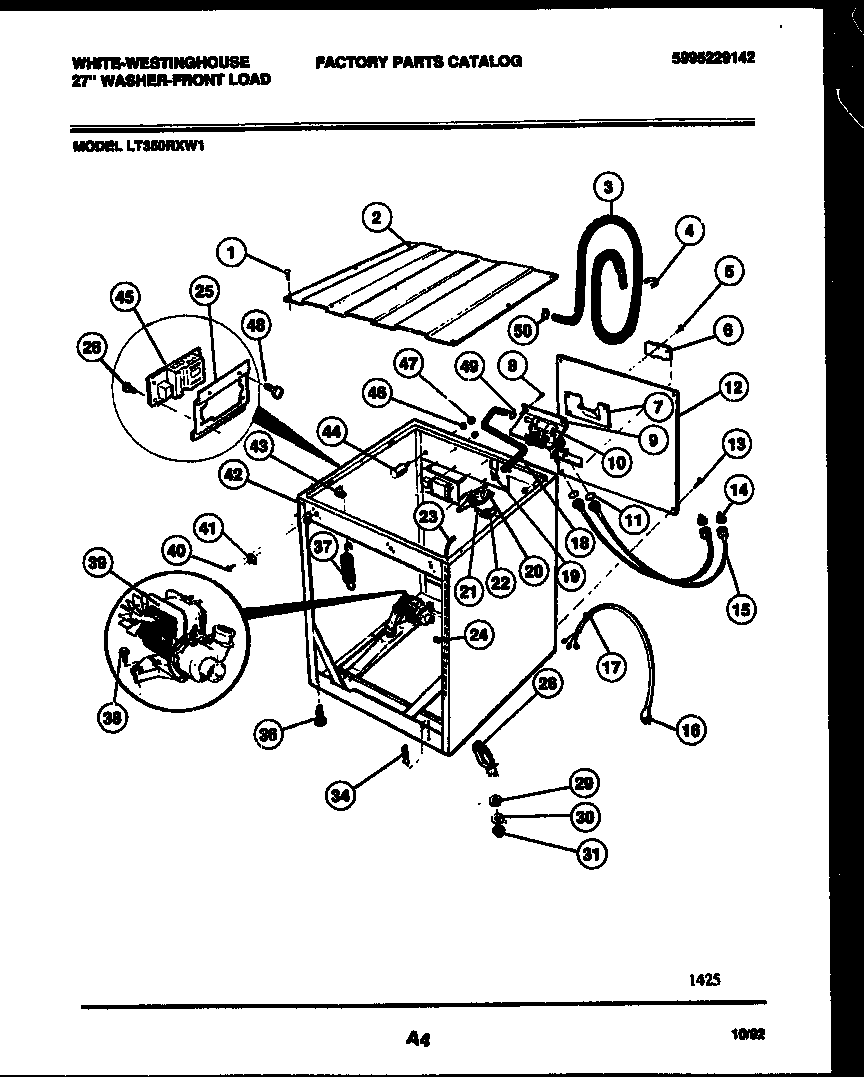

Cabinet parts diagram

Washer valve

Part #5303207418

Replaced by #134190200

?
Manufacturer substitution
This part replaces 5303207418. Substitute parts can look different from the original.
$125.33
9% OFF Phone Price : $137.33
In Stock
Hose 5303280320
#15

Cabinet parts diagram

Hose

Part #5303280320

Replaced by #5303912532

?
Manufacturer substitution
This part replaces 5303280320. Substitute parts can look different from the original.
$67.57
8% OFF Phone Price : $73.57
In Stock
Tube 5300029554
#23

Cabinet parts diagram

Tube

Part #5300029554

Replaced by #5304401845

?
Manufacturer substitution
This part replaces 5300029554. Substitute parts can look different from the original.
$49.98
11% OFF Phone Price : $55.98
In Stock
Cover 3202982
#6

Cabinet parts diagram

Cover

Part #3202982

This item is not returnable
In Stock
Gibson Duct 5300154361
#20

Cabinet parts diagram

Gibson duct

Part #5300154361

In Stock
Washer Retainer Clip 3203010
#28

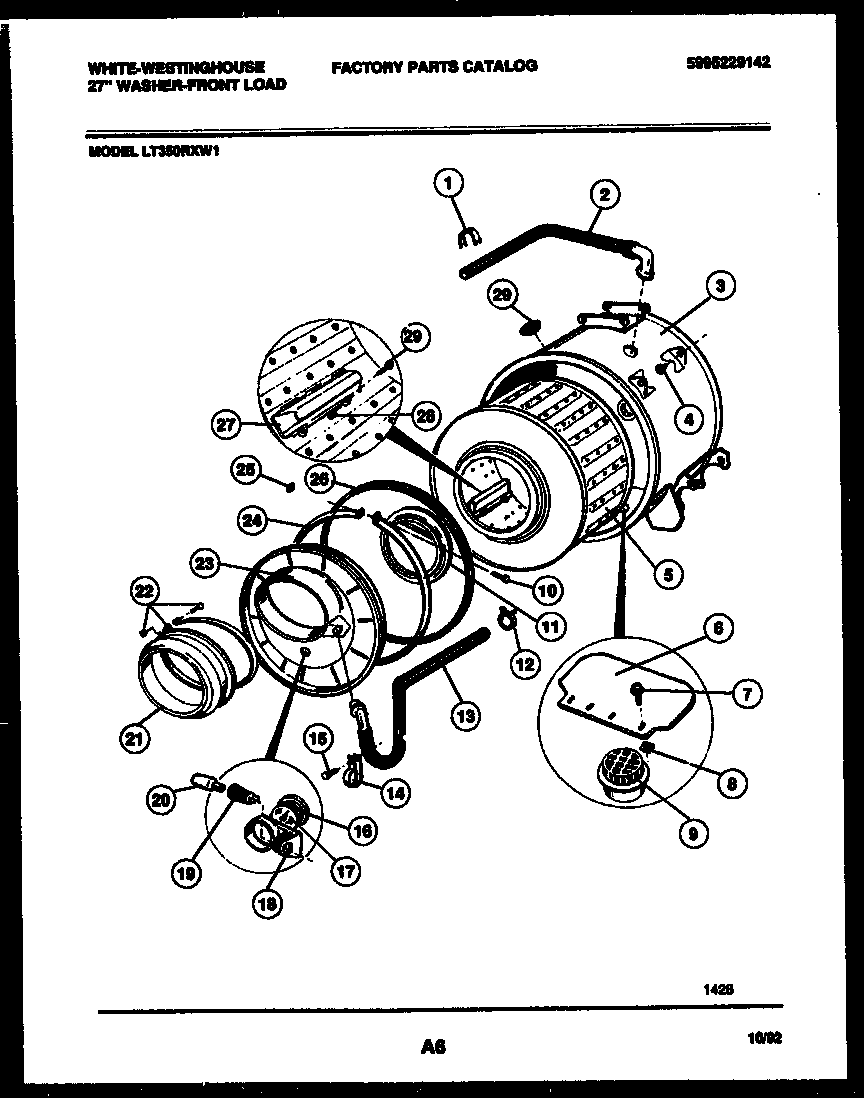

Tub and component parts diagram

Washer retainer clip

Part #3203010

In Stock
Gibson Clamp 08015373
#12

Tub and component parts diagram

Gibson clamp

Part #08015373

This item is not returnable
In Stock
Gibson Washer 5303261059
#14

Cabinet parts diagram

Gibson washer

Part #5303261059

This item is not returnable
In Stock
Gibson Washer Timer Knob (black) 5308010887
#2

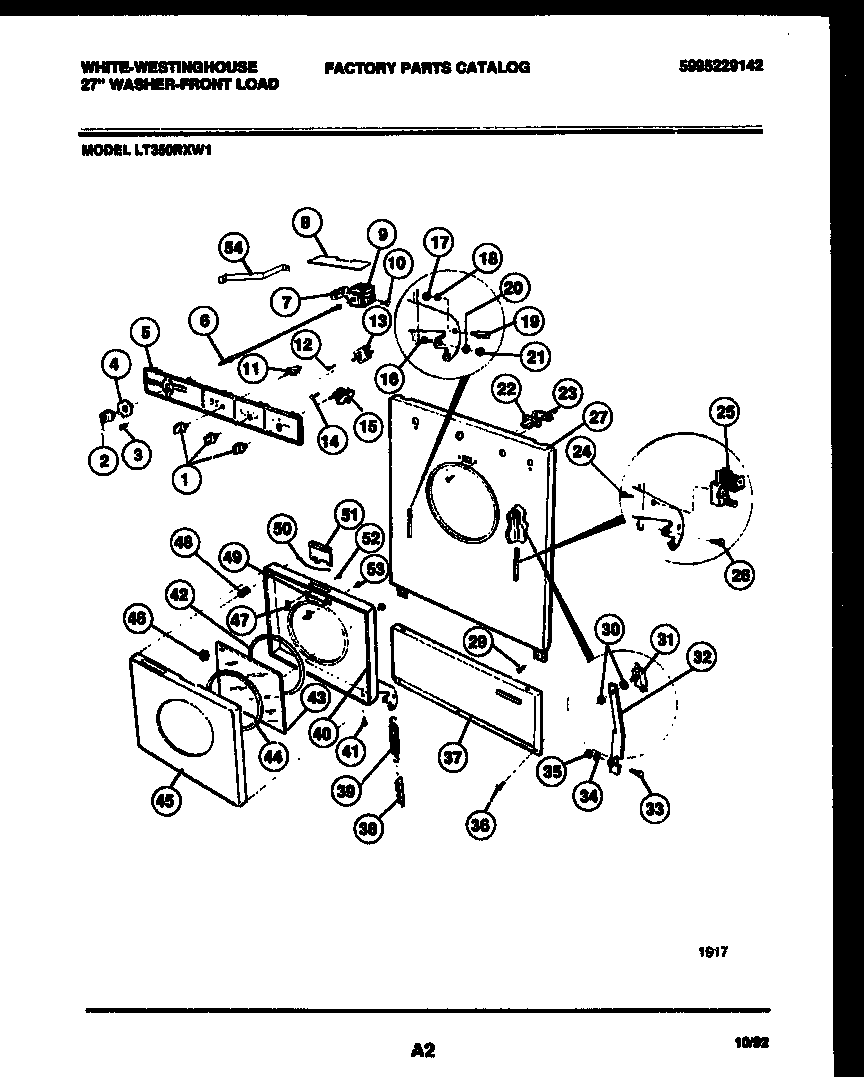

Console, control and door parts diagram

Gibson washer timer knob (black)

Part #5308010887

$38.33
14% OFF Phone Price : $44.33
In Stock
Gibson Nut 5308001883
#11

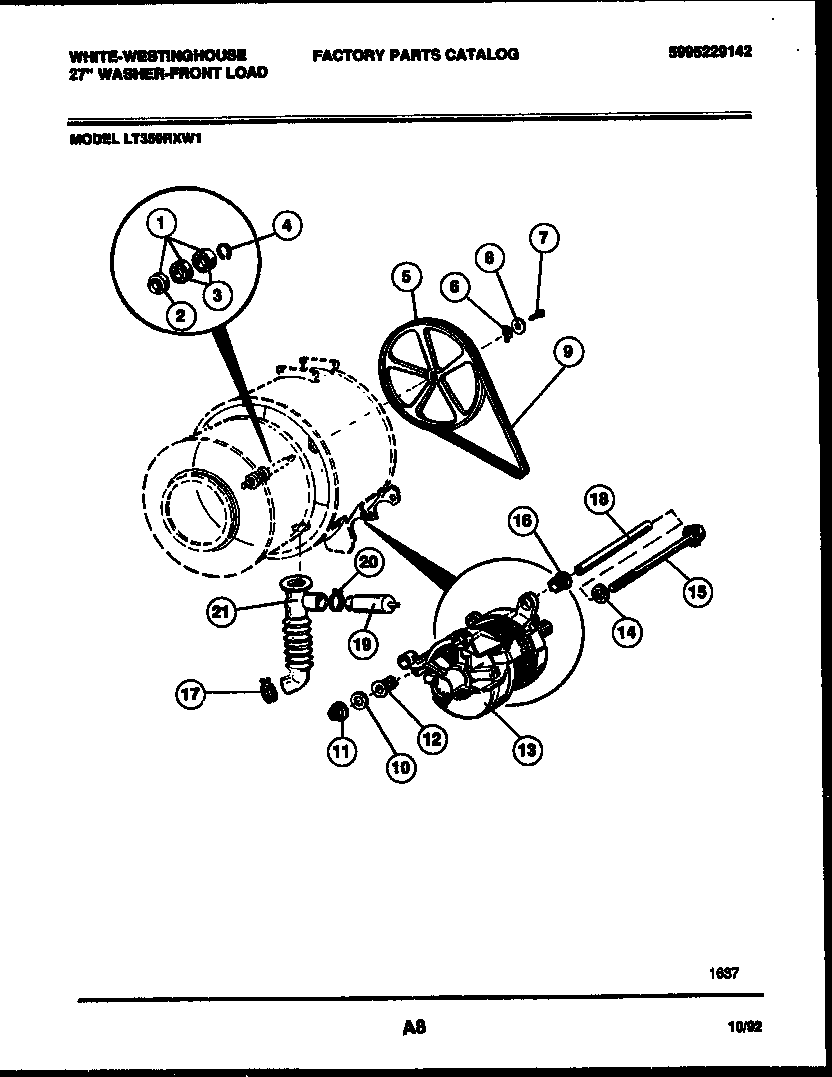

Drive components diagram

Gibson nut

Part #5308001883

This item is not returnable
In Stock
