Room Air Conditioner

Model # 58075130500 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 58075130500 room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
58075130500 Room Air Conditioner
Room Air Conditioner Air Filter 5230A20041A
#3-A

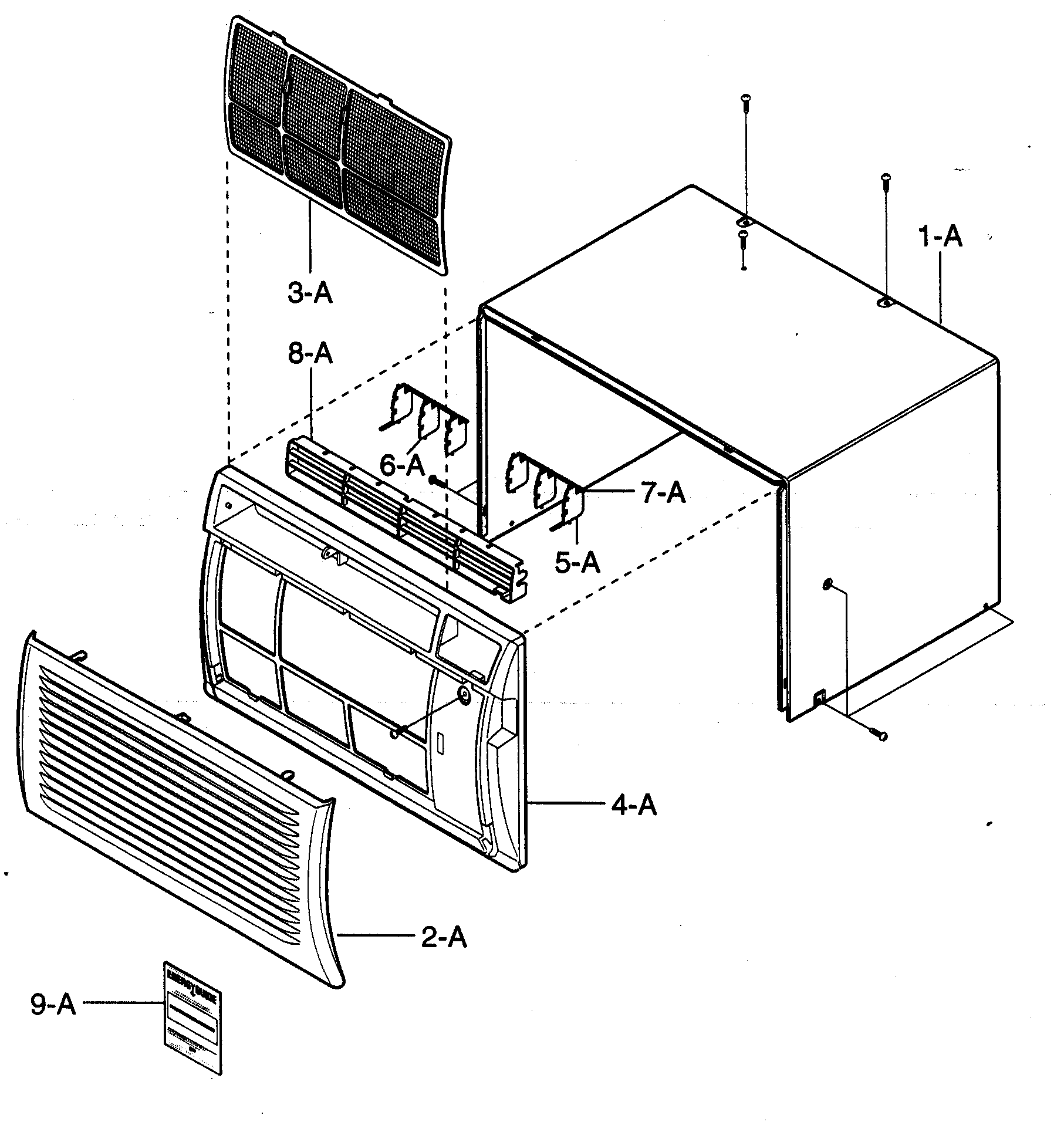

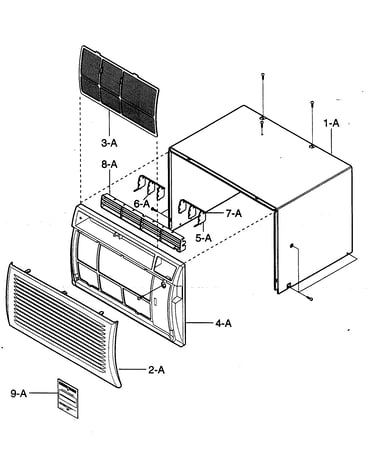

Cabinet/front grille assy diagram

Room air conditioner air filter

Part #5230A20041A

Replaced by #5230A20041D

?
Manufacturer substitution
This part replaces 5230A20041A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$14.33 |
12% OFF Phone Price : $16.33
In Stock
Remote Control 6711A20056T
#13-B

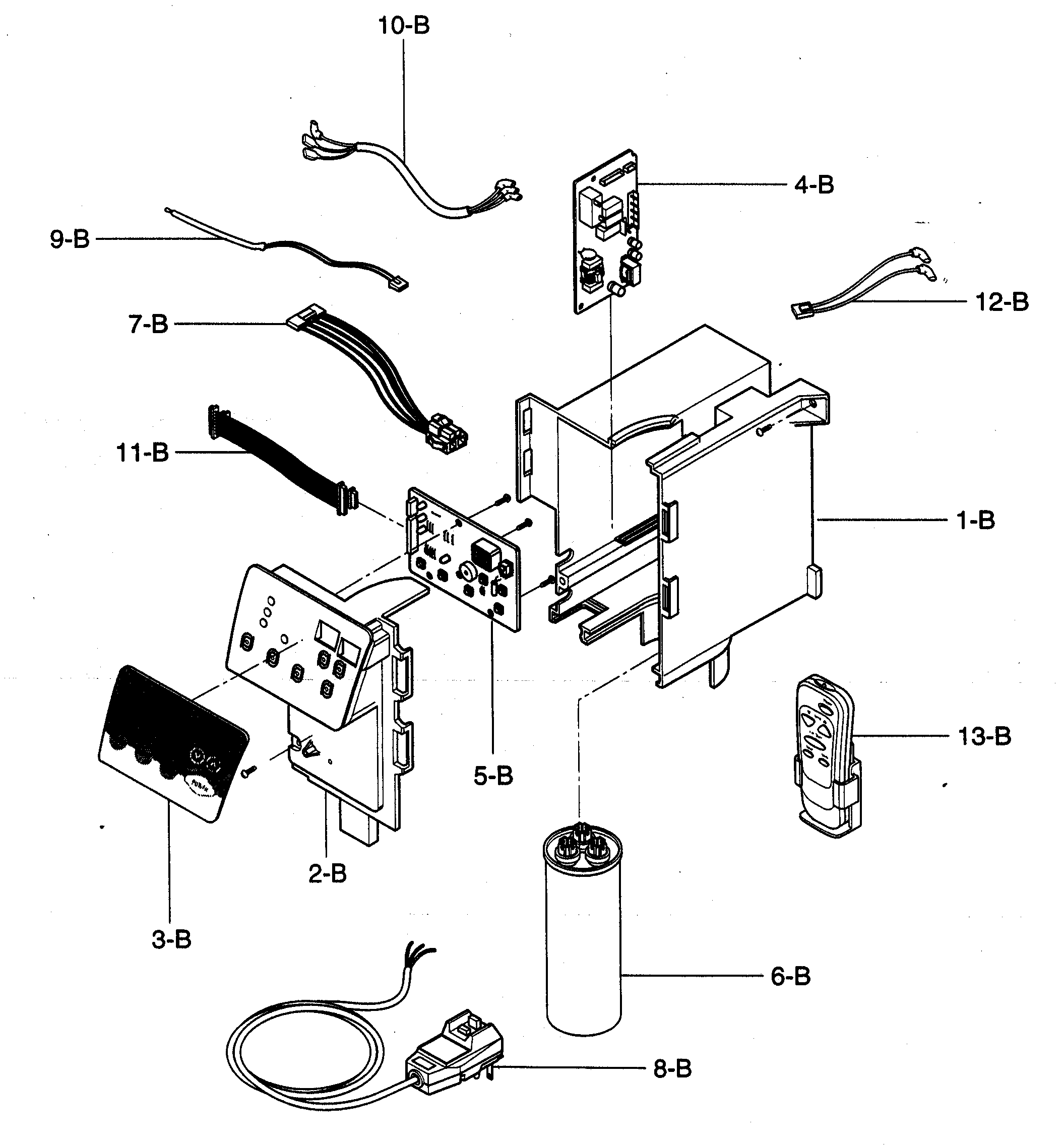

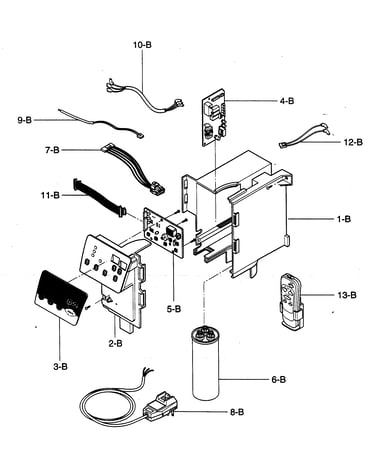

Control box assy diagram

Remote control

Part #6711A20056T

Replaced by #AKB73795706

?
Manufacturer substitution
This part replaces 6711A20056T. Substitute parts can look different from the original.
$34.67 |
15% OFF Phone Price : $40.67
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#2-C

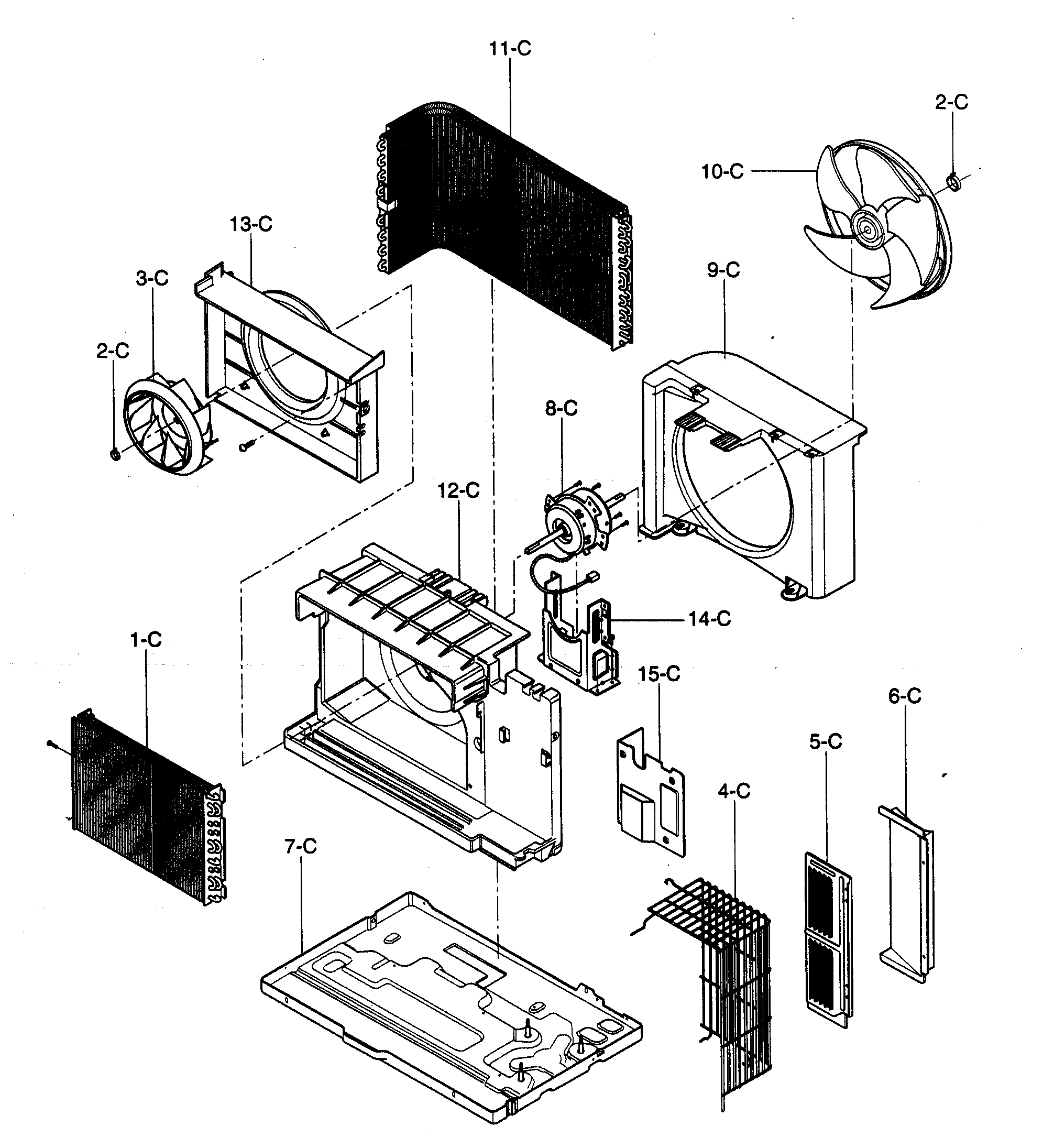

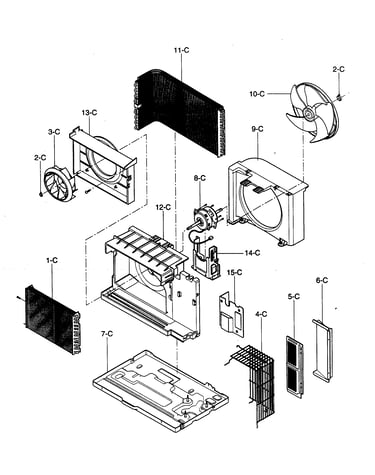

Air handling/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$4.44 |
18% OFF Phone Price : $5.44
In Stock
Ac Cord Assy 6411A20048H
#8-B

Control box assy diagram

Ac cord assy

Part #6411A20048H

Replaced by #EAD63469505

?
Manufacturer substitution
This part replaces 6411A20048H. Substitute parts can look different from the original.
$92.11 |
6% OFF Phone Price : $98.11
In Stock
Capacitor 6120AR2194D
#6-B

Control box assy diagram

Capacitor

Part #6120AR2194D

Replaced by #EAE51432202

?
Manufacturer substitution
This part replaces 6120AR2194D. Substitute parts can look different from the original.
$38.10 |
14% OFF Phone Price : $44.10
In Stock
Room Air Conditioner Rear Grille 3530A20033B
#5-E

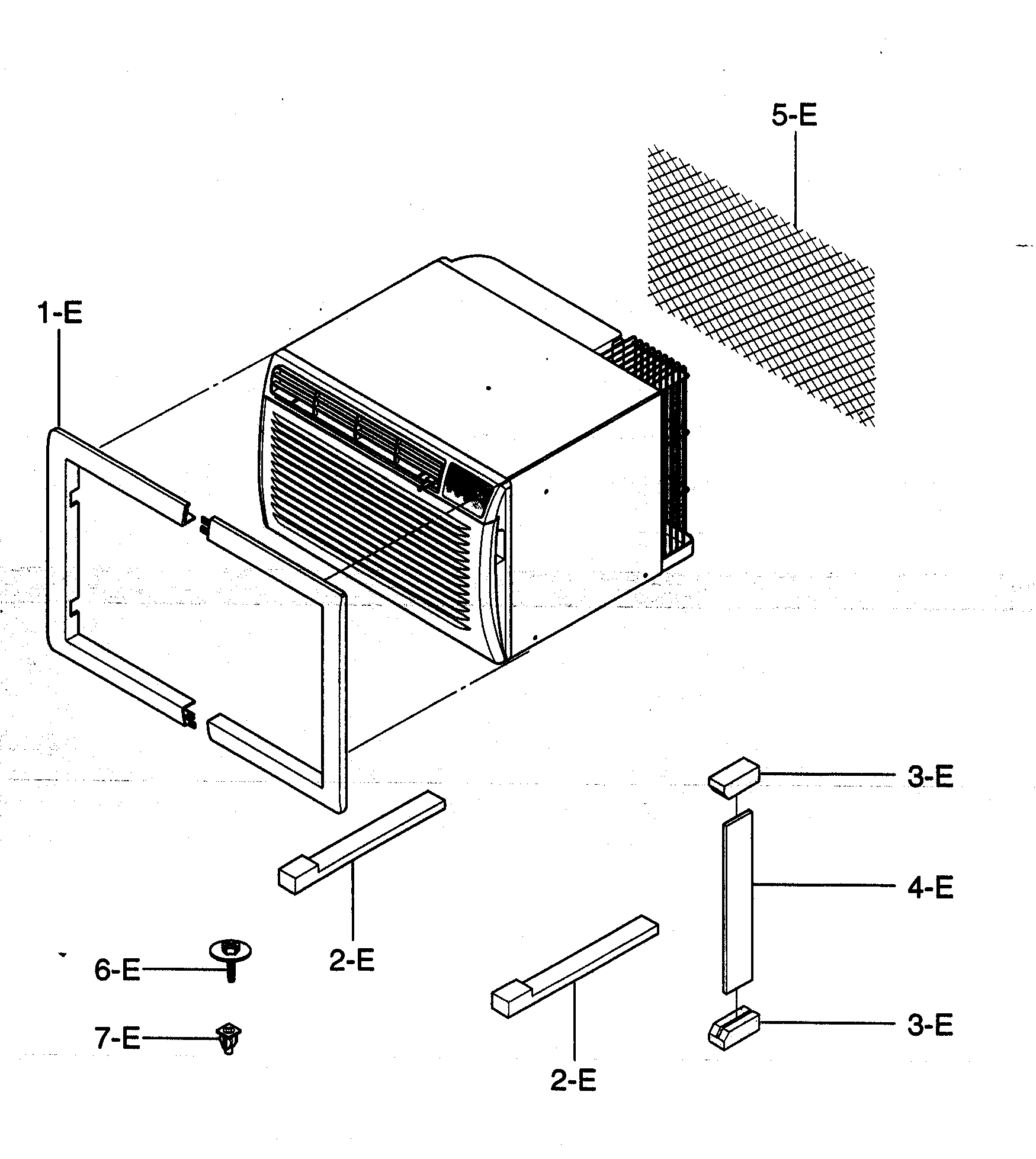

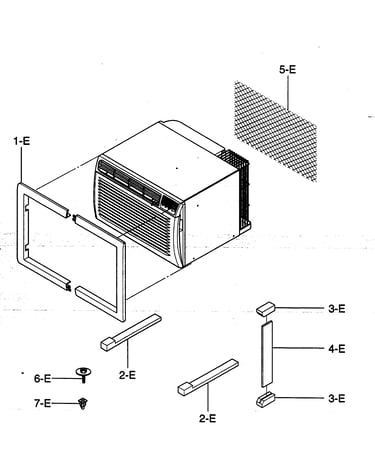

Installation kit assy diagram

Room air conditioner rear grille

Part #3530A20033B

$23.73 |
20% OFF Phone Price : $29.73
In Stock
Icp Room Air Conditioner Compressor Grommet 4H00982E
#9-D

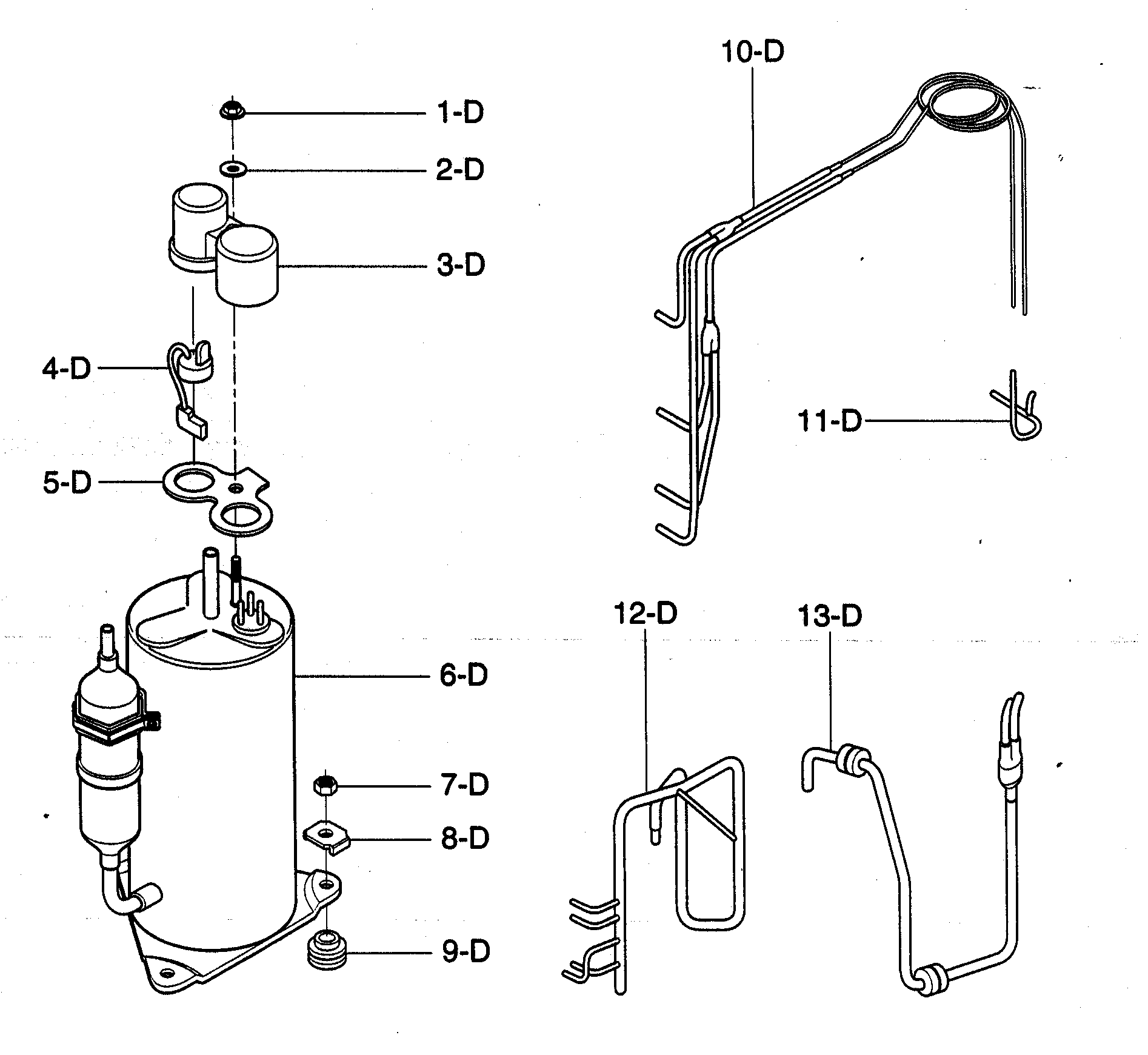

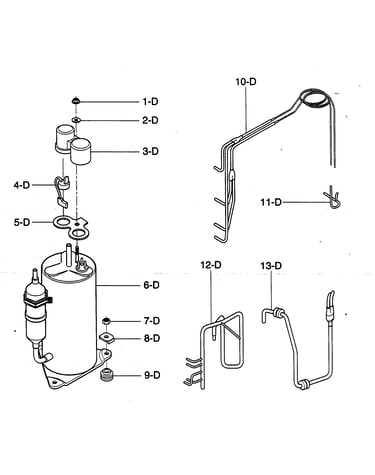

Compressor parts diagram

Icp room air conditioner compressor grommet

Part #4H00982E

This item is not returnable
$4.44 |
18% OFF Phone Price : $5.44
In Stock
Brkt,wshr 4810AR4155A
#8-D

Compressor parts diagram

Brkt,wshr

Part #4810AR4155A

This item is not returnable
$5.71
In Stock
Zenith Room Air Conditioner Compressor Overload Protector 6750U-L058A
#4-D

Compressor parts diagram

Zenith room air conditioner compressor overload protector

Part #6750U-L058A

This item is not returnable
$23.86
In Stock
Connector 6631A30012E
#7-B

Control box assy diagram

Connector

Part #6631A30012E

$23.86
In Stock
