Model # H36HQW Official Thermador range hood

Here are the diagrams and repair parts for Official Thermador H36HQW range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Range Hood Light Socket 14-09-941
#11

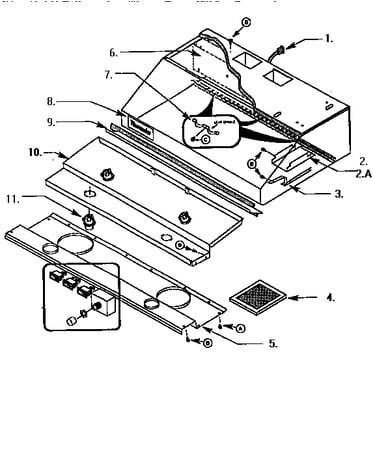

Model h36hqw diagram

Range hood light socket

Part #14-09-941

This item is not returnable
$6.99
In Stock
Trim, Inside (white) Left 19-11-909-03
#2

Model h36hqw diagram

Trim, inside (white) left

Part #19-11-909-03

The manufacturer no longer makes this part, and there's no substitute part

Clip, Rack Top (2) 19-11-833
#2

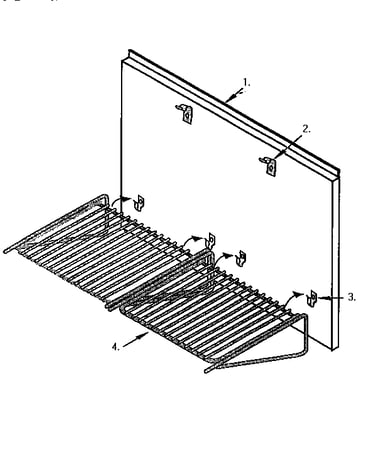

Keep hot shelf accessory diagram

Clip, rack top (2)

Part #19-11-833

The manufacturer no longer makes this part, and there's no substitute part

Control Switch 19-11-915-01
#6

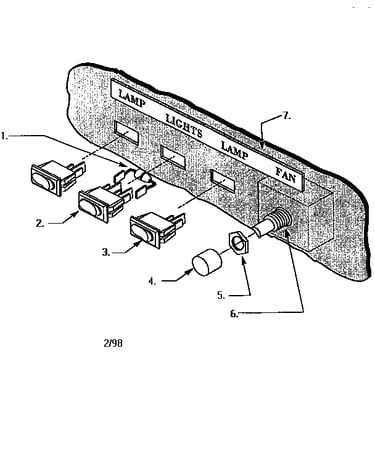

Switch assembly diagram

Control switch

Part #19-11-915-01

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Inside Wall (white) Left 19-11-913-03
#3

Model h36hqw diagram

Bracket, inside wall (white) left

Part #19-11-913-03

The manufacturer no longer makes this part, and there's no substitute part

#10 X 1" Phillip Screw (10) 14-91-037

#NI

All parts diagram

#10 x 1" phillip screw (10)

Part #14-91-037

The manufacturer no longer makes this part, and there's no substitute part

U&c-guide 19-11-956

#NI

All parts diagram

U&c-guide

Part #19-11-956

The manufacturer no longer makes this part, and there's no substitute part

36" Backsplash 19-11-922-02
#1

Keep hot shelf accessory diagram

36" backsplash

Part #19-11-922-02

The manufacturer no longer makes this part, and there's no substitute part

Knob 14-31-163-06
#4

Switch assembly diagram

Knob

Part #14-31-163-06

The manufacturer no longer makes this part, and there's no substitute part

Convenience Outlet Assembly 19-09-732-02
#1

Model h36hqw diagram

Convenience outlet assembly

Part #19-09-732-02

The manufacturer no longer makes this part, and there's no substitute part
