Model # AW09AP2HDB1 Official Haier room air conditioner
Here are the diagrams and repair parts for Official Haier AW09AP2HDB1 room air conditioner, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
AW09AP2HDB1 Room Air Conditioner
#11

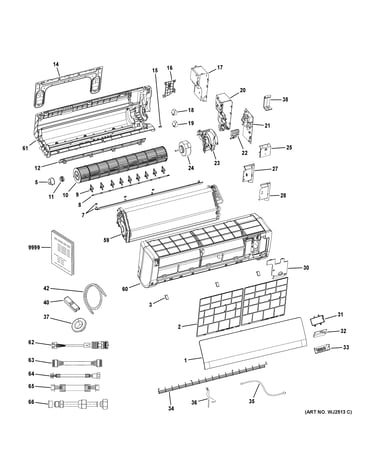

Room air conditioner diagram
Cross flow fan bearing
Part #WJ73X23028
$10.42 |
16% OFF Phone Price : $12.42
In Stock
#12
Room air conditioner diagram
Wire cover
Part #WJ76X31360
$18.83
In Stock
#36
Room air conditioner diagram
Temperature sensor
Part #WJ26X23042
$15.53 |
11% OFF Phone Price : $17.53
In Stock
#37
Room air conditioner diagram
Guard ring
Part #WJ53X28913
$8.26
In Stock
#38
Room air conditioner diagram
Drain pipe bracket
Part #WJ65X33080
$7.86
In Stock
#66
Room air conditioner diagram
1/2" x 3/8" adapter
Part #WJ01X27116
$17.49
In Stock
#42
Room air conditioner diagram
Drain hose
Part #WJ53X23032
$13.20
In Stock
#15
Room air conditioner diagram
Shaft jacket
Part #WJ01X24235
$7.86
In Stock
#22
Room air conditioner diagram
Terminal block
Part #WJ26X23043
$13.20
In Stock
#35
Room air conditioner diagram
Wiring harness
Part #WJ35X23134
$21.79 |
22% OFF Phone Price : $27.79
In Stock
