Model # SS-CN490 Official Sony audio speaker

Here are the diagrams and repair parts for Official Sony SS-CN490 audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 6 of 6 parts  |
Frame X49509411
#4

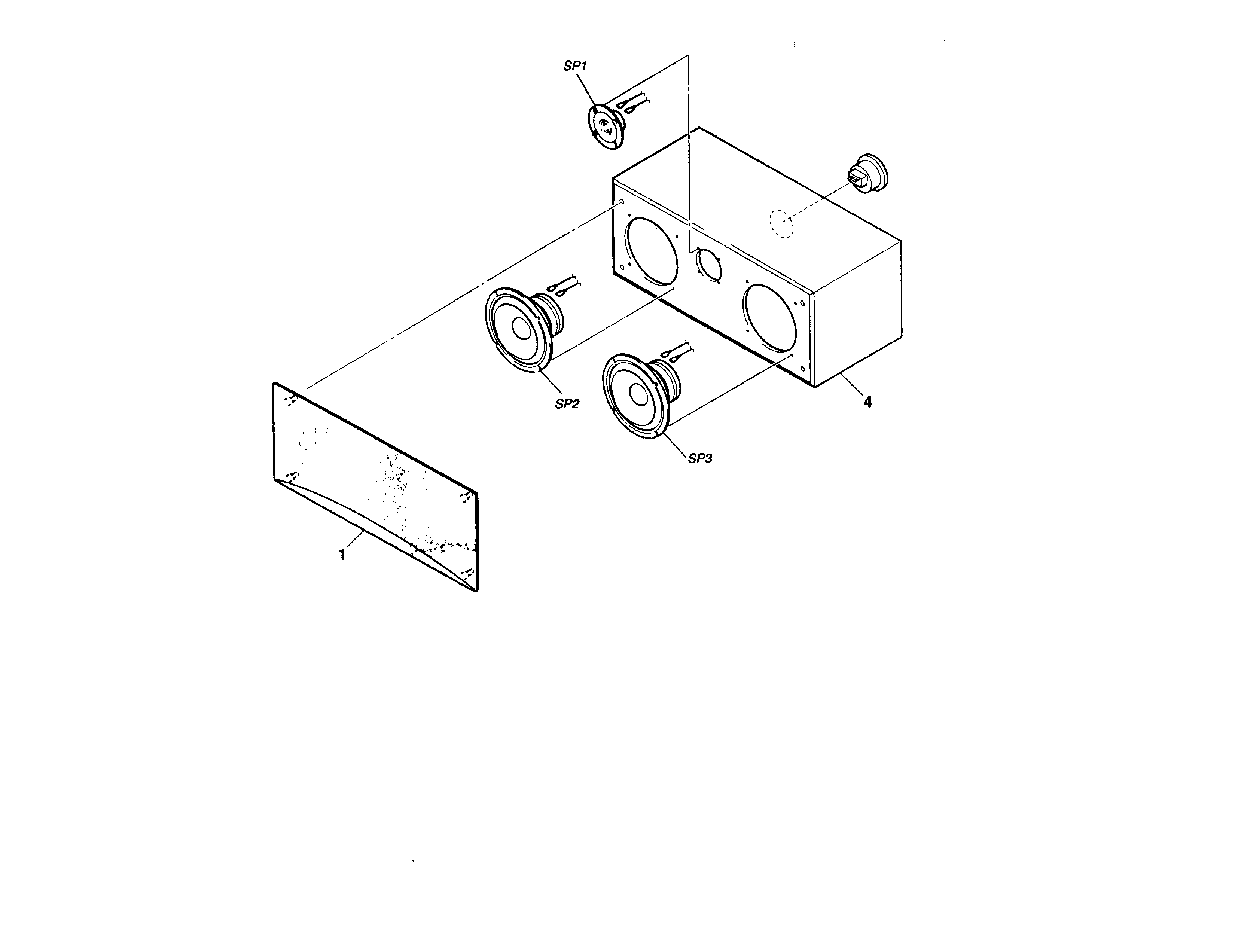

Cabinet parts diagram

Frame

Part #X49509411

The manufacturer no longer makes this part, and there's no substitute part

Audio Speaker 152925211
Audio speaker

Part #152925211

The manufacturer no longer makes this part, and there's no substitute part

Audio Speaker 152925111
#1

Cabinet parts diagram

Audio speaker

Part #152925111

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 386621211
#NI

Cabinet parts diagram

Owner's manual

Part #386621211

The manufacturer no longer makes this part, and there's no substitute part

Service Manual 992888511
#NI

Cabinet parts diagram

Service manual

Part #992888511

The manufacturer no longer makes this part, and there's no substitute part

Loc-4:speaker Cabinet Assy A4411422A
#5

Cabinet parts diagram

Loc-4:speaker cabinet assy

Part #A4411422A

The manufacturer no longer makes this part, and there's no substitute part
