Bottom-Mount Refrigerator

Model # ZICP720BXASS Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE ZICP720BXASS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forZICP720BXASS Refrigerators

  • Refrigerator Temperature Sensor WR55X10028
    Refrigerator temperature sensor

    Part #WR55X10028

    Replaced by #WR55X10025

    ?
    Manufacturer substitution
    This part replaces WR55X10028. Substitute parts can look different from the original.
    4.5 (2)
    BEST SELLER
    $21.65 |
    22% OFF Phone Price : $27.65
    In Stock
  • G.e. Refrigerator Ice Maker Kit WR30X10093
    #820

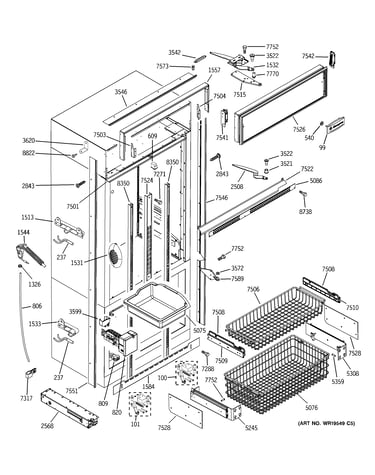

    Freezer section, trim & components diagram

    G.e. refrigerator ice maker kit

    Part #WR30X10093

    4.38 (53)
    BEST SELLER
    $206.32 |
    5% OFF Phone Price : $218.32
    In Stock
  • Toe Kick WR74X10125
    #706

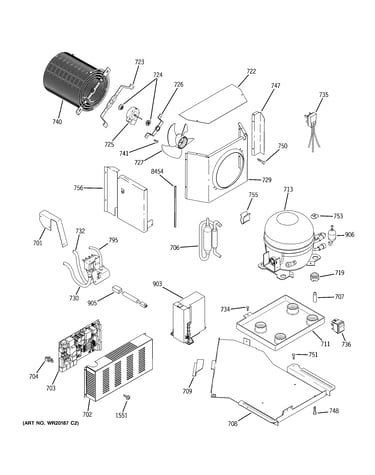

    Sealed system & mother board diagram

    Toe kick

    Part #WR74X10125

    Replaced by #WR86X25269

    ?
    Manufacturer substitution
    This part replaces WR74X10125. Substitute parts can look different from the original.
    BEST SELLER
    $74.11 |
    7% OFF Phone Price : $80.11
    In Stock
  • G.e. Appliance Light Bulb, 40-watt 40A15
    #7507

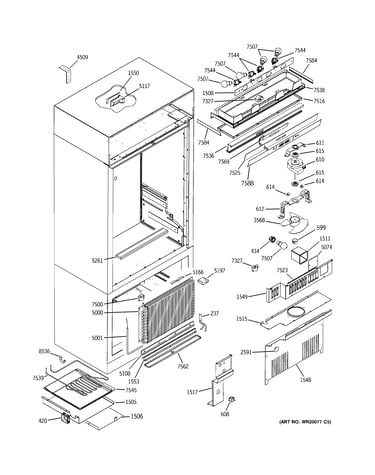

    Controls & components diagram

    G.e. appliance light bulb, 40-watt

    Part #40A15

    1.72 (18)
    BEST SELLER
    $14.62 |
    12% OFF Phone Price : $16.62
    In Stock
  • Refrigerator Damper Motor WR09X10065
    #5117

    Controls & components diagram

    Refrigerator damper motor

    Part #WR09X10065

    Replaced by #WR60X27396

    ?
    Manufacturer substitution
    This part replaces WR09X10065. Substitute parts can look different from the original.
    BEST SELLER
    $111.22 |
    10% OFF Phone Price : $123.22
    In Stock
  • Condenser Motor WR60X10216
    #713

    Sealed system & mother board diagram

    Condenser motor

    Part #WR60X10216

    Replaced by #WR60X10209

    ?
    Manufacturer substitution
    This part replaces WR60X10216. Substitute parts can look different from the original.
    5 (3)
    BEST SELLER
    $60.17 |
    9% OFF Phone Price : $66.17
    In Stock
  • Ge Profile Refrigerator Condenser Coil WR84X10022
    #730

    Sealed system & mother board diagram

    Ge profile refrigerator condenser coil

    Part #WR84X10022

    BEST SELLER
    $411.61 |
    $12.00 OFF Phone Price : $423.61
    In Stock
  • Rocker Swt WR23X0475
    #609

    Freezer section, trim & components diagram

    Rocker swt

    Part #WR23X0475

    Replaced by #WR23X37285

    ?
    Manufacturer substitution
    This part replaces WR23X0475. Substitute parts can look different from the original.
    BEST SELLER
    $63.34
    In Stock
  • Refrigerator Power Cord WR23X10300
    #735

    Sealed system & mother board diagram

    Refrigerator power cord

    Part #WR23X10300

    5 (1)
    $24.93 |
    19% OFF Phone Price : $30.93
    In Stock
  • Refrigerator Door Bin, Left WR71X10140
    #5407

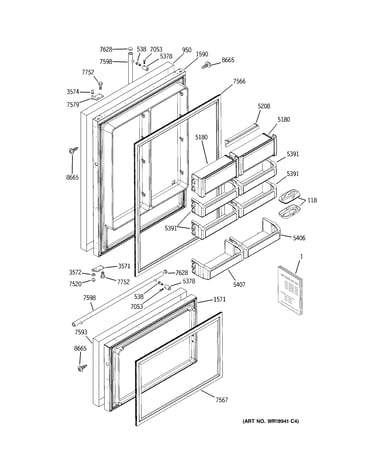

    Doors diagram

    Refrigerator door bin, left

    Part #WR71X10140

    $176.79 |
    6% OFF Phone Price : $188.79
    In Stock
