Model # IR1133 Official Ingersoll Rand air ratchet

Here are the diagrams and repair parts for Official Ingersoll Rand IR1133 air ratchet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Ball Bearing 1103-24
#19

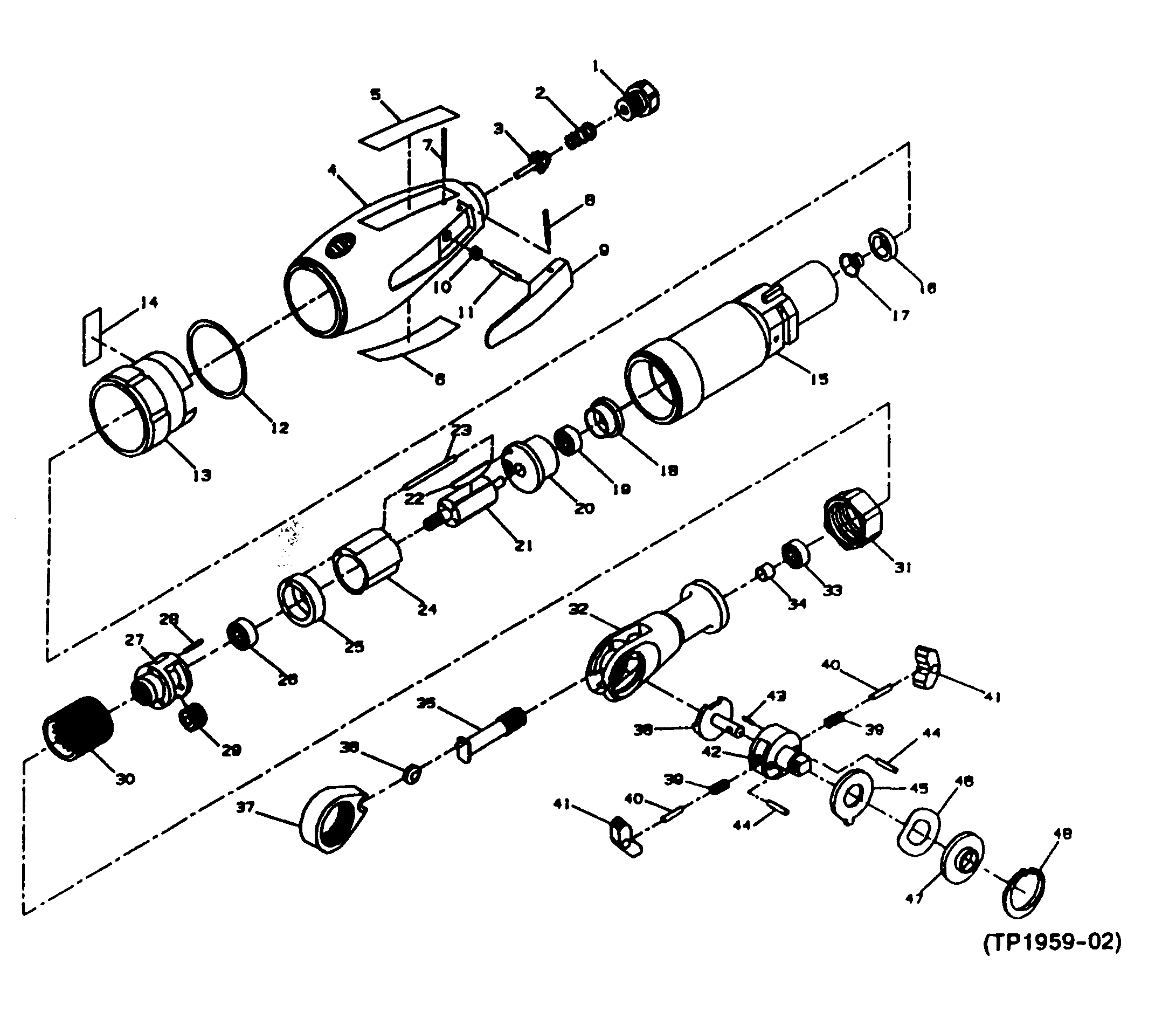

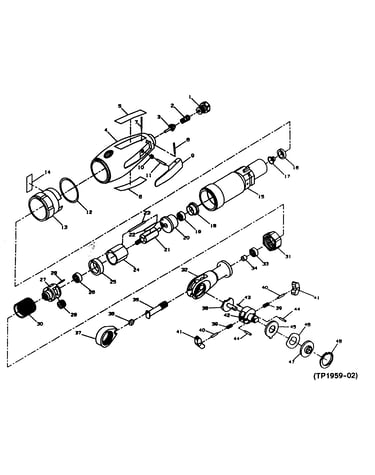

Ratchet assy diagram

Ball bearing

Part #1103-24

The manufacturer no longer makes this part, and there's no substitute part

End Plate 1103-11
#25

Ratchet assy diagram

End plate

Part #1103-11

The manufacturer no longer makes this part, and there's no substitute part

Regulator 1103-A249
#13

Ratchet assy diagram

Regulator

Part #1103-A249

The manufacturer no longer makes this part, and there's no substitute part

Gear 1103-9
#29

Ratchet assy diagram

Gear

Part #1103-9

The manufacturer no longer makes this part, and there's no substitute part

Rotor 1103-53
#21

Ratchet assy diagram

Rotor

Part #1103-53

The manufacturer no longer makes this part, and there's no substitute part

O-ring 1103-367
#12

Ratchet assy diagram

O-ring

Part #1103-367

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 1103-97
#26

Ratchet assy diagram

Ball bearing

Part #1103-97

The manufacturer no longer makes this part, and there's no substitute part

Spacer 1103-47
#45

Ratchet assy diagram

Spacer

Part #1103-47

The manufacturer no longer makes this part, and there's no substitute part

Bearing 1103-32
#34

Ratchet assy diagram

Bearing

Part #1103-32

The manufacturer no longer makes this part, and there's no substitute part

Retainer 1103-710
#17

Ratchet assy diagram

Retainer

Part #1103-710

The manufacturer no longer makes this part, and there's no substitute part
