Model # 917250710 Official Sears 26" rear-engine riding lawn mower

Here are the diagrams and repair parts for Official Sears 917250710 26" rear-engine riding lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |
Washer 52966
#4

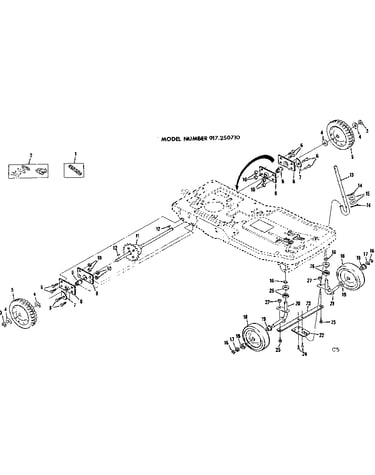

Wheel assembly diagram

Washer

Part #52966

Replaced by #532121749

?
Manufacturer substitution
This part replaces 52966. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Bolt 67613
#17

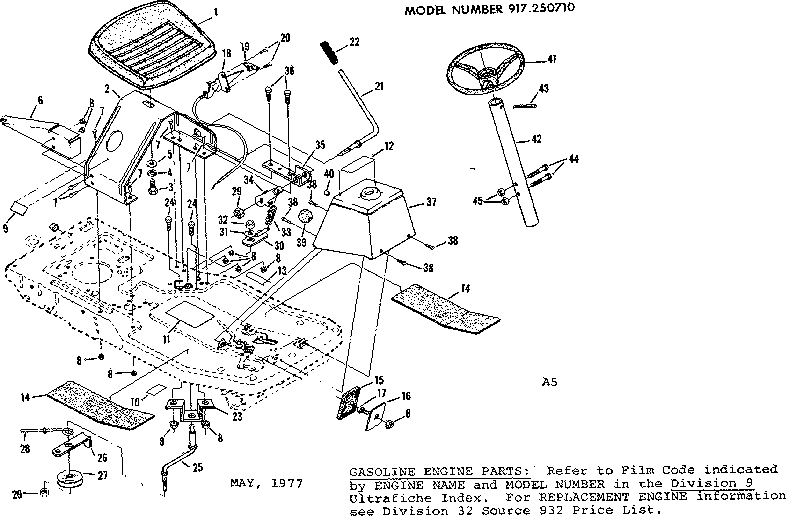

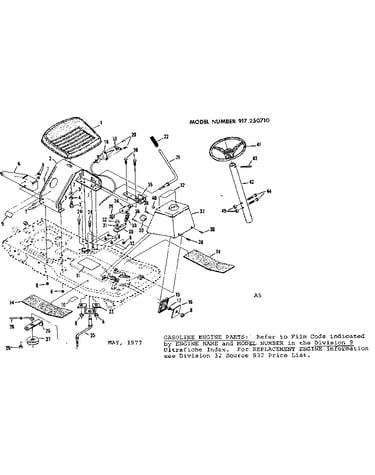

Top half diagram

Bolt

Part #67613

The manufacturer no longer makes this part, and there's no substitute part

Bolt 66238
Bolt

Part #66238

The manufacturer no longer makes this part, and there's no substitute part

Bolt 59476
#5

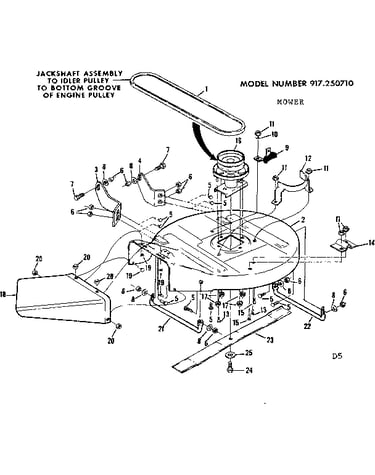

Mower deck diagram

Bolt

Part #59476

The manufacturer no longer makes this part, and there's no substitute part

Pack Frct 70104
#13

Gear case assembly diagram

Pack frct

Part #70104

Replaced by #583775101

?
Manufacturer substitution
This part replaces 70104. Substitute parts can look different from the original.
$46.64
In Stock
Bearing 62346
#9

Wheel assembly diagram

Bearing

Part #62346

Replaced by #583637001

?
Manufacturer substitution
This part replaces 62346. Substitute parts can look different from the original.
$11.97
In Stock
Nut 55615
Nut

Part #55615

Replaced by #873510600

?
Manufacturer substitution
This part replaces 55615. Substitute parts can look different from the original.
$8.54
In Stock
Lock Nut 54958
#30

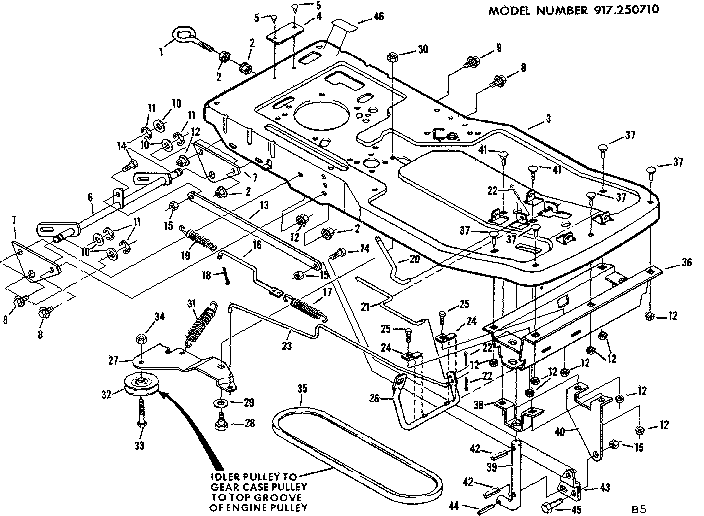

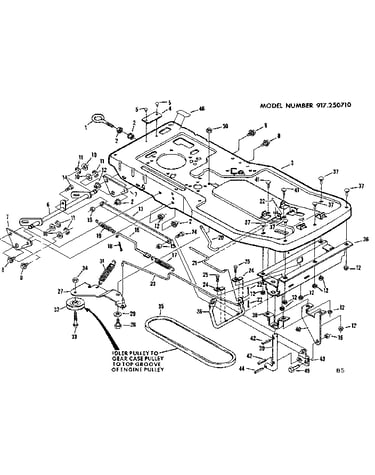

Chassis assembly diagram

Lock nut

Part #54958

Replaced by #873540500

?
Manufacturer substitution
This part replaces 54958. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
E-ring 52913
#3

Wheel assembly diagram

E-ring

Part #52913

Replaced by #812000029

?
Manufacturer substitution
This part replaces 52913. Substitute parts can look different from the original.
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Nut 67759
#3

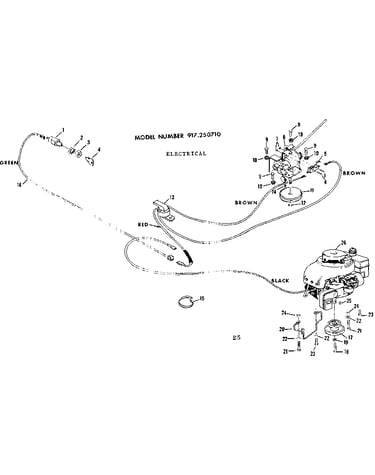

Electrical diagram

Nut

Part #67759

Replaced by #532124211

?
Manufacturer substitution
This part replaces 67759. Substitute parts can look different from the original.
$8.54
In Stock
