Model # GFC530V Official GE garbage disposal

Here are the diagrams and repair parts for Official GE GFC530V garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Garbage Disposal Mounting Ring (replaces Wc5x104) WC05X10003
#8

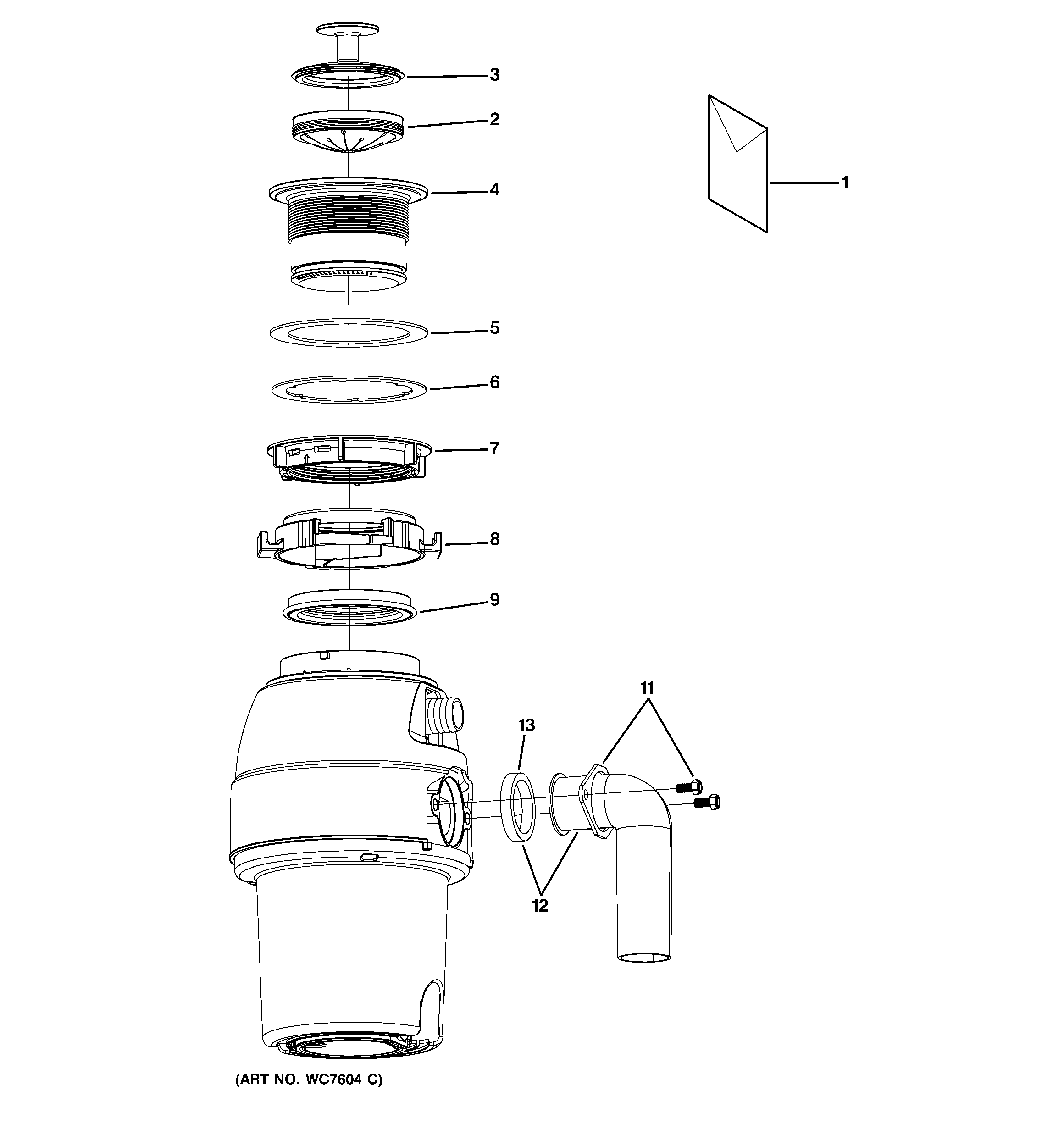

Disposer diagram

Garbage disposal mounting ring (replaces wc5x104)

Part #WC05X10003

Replaced by #WC15X20161

?
Manufacturer substitution
This part replaces WC05X10003. Substitute parts can look different from the original.
$50.75 |
11% OFF Phone Price : $56.75
In Stock
Garbage Disposal Cushion Mount Ring WC05X10004
#9

Disposer diagram

Garbage disposal cushion mount ring

Part #WC05X10004

Replaced by #WC15X20161

?
Manufacturer substitution
This part replaces WC05X10004. Substitute parts can look different from the original.
$50.75 |
11% OFF Phone Price : $56.75
In Stock
Garbage Disposal Sink Flange Gasket WC03X10007
#5

Disposer diagram

Garbage disposal sink flange gasket

Part #WC03X10007

Replaced by #WC15X20161

?
Manufacturer substitution
This part replaces WC03X10007. Substitute parts can look different from the original.
$50.75 |
11% OFF Phone Price : $56.75
In Stock
Garbage Disposal Sink Flange WC15X10003
#4

Disposer diagram

Garbage disposal sink flange

Part #WC15X10003

Replaced by #WC15X20161

?
Manufacturer substitution
This part replaces WC15X10003. Substitute parts can look different from the original.
$50.75 |
11% OFF Phone Price : $56.75
In Stock
Garbage Disposal Support Ring WC05X10002
#7

Disposer diagram

Garbage disposal support ring

Part #WC05X10002

This item is not returnable
$11.68 |
15% OFF Phone Price : $13.68
In Stock
Garbage Disposal Sink Flange Gasket WC03X10008
#6

Disposer diagram

Garbage disposal sink flange gasket

Part #WC03X10008

$13.13 |
29% OFF Was : $18.44
In Stock
Disposer Gfc 49-5903
#1

Disposer diagram

Disposer gfc

Part #49-5903

$21.99
In Stock
Garbage Disposal Outlet Elbow Assembly WC14X10005
#12

Disposer diagram

Garbage disposal outlet elbow assembly

Part #WC14X10005

Replaced by #WC14X20160

?
Manufacturer substitution
This part replaces WC14X10005. Substitute parts can look different from the original.
$27.99 |
18% OFF Phone Price : $33.99
In Stock
Garbage Disposal Drain Stopper WC11X10004
#3

Disposer diagram

Garbage disposal drain stopper

Part #WC11X10004

Replaced by #WC11X20163

?
Manufacturer substitution
This part replaces WC11X10004. Substitute parts can look different from the original.
$14.56 |
12% OFF Phone Price : $16.56
In Stock
Splash Guard WC03X10010
#2

Disposer diagram

Splash guard

Part #WC03X10010

Replaced by #WC11X20163

?
Manufacturer substitution
This part replaces WC03X10010. Substitute parts can look different from the original.
$14.56 |
12% OFF Phone Price : $16.56
In Stock
