Model # NUGM050EFA1 Official ICP furnace

Here are the diagrams and repair parts for Official ICP NUGM050EFA1 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Trans 40 Va 1008782
#19

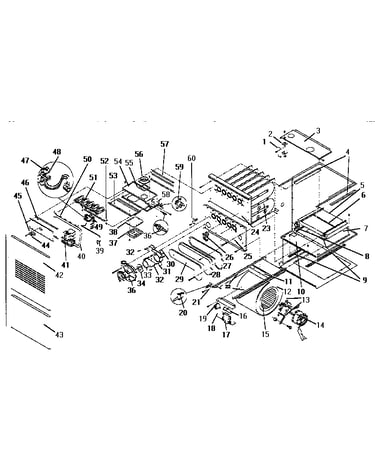

Unit parts diagram

Trans 40 va

Part #1008782

The manufacturer no longer makes this part, and there's no substitute part

Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#47

Unit parts diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Fan Timer 1008773
#17

Unit parts diagram

Fan timer

Part #1008773

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1008773. Substitute parts can look different from the original.
$220.46 |
5% OFF Phone Price : $232.46
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#15

Unit parts diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Motor 1009054
#14

Unit parts diagram

Motor

Part #1009054

Replaced by #1012514

?
Manufacturer substitution
This part replaces 1009054. Substitute parts can look different from the original.
$345.23 |
$12.00 OFF Phone Price : $357.23
In Stock
Bracket Coil 1008694
#7

Unit parts diagram

Bracket coil

Part #1008694

$132.82
In Stock
Board Insul 1008682
#29

Unit parts diagram

Board insul

Part #1008682

$172.96
In Stock
Restr Blwr M 1008696
#34

Unit parts diagram

Restr blwr m

Part #1008696

$25.26
In Stock
Bracket Burn 1008722
#52

Unit parts diagram

Bracket burn

Part #1008722

$88.96
In Stock
Box Collecto 1008670
#28

Unit parts diagram

Box collecto

Part #1008670

$154.61 |
7% OFF Phone Price : $166.61
In Stock
