Model # DWW-55P-NAT Official Suburban counterflow direct vent gas wall furnace

Here are the diagrams and repair parts for Official Suburban DWW-55P-NAT counterflow direct vent gas wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Fan Blade P200600

#21

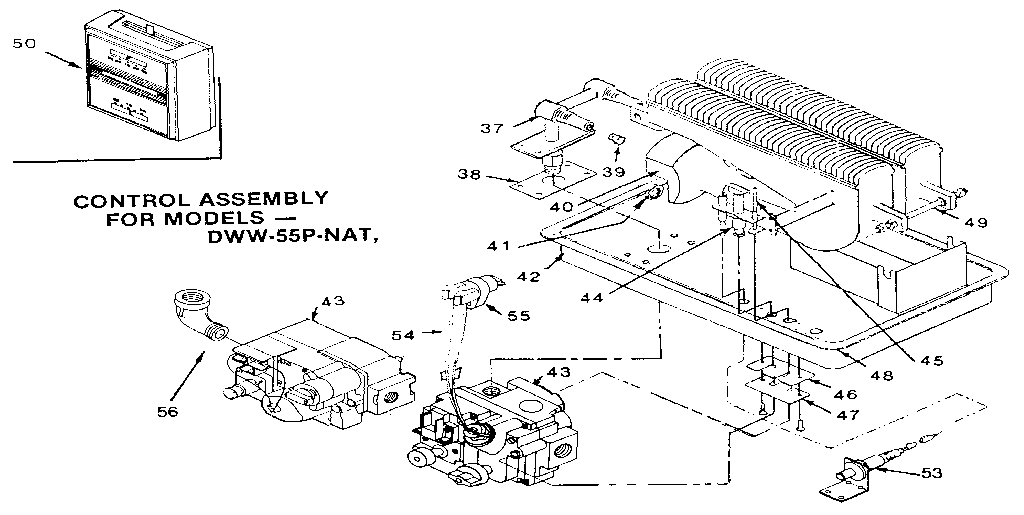

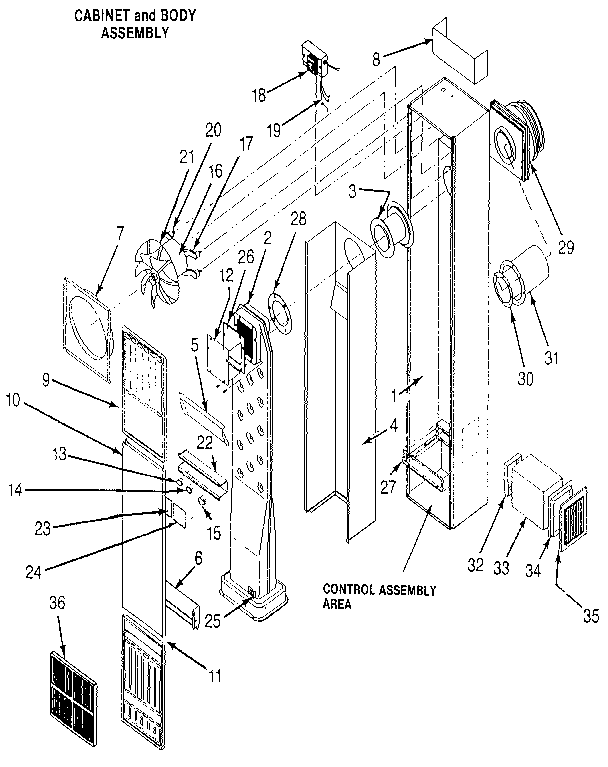

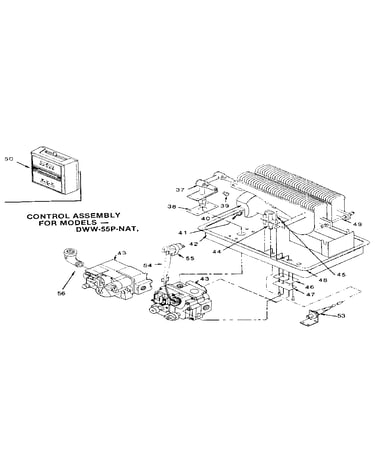

All parts diagram

Fan blade

Part #P200600

The manufacturer no longer makes this part, and there's no substitute part

Limit Switch P296000

#13

All parts diagram

Limit switch

Part #P296000

The manufacturer no longer makes this part, and there's no substitute part

Air Inl Extn 11B49

#31

All parts diagram

Air inl extn

Part #11B49

The manufacturer no longer makes this part, and there's no substitute part

Element Tube 11C37

#3

All parts diagram

Element tube

Part #11C37

The manufacturer no longer makes this part, and there's no substitute part

Manifold P200700

#37

All parts diagram

Manifold

Part #P200700

The manufacturer no longer makes this part, and there's no substitute part

Isolator P022800

#20

All parts diagram

Isolator

Part #P022800

The manufacturer no longer makes this part, and there's no substitute part

Gasket P151900

#27

All parts diagram

Gasket

Part #P151900

The manufacturer no longer makes this part, and there's no substitute part

Outer Casing 11C42-1

#1

All parts diagram

Outer casing

Part #11C42-1

The manufacturer no longer makes this part, and there's no substitute part

Switch Box 11B05

#22

All parts diagram

Switch box

Part #11B05

The manufacturer no longer makes this part, and there's no substitute part

Fan Shroud 11B86

#7

All parts diagram

Fan shroud

Part #11B86

The manufacturer no longer makes this part, and there's no substitute part
