KitchenAid
Refrigerator

Model # KUDR204ESB01 Official KitchenAid refrigerator

Here are the diagrams and repair parts for Official KitchenAid KUDR204ESB01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

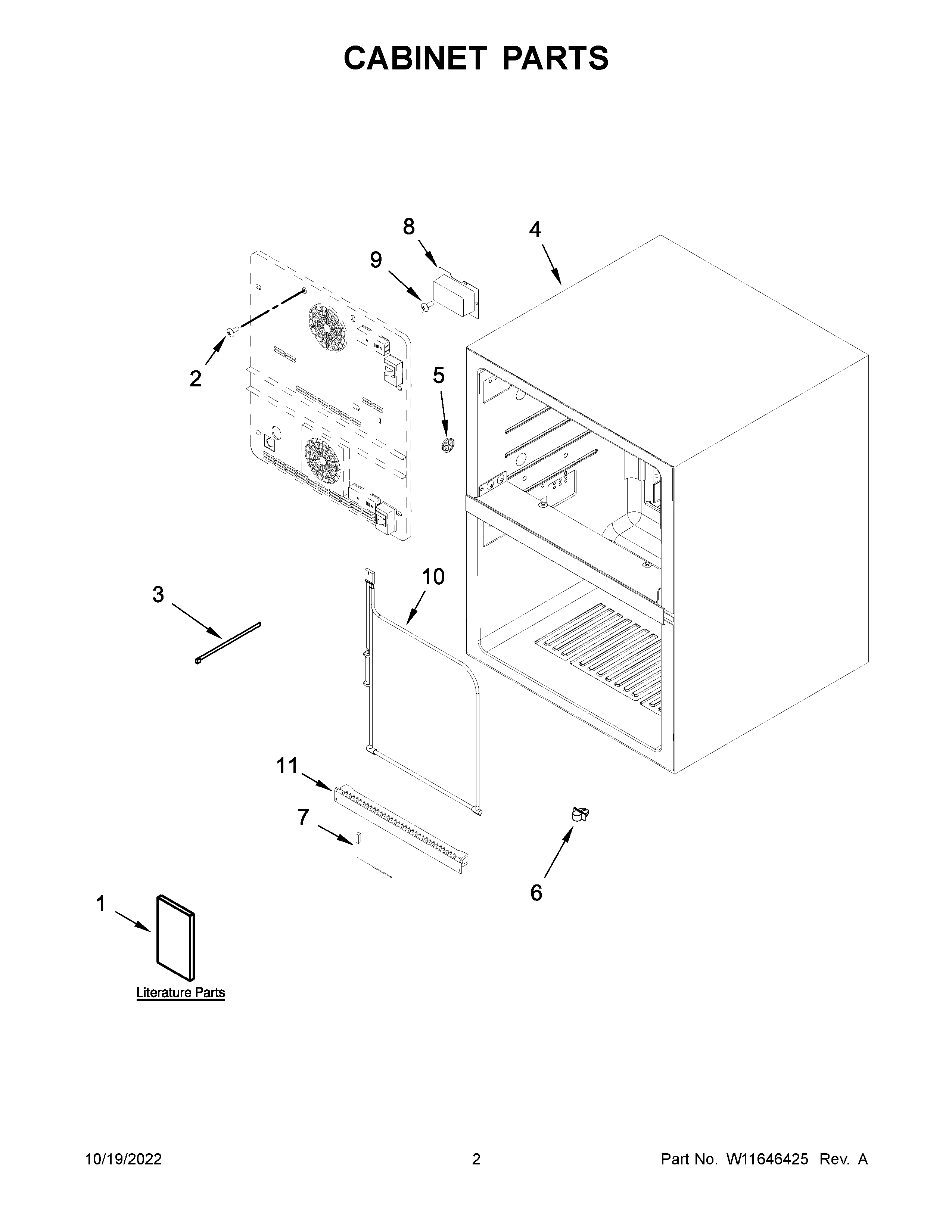

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Handle W11646480
Handle

Part #W11646480

Replaced by #W10708004

?
Manufacturer substitution
This part replaces W11646480. Substitute parts can look different from the original.
$55.28 |
10% OFF Phone Price : $61.28
In Stock
Maytag Refrigerator Defrost Drain Pan W10316689
#11

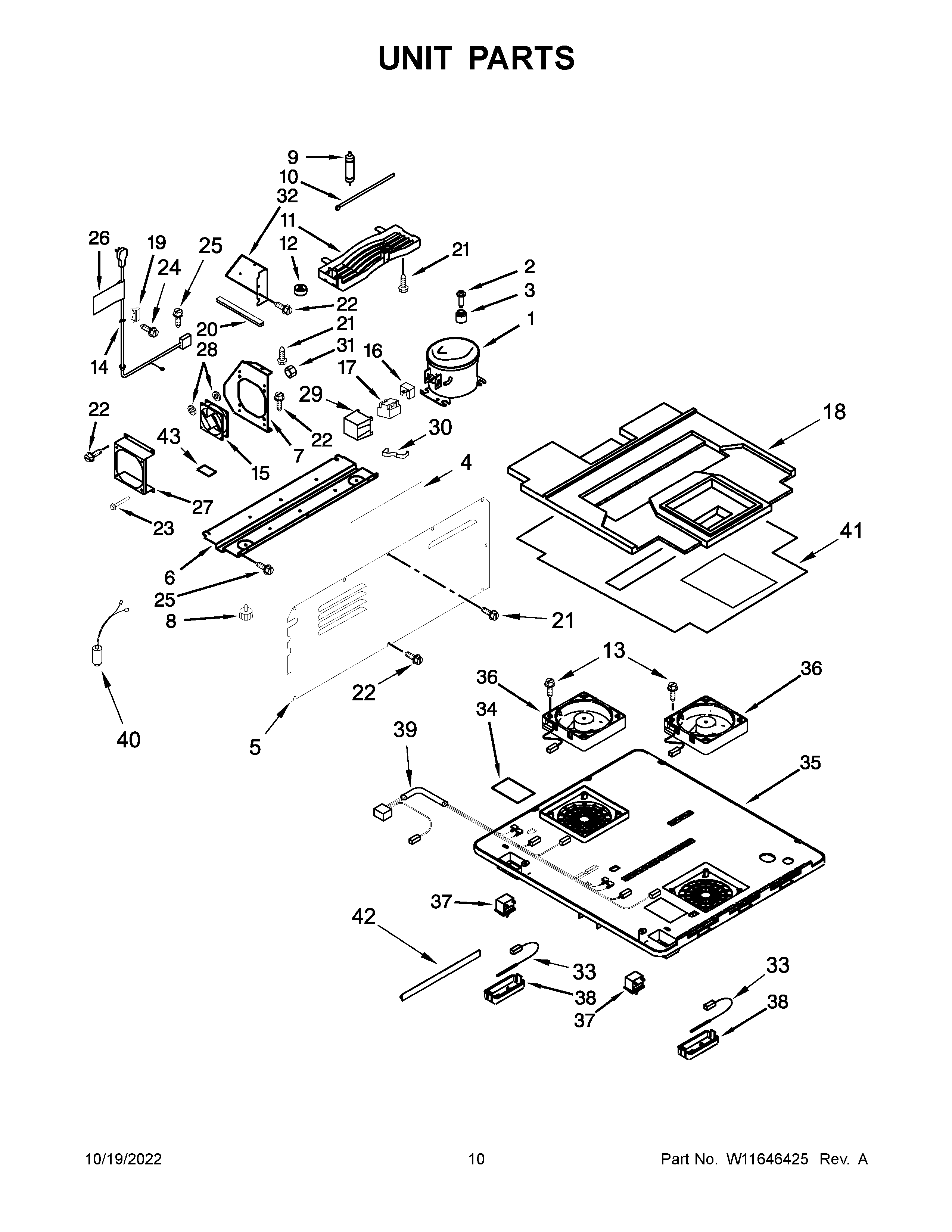

Unit parts diagram

Maytag refrigerator defrost drain pan

Part #W10316689

$77.18
In Stock
Refrigerator Drawer Display-to-indicator Wire Harness W10789534
#16

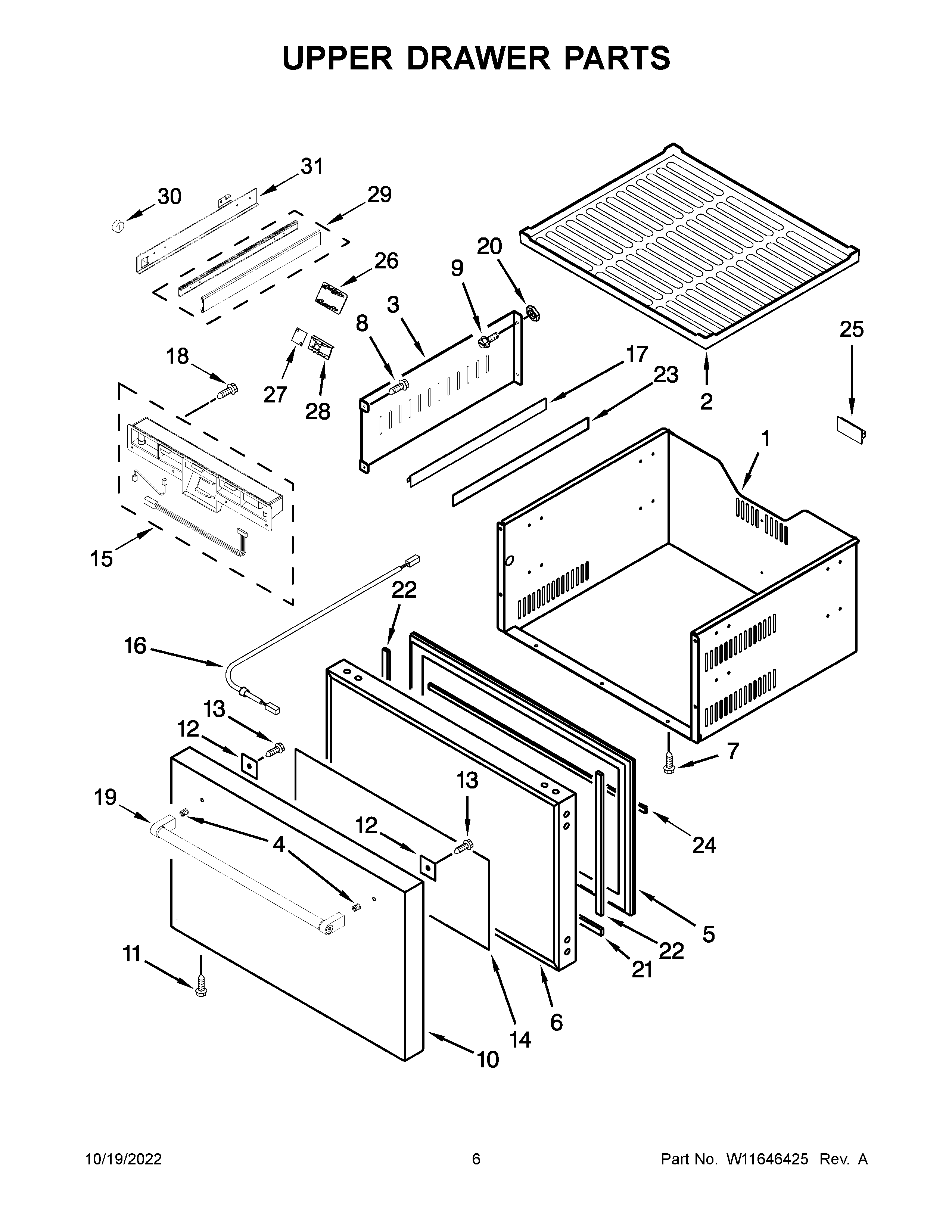

Upper drawer parts diagram

Refrigerator drawer display-to-indicator wire harness

Part #W10789534

$93.29 |
6% OFF Phone Price : $99.29
In Stock
Wine Cooler Leveling Leg 4344763
Wine cooler leveling leg

Part #4344763

Replaced by #W11106296

?
Manufacturer substitution
This part replaces 4344763. Substitute parts can look different from the original.
This item is not returnable
$11.28 |
15% OFF Phone Price : $13.28
In Stock
Refrigerator Main Pcb W10772868
#19

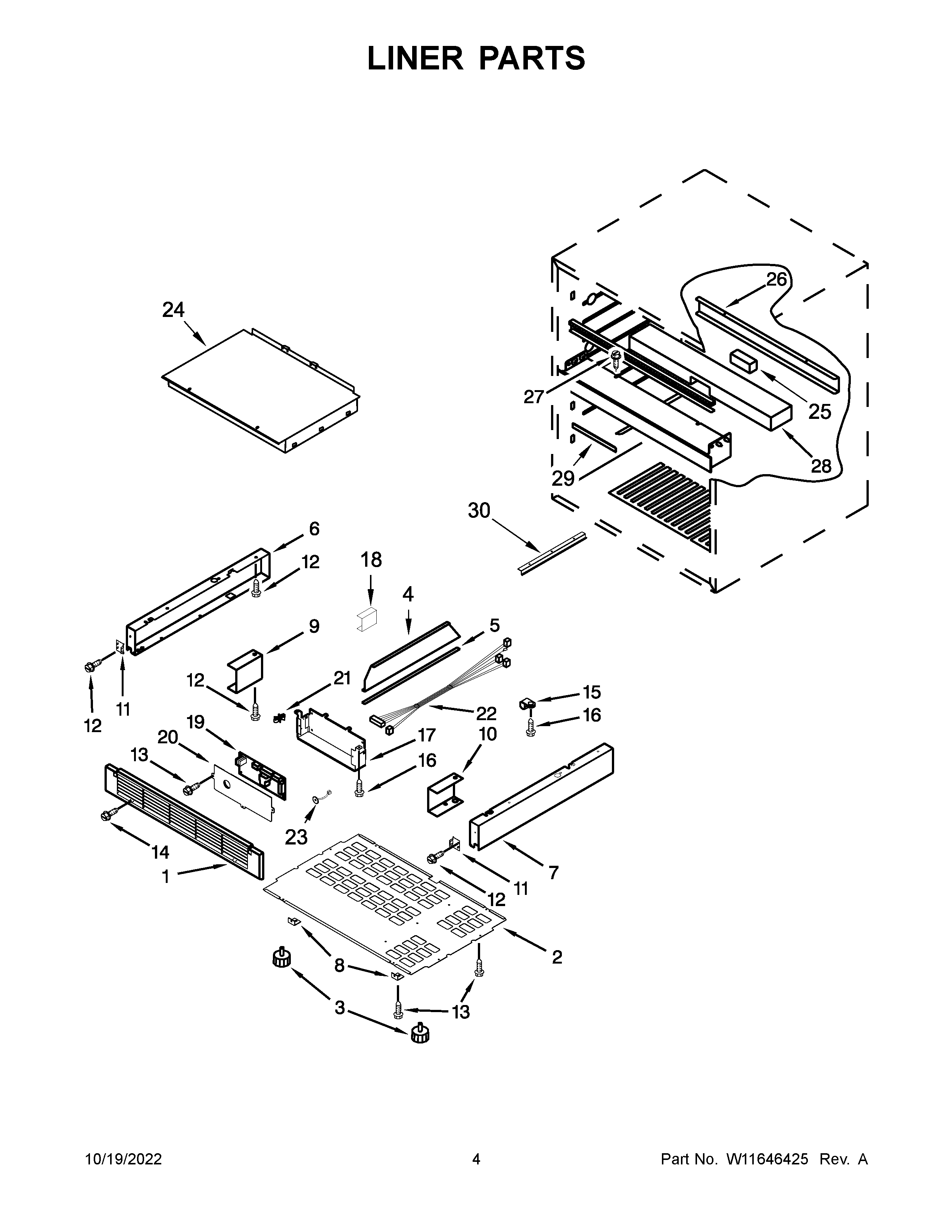

Liner parts diagram

Refrigerator main pcb

Part #W10772868

Replaced by #WPW10772868

?
Manufacturer substitution
This part replaces W10772868. Substitute parts can look different from the original.
$184.29 |
6% OFF Phone Price : $196.29
In Stock
Screw 4344832
#22

Unit parts diagram

Screw

Part #4344832

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4344832. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Refrigerator Insulation W10205072
#25

Liner parts diagram

Refrigerator insulation

Part #W10205072

$53.84
In Stock
Running Capacitor W10778969
#40

Unit parts diagram

Running capacitor

Part #W10778969

$55.09
In Stock
Jenn-air Bottom Foame W10789536
#6

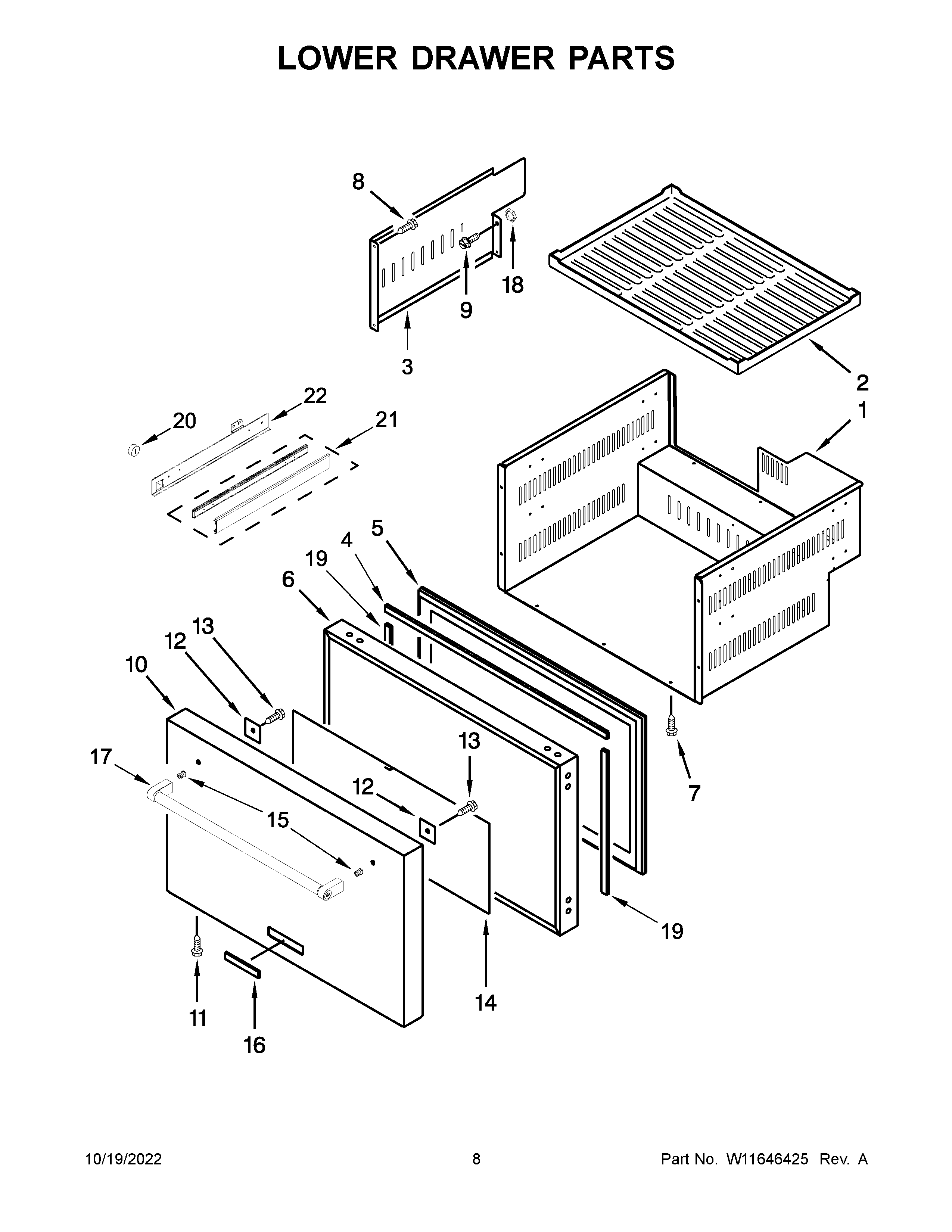

Lower drawer parts diagram

Jenn-air bottom foame

Part #W10789536

$384.64
In Stock
Plate Cover W11646481
#41

Unit parts diagram

Plate cover

Part #W11646481

$43.49
In Stock
